Introduction of UART WiFi Modules USR-WIFI232-B2

USR-WIFI232-B2 is an embedded 802.11 b/g/n UART WiFi module. It can connect traditional serial device and MCU controlled device with wifi network to realize control and management.The module has an Ethernet port. It can realize mutual data transmission among wifi, serial and Ethernet.



Features of UART WiFi Modules USR-WIFI232-B2

Support 802.11b/g/n wireless standard

Support TCP/IP/UDP network protocol

Support UART/GPIO/Ethernet data interface

Support work as STA/AP/AP+STA mode

Support router and bridge mode

External antenna

Support transparent transmission mode

Provide AT+ instruction set for configuration

Provide friendly web configuration page

Support heartbeat signal and wifi connection indication

Support UART auto-frame function

3.3V power supply

Max transmission distance: 280 meters (open horizon, 3dbi antenna)



Application Field of UART WiFi Modules USR-WIFI232-B2

WiFi remote control and monitoring, TCP/IP and WiFi coprocessor

WiFi remote control toy such as aircraft and cars

WiFi Internet radio, camera, digital photo frame

Medical instrument, data acquisition, handheld device

WiFi fatness testing machine, smart card terminal, Smart Home

Instrument, equipment parameter monitoring, wireless POS machine

Modern agriculture, military field and other wireless related secondary development applications



Function Chart of Serial to WiFi Modules USR-WIFI232-B2

Function Chart of Wifi Modules which can realize mutual data transmission among wifi, serial and ethernet



Function Structure of Serial to WiFi Modules USR-WIFI232-B2

Function Structure of Wifi Modules



Networking Mode of Serial to WiFi Modules USR-WIFI232-B2

AP Mode

Networking Mode of Wifi Modules: ap mode



STA Mode

STA Mode of M2M Wifi Modules, sta mode



AP+STA Mode

AP+STA Mode of M2M Wifi Modules, ap+sta mode

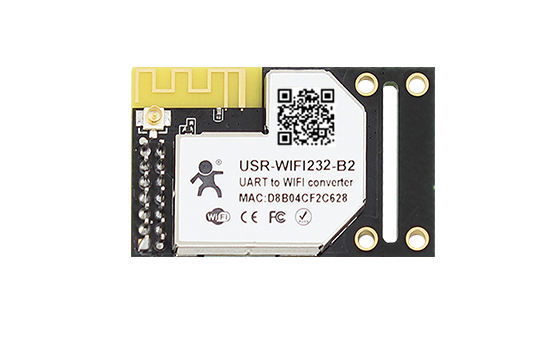

Image of Serial to WiFi Modules USR-WIFI232-B2

Images of Wifi Modules
