USR-N510-H7 MQTT Gateway

USR-N510-H7 MQTT Gateway

1 Port Serial to Ethernet Converter MQTT Gateway

1 Port Serial to Ethernet Converter MQTT Gateway


The N510-H7 MQTT Gateway is an industrial device specifically designed to implement an Industrial Internet of Things (IIoT) data collection system. It allows bidirectional communication between Modbus field equipment and an MQTT broker. It provides a Modbus RTU master interface on RS232/RS485/RS422 and Modbus TCP over Ethernet. Variables can be read from Modbus slave devices on change or at fixed time intervals and are sent to the MQTT broker with optional SSL/TLS client certificate authentication. It also can realize bi-directional transparent transmission between RS232/RS485/RS422 and network.

●Configurable TCP/Http/MQTT/Https Mode, GET/POST Methods
●Modbus Gateway: Modbus RTU to TCP, Modbus RTU to JSON, Modbus Polling
●Configure and Read Multiple Slave IDs, Selectable Register Address data
●Parameter Data type, Byte Swapping Conversion and Scaling factor enabled
●Configurable JSON Format for Packet forwarding
●Support 16 Topics, length adjustable
●Easy MQTT settings by web Browser configuration
●SSL/TLS function,supports bi-directional verification to ensure the security of data transmission
●Edge computing function, supports configuration of 32 nodes. Data can be reported to the server actively
●Supports connection to AWS ( Amazon Cloud) and many IOT clouds
ndustrial gr

 MQTT/SSL/TLS

Connect to AWS

USR-N510 (H7 Version) Modbus Gateway

1 Port Serial to Ethernet Converter

RS232/485/422 3 in 1

SSL/TLS function,
supports bi-directional verification

Modbus RTU to TCP
Modbus RTU to JSON

Modbus Polling
Edge computing

ESD protection
level 3

Air +-8KV
Contact +-8KV

Surge protection:
level 3
EFT protection:
level 3

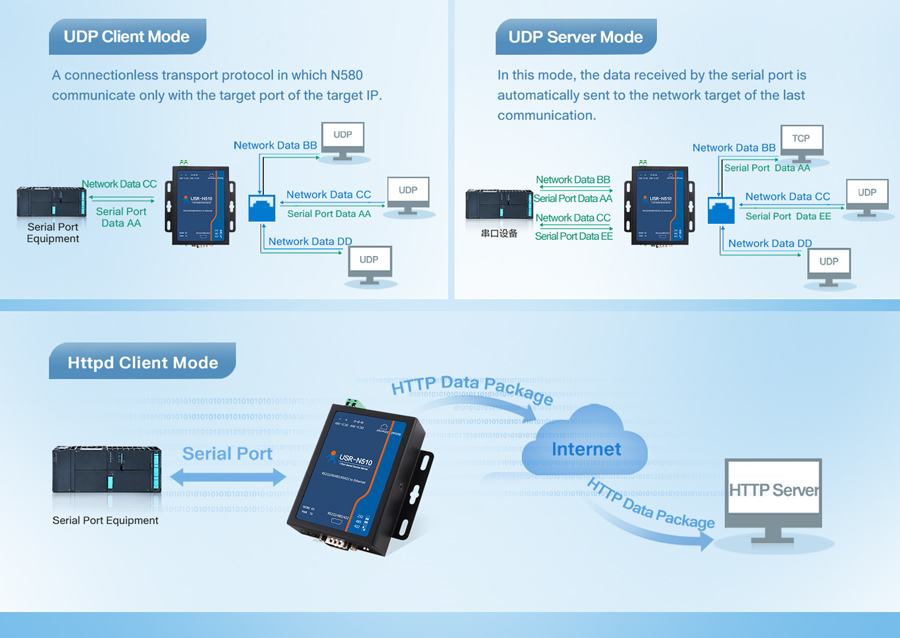

Free Choice of Multiple Working Modes

Modbus gateway N510 supports TCP Client、TCP Server、UDP Client、UDP Server、
Httpd Client (later support MQTT Client) and other modes ; only a simple configuration,
you can achieve data pass-through function.

Lightweight MQTT protocol

MQTT 3.1 and 3.1.1 both supported,features SSL/TLS security ,
supports maximum 16 topics publication simultaneously,
16 topics subscription simultaneously.

MQTT Broker

Communication encryption, security and reliable

Supports SSL/TLS encryption in TCP client, HTTP client and MQTT work modes
Supports two-way certificates authenticationSecure transmission of user data,
applicable to confidentiality scenarios

Simple and fast edge computing function

Supports JSON format reporting, simple configuration,
Modbus gateway N510 can actively collect the required data and report
Up to 32 nodes can be reported, you can choose periodic or varying reporting.
When the data of multiple devices is reported at the same time,
edge computing gateways can effectively relieve the pressure on the server.

Block Diagram

Soc core of STMicroelectronics

Industrial giant ST chip scheme, ARM architecture Cortex M7,
stronger scalability, sufficient resources, low latency

High Reliability and Stability

EMC protection

USR-N510 MQTT Gateway

1 Port Serial to Ethernet Converter

RS232/485/422 3 in 1

SSL/TLS function,
supports bi-directional verification

Modbus RTU to TCP
Modbus RTU to JSON

Modbus Polling
Edge computing

ESD protection
level 3

Air +-8KV
Contact +-8KV

Surge protection:
level 3
EFT protection:
level 3

Free Choice of Multiple Working Modes

N510 supports TCP Client、TCP Server、UDP Client、UDP Server、Httpd Client (later
support MQTT Client) and other modes ; only a simple configuration, you can achieve
data pass-through function.

Lightweight MQTT protocol

QTT 3.1 and 3.1.1 both supported,features SSL/TLS security ,
supports maximum 16 topics publication simultaneously,
16 topics subscription simultaneously.

MQTT Broker

Communication encryption, security and reliable

Supports SSL/TLS encryption in TCP client, HTTP client and MQTT work modes
Supports two-way certificates authenticationSecure transmission of user data,
applicable to confidentiality scenarios

Simple and fast edge computing function

Supports JSON format reporting, simple configuration,
N510 can actively collect the required data and report
Up to 32 nodes can be reported, you can choose periodic or varying reporting.
When the data of multiple devices is reported at the same time,
edge computing gateways can effectively relieve the pressure on the server.

Block Diagram

Soc core of STMicroelectronics

Industrial giant ST chip scheme, ARM architecture Cortex M7,
stronger scalability, sufficient resources, low latency

System Information
Processor Cortex-M4
Basic Frequency 120MHz
Flash 512K byte
Ethernet
Port Number 1
Interface Standard 8 pin RJ45
Rate 10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection
Protection 2KV electromagnetism isolation, shell insulation blocking
Network Protocol IP,TCP,UDP,DHCP,DNS,HTTP,ARP,ICMP,Web socket,Httpd client,SSL/TLS. MQTT
Receive Buffer Max 16k bytes buffer
Serial
Port Number 1
Interface Standard RS-232: DB9 pin type, RS-485: 2 wire (A+,B-), RS-422 (A,B,Y,Z)
Data Bits 5,6,7,8
Stop Bit 1,2
Check Bit None,Even,Odd,Space,Mark
Baud Rate 600bps ~ 230.4Kbps
Flow Control RTS/CTS
Buffer Send and receive 2k bytes respectively
Protection RS-485: anti-static 2KV,lightning protection
RS-485 Pull-up and Pull-Down Resistor 2.2 KΩ
Software
Virtual Serial(USR-VCOM) Windows 2000 or higher(32 bit/64 bit)
Configuration Built-in webpage, computer set-up software, serial command
Basic Parameter
Size 88 x 81 x 24 mm
Operating Temp. -40 ~ 85°C (industry)
Storage Temp. -40 ~ 85°C, 5 ~ 95% RH (no condensation)
Input Voltage DC 5 ~ 36V
Working Current 53mA @ 12V
Power <1W
More
Certificate CE,FCC,ROHS
Warranty 2 years
