HardwareParameters
|
Processor CPU
|
Rockchip RK3562J
ARM quad-core 64-bit processor,clocked up to 2.0GHz
|
Graphics
Processor GPU
|
ARM G52 2EE GPU
Support OpenGLES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1,
embedded high-performance2D acceleration hardware
|
Neural,Network Processing NPU
|
Built-in neural network processorNPU,1.0TOPS@INT8 performance
SupportCaffe/Mxnet/TensorFlow/TFLite/ONNX/Darknet models.
|
Operating system
|
Linux Ubuntu 20.04
|
Memory
|
DDR44GB
|
Storage
|
eMMC32GB
|
SDMemory
|
Support SD card storage, up to 128G
|

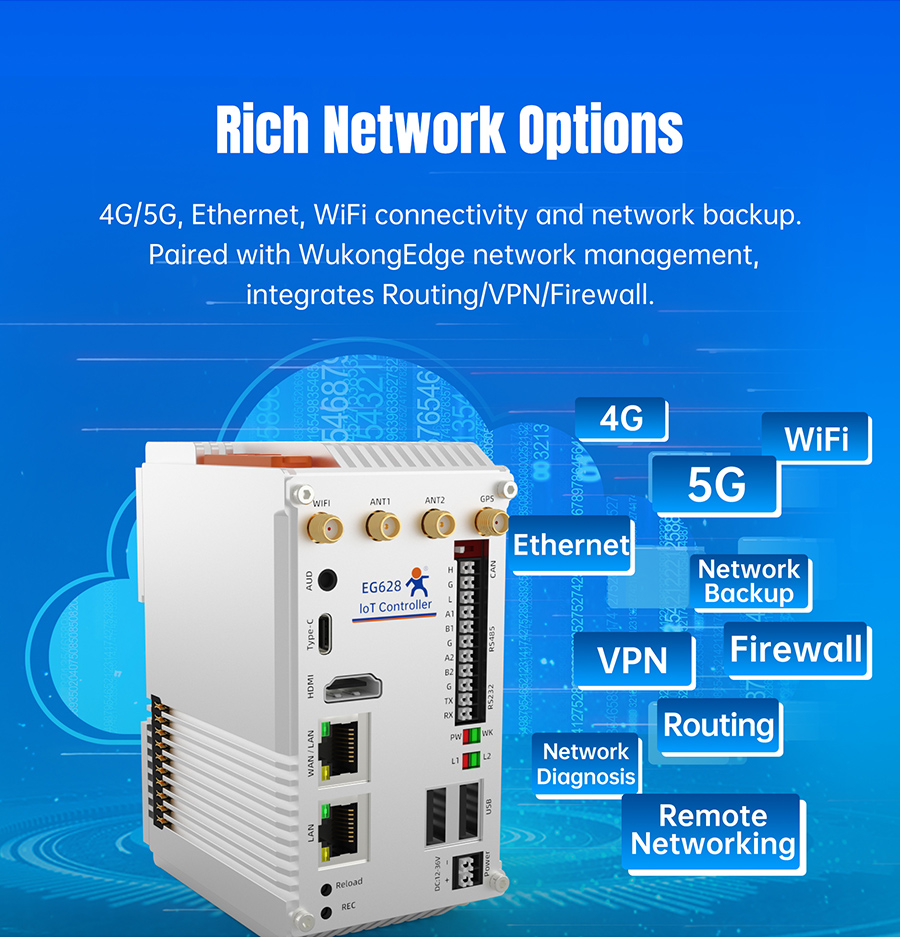

Network
|
Two Ethernet interfaces, one gigabit and one hundred megabit
|
Dual-band WiFi
IEEE 802.11a/b/g/n/ac/ax
2.4 GHz:2.400~2.4835 GHZ
5 GHz:5.150~5.850 GHZ
|
Support for 4G functionality
|
GPS
|
Built-in GPS/BD module,Sensitivity:-162dBm
Receiving frequency:1575.42MHz ; Satellite channel:20 channelPositioning accuracy: <10m(GL version support, other versions support customization)
|
SIM
|
Nano SIM card holderfor cellular networking

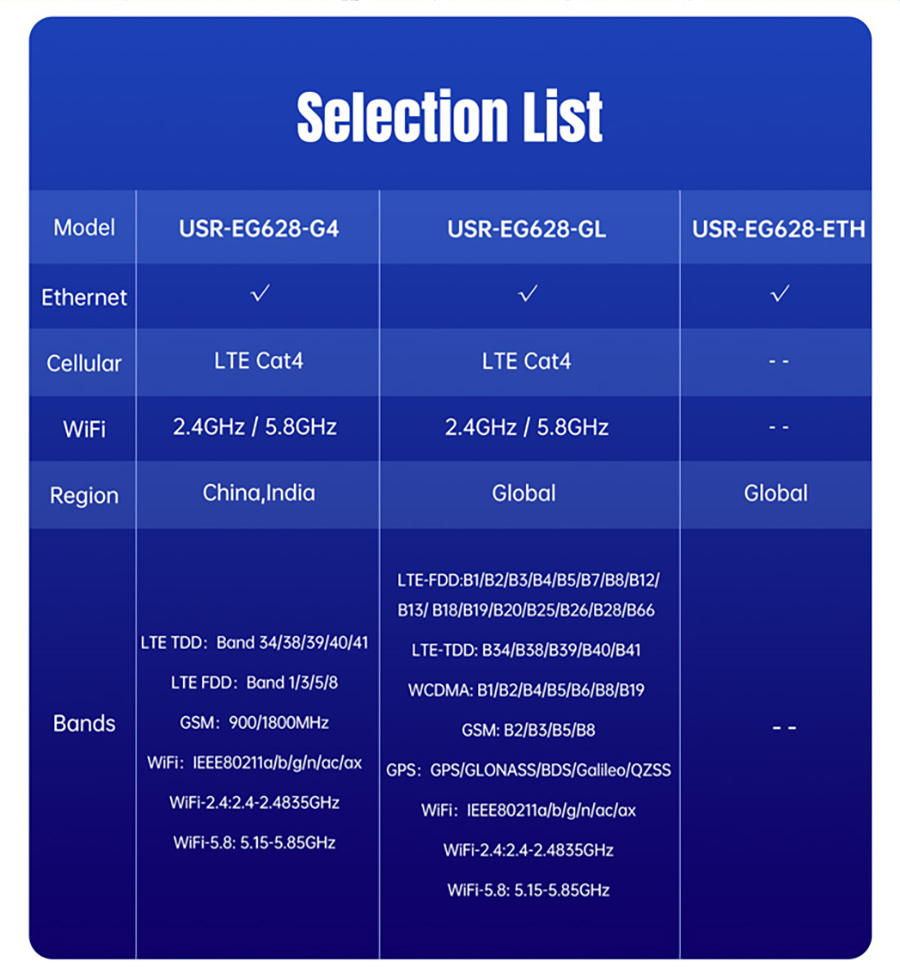

(-GL): Dual SIM Single Standby, Dual External Card.
(-G4):Dual card single standby, SIM1 is external card, SIM2 is built-in card
|
Display interface
|
1* HDMI OUT 2.0 supports 4K60fps output
|
Audio
|
1*Headset output
|
RTC
|
Built-in real-time clock power supply battery,
support timing switch on and off
|
USB
|
2*USB2.0 HOST
1*USB3.0 OTG(compatible upgrade, default HOSTfunction, Type-C interface)
|
LED
|
1*Power status LED(red), 1 *Operating status LED(green,flashing by default)
L1 and L2 are custom indicators
|
Key
|
1*Upgrade key (used when upgrading firmware)
1* Factory restore button (Edge application parameters factory restore use)
|

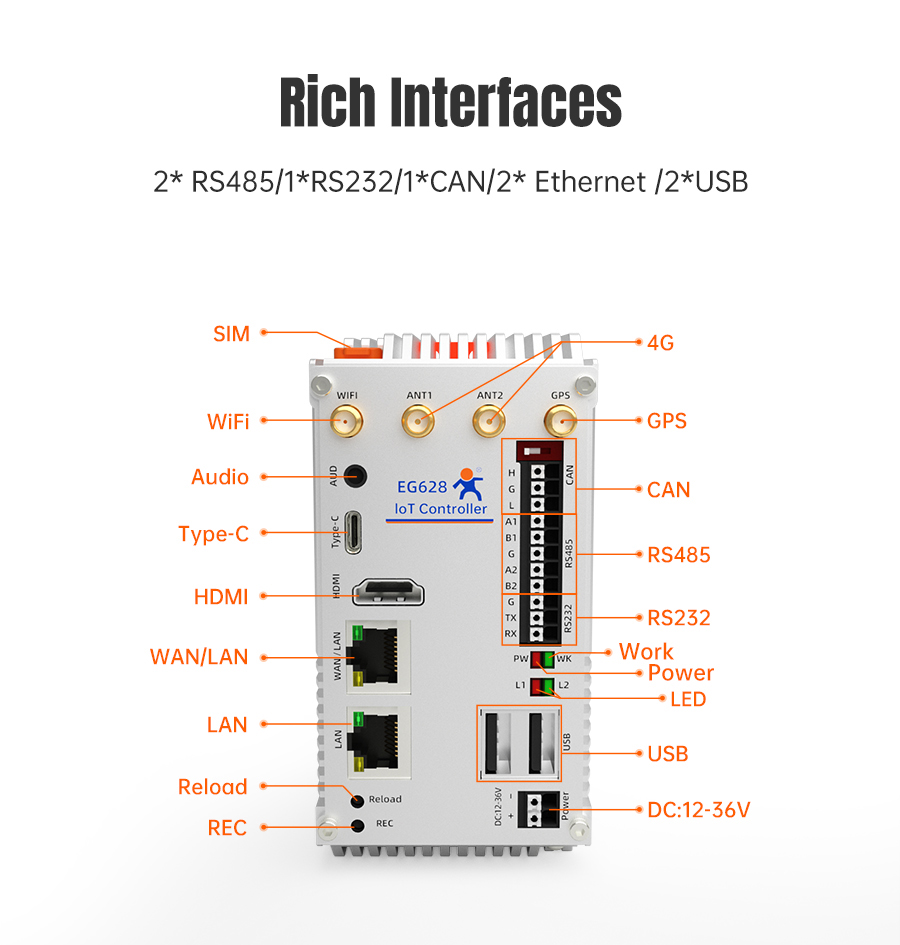

Serial port
|
1*RS232 ,2*RS485
|
CAN
|
1*CAN
|

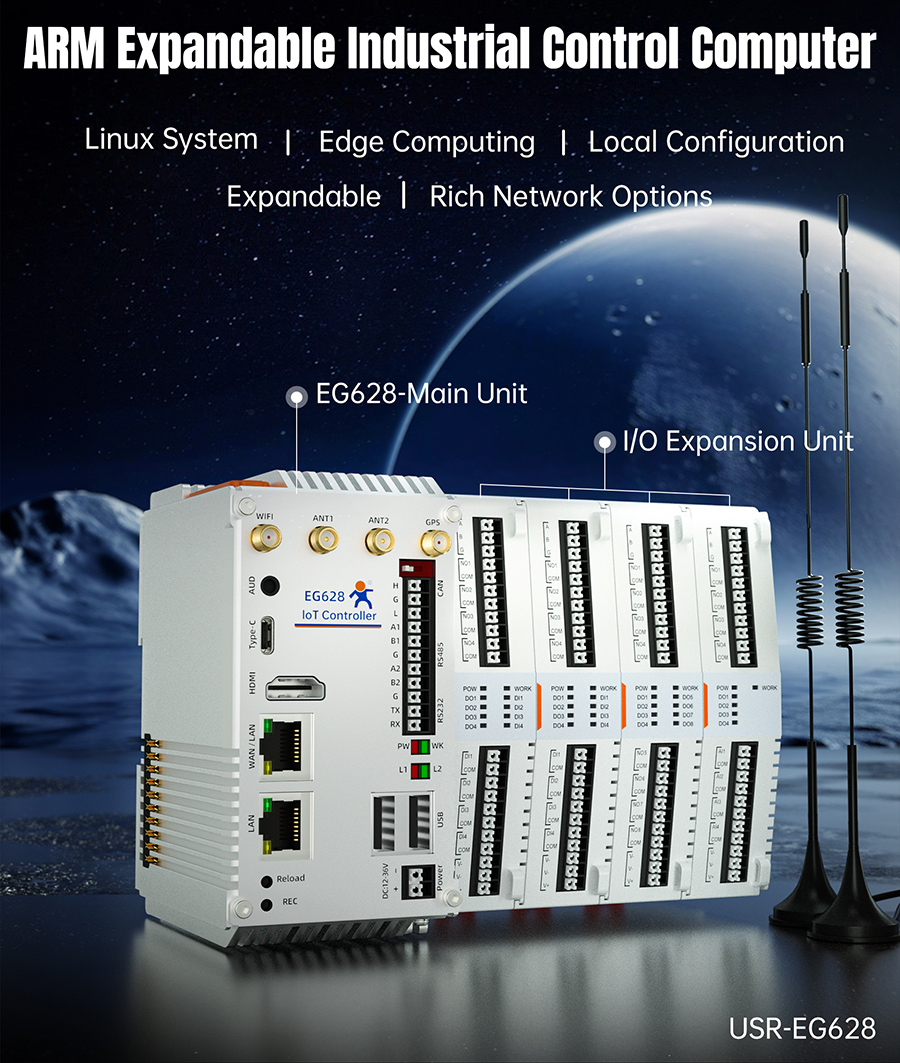

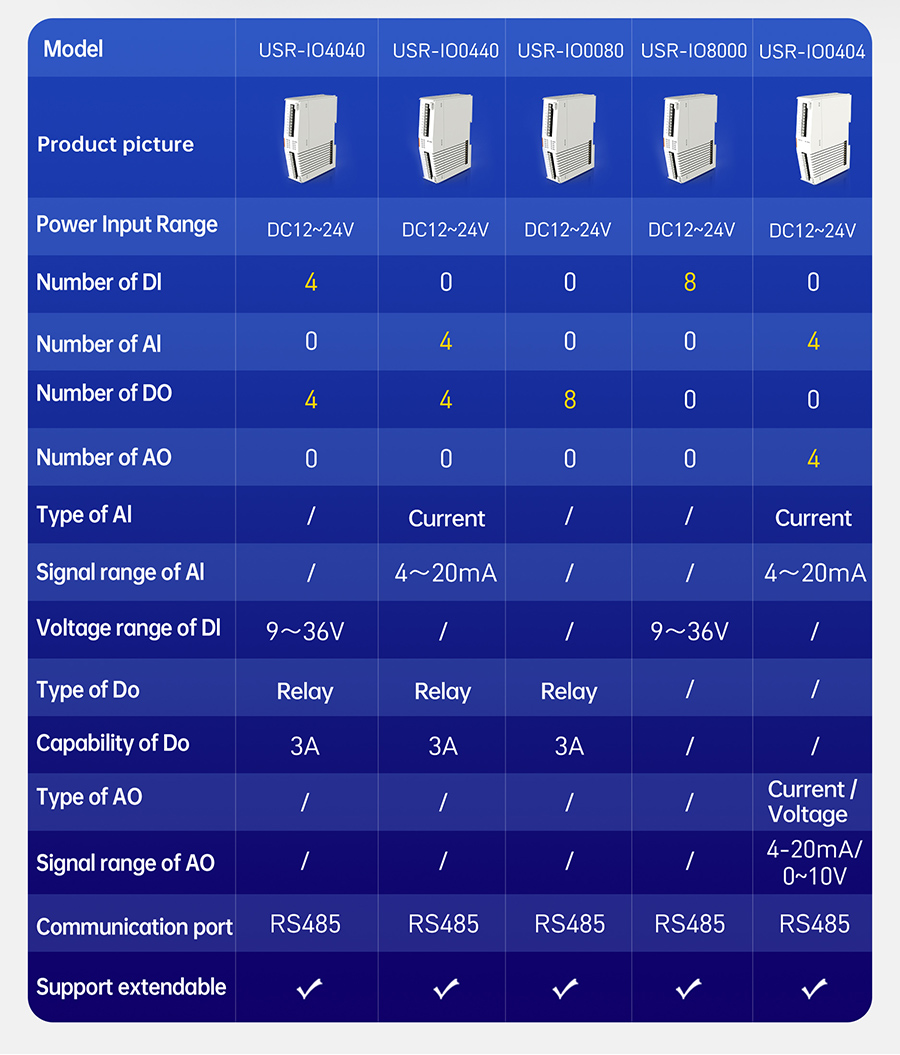

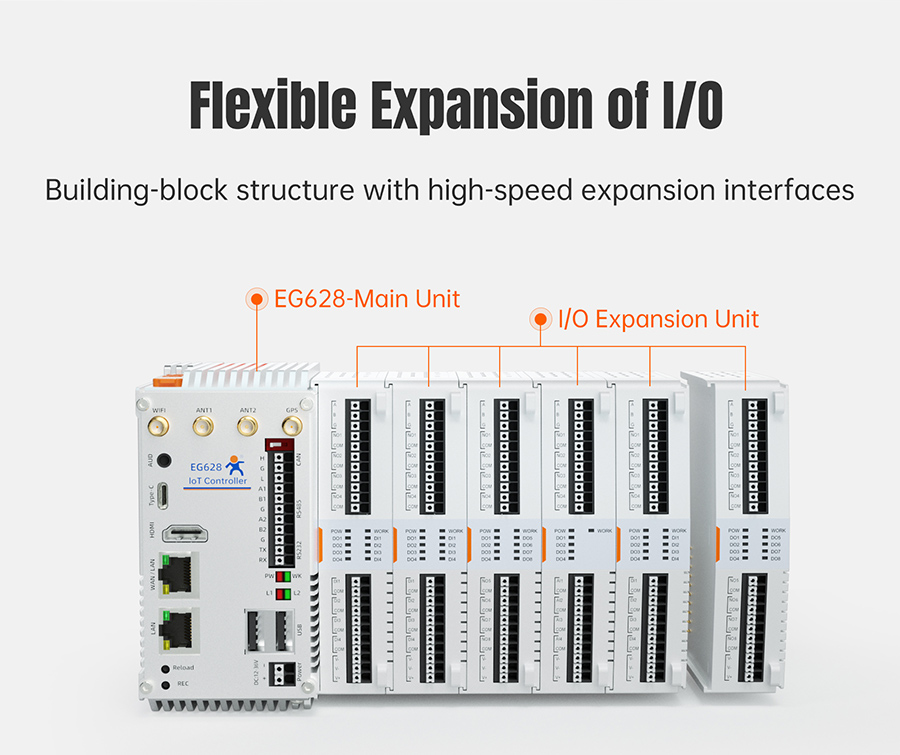

IO port
|
expandable
|
Mains input
|
9-36V wide voltage supply
|
Operating temperature
|
-20 -70°C
|
Storage temperature
|
-20 - 80 °C
|
Operating humidity
|
5%-95%
|
Multimedia
|
Support 4K 60fpsH.265/H.264 video decoding
Support 1080P 100fps H.265/H.264 video encoding
Support 8M ISP, support HDR
|
Language support
|
English by default, downloadable in other languages
|
Input method
|
Standard Android keyboard with optional third-party input methods (Chinese, Korean, Japanese, etc.)
|
SoftwareParameters
|

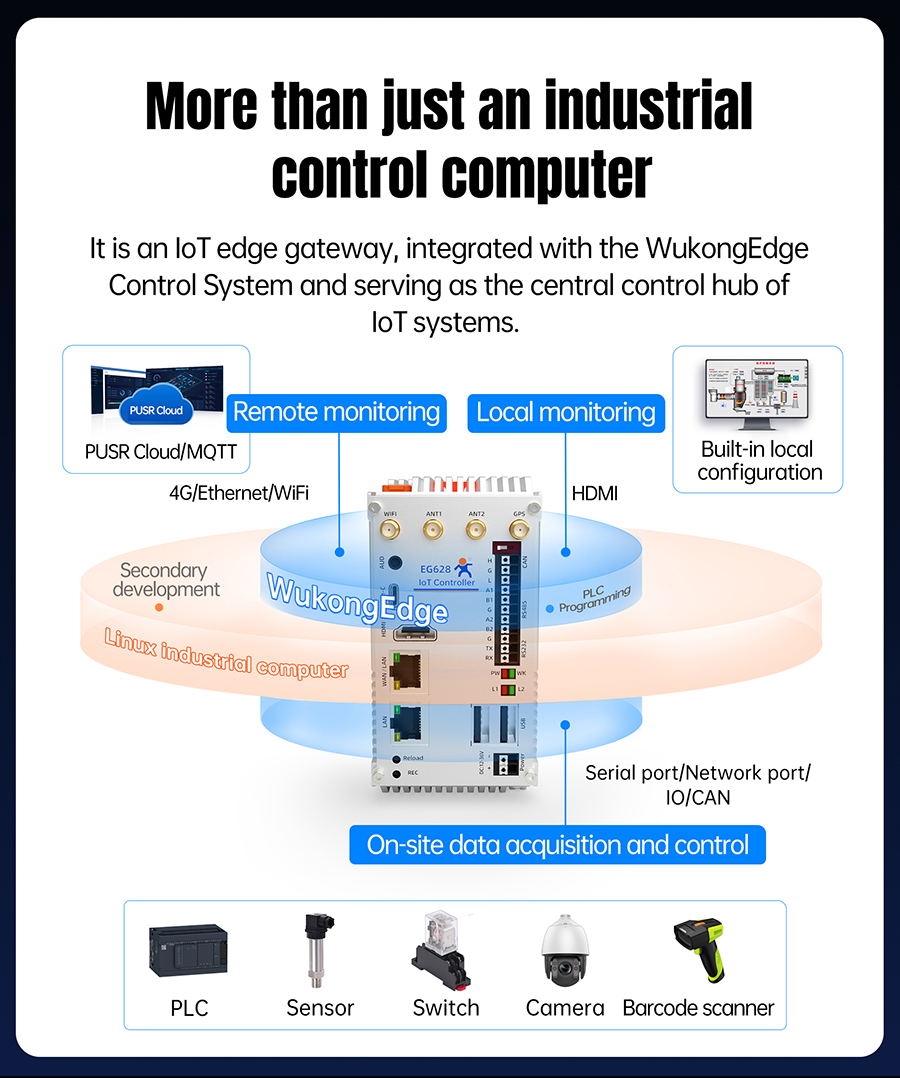

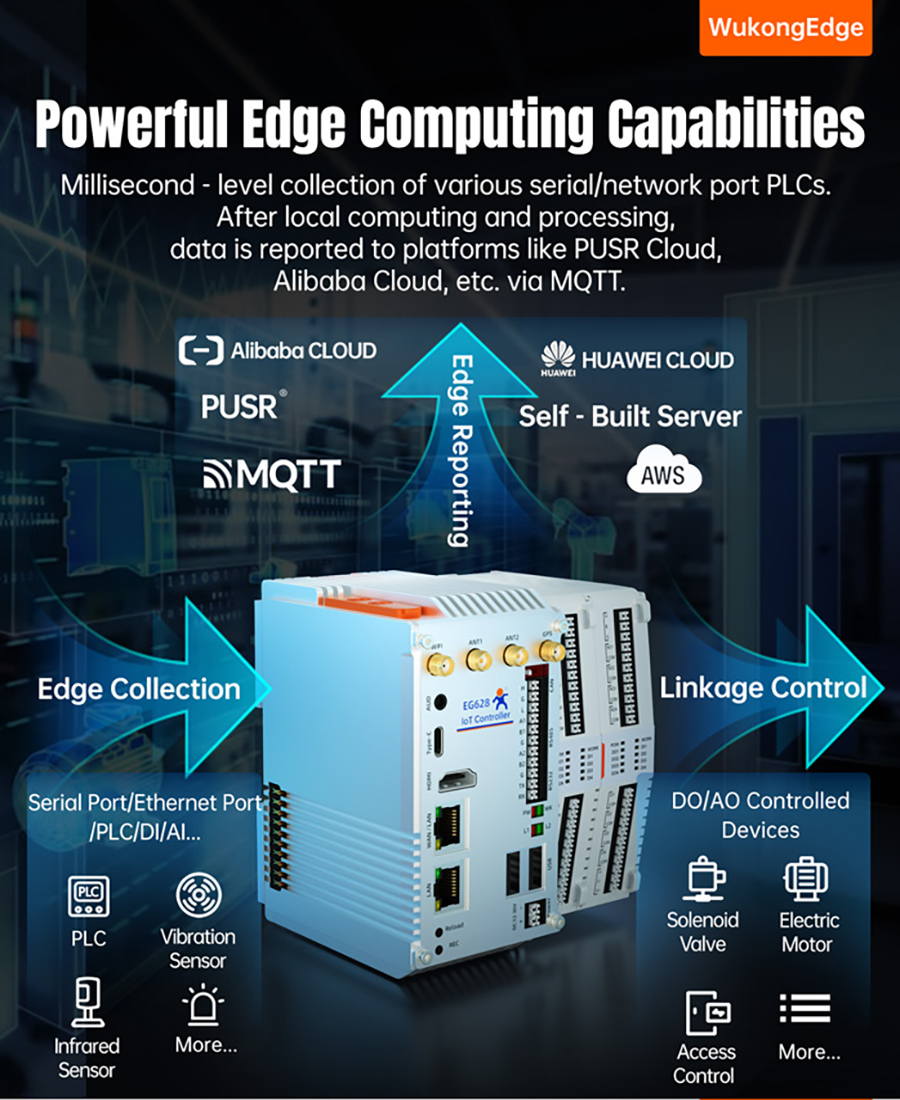

Edge computing
|
2000+ points, support edge acquisition, calculation, active reporting and other edge functions
|

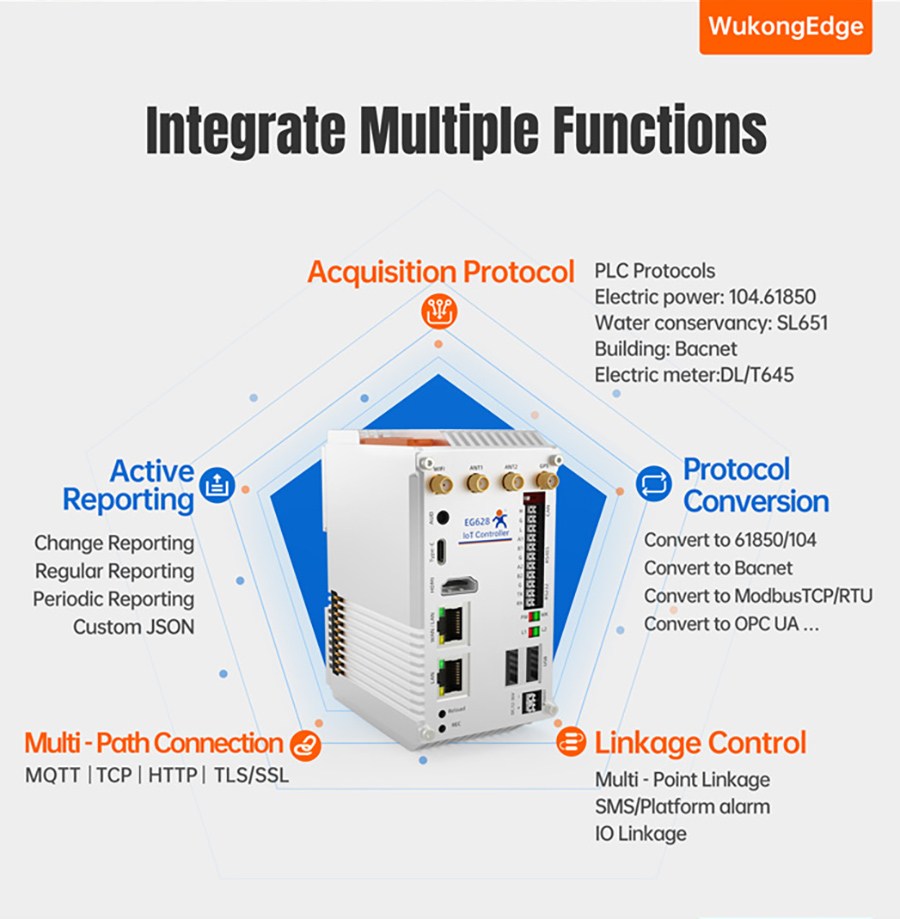

Protocol conversion
|
Supports Modbus, OPC UA, JSON, IEC104, IEC61850, Bacnet, etc.
|
Acquisition protocol
|
Multiple PLC protocols, IEC104, IEC61850, Bacnet, DL/T645, etc.
|

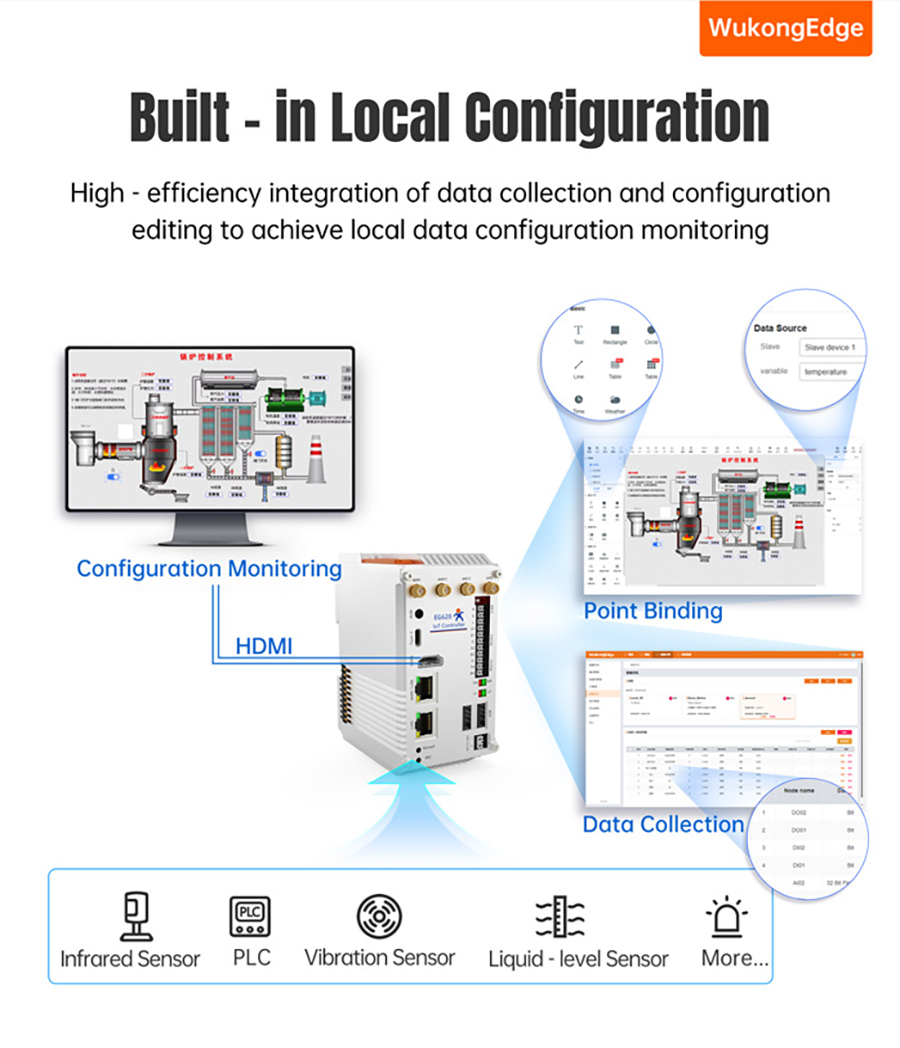

Configuration
|
Support configuration local editing, local display
|

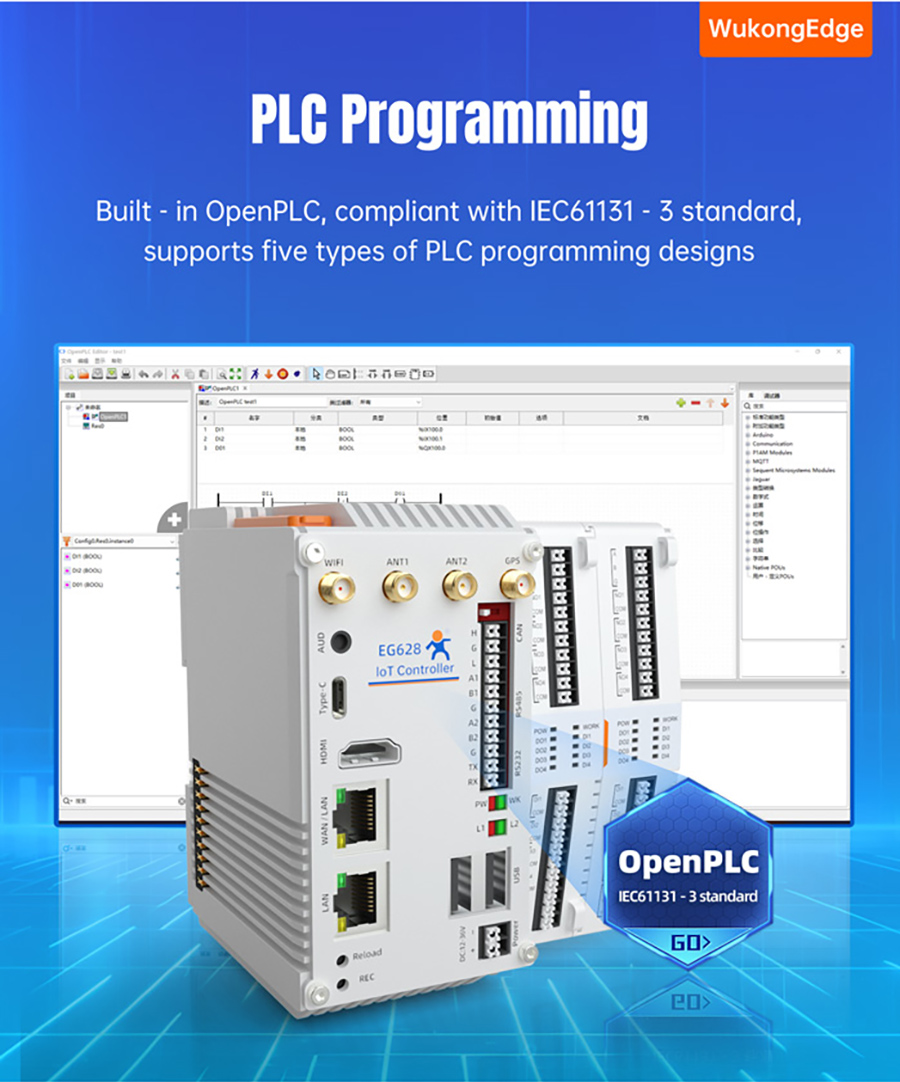

PLC
|
Comply with IEC61131-3 standard,
support 5 PLC programming languages
|

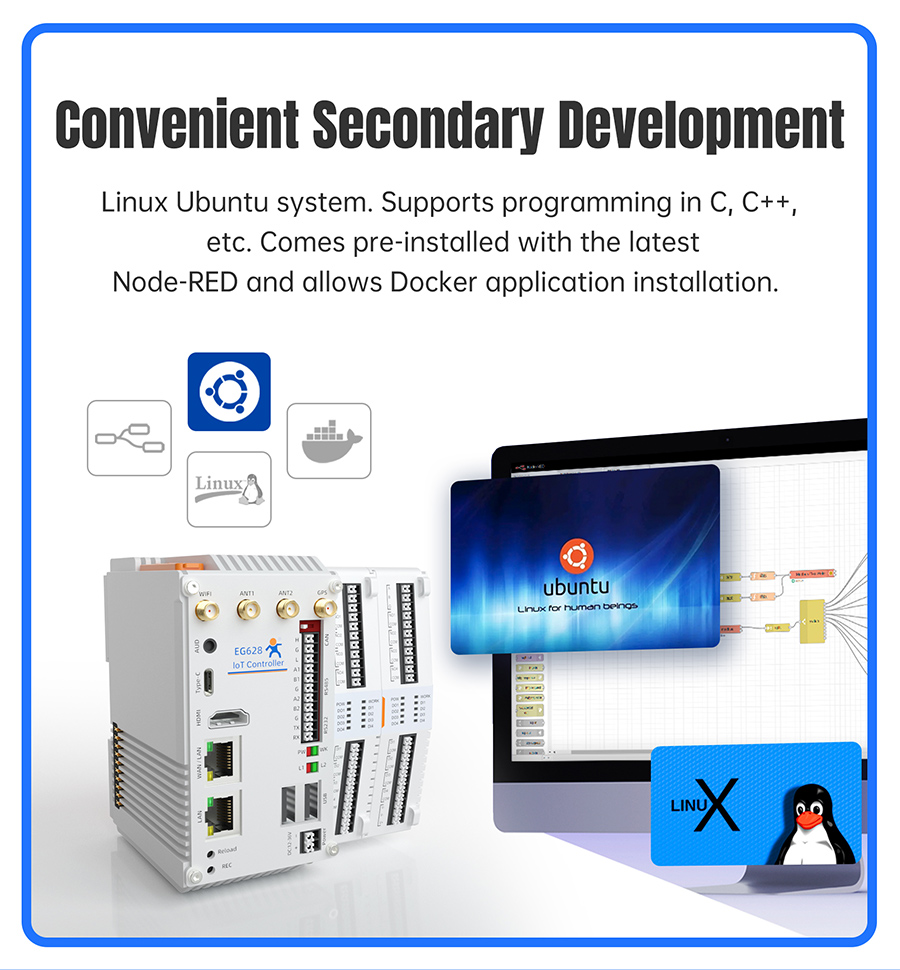

Secondary development
|
Standard Linux Ubuntu system, support C/C++ development, built-in new version Node-Red, Docker and other applications can be installed
|
