Support various power consumption mode and broadcast
Super small size encapsulation
Long communication distance, low power consumption, anti-interference and high sensitivity
Smart metering/Agricultural monitoring/Automation/Smart oil field
Point-to-point protocol version WH-L101-P

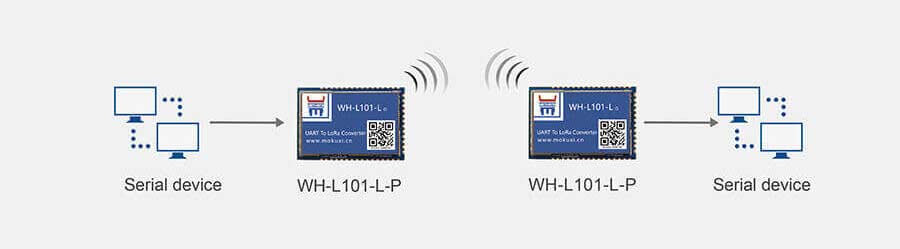

Realize point-to-point data transmission between two serial devices by two L101-P modules
WH-L101 supports high frequency band version and low frequency band version, it also supports point-to-point protocol version and concentrator protocol version.
Ultra-low power demand design
Powerful anti-interference capacity
Greatly extend battery life, be adaptive to connection rate and sleep current can be only 3μA@3.3V.
Reduce power consumption
Long transmission distance and powerful penetrating power.
Data transmission is more stable than traditional mode.
Be suited to long-distance data collection.
Unique signal frequency spectrum amplification
Receiving sensitivity can reach -138.5dBm
Software watchdog design which can realize 24 hours stable operation.
Use AT command to control data encryption transmission to provide security communication mechanism
To realize three elements of security: confidentiality, security and availability.
Transparent transmission mode
Support serial AT command to query/set parameters
In fixed-point transmitting mode, WH-L101-P can change destination address and channel flexibly when WH-L101-P is transmitting data to realize flexibly changing object module.
Can realize long-distance data collection to improve work efficiency
Low power consumption and adjustable transmission rate, which can reduce battery change frequency
Arrange nodes reasonably which can help management and all-sided detection
Smart oil field
Real-time detection to devices which can help management
Long-distance and wireless transmission, and free from the tariff cost
Powerful anti-interference capacity and data transmission won’t be influenced in harsh environment
Data transmission with low power consumption which can reduce operation cost
Timely and valid data transmission, and it can improve agricultural yield and avoid waste of resources
Long-distance and stable transparent transmission, and high-precision working process to help to increase revenue
Working voltage range from 1.8V to 2.4V, transmitting power can be set between 10dBm~17dBm.
Working voltage range from 2.4V to 3.6V, transmitting power can be set between 10dBm~20dBm.
@3.3V: Transmitting current 130mA;Receiving current 16mA;Wake up receiving current 4μA.
