LoRa Terminal
  • LoRa Terminal

USR-LG206-C

USR-LG206-C

LoRa Terminal | RS232 RS485 Serial to LoRa Converters

LoRa Terminal | RS232 RS485 Serial to LoRa Converters


USR-LG206-C is an RS232 RS485 serial to LoRa converter which supports LoRa concentrator communication protocol and realize communication between user serial device and LoRa concentrator.

● RS232 RS485 Serial to LoRa Converter
● Support active reporting mode and polling working mode
● Long communication distance, anti-interference
● Supports private LoRa concentrator communication protocol
● Support hardware watchdog

USR-LG206-C is an RS232/RS485 serial to LoRa converter which supports LoRa concentrator communication protocol and realize communication between user serial device and LoRa concentrator. USR-LG206-C working frequency band are: -L: 398~525MHz; -H: 803~930MHz. LG206-C transmits/receives data by serial and it can lower the wireless application threshold. LG206-C has concentrated power density, powerful anti-interference capacity and communication distance can reach 2000 meters(Open area, 5dBi antenna gain, height is greater than 2 meters, 2.5K air rate).

Model

Frequency



USR-LG206-L-C

398Mhz~525Mhz

USR-LG206-H-C

803Mhz~930Mhz

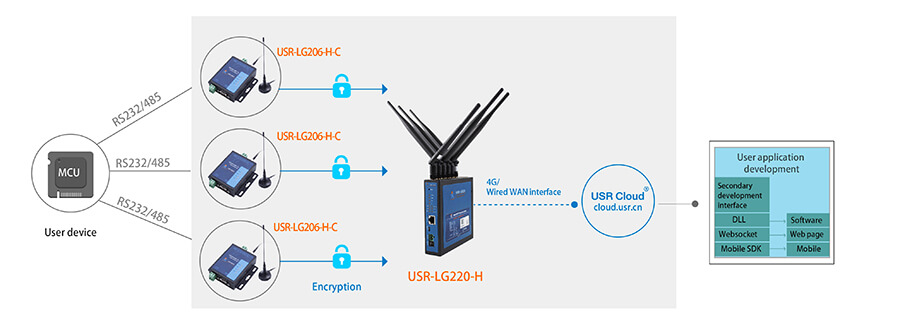

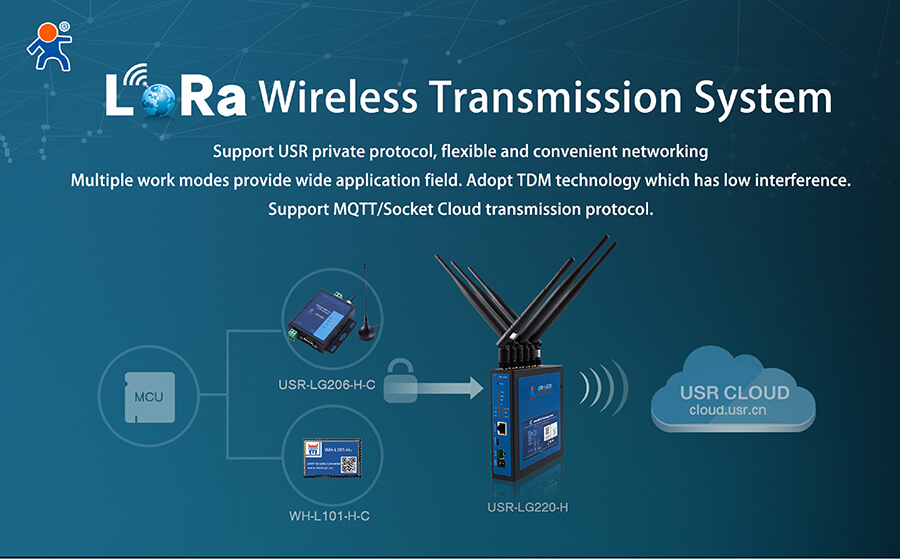

introduction of Serial RS232 RS485 to LoRa Converter

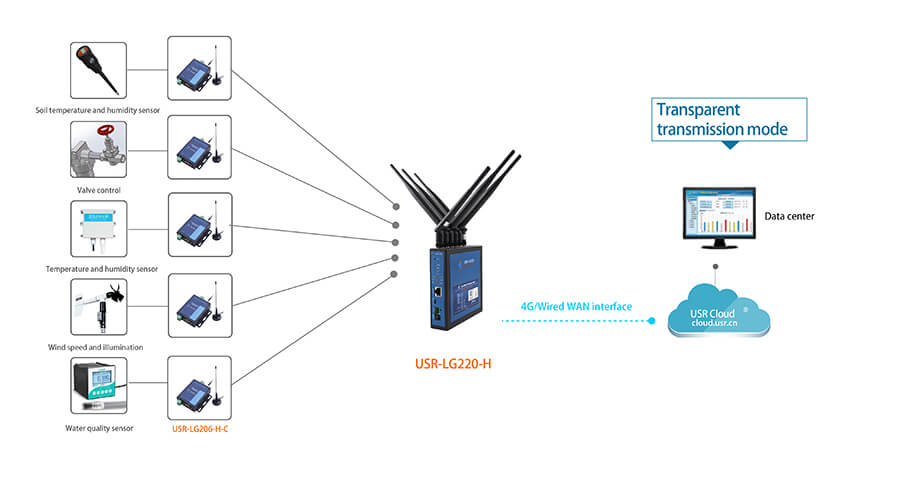

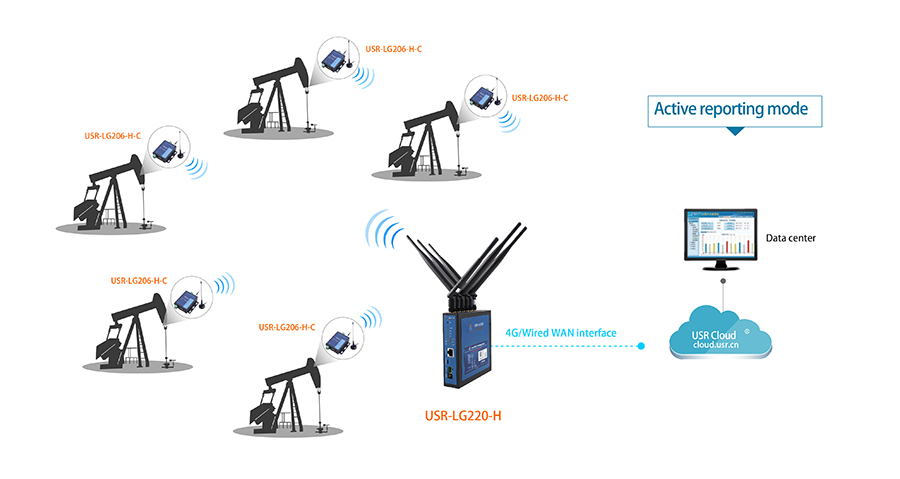

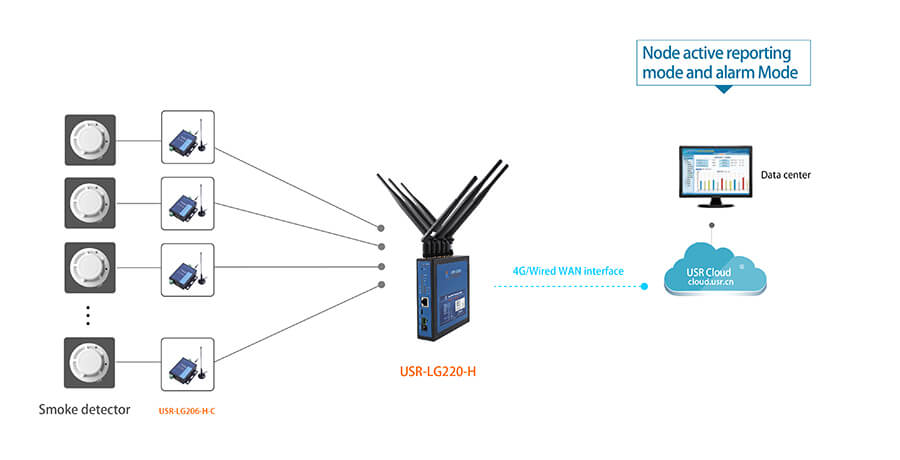

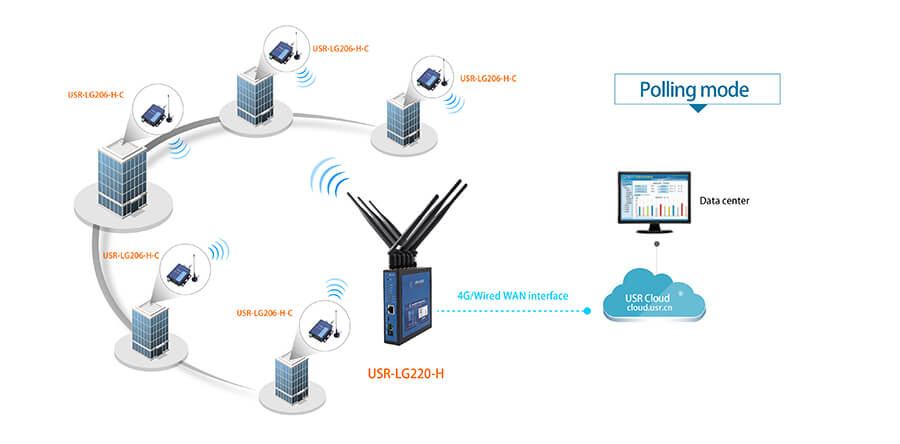

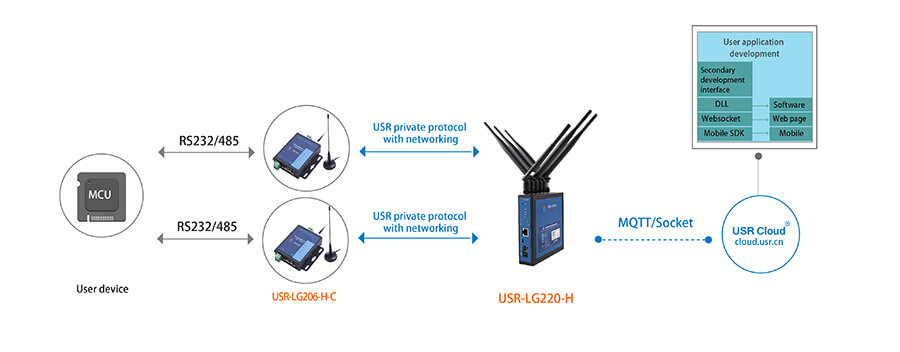

Serial RS232 RS485 to LoRa Converter networking

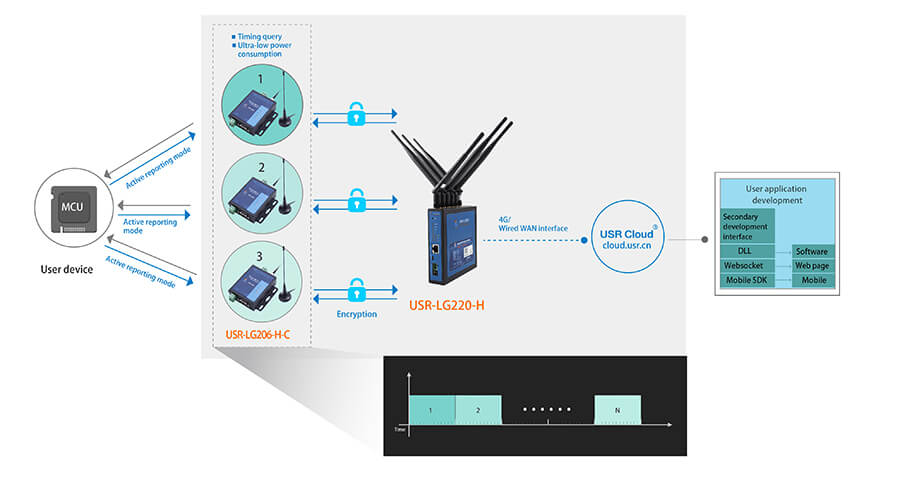

Serial RS232 RS485 to LoRa Converter networking paragram

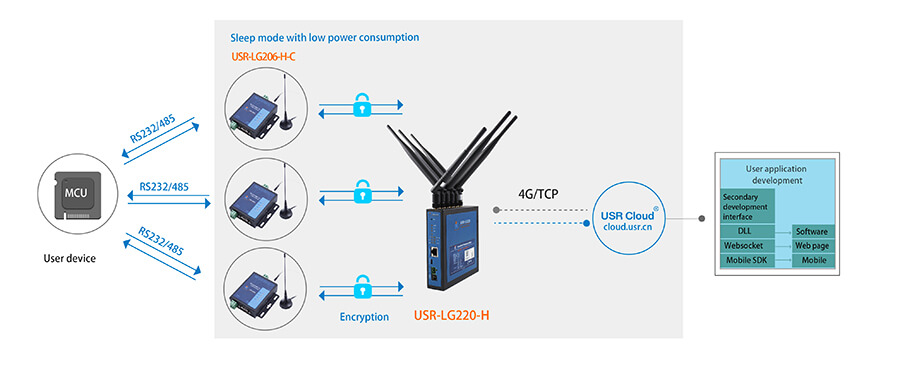

Serial RS232 RS485 to LoRa Converter,sleep mode with low power consumption

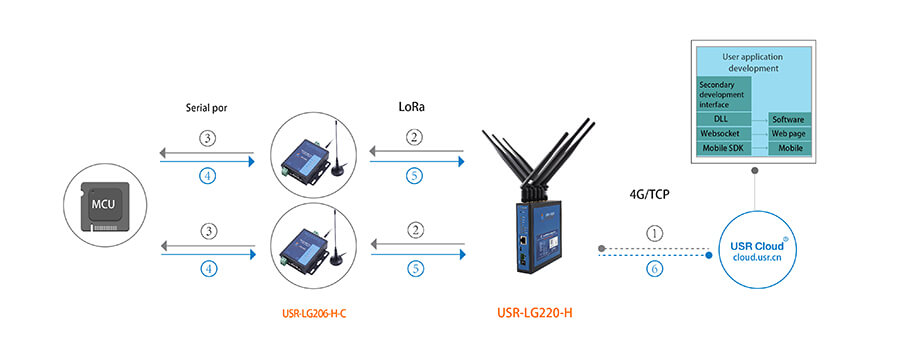

User application development -Serial RS232 RS485 to LoRa Converter

usr private protocol with networking-Serial RS232 RS485 to LoRa Converter

Serial RS232 RS485 to LoRa Converter

Serial RS232 RS485 to LoRa Converter

Serial RS232 RS485 to LoRa Converter




Parameter  Value
Wireless parameters
Frequency band L:398-525MHz, H:803-930MHz
Transmitting power

10dBm~20dBm

Receiving sensitivity -138.5dBm@0.268Kbps
Transmission distance 2000 meters. Test condition: Open area, clear weather, 20dBm transmitting power, 5dBi antenna gain, height is greater than 2 meters, 2.5K air rate.
Antenna SMA
Hardware parameters
Data interface

Serial port: Support RS232/RS485.

Baud rate: 1200bps~115200bps

Working voltage 5V~36V
Working current

Transmitting current: 45mA@12V.

Standby mode: 45mA@12V.

Working temperature -30℃~+80℃
Storage temperature -45℃~+90℃
Working humidity 5~95%RH
Storage humidity 1~95%RH
