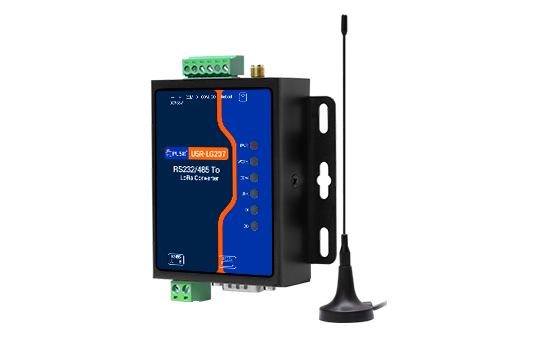

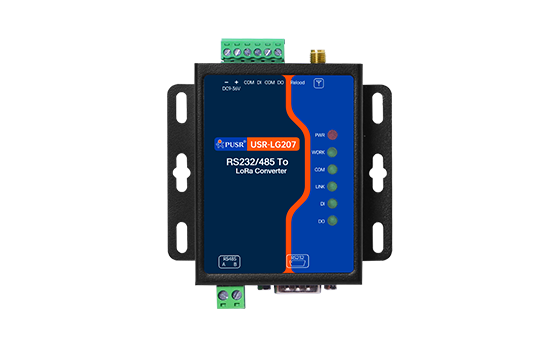

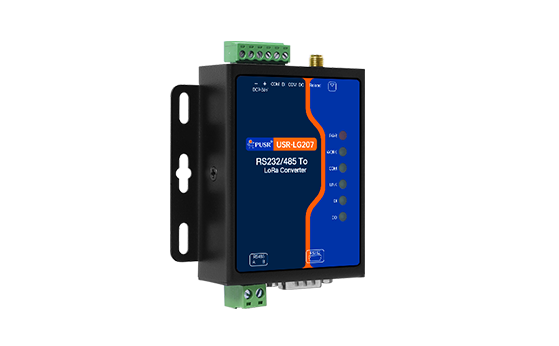

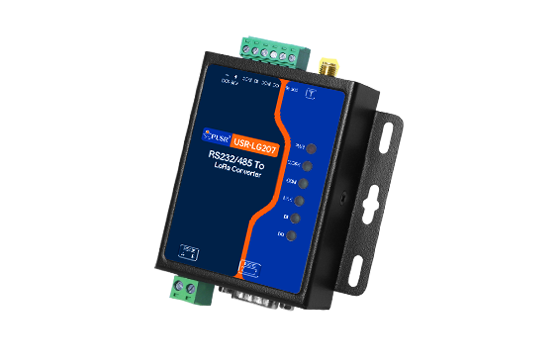

Lora Modem with Serial & IO 8KM Coverage | Modbus RTU to Lora | Remote Lora IO USR-LG207 is a wireless LoRa data transfer unit with RS232, RS485, and IO interfaces based on the SX1262 module. Adopts LoRa Modulate and Demodulate technology, with the advantages of anti-interference and long-distance communication (up to 8KM). Supports point-to-point, point-to-multipoint, point-to-gateway, etc. As it is compact and easy to install, USR-LG207 is suitable for wireless data transmission and device control of industry standard or non-standard user protocol.
Key Features
  • High-Power Transmission: Wireless transmission up to 8KM
  • Wireless IO: To achieve remote control
  • Relay Networking: Wireless distance extension
  • Remote Configuration: Wireless config and easy maintenance
  • Modbus to LoRa: point-to-point, point-to-multipoint, point-to-gateway
  • Signal Detection: Indicator displaying
  • Industrial Design: EMC Level 3 | wide temp -40 ~ +85°C

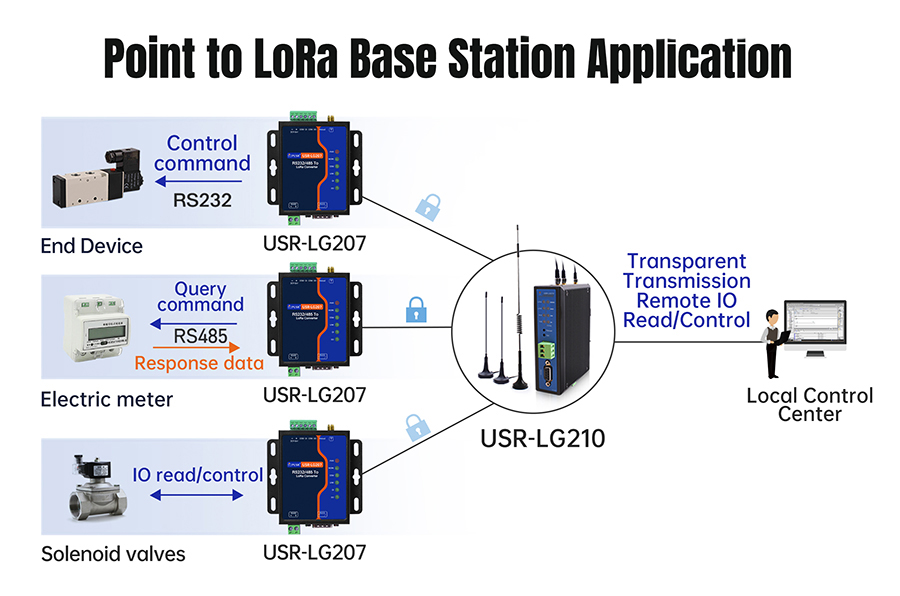

Point to Lora Base Station Application After user terminal devices form a network via LoRa nodes and the LG210 gateway, the system enables localized zonal management of devices centered around the gateway. This ensures orderly data transmission from multiple nodes without mutual interference, while guaranteeing encrypted data transfer to rapidly achieve end-to-cloud connectivity.

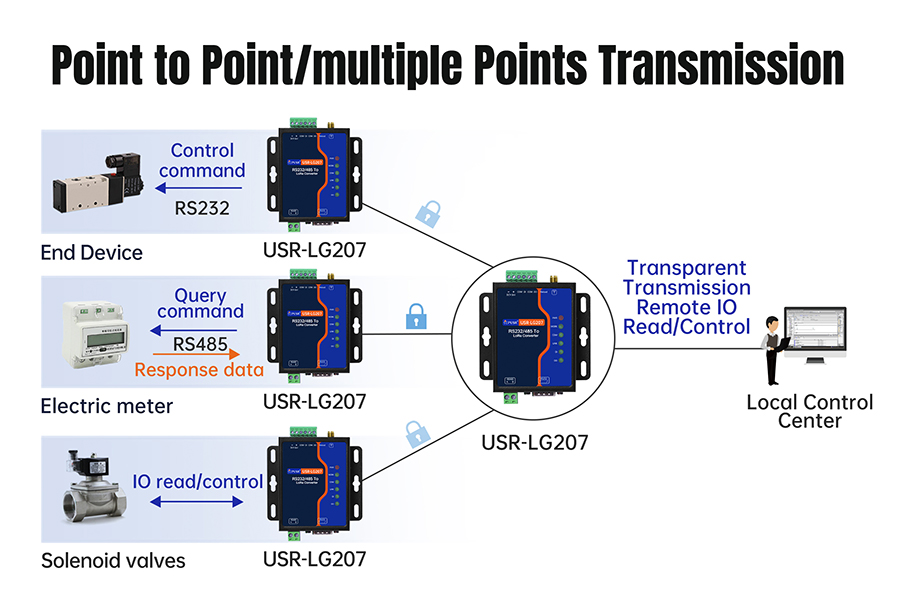

Point to Point/multiple Points Transmission The USR-LG207 supports point-to-point and point-to-multipoint communication. This device supports various working modes such as data transparent transmission, master-slave mode, fixed-point transmission, and data broadcasting. Users can choose the appropriate mode according to their own needs.

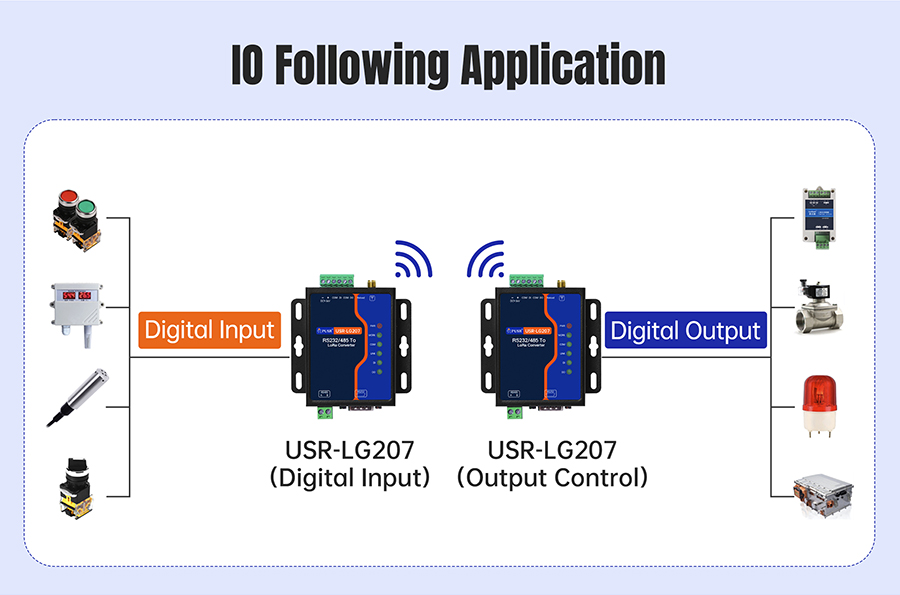

IO Following Application The USR-LG207 supports I/O linkage, allowing DI inputs to control DO output states. It enables both local and remote wireless linkage.

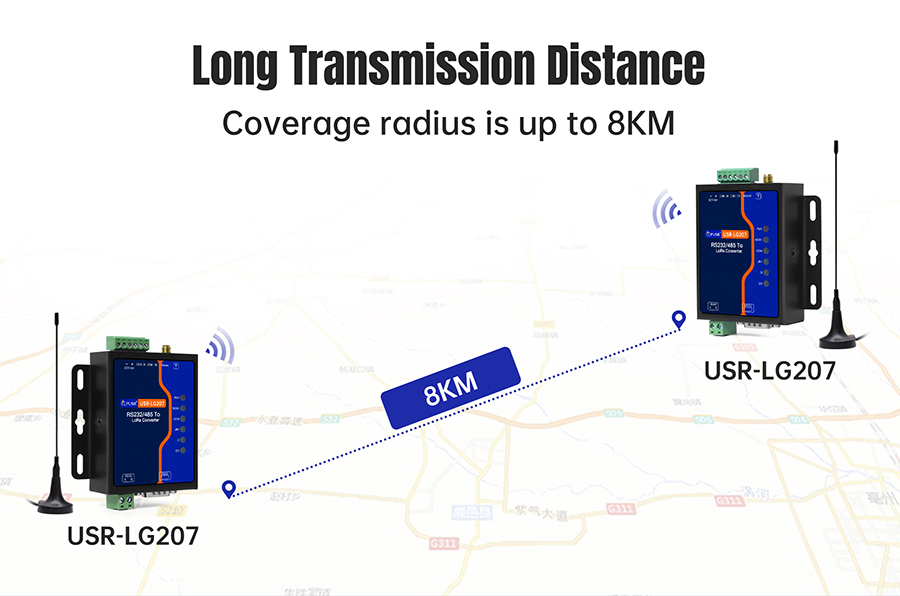

Long Transmission Distance Using high-power FEM, the transmission distance can reach up to 8 KM.

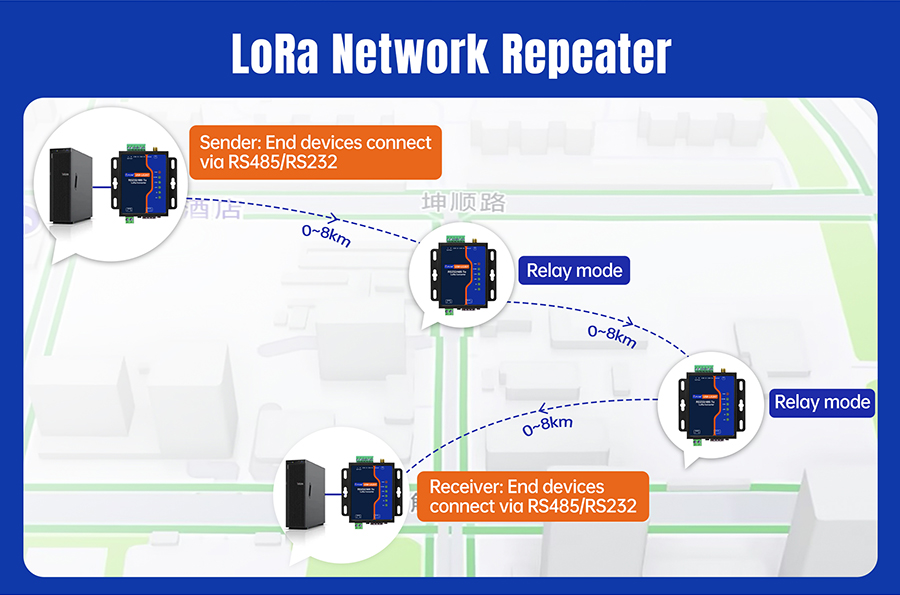

LoRa Network Repeater The USR-LG207 supports customizable relay transmission paths and multi-level relaying. The module automatically forwards data, extending the wireless transmission distance, making it suitable for communication in ultra-long-distance or obstacle-rich environments.

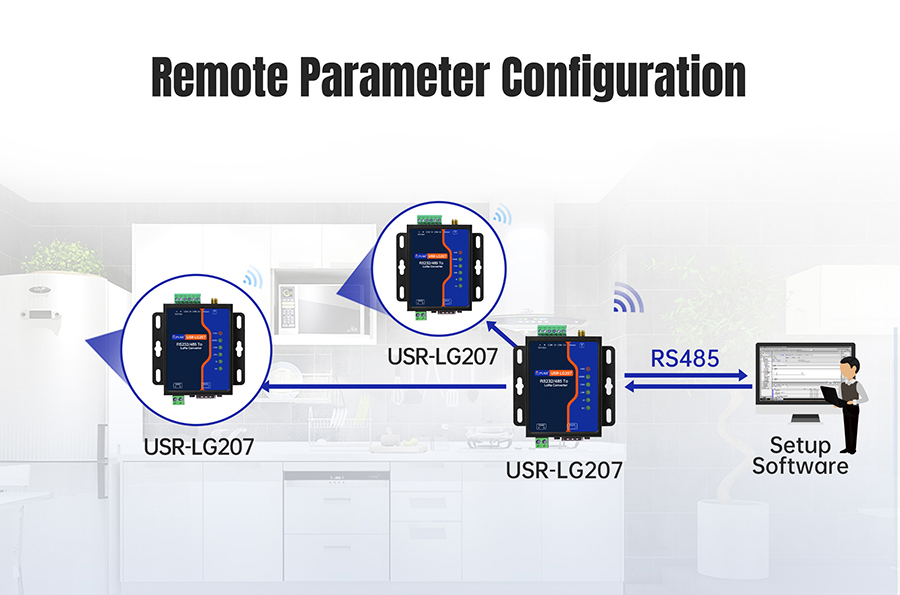

Remote Parameter Configuration Supports using serial commands and configuration software to read and set parameters of remote devices via LoRa wireless, significantly reducing operation and maintenance debugging costs

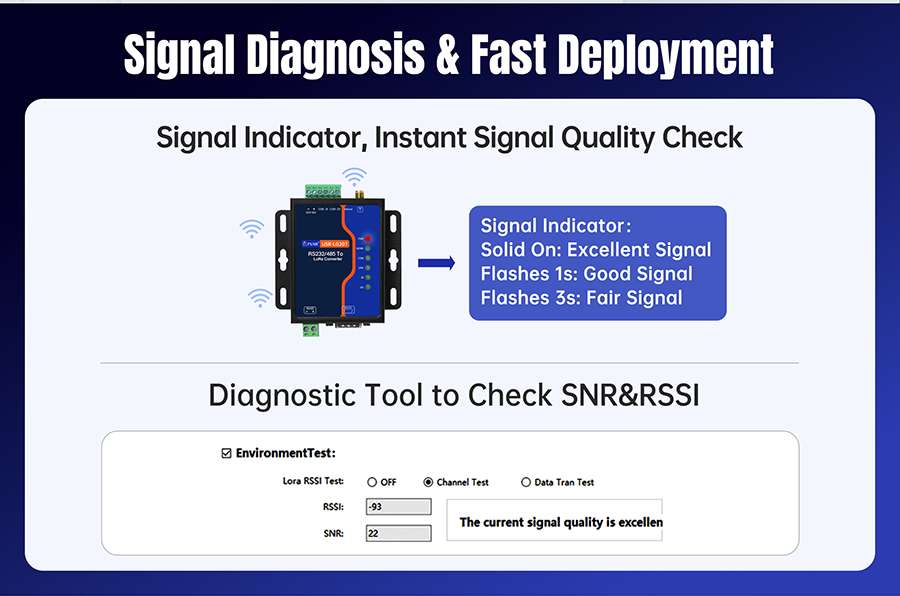

Signal Diagnosis & Fast Deployment With the diagnosis Solves the most painful signal challenges in wireless deployment (interference, distance judgment, quality assessment), saving significant debugging time and ensuring stable operation.

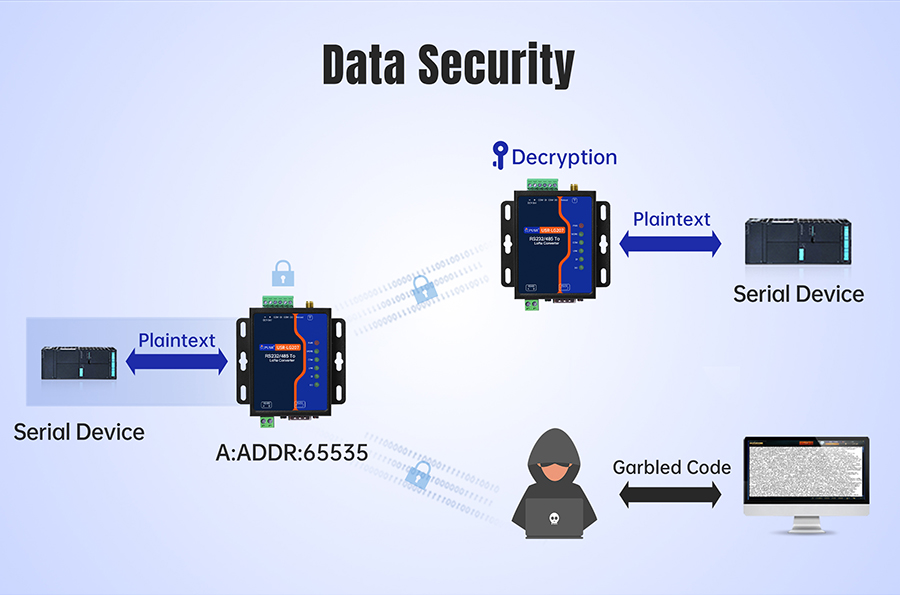

Data Security Data is encrypted during LoRa transmission to ensure enhanced security. Encryption keys are user-configurable; communication is only possible between devices with matching keys.

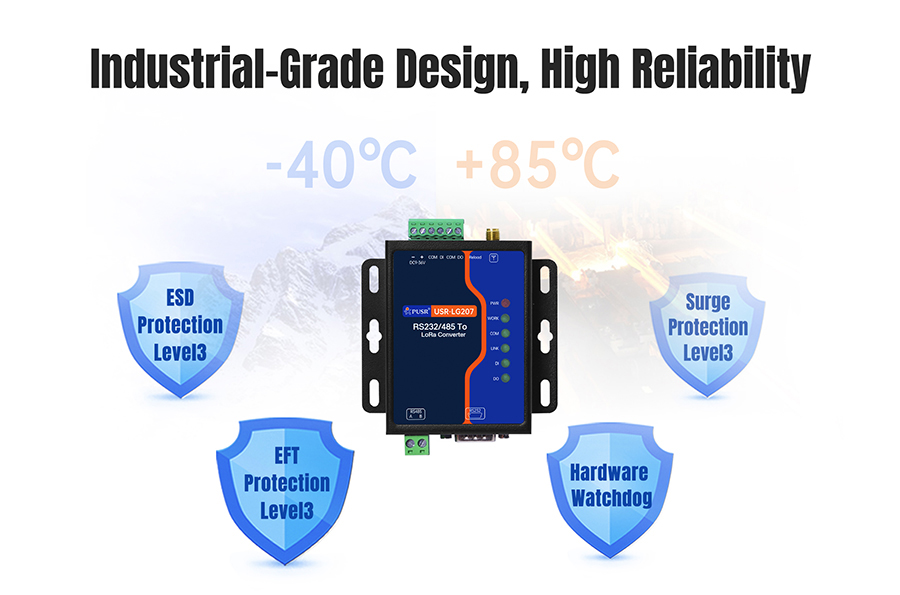

Industrial-Grade Design, High Reliability
  • EFT Protection: Level 3. Protect device against damage caused by instantaneous current interference in circuit, such as lightning stroke, power switch, etc.
  • ESD Protection: Level 3. Prevent electrostatic damage equipment, such as dust electrostatic, electric arc environment etc.
  • Surge Protection: Level 3. Protect devices from voltage spikessuch as lightning stroke, power switch, etc.
  • Watchdog: Hardware & software dual watchdog to ensure stable operation without downtime.
  • Wide Operation Temperature: -40℃~ +85℃.
  • Wide Power Input: 9~36V, reverse polarity protection.

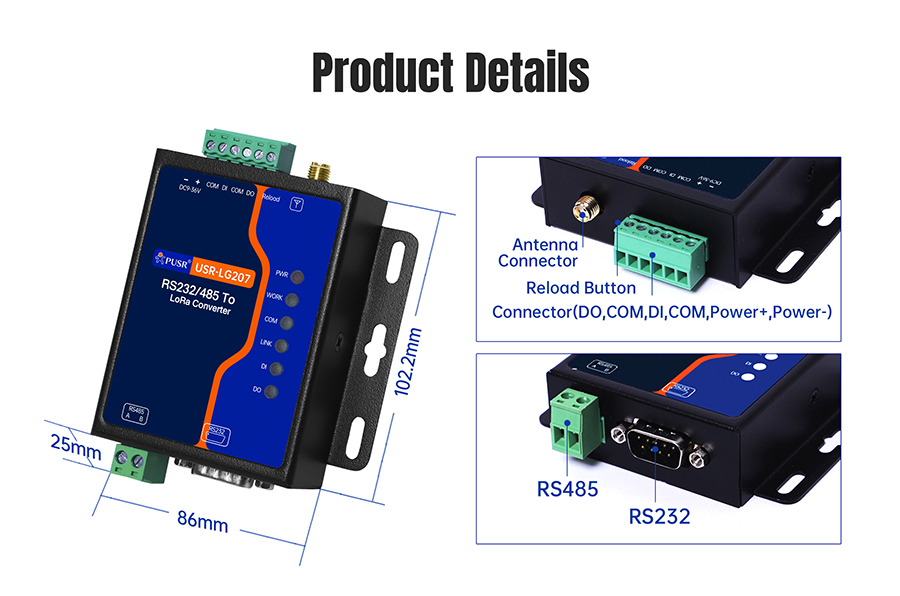

Product Details
  • Dimension: 102.2 * 86 * 25 mm
  • Serial Port: 1 * RS232/RS485
  • IO Interface : 1 * DI, 1 * DO
  • Power Input: DC 9-36V
  • LoRa Antenna Connector: SMA female

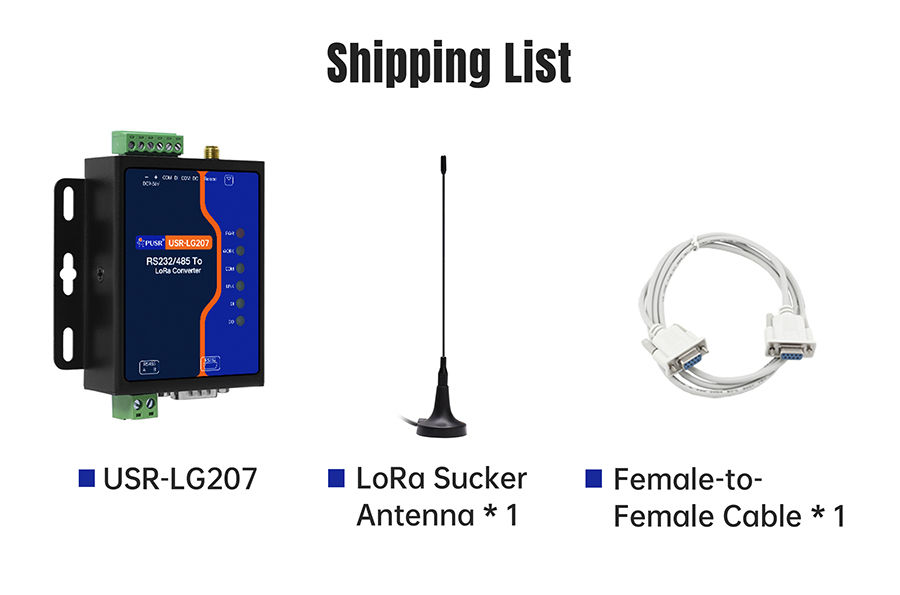

Shipping List
  • USR-LG207 * 1
  • LoRa Sucker Antenna * 1
  • Female-to-Female Cable * 1

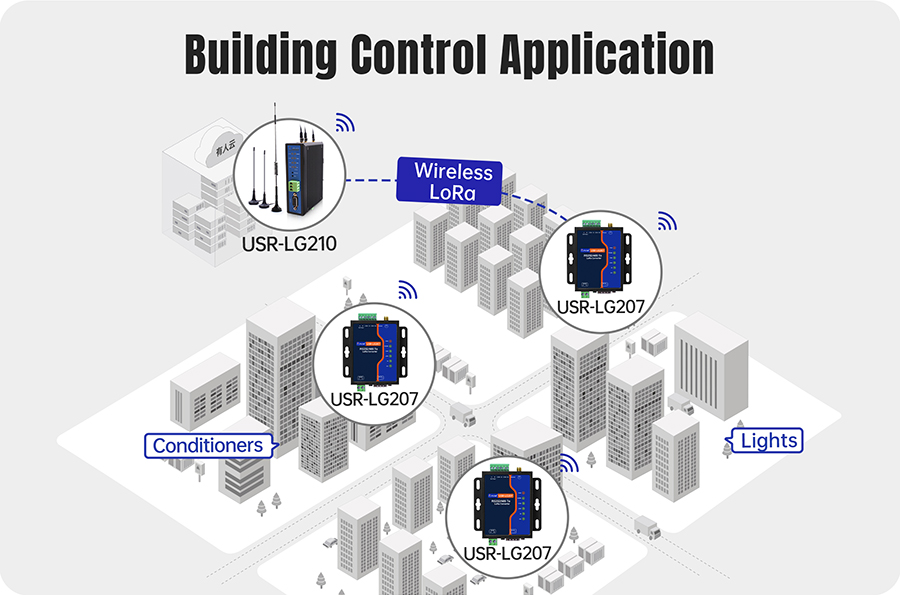

Building Control Application Large office buildings require zoned management such as air conditioners and electric lights.In this scenario, multiple LG207 units can be deployed to connect with the air conditioners and lights in different zones, enabling independent control over the operation of equipment in each specific area.

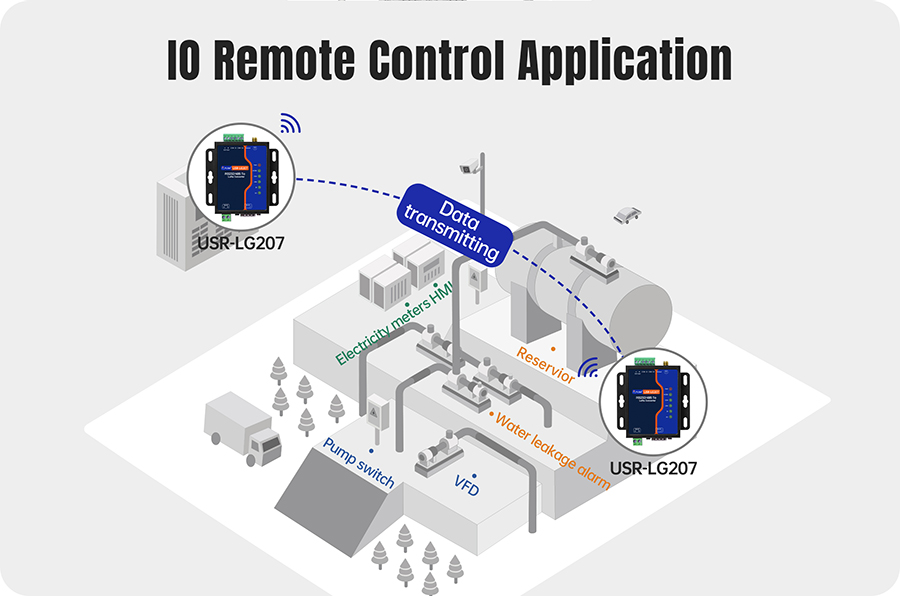

IO Remote Control Application By using paired LG207 devices, water level detection signals (DI) are wireless transmitted to the remote end to control water supply equipment (DO), realizing automated water replenishment for production.
