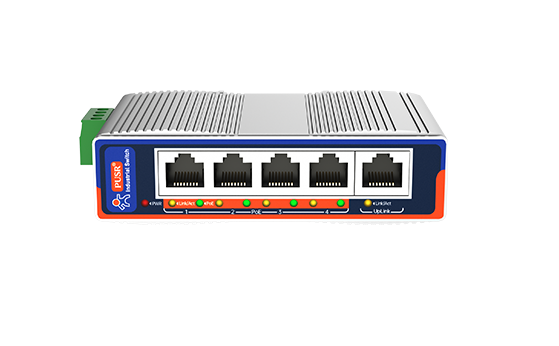

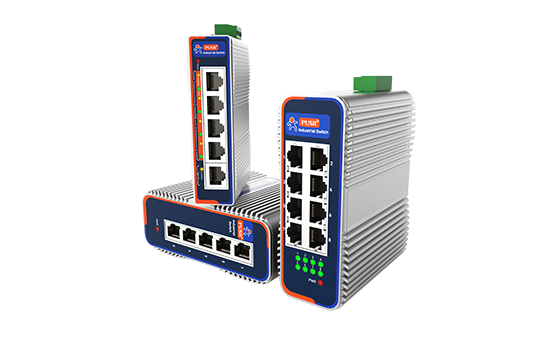

USR-ISF1005P/ISG1005P/ISG1008P

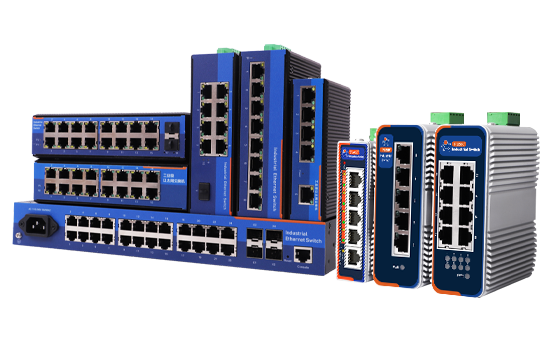

|48V PoE Industrial Switch Special for security weak current, power supply and networking in harsh environments The industrial POE switch series integrates data transmission and power supply functions, supporting IEEE 802.3af/at standards with up to 30W per port. It offers flexible port configurations (5/8/16/24 ports) in both managed and unmanaged types. Managed models enable advanced network management like VLAN partitioning and QoS policies, while unmanaged ones feature plug-and-play simplicity. Widely used in security monitoring and industrial scenarios, these switches reduce cabling costs and enhance network deployment flexibility.
|48V PoE Industrial Switch Special for security weak current, power supply and networking in harsh environments The industrial POE switch series integrates data transmission and power supply functions, supporting IEEE 802.3af/at standards with up to 30W per port. It offers flexible port configurations (5/8/16/24 ports) in both managed and unmanaged types. Managed models enable advanced network management like VLAN partitioning and QoS policies, while unmanaged ones feature plug-and-play simplicity. Widely used in security monitoring and industrial scenarios, these switches reduce cabling costs and enhance network deployment flexibility.
Product advantages
- Unafraid of extreme temperatures: -40°C~85°C
- 3-way power supply guarantee (DC48 - 57V): DC interface for plug-and-play; dual power terminal redundant power supply.
- High-quality aluminum alloy shell: Efficient heat dissipation.
- Industrial quality: 6KV lightning strike resistance design.
- DIN rail mounting: Compact size, easy to install.
- IP40 protection: Fully sealed, impervious to wind and sand.

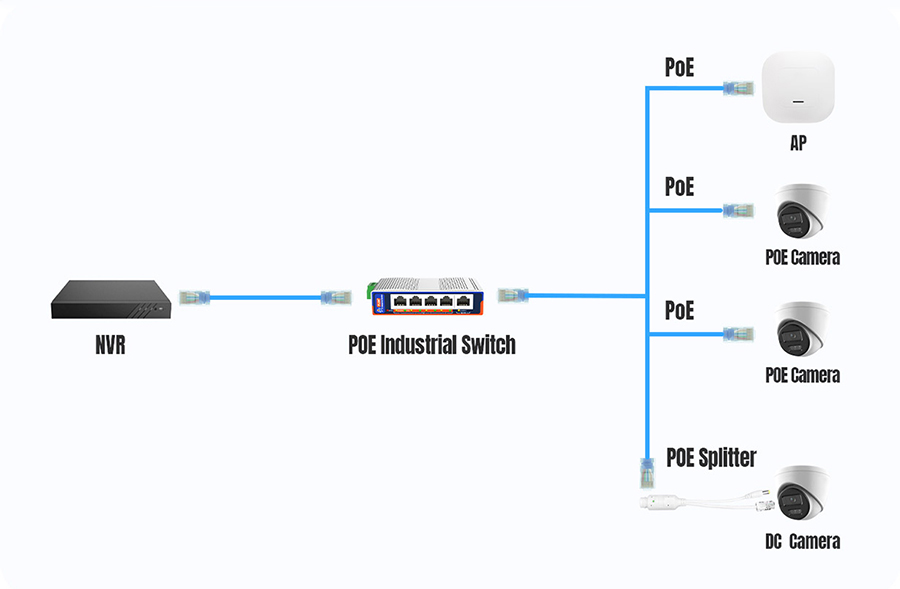

Basic Functions For security weak current, power supply and network supply PoE (Power over Ethernet) Industrial Switches can be applied to security weak current scenarios. They are network devices that can simultaneously transmit data and power to cameras and APs through Ethernet cables.

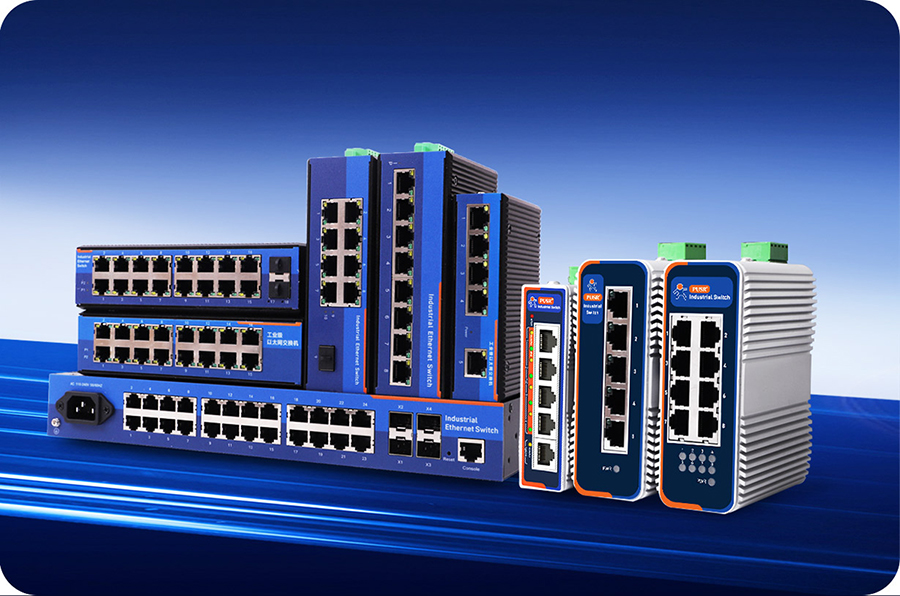

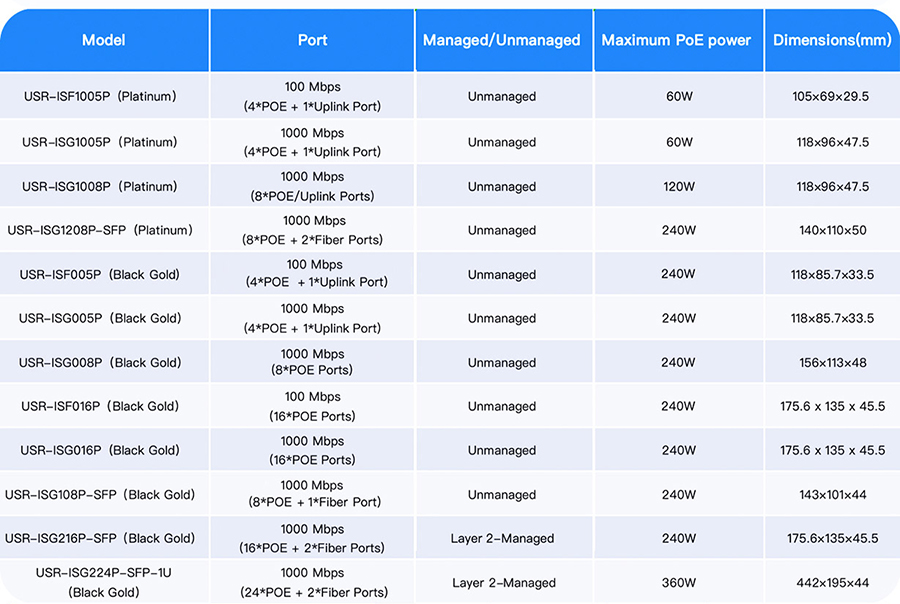

Ordering Guide PUSR offers a range of industrial-grade POE switches to choose from.

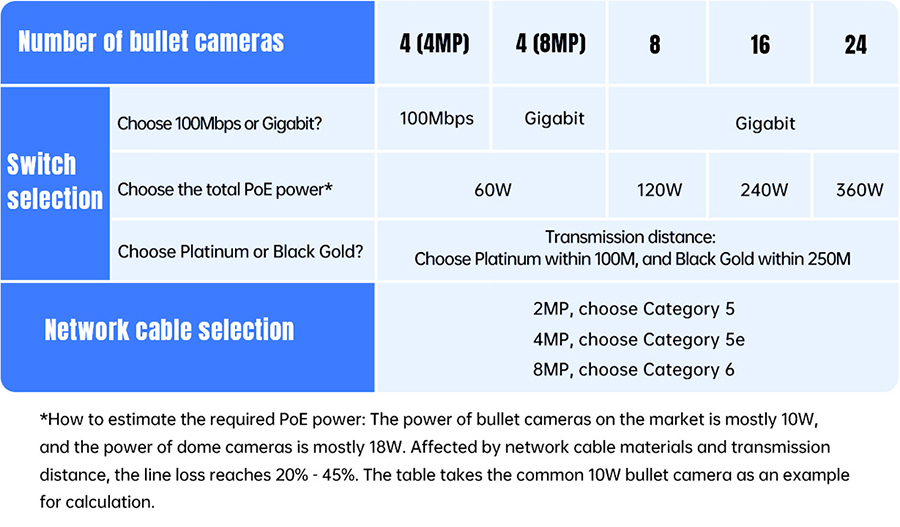

Selection Strategy for Stable and Smooth Cameras It is recommended to give priority to switches with higher PoE output power and gigabit high speed. For network cables, priority should be given to Category 5e and Category 6 to cope with future new or upgraded devices.

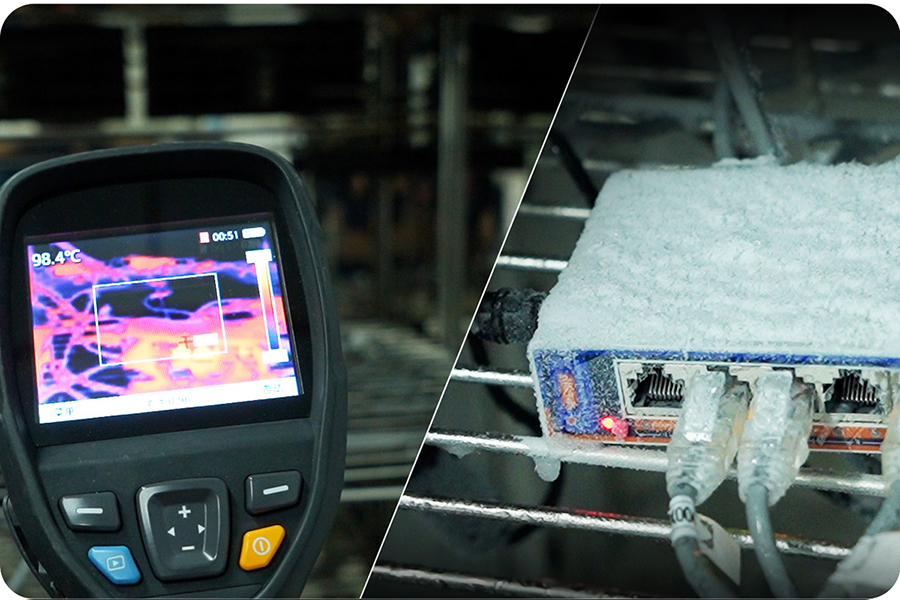

Extreme Temperature, Designed for Harsh Environment A wide operating temperature range of -40 ~ +85° C allows for installations in harsh environments with extreme hot or cold conditions.

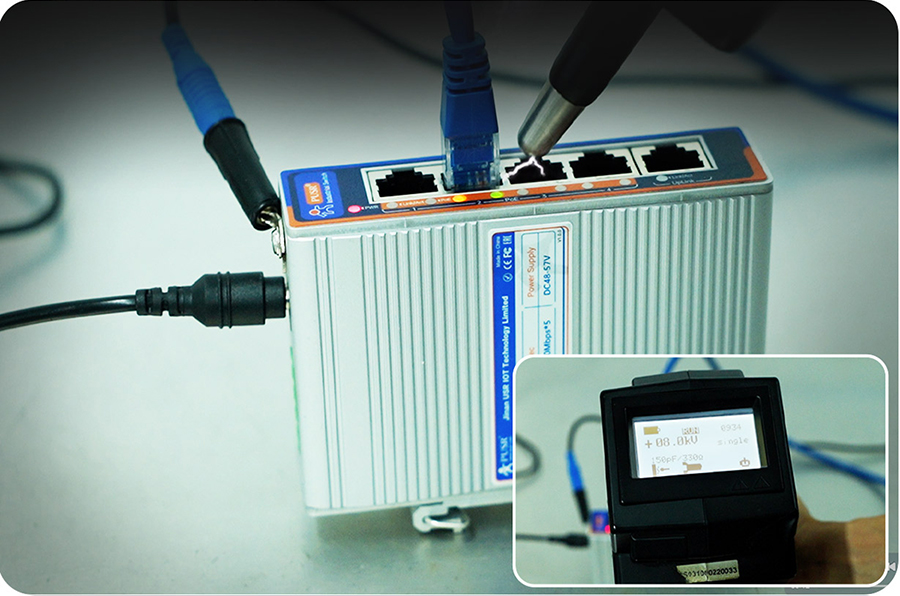

Industrial Lightning Protection and 6KV Surge Protection The product has a built - in circuit protection design, which can control surge voltage within a safe range. It meets the EMC national standard 3B, enhancing the reliability and stability of the equipment.

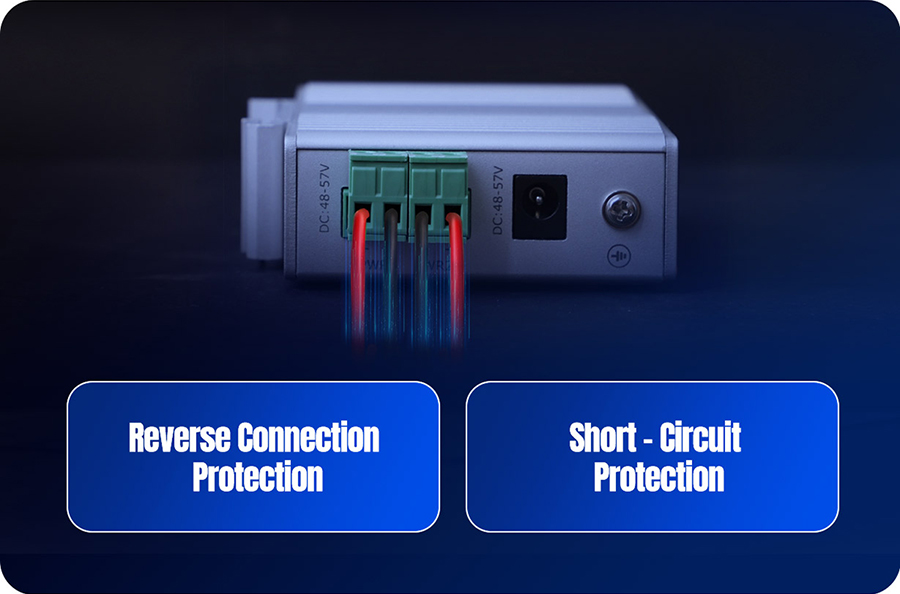

Three - way Power Supply Guarantee
- 1 - way DC Power Supply: Plug and play, meeting the power supply needs of commercial scenarios.
- 2 - way Redundant Backup of Power Terminals:Automatically switch to another power source when one power source fails.
- Reverse Connection Protection：
Supports positive and negative pole reverse connection protection to prevent equipment damage caused by misoperation. - Short - Circuit Protection：
Can quickly cut off the power supply when the equipment has a short circuit to avoid other accidents.
Typical Case

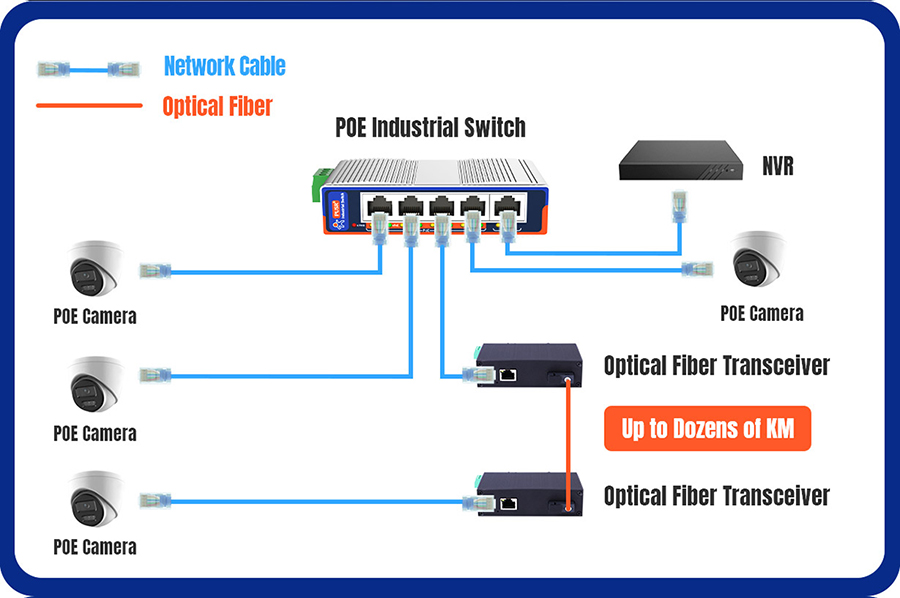

Multiple Solutions for Security Surveillance Scenarios Provide various monitoring combination solutions such as optical fiber, wireless, and remote networking. Optical fiber transceiver：
POE Switches are equipped with fiber optic uplink ports (such as SFP ports), which can extend the data transmission distance to tens of kilometers via optical fibers, meeting the requirements of medium and long-distance wired monitoring networking.
Multiple Solutions for Security Surveillance Scenarios Provide various monitoring combination solutions such as optical fiber, wireless, and remote networking. Optical fiber transceiver：
POE Switches are equipped with fiber optic uplink ports (such as SFP ports), which can extend the data transmission distance to tens of kilometers via optical fibers, meeting the requirements of medium and long-distance wired monitoring networking.
Typical Case

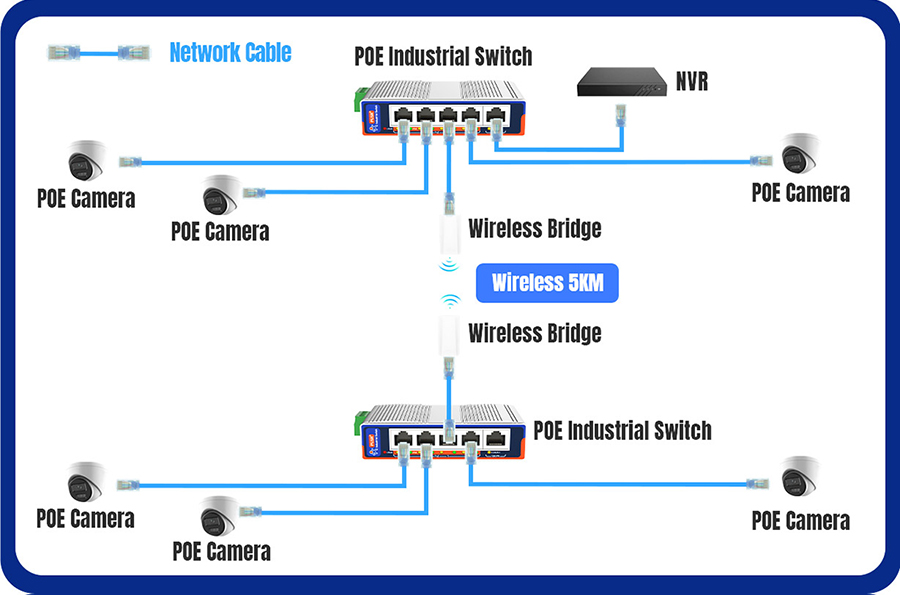

Multiple Solutions for Security Surveillance Scenarios Wireless bridge：
Break through the limitations of wired transmission distance and wiring conditions. There is no need to deploy a separate power supply for each bridge. It enables network intercommunication between PoE industrial switches in two areas and connected devices such as PoE cameras, meeting the security monitoring needs in environments with long distances and difficult wiring.
Multiple Solutions for Security Surveillance Scenarios Wireless bridge：
Break through the limitations of wired transmission distance and wiring conditions. There is no need to deploy a separate power supply for each bridge. It enables network intercommunication between PoE industrial switches in two areas and connected devices such as PoE cameras, meeting the security monitoring needs in environments with long distances and difficult wiring.
Typical Case

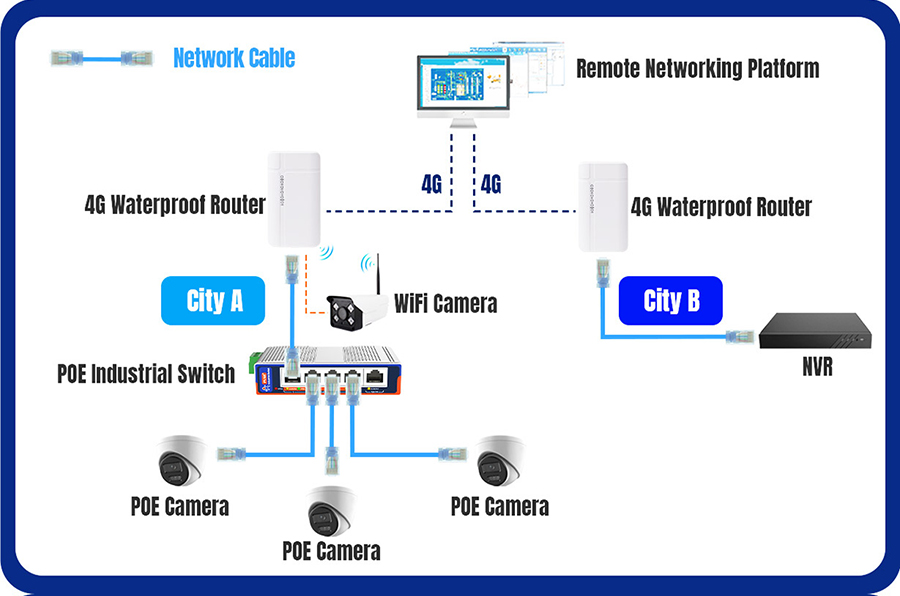

Multiple Solutions for Security Surveillance Scenarios Remote Networking Router：
POE Switches can connect monitoring devices scattered in various places through the network. Cooperating with routers for remote networking, users can access monitoring screens in real time anywhere with a network connection, realizing remote monitoring.
Multiple Solutions for Security Surveillance Scenarios Remote Networking Router：
POE Switches can connect monitoring devices scattered in various places through the network. Cooperating with routers for remote networking, users can access monitoring screens in real time anywhere with a network connection, realizing remote monitoring.
Typical Case

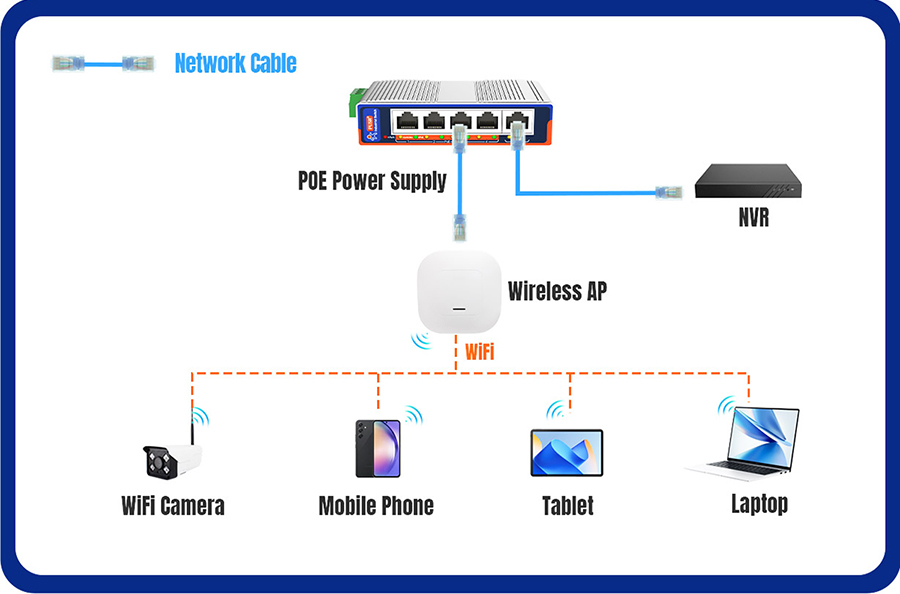

Multiple Solutions for Security Surveillance Scenarios Wireless AP：
POE Switches power APs, eliminating the need to lay separate power cables for APs. This allows APs to be more flexibly deployed in areas requiring WiFi signal coverage, facilitating the connection of WiFi cameras and expanding the monitoring range.
Multiple Solutions for Security Surveillance Scenarios Wireless AP：
POE Switches power APs, eliminating the need to lay separate power cables for APs. This allows APs to be more flexibly deployed in areas requiring WiFi signal coverage, facilitating the connection of WiFi cameras and expanding the monitoring range.

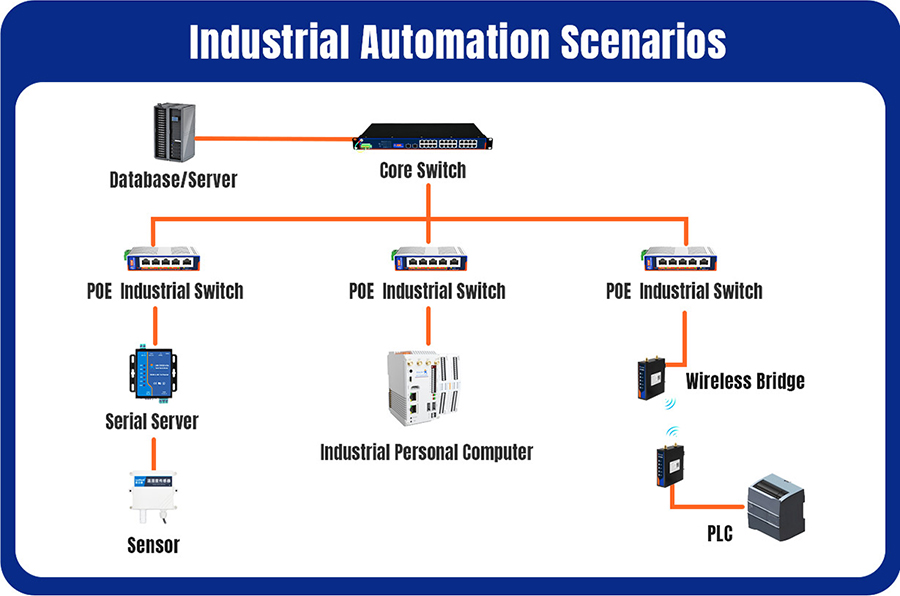

Industrial Automation Scenario In industrial automation scenarios, POE Switches can supply power to devices and transmit data via network cables, while also facilitating efficient network management and stable operation to support industrial data interaction and equipment control.
Home Network Scenario In industrial automation scenarios, POE Switches can supply power to devices and transmit data via network cables, while also facilitating efficient network management and stable operation to support industrial data interaction and equipment control.

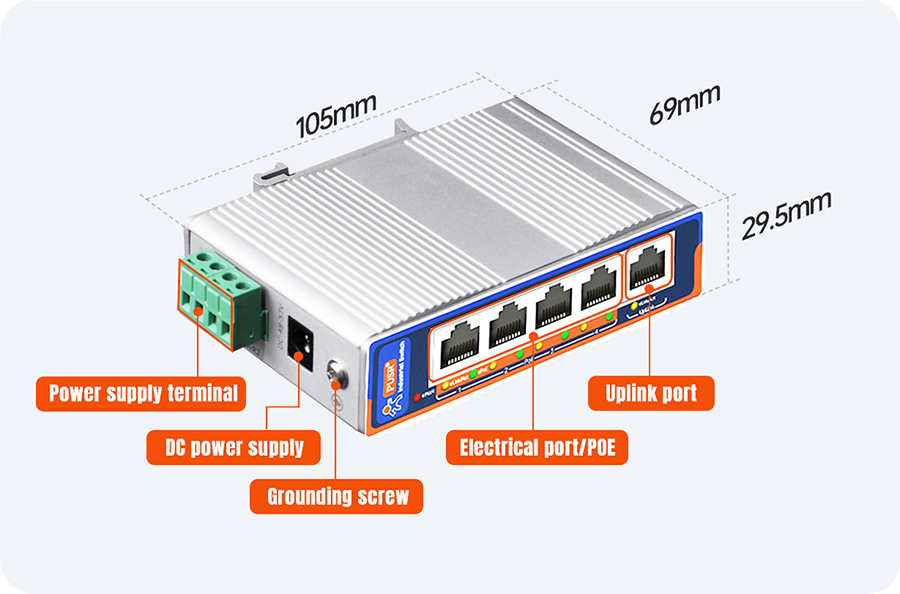

Product Interfaces This is a schematic diagram of an industrial POE switch, measuring 105mm in length, 69mm in width and 29.5mm in height.
With a metal shell, it is compact and easy to install. It is equipped with a DC power supply interface, power supply terminals and a grounding screw. The electrical/PoE ports can supply power and transmit data via network cables, and the UpLink port is used for high-speed network interconnection.
With a metal shell, it is compact and easy to install. It is equipped with a DC power supply interface, power supply terminals and a grounding screw. The electrical/PoE ports can supply power and transmit data via network cables, and the UpLink port is used for high-speed network interconnection.

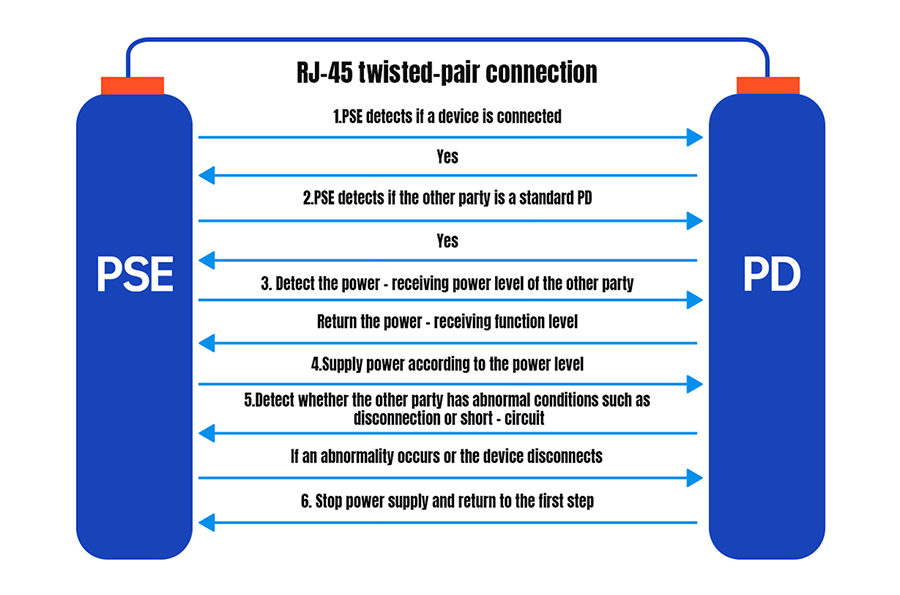

PD Detection TPoE port supports PoE automatic detection.
When connecting to a non-POE device, provide data transmission only, will not output power to prevent damage.
When connecting to a non-POE device, provide data transmission only, will not output power to prevent damage.

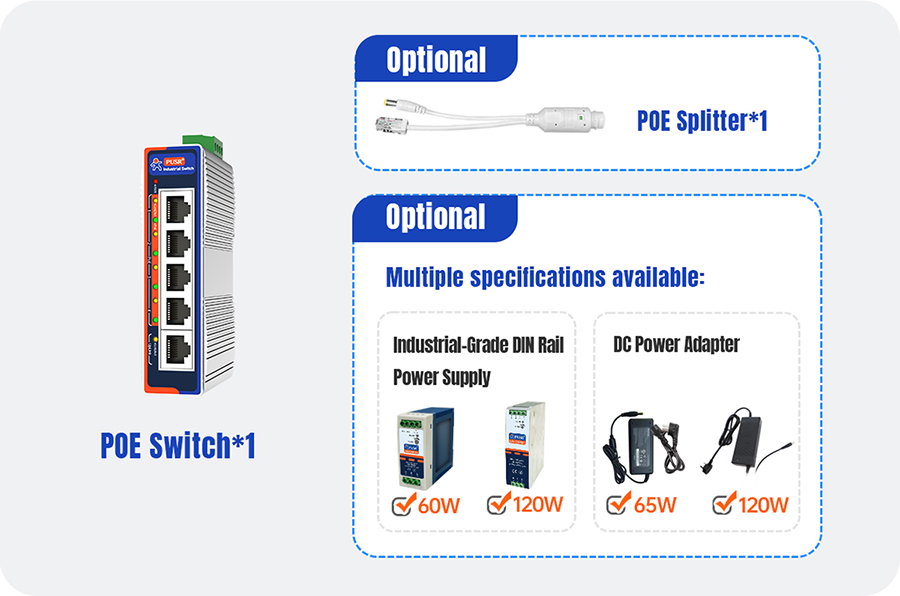

What's in the box?
- 1 x PoE Switch
