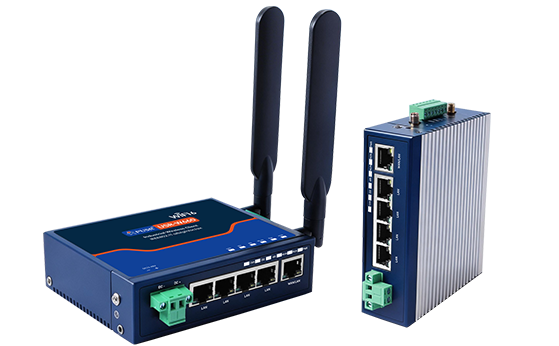

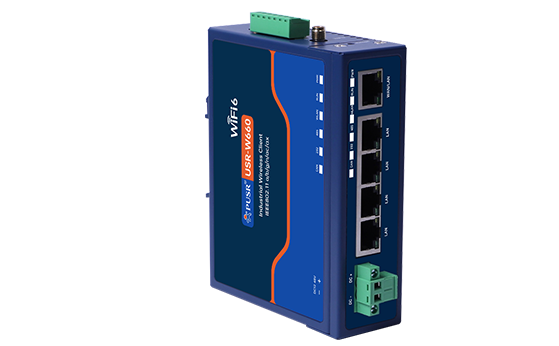

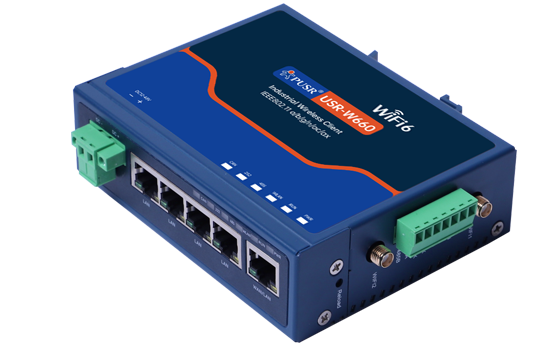

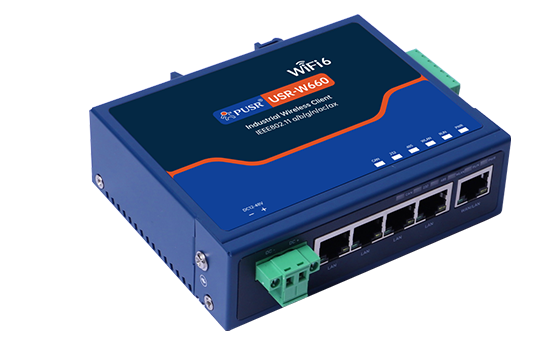

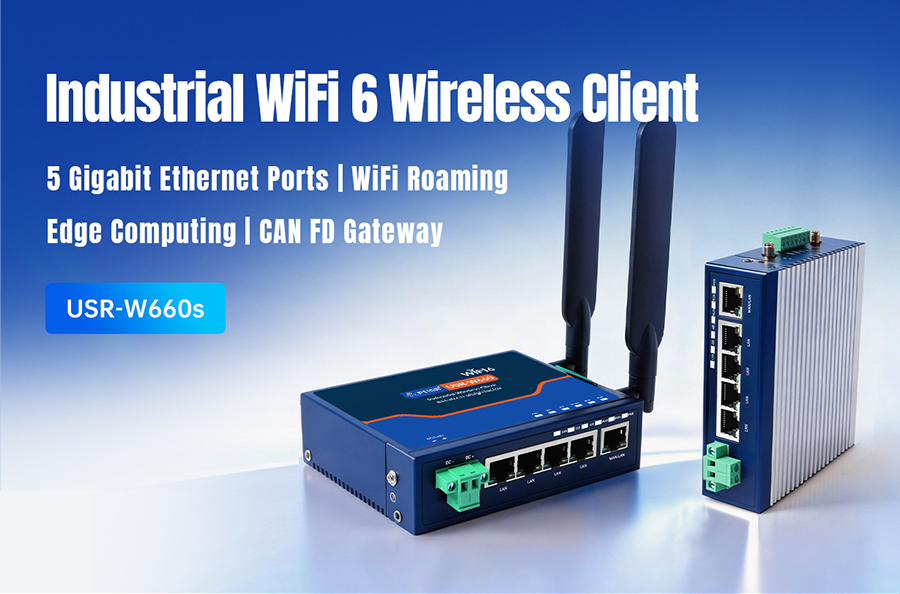

Dual Band WiFi6 Industrial Wireless Client 5 Gigabit Ethernet Ports | WiFi Roaming | Edge Computing | CAN FD Gateway The USR-W660s is a dual band WiFi 6 wireless client with high speed, wide connectivity, low latency and high stability. It features a rich set of hardware interfaces: integrating 1*CAN, 1*RS232, 1*RS485, 5* Ethernet port (4*LAN + 1*WAN/LAN) and 2.4G&5.8G dual band WiFi 6. This product adopts industrial-grade standards, supports wide temperature and voltage ranges, offers robust hardware protection, and has passed multiple stringent environmental tests.
Key Features
- Fast WiFi Roaming: Fast WiFi handover within 100ms
- Qualcomm WiFi 6: Dual-Band WiFi with strong anti-interference & wide coverage
- Gigabit Ethernet: 1WAN+4LAN
- Industrial Design: Super EMC protection & Operating temperature -40℃ to 75℃ & Aluminum housing for heat dissipation
- Edge Computing: Multi-Point Polling, Parsing & Computation, RS232/RS485 Serial Ports
- PUSR Cloud: Remote Mornitering & Maintenance, Anomaly Alerting

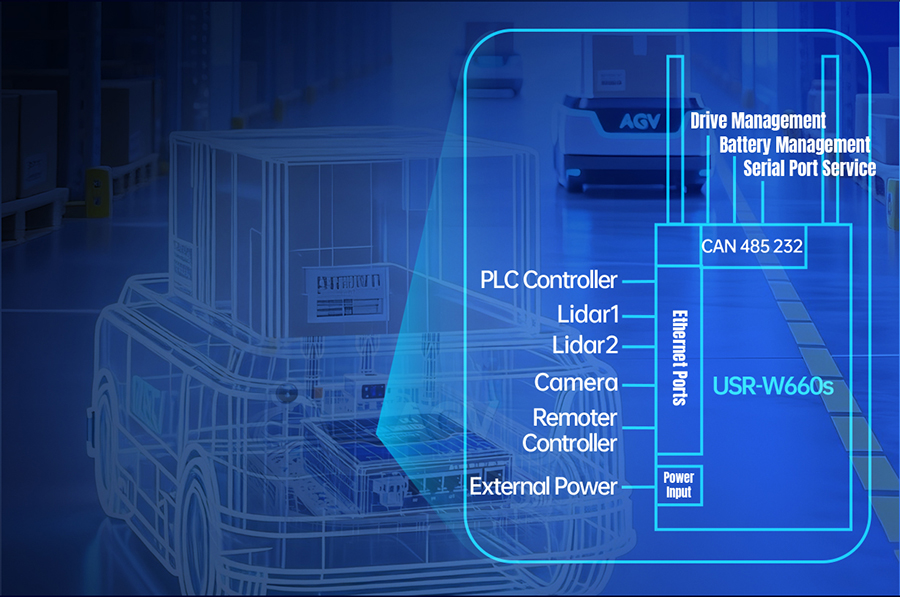

High-Efficiency Integration, Simplified Deployment USR-W660s integrates switch, CAN protocol converter, and serial server functions, saving space and reducing costs for robotics and the AGVs (Automated Guided Vehicle) market.

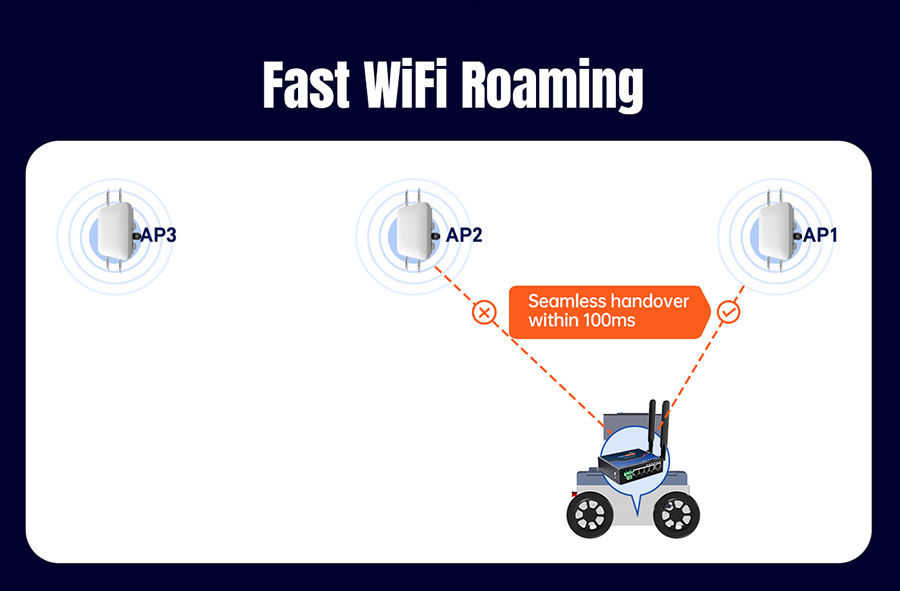

Fast WiFi Roaming USR-W660s supports dual-band (2.4GHz/5.8GHz) operation, ensuring reliable communication for mobile devices. Seamless handover within 100ms, easily meeting the needs of AGVs, transport robots, and commercial service robots in mobile scenarios.

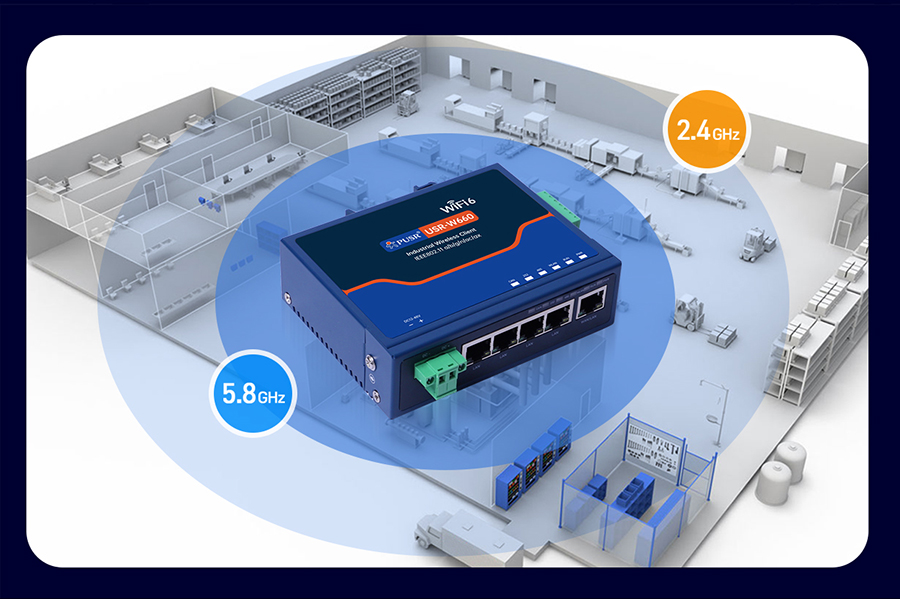

High-Speed Networking Equipped with 5 Gigabit Ethernet ports, USR-W660s delivers high-speed data forwarding capabilities for demanding industrial networking applications. Combined with dual-band Wi-Fi 6 technology, it provides wireless speeds of up to 1775Mbps, ensuring reliable and efficient connectivity for multiple devices and high-bandwidth data transmission scenarios.

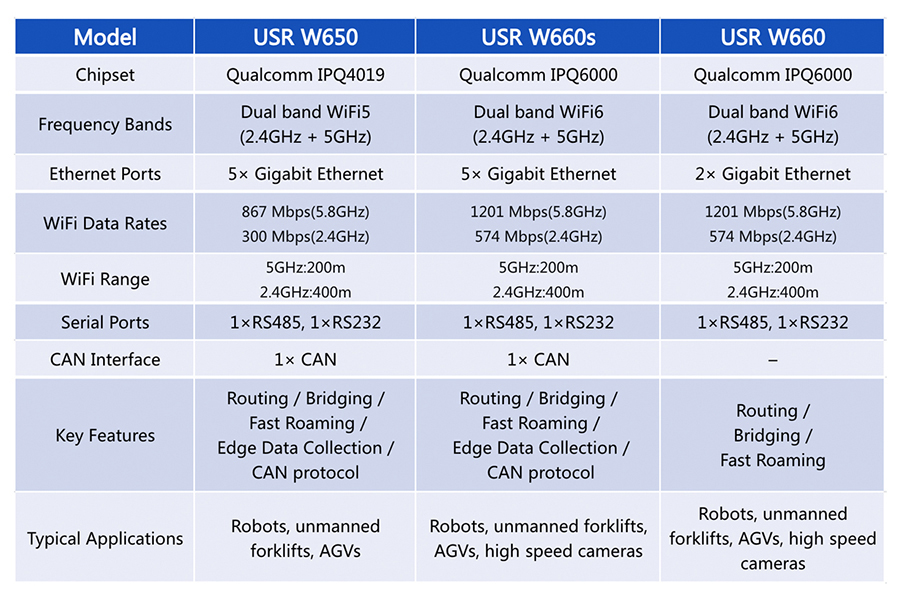

Ordering Guide For complex industrial scenarios such as robotics, AGVs, and high‑speed cameras, choosing the right wireless communication solution is critical. We offer three high‑performance industrial routers side‑by‑side, covering Wi‑Fi 5 to Wi‑Fi 6, with options from 5‑port Gigabit to compact 2‑port designs, and from CAN support to edge data collection. Whether you need full‑featured connectivity or a cost‑optimised alternative, one of these models fits your project.

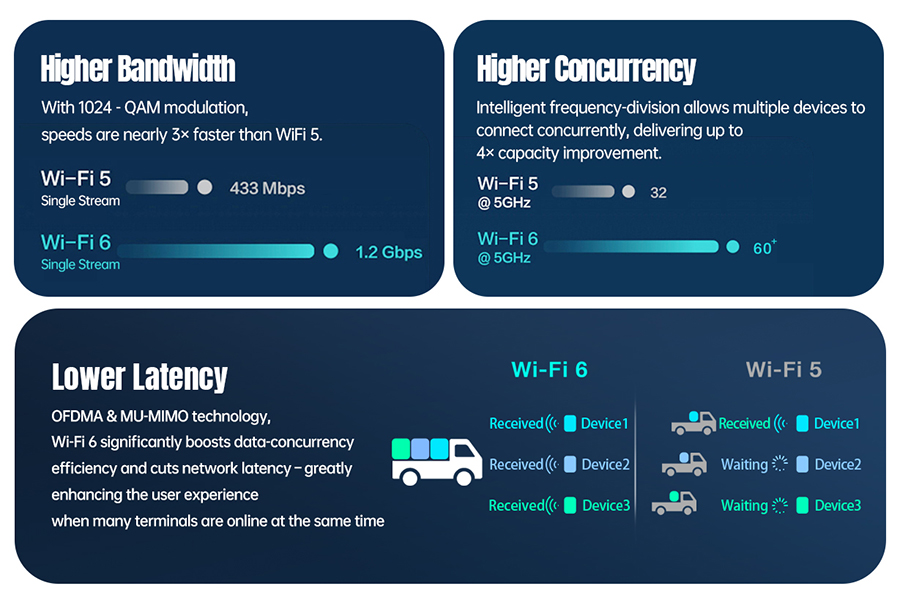

Wi-Fi 6 Technology – 3× Faster,
4× Capacity, Ultra‑Low Latency Upgrade to Wi‑Fi 6 for near‑triple speeds, 60‑device concurrency, and latency cut by OFDMA+MU‑MIMO. Ideal for robotics, AGVs, and high‑bandwidth industrial IoT – ensure smooth, reliable connectivity even in dense wireless environments.
4× Capacity, Ultra‑Low Latency Upgrade to Wi‑Fi 6 for near‑triple speeds, 60‑device concurrency, and latency cut by OFDMA+MU‑MIMO. Ideal for robotics, AGVs, and high‑bandwidth industrial IoT – ensure smooth, reliable connectivity even in dense wireless environments.

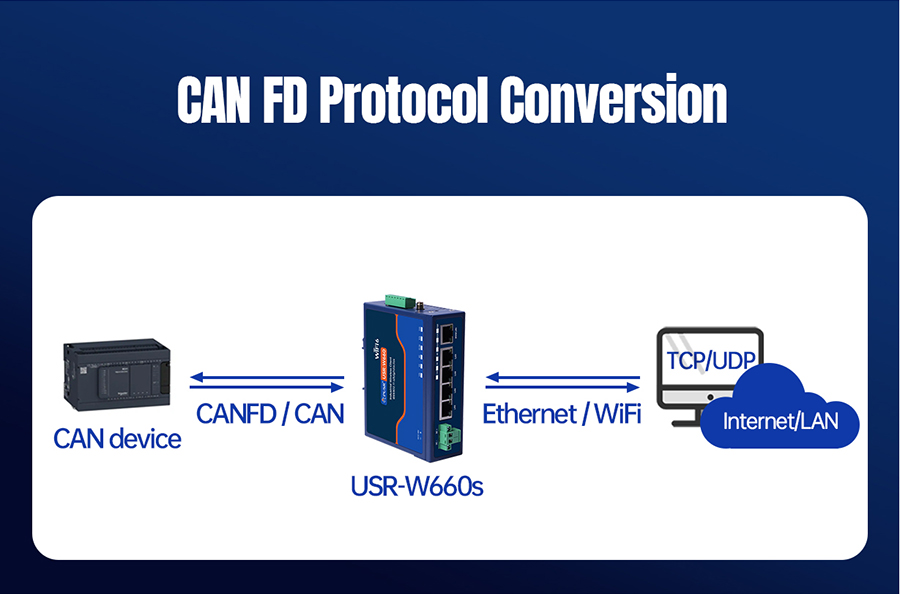

CAN FD Protocol Conversion
- Supports CAN FD to Ethernet/Wi-Fi transmission
- Supports CAN FD to Modbus RTU/TCP gateway

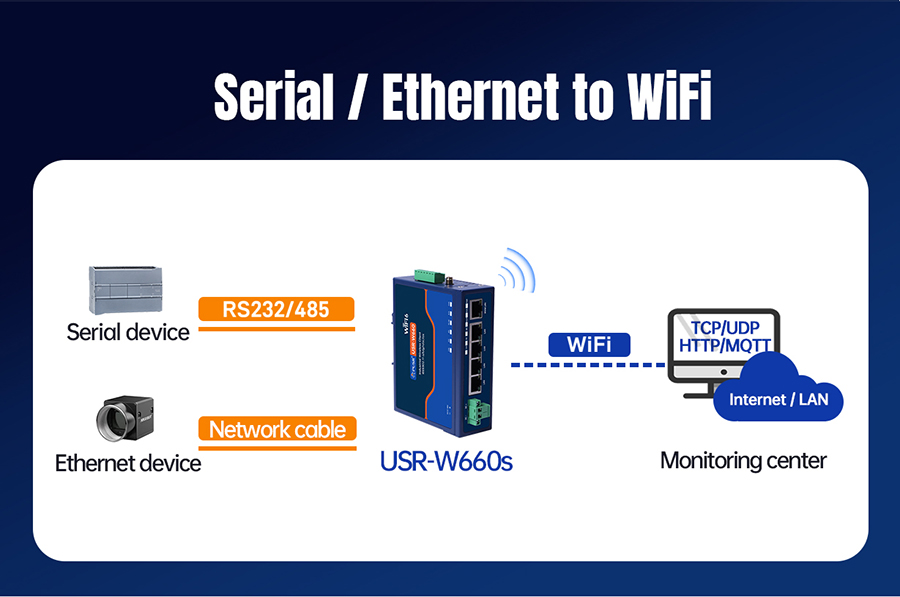

Serial/Ethernet to Wi-Fi USR-W660s offers three wireless modes: AP, STA, and AP+STA, flexibly adapting to various network environments. Enables flexible bidirectional conversion between serial, Wi-Fi, and Ethernet ports, making industrial connectivity simpler and more reliable.

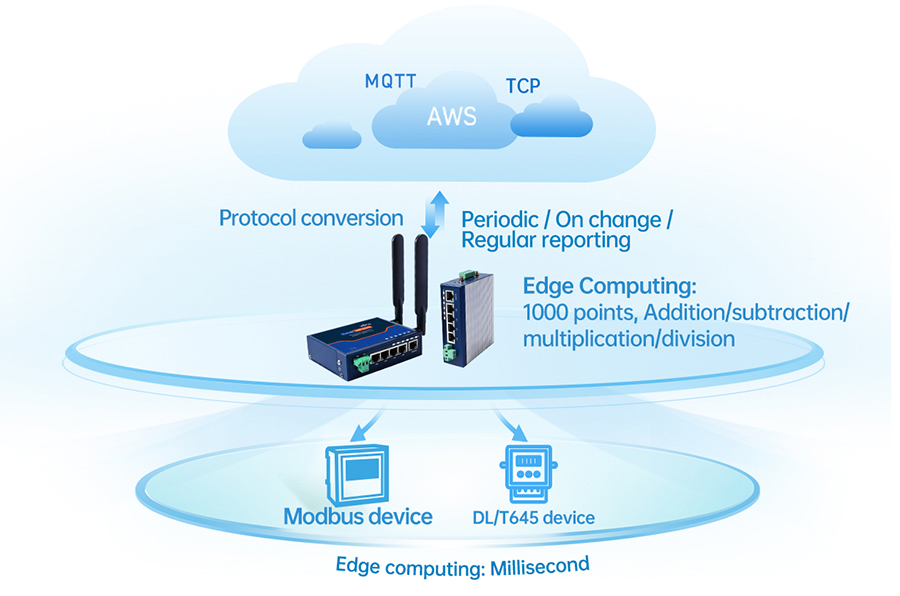

Edge Computing,Enabling Edge Device Connectivity
In The IIOT Era Standard MQTT protocol, fast access To mainstream cloud platforms and private MQTT servers.
In The IIOT Era Standard MQTT protocol, fast access To mainstream cloud platforms and private MQTT servers.

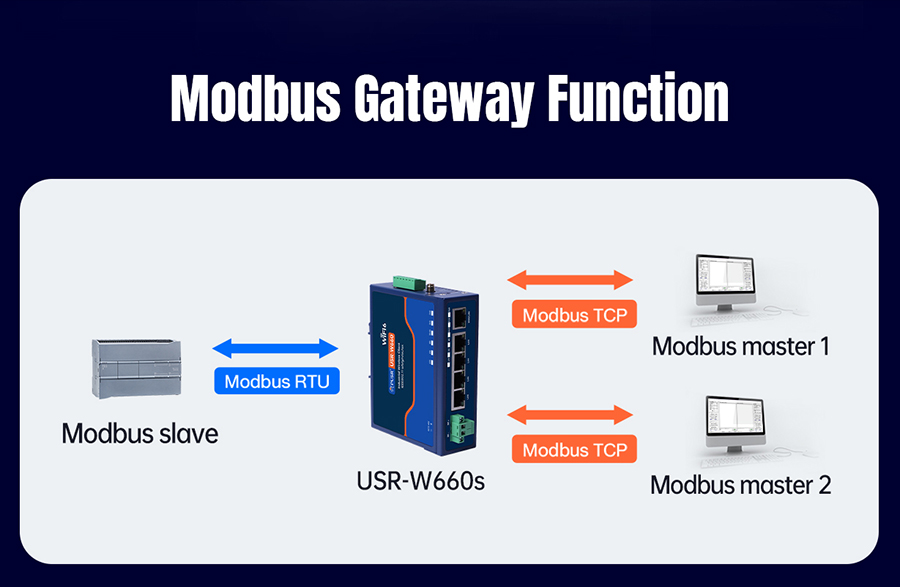

Modbus Gateway Function
- Multi-Host Modbus Polling
- Modbus RTU to Modbus TCP
Remote Management, Anytime, Anywhere Cooperates with PUSR platform, users can realize remote login configuration webpage, data debugging and remote firmware upgrade functions. Users can also monitor the online/offline record of the device. With all the above functions, users can monitor and manage the device conveniently.
Industrial Design
- EFT Protection: Level 3. Protect device against damage caused by instantaneous current interference in circuit, such as lightning stroke, power switch, etc.
- ESD Protection: Level 4. Prevent electrostatic damage equipment, such as dust electrostatic, electric arc environment etc.
- Surge Protection: Level 3. Protect devices from voltage spikessuch as lightning stroke, power switch, etc.
- Watchdog: Hardware & software dual watchdog to ensure stable operation without downtime.
- Wide Operation Temperature: -40℃~ 75℃.
- Wide Power Input: DC 12~48V, reverse polarity protection.
- Metal housing, IP30 protection.

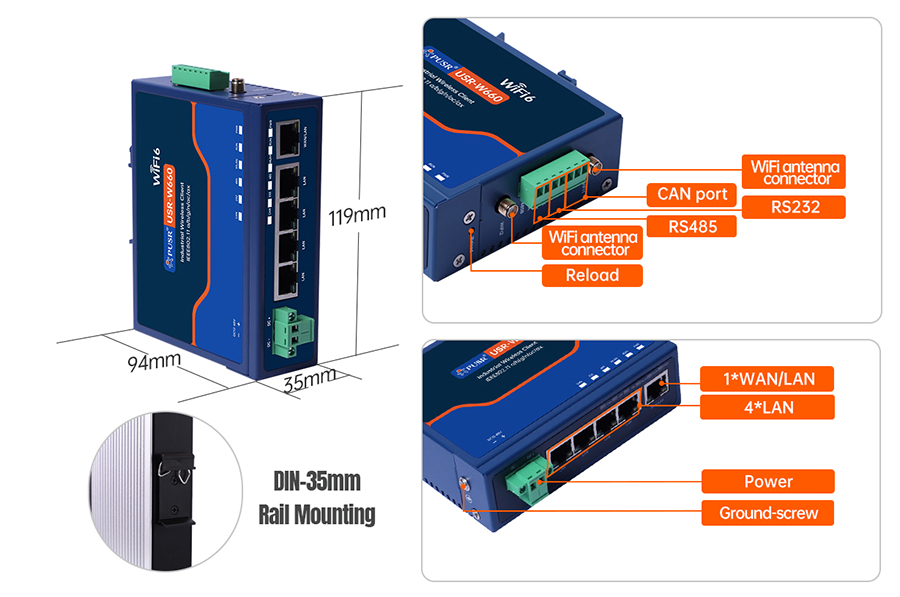

Dimension & Details

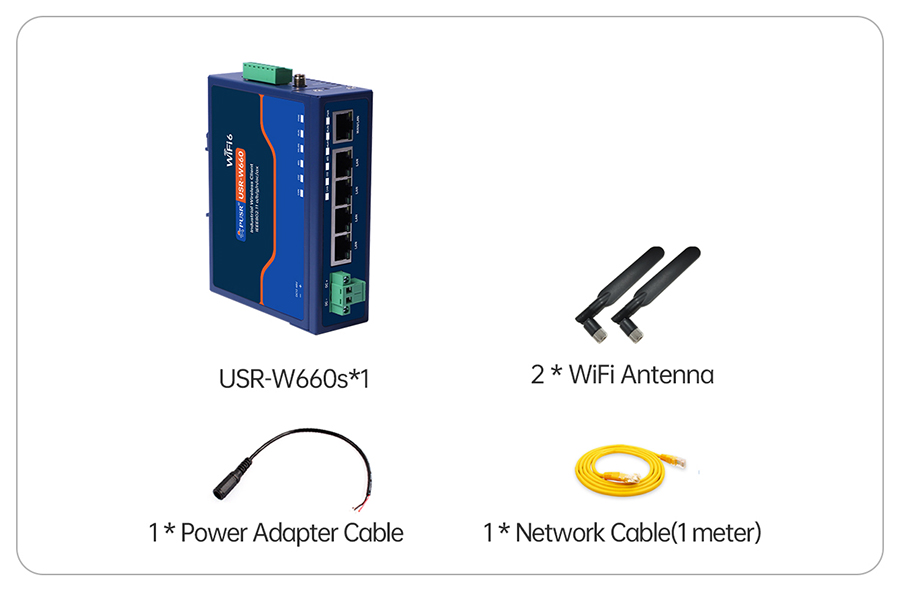

Shipping List
- 2 * WiFi Antenna
- 1 * Network cable(1 meter)
- 1 * Power cable

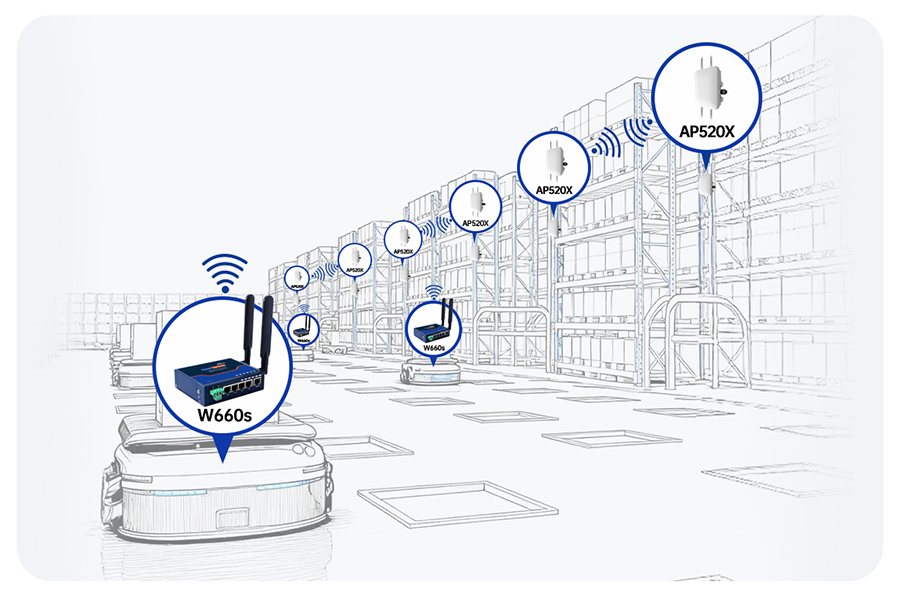

Application of Mobile Device Networking The USR-W660s is specifically designed for mobile scenarios such as warehousing and logistics, transport robots, and industrial automation. It supports the connection of a large number of terminals, delivers high-bandwidth and low-latency stable connectivity, and enables fast seamless roaming. It is an ideal solution for reliable data transmission and centralized management of mobile devices.

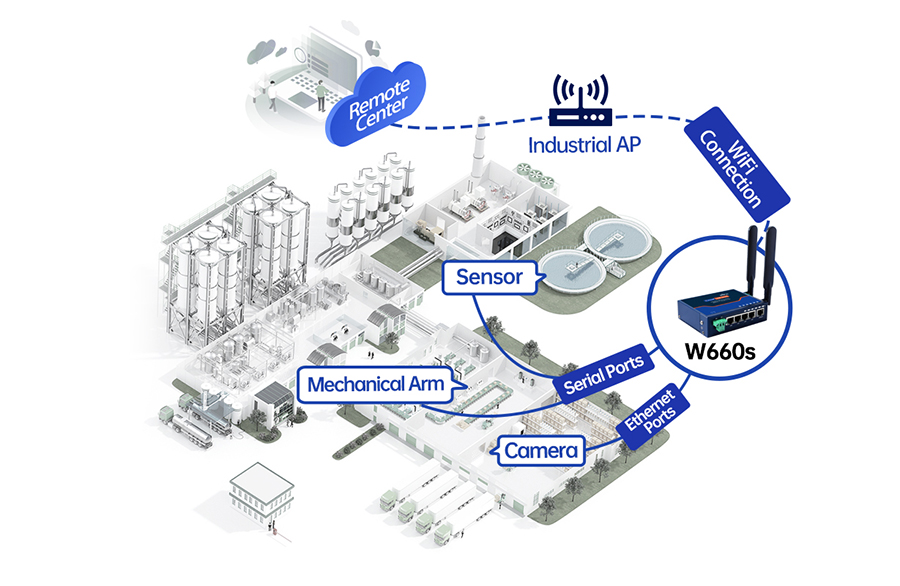

Data Collection and Management for Factory
Equipment The USR-W660s connects to factory equipment via serial port, Ethernet, and WiFi links, transmitting operational data in real time to a remote management platform. This effectively improves production process controllability, enables timely and accurate equipment data collection, reduces production and maintenance costs, and supports the intelligent transformation of traditional industry.
Equipment The USR-W660s connects to factory equipment via serial port, Ethernet, and WiFi links, transmitting operational data in real time to a remote management platform. This effectively improves production process controllability, enables timely and accurate equipment data collection, reduces production and maintenance costs, and supports the intelligent transformation of traditional industry.
