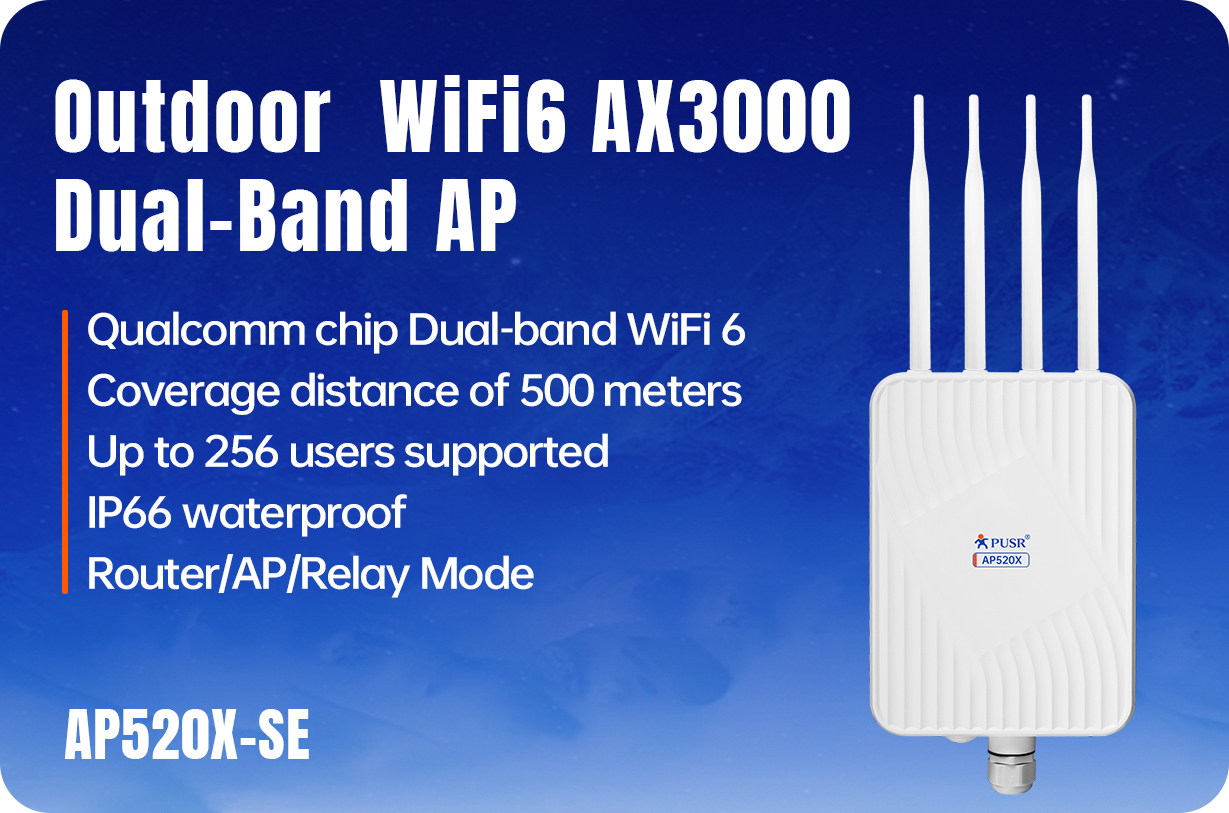

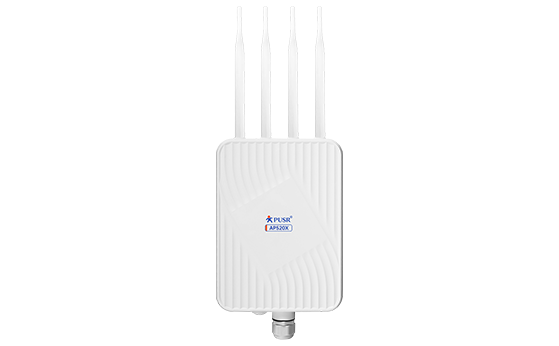

AP520X-SE | Outdoor WiFi 6 AX3000 dual-band AP Wi-Fi speed up to 2975 Mbps | Industrial-grade AP | 802.3at PoE powered AP520X-SE is an industrial outdoor WiFi 6 dual-band access point. Built on high-performance Qualcomm chipset, it delivers 27dBm transmit power and is equipped with external antennas. Compatible with IEEE 802.11a/b/g/n/ac/ax wireless standards, it achieves a total Wi-Fi throughput of up to 2975 Mbps. This access point fits a wide range of industrial deployment scenarios, including campus Wi-Fi coverage, mining areas, smart warehousing & logistics, smart cities, exhibition centers and large venues.
High-power Outdoor AP with Full Performance Boasting a high-performance wireless core and integrated Gigabit PoE LAN port, the AP520X-SE supports versatile operation modes. With IP66 outdoor waterproof enclosure and enterprise-grade encryption protection, it ensures consistent, durable wireless transmission with superior safety and reliability.
Intelligent Roaming Adopting 802.11r-based intelligent roaming technology greatly elevates individual user wireless experience.When users move across coverage areas, wireless terminals will automatically switch to the AP delivering the optimal signal strength.This noticeably boosts user experience and the overall operational performance of the wireless network.
Qualcomm Wi-Fi 6 Delivers Remarkable Improvements

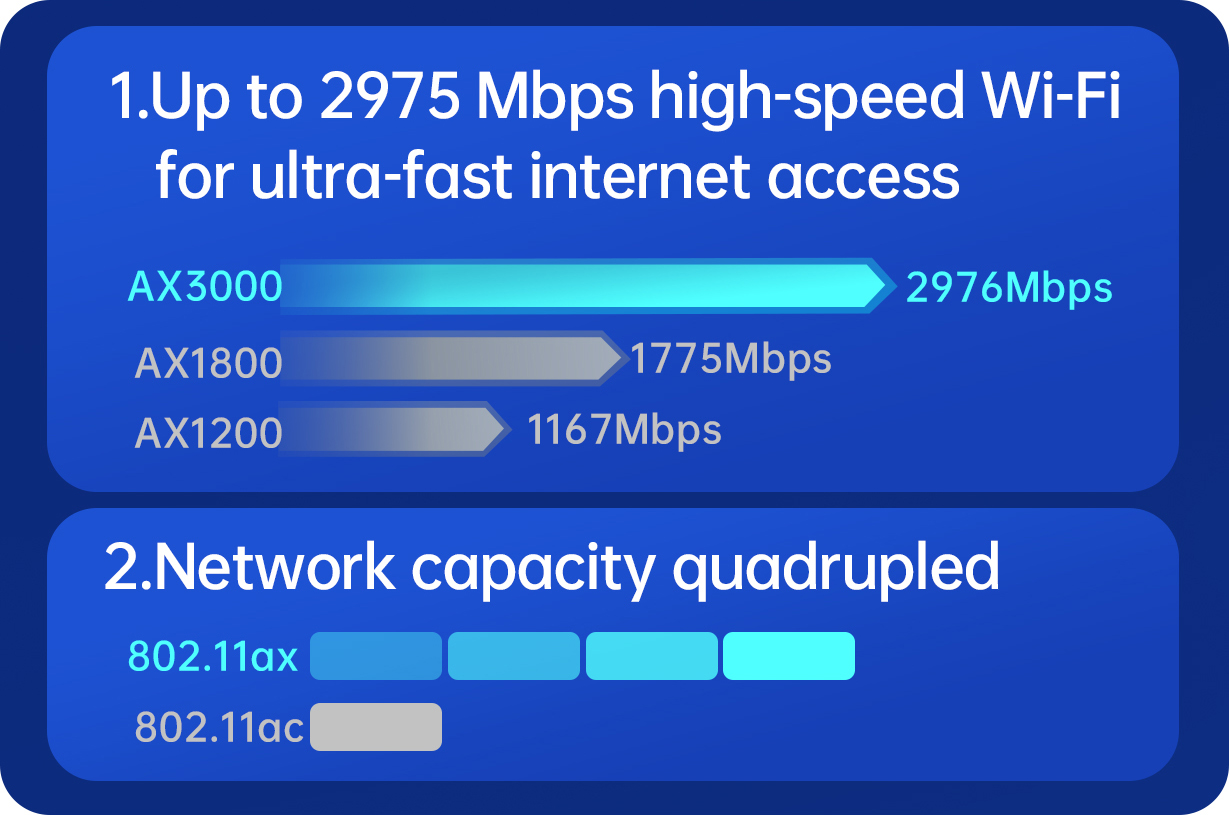

in Speed & Capacity Both 2.4 GHz and 5 GHz bands comply with the latest Wi-Fi 6 standard and support simultaneous dual-band transmission.Equipped with 1024QAM modulation, increased subcarriers and 160 MHz channel bandwidth, the total wireless throughput peaks at 2975 Mbps. It accommodates far more concurrent users and satisfies high-bandwidth, multi-user networking demands.Leveraging OFDMA and MU-MIMO technologies, 802.11ax drastically raises overall system capacity versus the legacy 802.11ac standard.

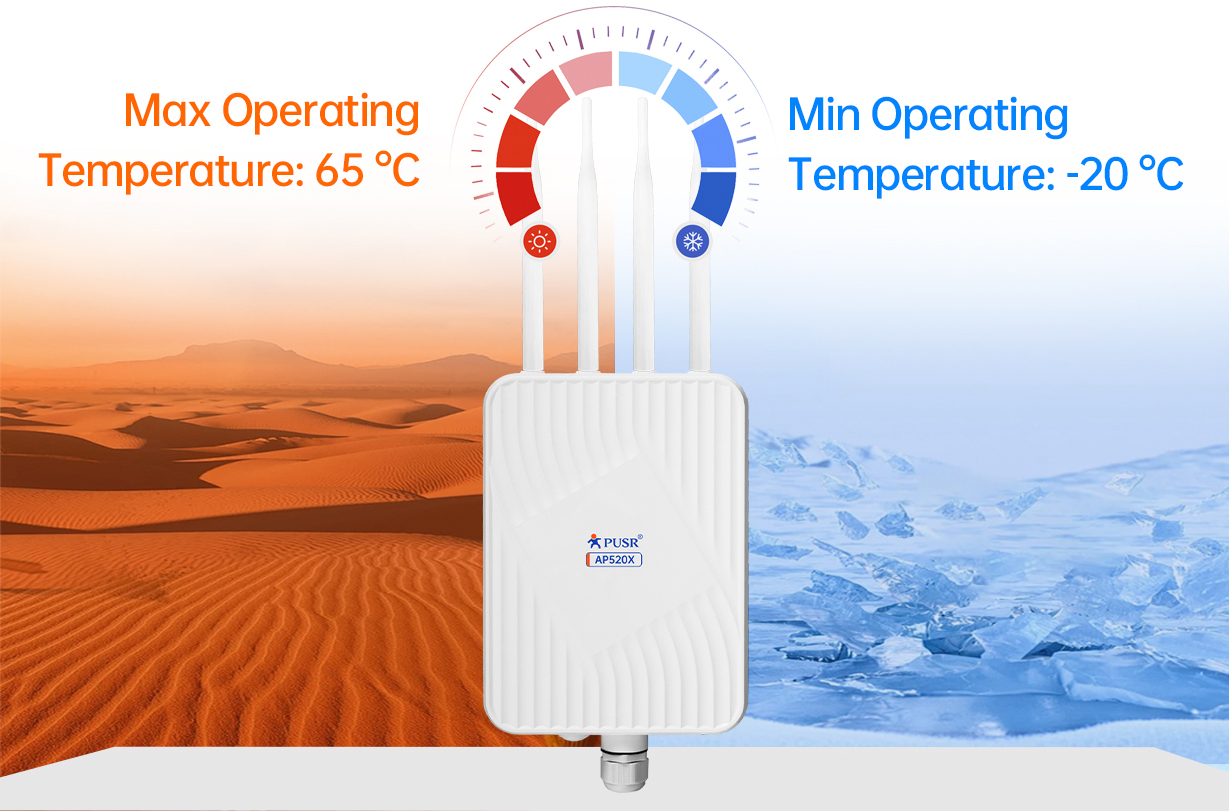

Industrial-Grade Wide Temperature Operating Range Designed with industrial-grade wide temperature tolerance, it reliably withstands a wide range of harsh outdoor environmental conditions.
Powered by Qualcomm Dual-Core Chipset for
Peak Performance Adopting the next-generation WPA3 wireless encryption protocol, it substantially strengthens the connection security of Wi-Fi networks.
Industrial-Grade Hardware Design |

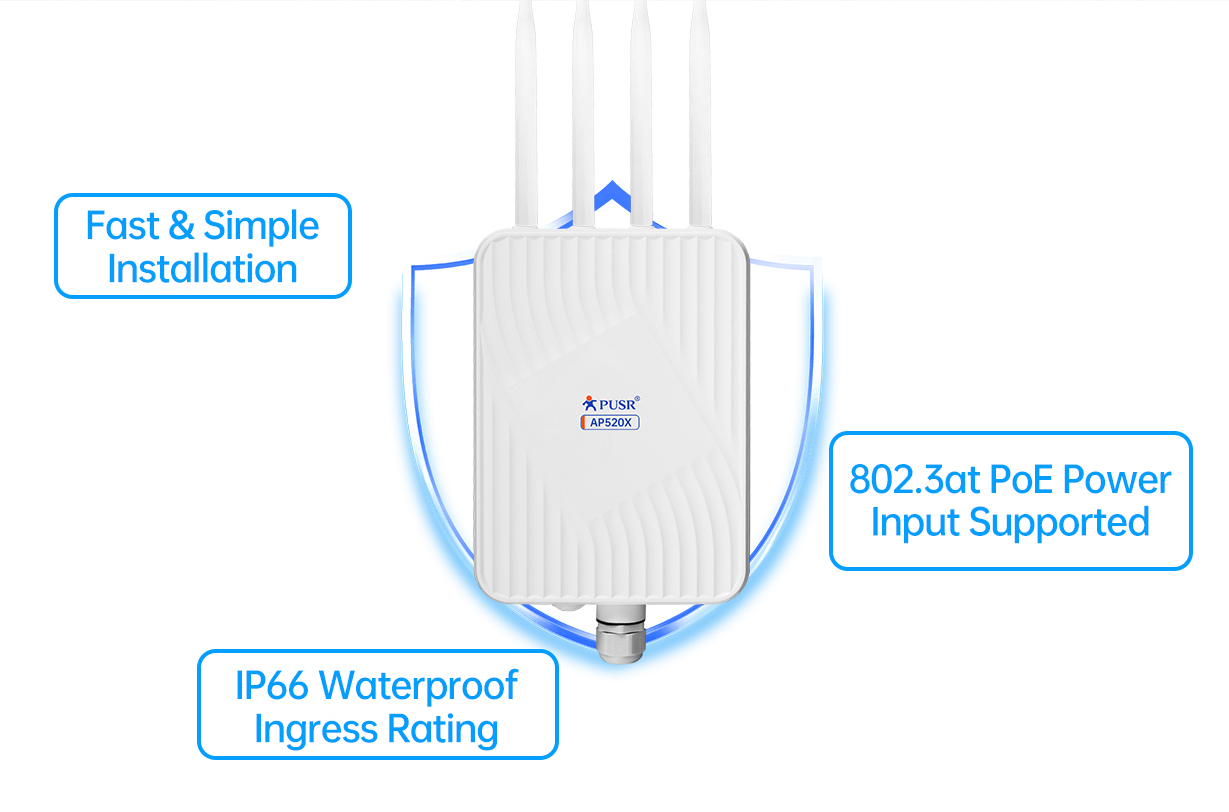

Fast & Simple Installation Boasting industrial-grade construction for swift on-site installation, the AP adopts 802.3at PoE power input to simplify and accelerate field deployment. It carries an official IP66 waterproof rating for outdoor applications.
Centralized Controller Management Supported |

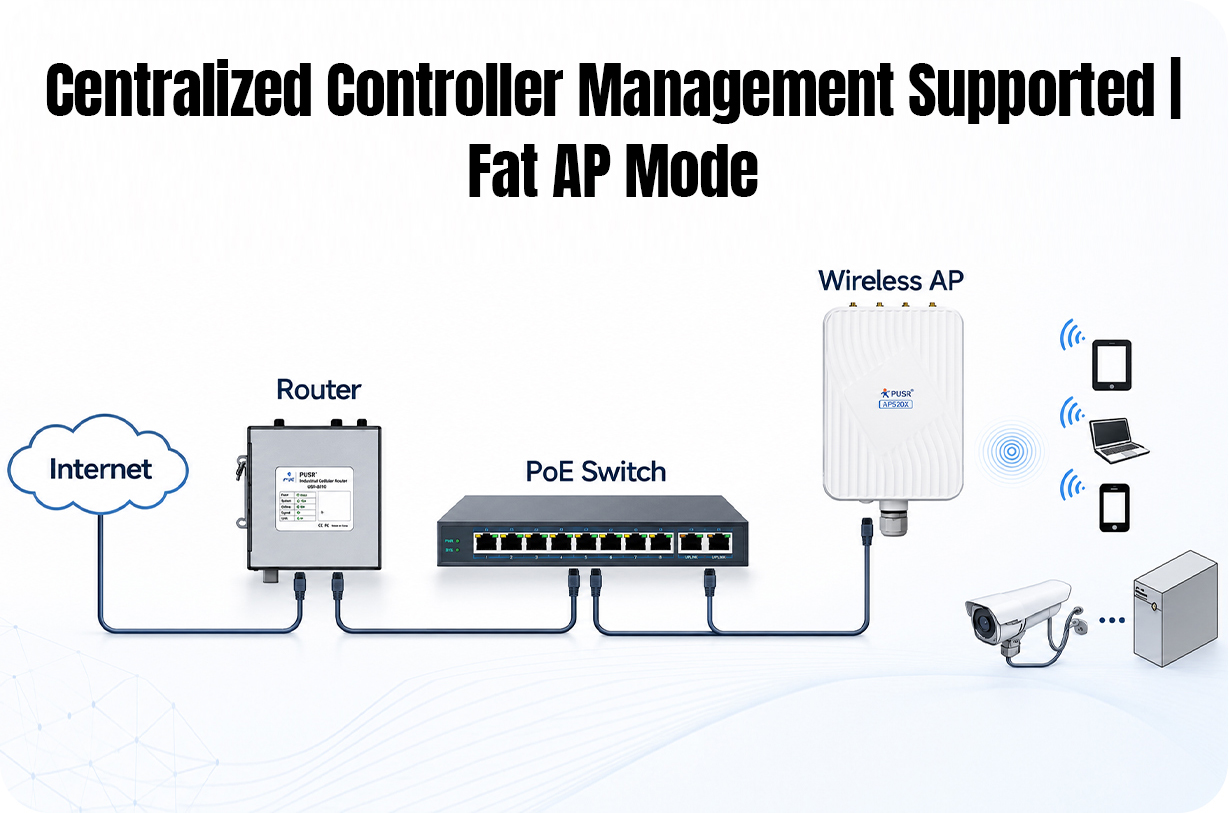

Fat AP Mode This AP integrates both Fat AP and Thin AP modes to accommodate diverse networking requirements.
· Fat AP Mode: Each AP operates and is configured independently. Ideal for small-scale deployments with a handful of access points, enabling fast, flexible rollout without a controller.

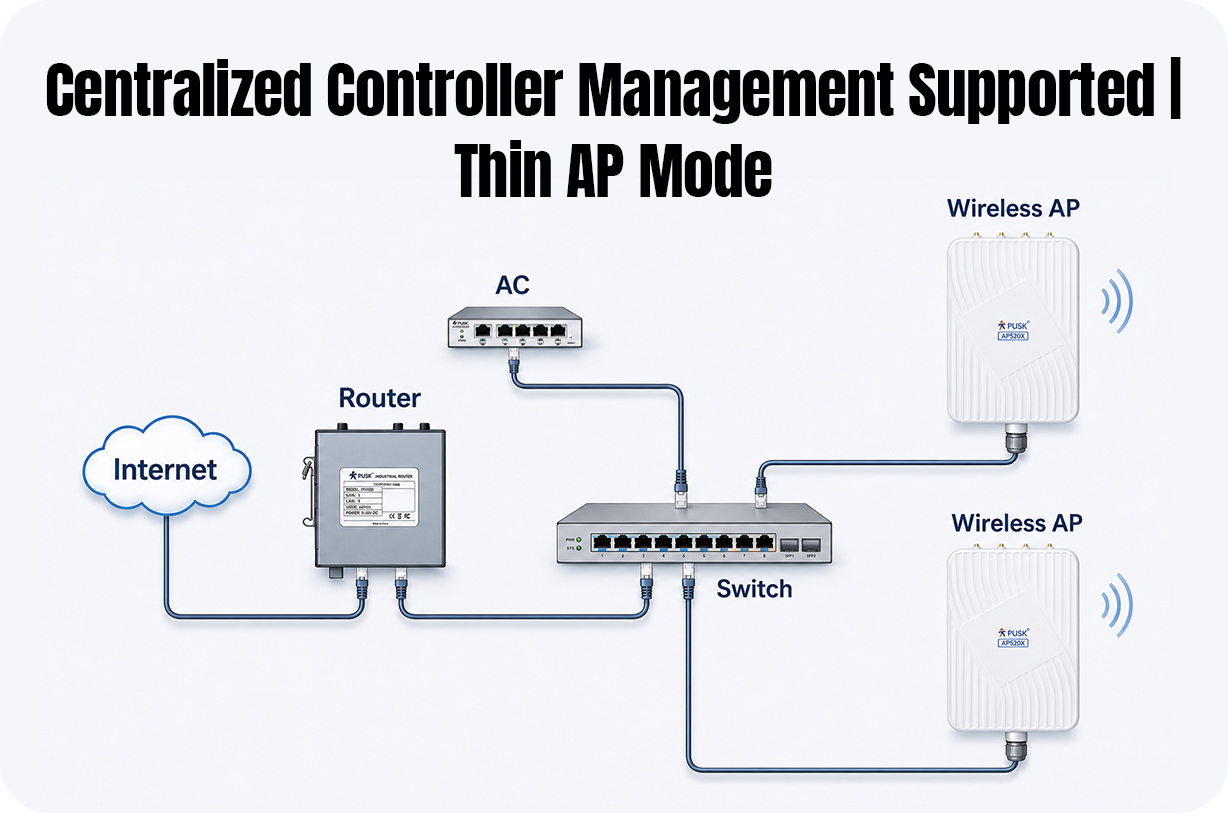

Centralized Controller Management Supported |

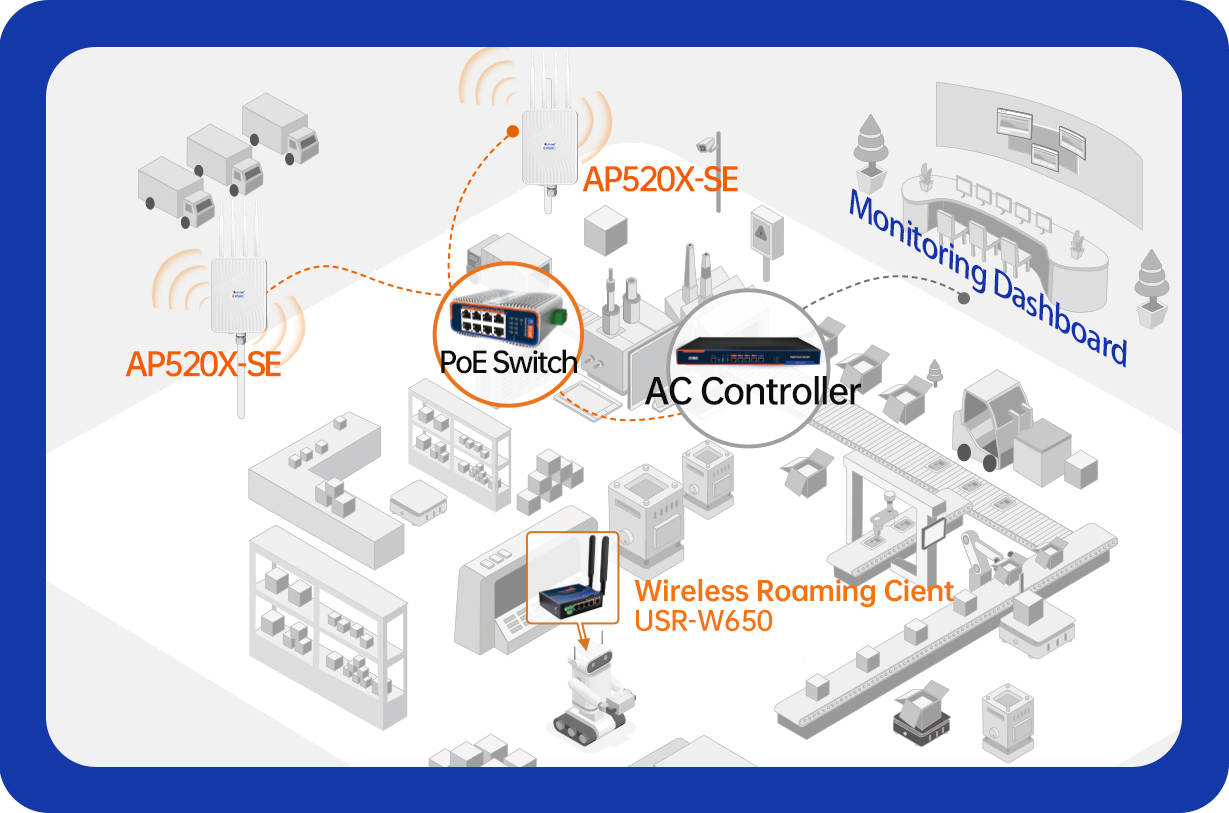

Thin AP Mode · Thin AP Mode: All access points are centrally managed via an AC controller, perfect for medium and large networks. The controller pushes configurations remotely to all APs and supports remote AP firmware upgrades in batches.

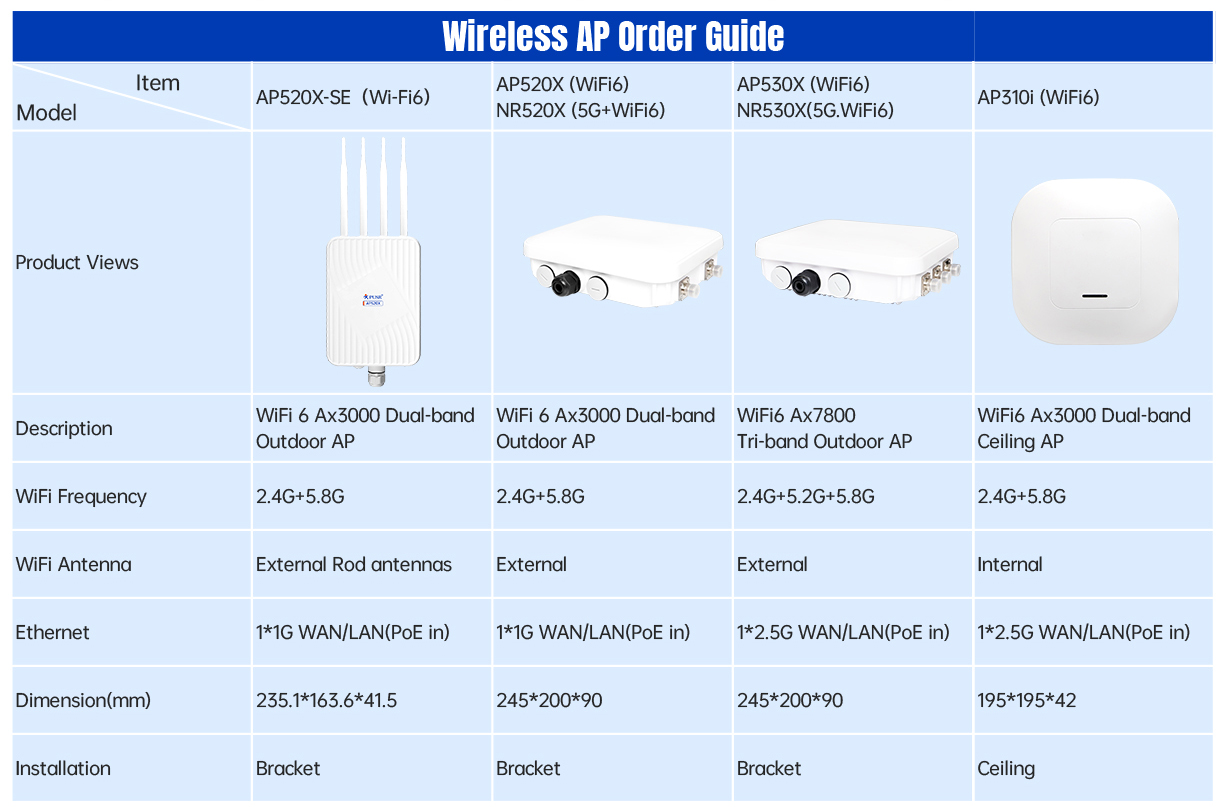

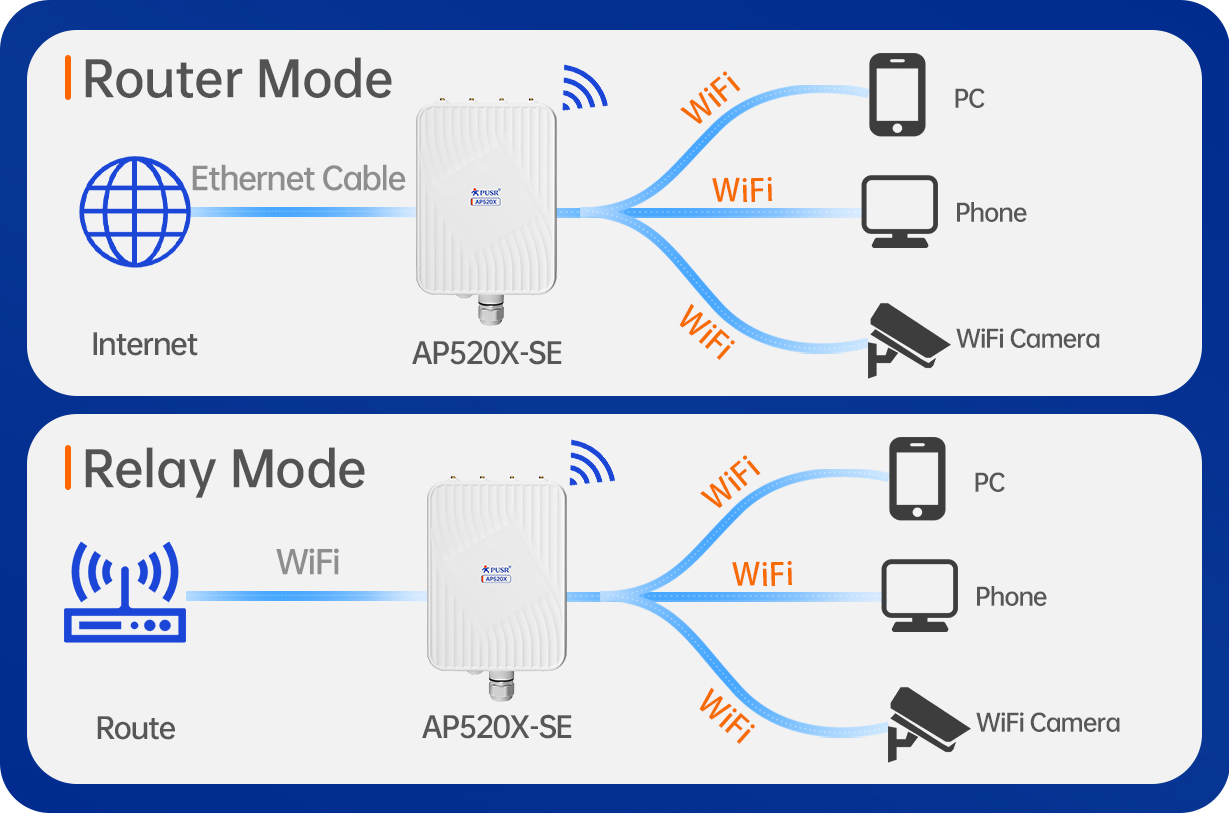

Wireless AP Order Guide It features three operation modes (Router, AP & Wireless Repeater) to fit various application environments.
  • Router Mode: Connects directly to broadband services and supports multiple internet access types: DHCP dynamic IP, static IP, and PPPoE dial-up.
  • AP Mode: Receive wired network from the upstream router and convert wired Ethernet into Wi-Fi wireless coverage.
  • Wireless: Repeater Mode: Connect to the existing Wi-Fi signal of the upstream router (Wi-Fi password required) and rebroadcast a new Wi-Fi network to extend wireless coverage range.

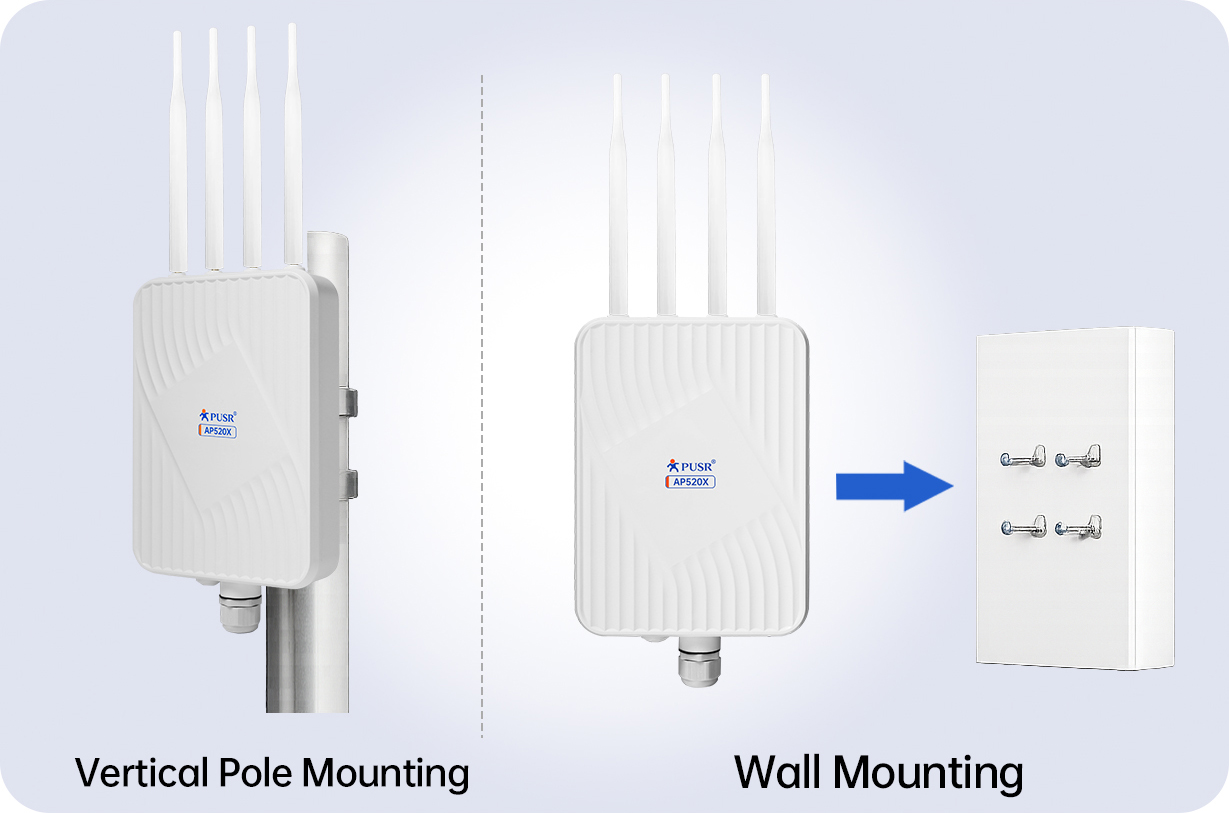

Flexible & Convenient Installation Vertical Pole Mounting
Secure the unit to a vertical pole with stainless steel zip ties following the steps below:
Step 1: Pass the zip tie through the mounting hole on the bracket
Step 2: Fasten the device firmly to the pole
Wall Mounting
Hook the bracket’s wall holes onto pre-installed wall screws to mount the device.
Wireless AP Order Guide
Typical Application Scenarios This outdoor Wi-Fi AP is widely applicable across diverse environments: park wireless coverage, mining yards, smart warehousing & logistics, smart city infrastructure, exhibition centers and various outdoor venues.
