Parameters
|
Value
|
|
Cellular
|
Band(China, India)
|
LTE FDD: B1/3/5/8
LTE TDD: B34/38/39/40/41
WCDMA: B1/5/8
GSM: 900/1800MHz
|
|
Band(global)
|
TDD-LTE:Band 34/38/39/40/41
FDD-LTE：Band 1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66
WCDMA:B1/2/4/5/6/8/19
GSM/GPRS/EDGE：B2/3/5/8
|
|
Antenna
|
Built-in full bidirectional antenna
|
|
SIM slot
|
1 x Nano-SIM
|
|

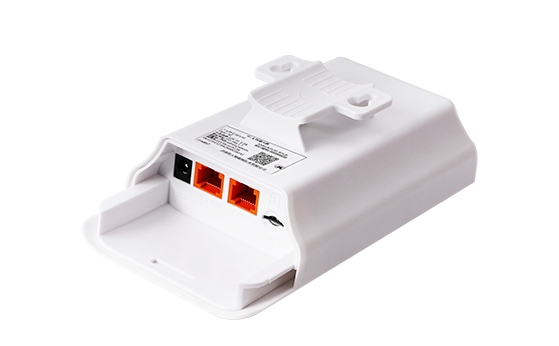

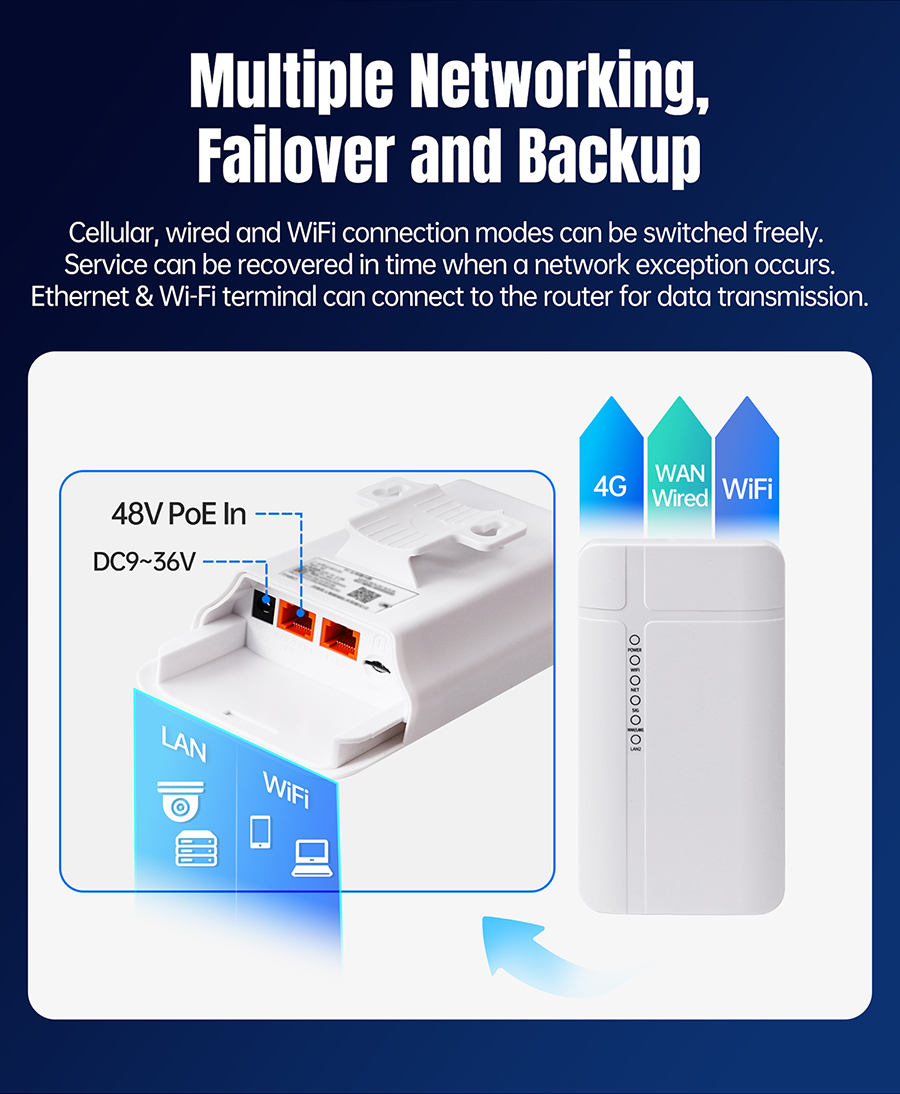

Ethernet Interface
|
WAN
|
1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX
|
|
LAN
|
1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX,
|
|
WiFi
|
Standards & Frequency
|
IEEE 802.11b/g/n, 2.4GHz
|
|
Mode
|
AP/STA/Repeater
|
|
Data speed
|
300Mbps
|
|
Antenna
|
Built-in full bidirectional antenna
|
|
Transmission distance
|
50 meters by line of sight.Actual transmission distance depends on environment of the site.
|
|
MIMO
|
2 x 2
|
|
WiFi users
|
8
|
|
Power Supply
|
Adaptor
|
DC 12V/1A
|
|
Connector
|
DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN industrial terminal block, reverse polarity protection
|
|

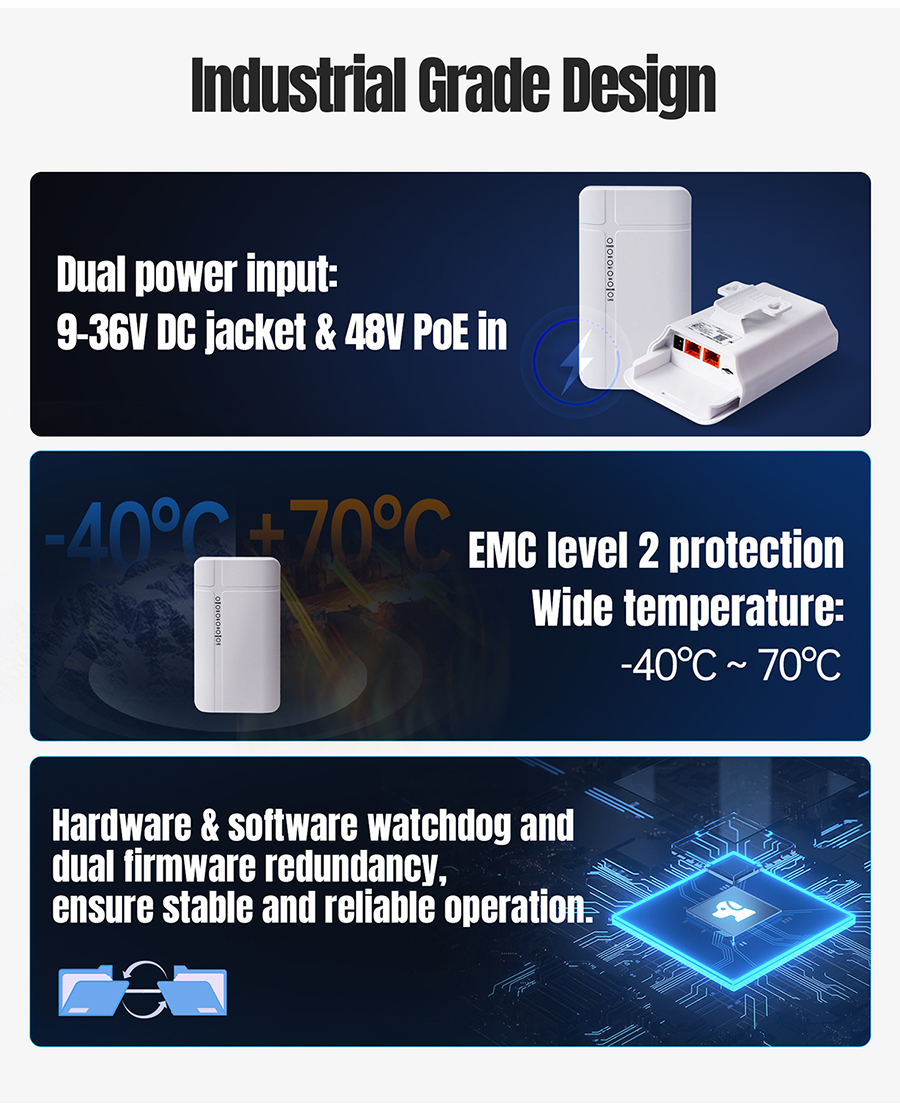

Input voltage
|
DC 9-36V
|
|
Power consumption
|
12V@300mA
|
|
Physical Characteristics
|
Casing material
|
IP65 rated, ABS material
|
|

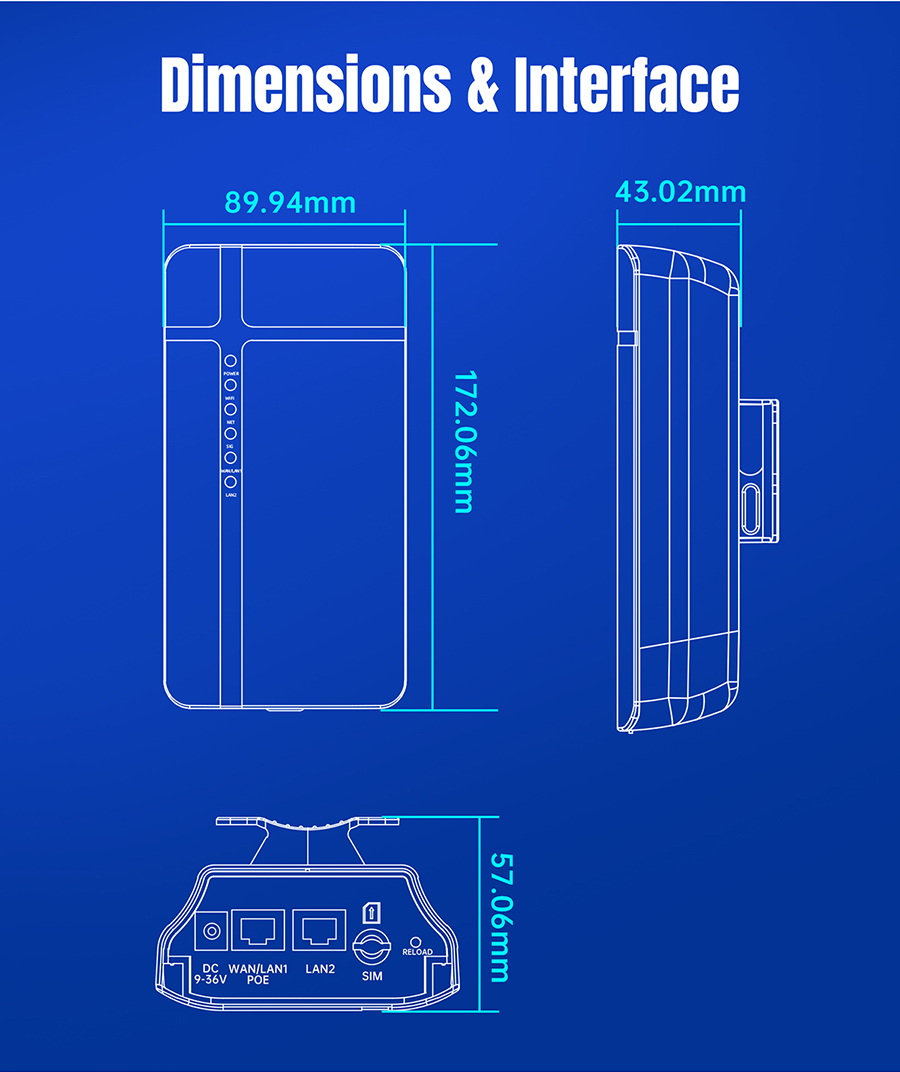

Dimensions
|
172.06*89.94*57.06mm
|
|

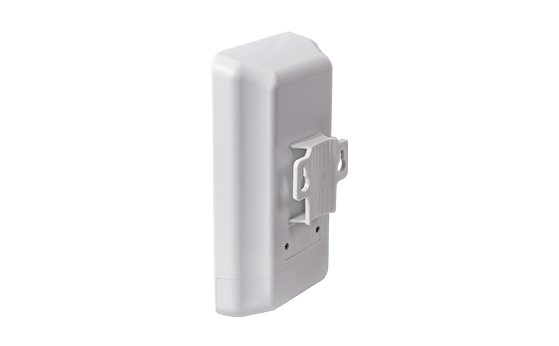

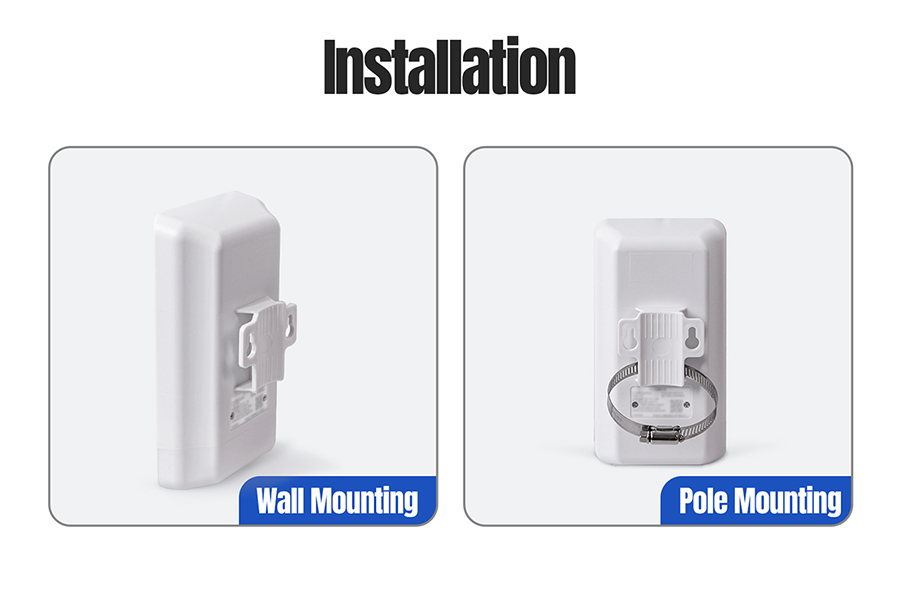

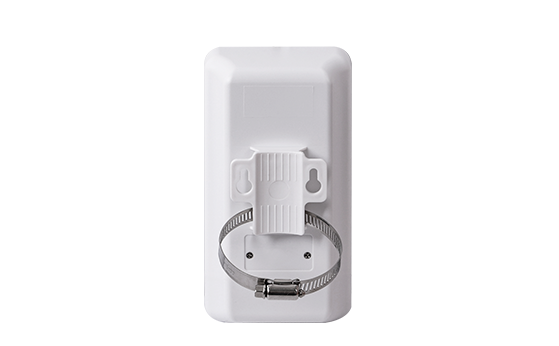

Installation
|
Poll mounting and wall mounting
|
|
EMC
|
Static IEC61000-4-2, level 2
Pulsed Electric Field IEC61000-4-4, level 2
Surge IEC61000-4-5, level 2
|
|
Operating Temperature
|
-40°C to +70°C
|
|
Storage Temperature
|
-40°C to +85°C (non-condensing)
|
|
Operating Humidity
|
5%–95% (non-condensing)
|
|
Others
|
Indicators
|
POWER、WIFI、NET、SIG、WAN/LAN1、LAN2
|
|
Reload button
|
Long press 5-15s to reset to factory settings
|
