Hardware Specifications
|
|
Cellular
|
4G
Global frequency bands
|
TDD-LTE:Band 34/38/39/40/41
FDD-LTE：Band 1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66
WCDMA:B1/2/4/5/6/8/19
GSM/GPRS/EDGE：B2/3/5/8
|
|
Antenna interface
|
2* Standard SMA-K interface (outer screw and inner hole)
|
|
SIM card slot
|
2 *None-SIM
|
|

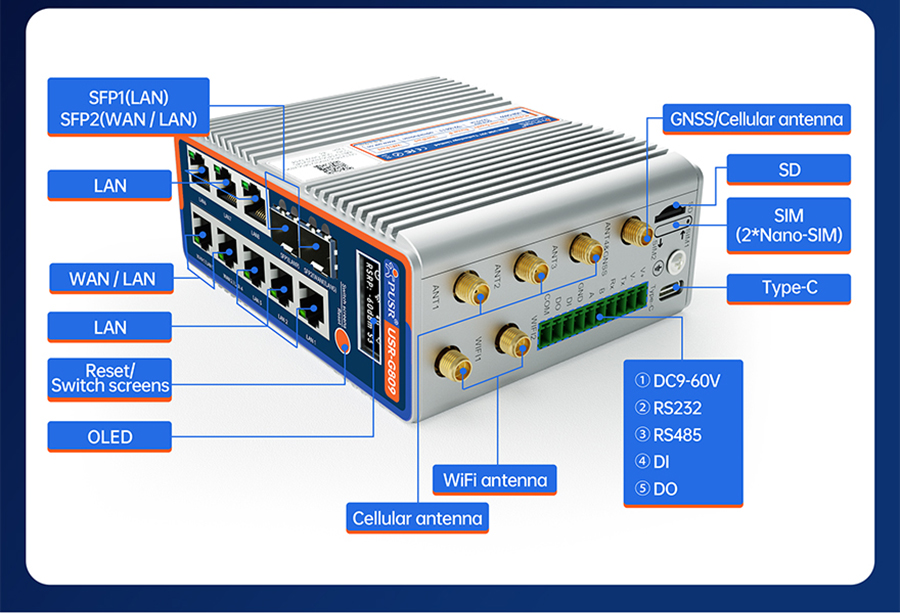

Ethernet Interface
|
Number of network ports
|
Version with10 LAN ports：2*WAN/LAN+6*LAN+2*SFP; SFP: 1*WAN/LAN+1*LAN
|
|
Network port specifications
|
RJ45：10/100 /1000Mbps，IEEE 802.3
SFP：Gigabit optical port
It has 1.5KV network isolation transformer protection
|
|
Connecting Terminal
|
V+，V-
|
Built-in power reverse protection
|
|
GND
|
Ground terminal；
|
|
Tx
|
RS232
|
|
Rx
|
RS232
|
|
A
|
RS485
|
|
B
|
RS485
|
|
DI1
|
Digital input port
|
|
DO1
|
Digital output port
|
|
Com
|
Common teminal
|
|
Wi-Fi6
|
Antenna interface
|
2 * Standard RP-SMA-K interface (External screw and internal pins)
|
|
MIMO
|
2×2
|
|
Standard and frequency band
|
Support IEEE802.11b/g/n/ac/ax，2.4GHz&5.8G
|
|
Wireless functionality
|
AP / STA/ Relay / Bridge
|
|
The rate of the theory
|
2976Mbps(5GHz:2402Mbps,2.4GHz:574Mbps)
|
|
Secure encryption
|
No encryption/mixed-psk/psk/psk2/psk2+ccmp
|
|
Transmission distance
|
Open outside / no obstruction, coverage radius up to 200 meters;
Indoor office environment/barrier, coverage radius up to 40 meters
Note: The measured rate is affected by the field environment, please take the measured rate as the standard
|
|
Theoretical device capacity
|
2.4G+5.8G:256
|
|

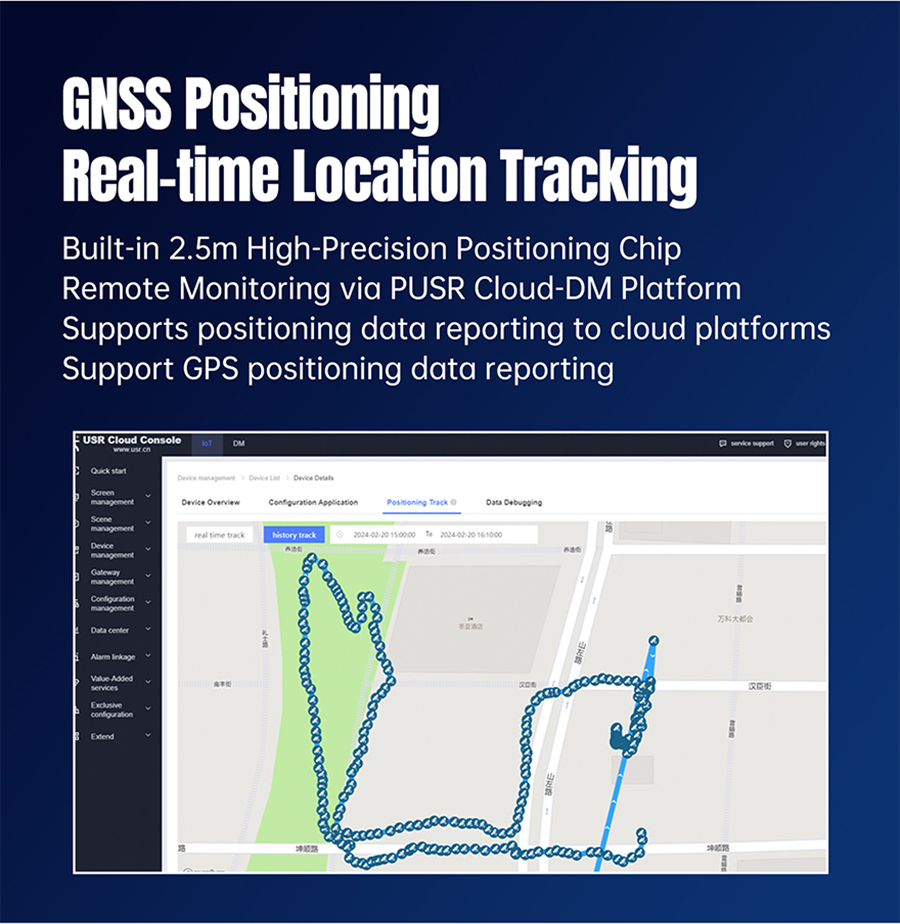

Positioning Function
|
Antenna interface
|
1 * Standard SMA-K interface (external screw and internal hole)
|
|
Positioning criteria
|
GPS
|
|
Power Supply Specifications
|
Adapter
|
DC 12V/2.5A
|
|
Power supply interface
|
Power supply for industrial terminals with anti-polarity protection
|
|
Scope of power supply
|
DC 9-60V
|
|
Serial Port
|
RS485/RS232
|
Industrial terminal
|
|
Baud rate（bps）
|
1200,2400,4800,9600,19200,38400,57600,115200,230400
|
|
Data bit
|
7,8
|
|
Stop bit
|
1,2
|
|
Check bit
|
NONE,ODD,EVEN
|
|

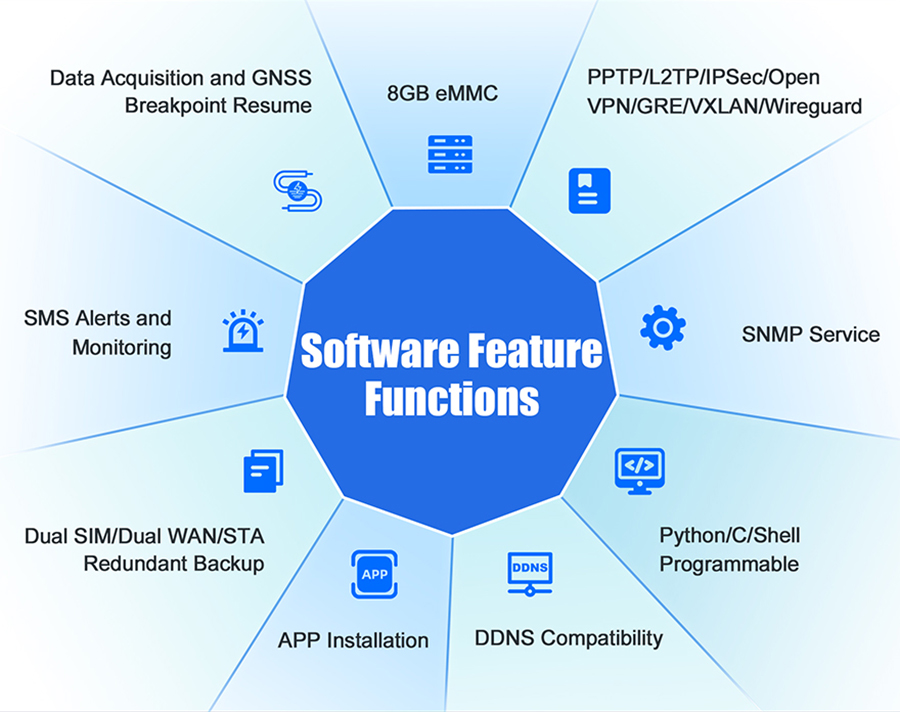

Software Functions
|
VPN
|
PPTP、L2TP、IPSec、OpenVPN、GRE、VXLAN、Wireguard
|
|

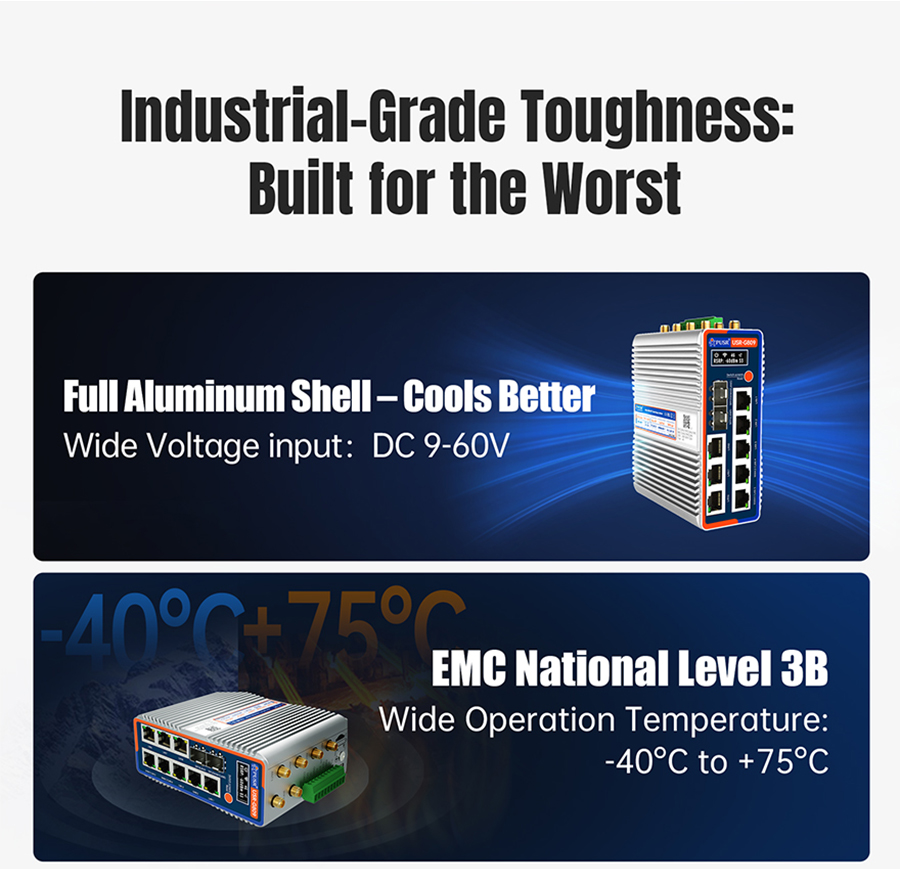

Physical Characteristics
|
Hull
|
Aluminum alloy shell, dustproof grade IP40
|
|

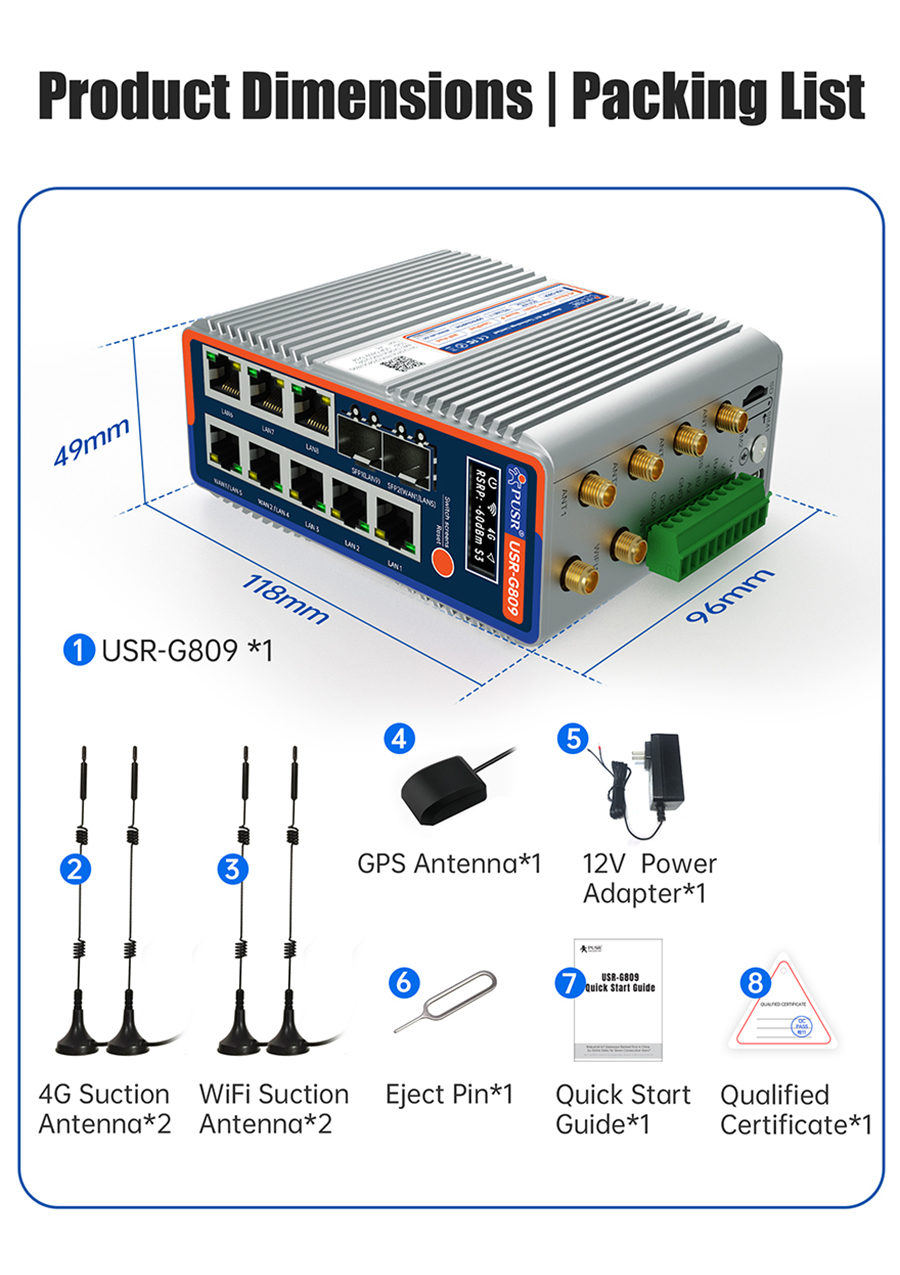

Size；
|
118.0*96.0*48.7mm（L*W*H，Parts and antenna seats are not included）
|
|
Way to install
|
Guide rail installation, horizontal desktop placement
|
|
EMC
|
National standard 3B grade
|
|
working temperature
|
-40℃ ~ +75℃
|
|
Storage temperature
|
-40℃～+85℃（No condensation）
|
|
Working humidity
|
5%~95%（No condensation）
|
|
Other
|
Reset/Switch Screens
|
Long press for 5-15 seconds to restore factory settings, and short press for 1-3 seconds to switch screens.
|
|
USB
|
Supports USB flash drives to expand storage space
|
|
SD card slot
|
Support SD card to expand storage space
|
|
RTC
|
RTC
|
|
Ground protection
|
Grounding screws
|
|
Built-in watchdog
|
Supports self-detection of equipment and self-recovery of faults
|
|
OLED
|
Display the basic information of the router
|
