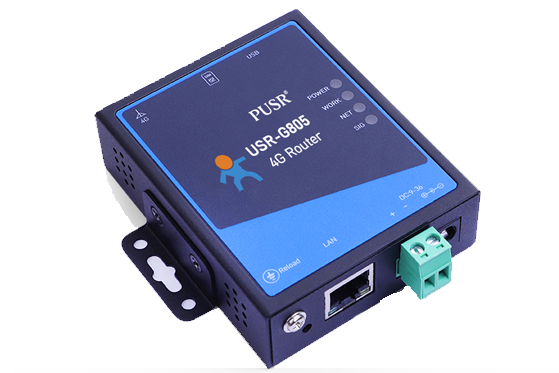

USR-G805

USR-G805

Mini industrial 4G cellular router

Mini industrial 4G cellular router


USR-G805 is a very small and economical 4G industrial cellular router. It integrates 4G LTE, Ethernet port and VPN technology. It uses 4G Cat 4 Qualcomm solution module, and embeds a CPU with a working frequency up to 1GHz, provides reliable, secure and high speed mobile connectivity with VPN supported.
● Compact design
● Support 4G/3G/2G network
● Support L2TP/PPTP VPN
● 9-36V DC Wide range power input
● Support Dynamic DNS (DDNS)
● Hardware Watchdog
● Support USR cloud, remote access to device’s GUI
● Support local/remote firmware update
● Support configuration backup and import
● Local/Remote log for easy debugging
Mini  INdustrial 4G Cellular Router
Mini  INdustrial 4G Cellular Router Ordering Guide
Mini  INdustrial 4G Cellular Router Embedded with high-performance CPU

Embedded with high-performance CPU
more outstanding

It adopts 4G Cat 4 Qualcomm solution module and is equipped with a CPU
with working frequency up to 1GHz.
Excellent processing capability can easily support fast data transmission
and enjoy a smoother Internet experience

Mini industrial 4G cellular  router Faster access and faster speed

Faster access and faster speed

Your device can be in normal operation after 30s of power-on,
which is obviously about 20s earlier than that of ordinary routers.
High speed 4G LTE access, up to 150Mbps download
rate and 50Mbps upload rate

Mini industrial 4G cellular  router Strong Security Protection

Strong Security Protection

Support VPN (PPTP and L2TP) virtual private network tunnels,
and support APN/VPDN card private network access to provide protection for
your data security.

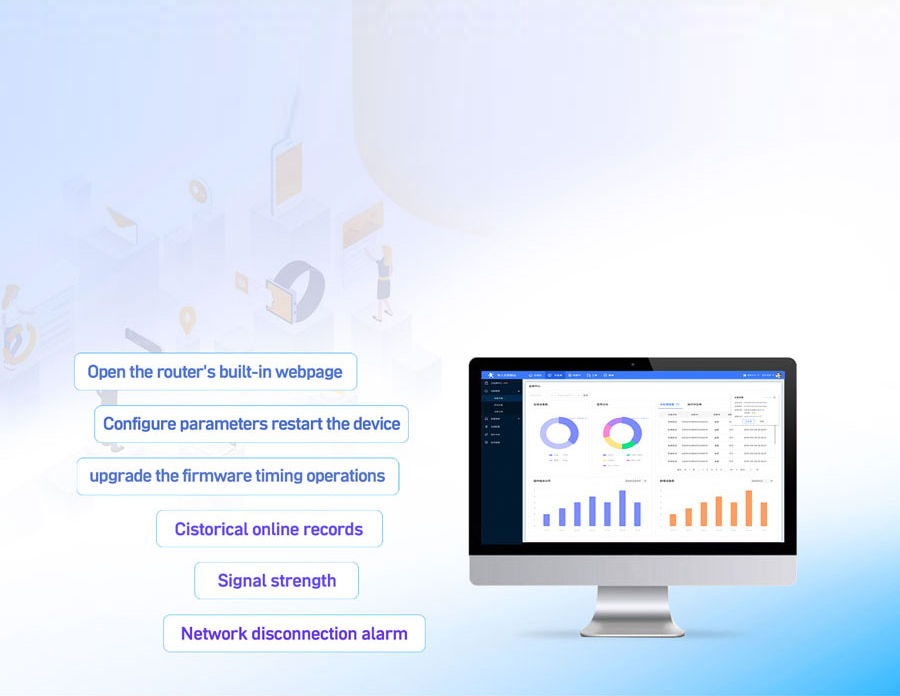

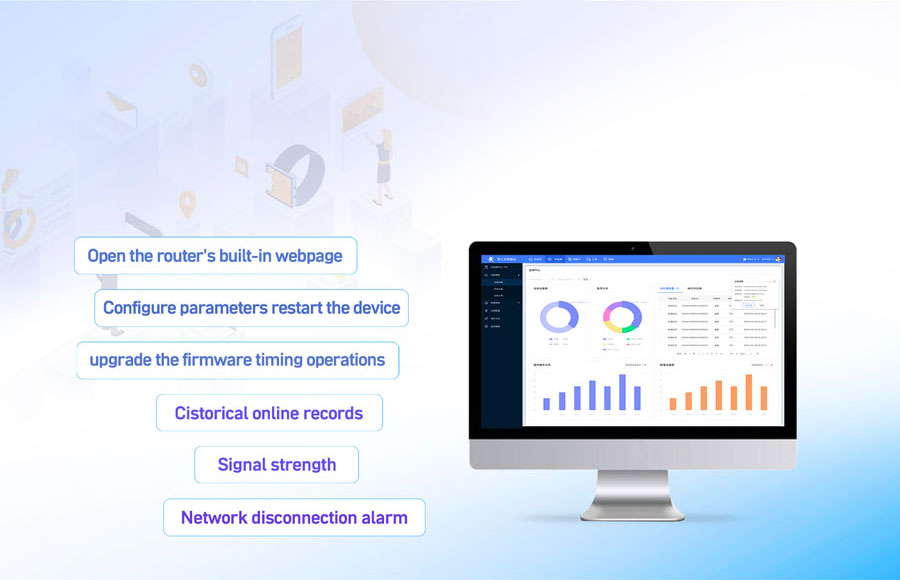

Mini industrial 4G cellular  router PUSR cloud platform,Remote Centralized Management

PUSR cloud platform,Remote Centralized Management

Using PUSR cloud service, you only need a computer or a mobile phone to monitor
and control thousands of mission-critical devices through very simple operations.

Mini industrial 4G cellular  router Ultra-small size, multiple installations

Ultra-small size, multiple installations

Dimensions : 70.0mm*86.0mm*25.0mm; and compatible
with a variety of installation methods,
making it easy to deploy and implement in various scenarios.

Mini industrial 4G cellular  router Product Details

Product Details

Mini industrial 4G cellular  router Product introduction

G805 is widely used in the Internet of Things industry by virtue of its advantages
of economy, compact size and comprehensive functions,
such as: intelligent express cabinets, self-service ticket vending machines,
charging piles, battery exchange cabinets, finance, intelligent transportation,
industrial robot networking, fire monitoring, security monitoring ,
water conservancy engineering, electric power, photovoltaic,
environmental protection, coal mine, CNC networking,
shopping mall navigation terminal , smart parking lot,
digital signage and retail.

Mini industrial 4G cellular  router video surveillance

video surveillance

Video surveillance scenarios have high requirements for the real-time and
stability of networked transmission.
G805 can provide a stable and reliable network for monitoring equipment and
realize online transmission of large amounts of data.

Mini industrial 4G cellular  router Vending Machines and Remote Kiosks

Vending Machines and Remote Kiosks

Kiosks are used for a wide variety of applications such as pay stations,
self-service for ordering, vending, wayfinding, digital signage, and more.
They are expected to perform automated functions and offer an enhanced
experience.The self-service terminal is connected to the network through a
4G wireless router, and transmits all terminal business data and equipment
operating status to the business center in real time,
reducing the operating cost of the business center.

Hardware Specifications



Cellular interface



Antenna

1 × SMA-K

SIM card

1 x(3 V/1.8 V)Standard 2FF SIM, drawer-type sim card slots

Ethernet

NO.

1 × LAN

Spec.

RJ45 connector:10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Indicators

POWER

always on after powered on

WORK

blinking when the router is ready and working properly

NET

2/3/4G mode indicator:2G-red,3G-blue,4G-purple

SIG

Signal strength:weak-red,medium-blue,strong-purple

Power supply

Adaptor

DC 12V/1A

Connector

DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN industrial terminal block,reverse polarity protection

Input voltage

DC 9-36V

Rated power consumption

3.5W

Physical

Housing

Metal shell,IP30

Dimensions

86.0mm * 70.0mm* 25.0mm

Installation method

Panel mounting, DIN-Rail mounting,desktop

Operating temperature

-20℃~70℃

Storage temperature

-40℃~+125℃

Operating humidity

5%~95%RH(non-condensing)

Others

Reload

Pinhole reset button

USB

Firmware upgrading

Certification

CE,RoHS
