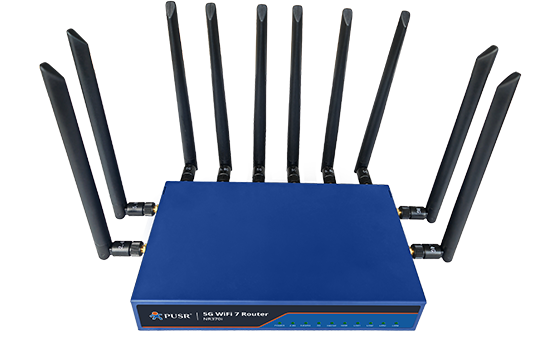

    NR370i 5G WiFi7 Router

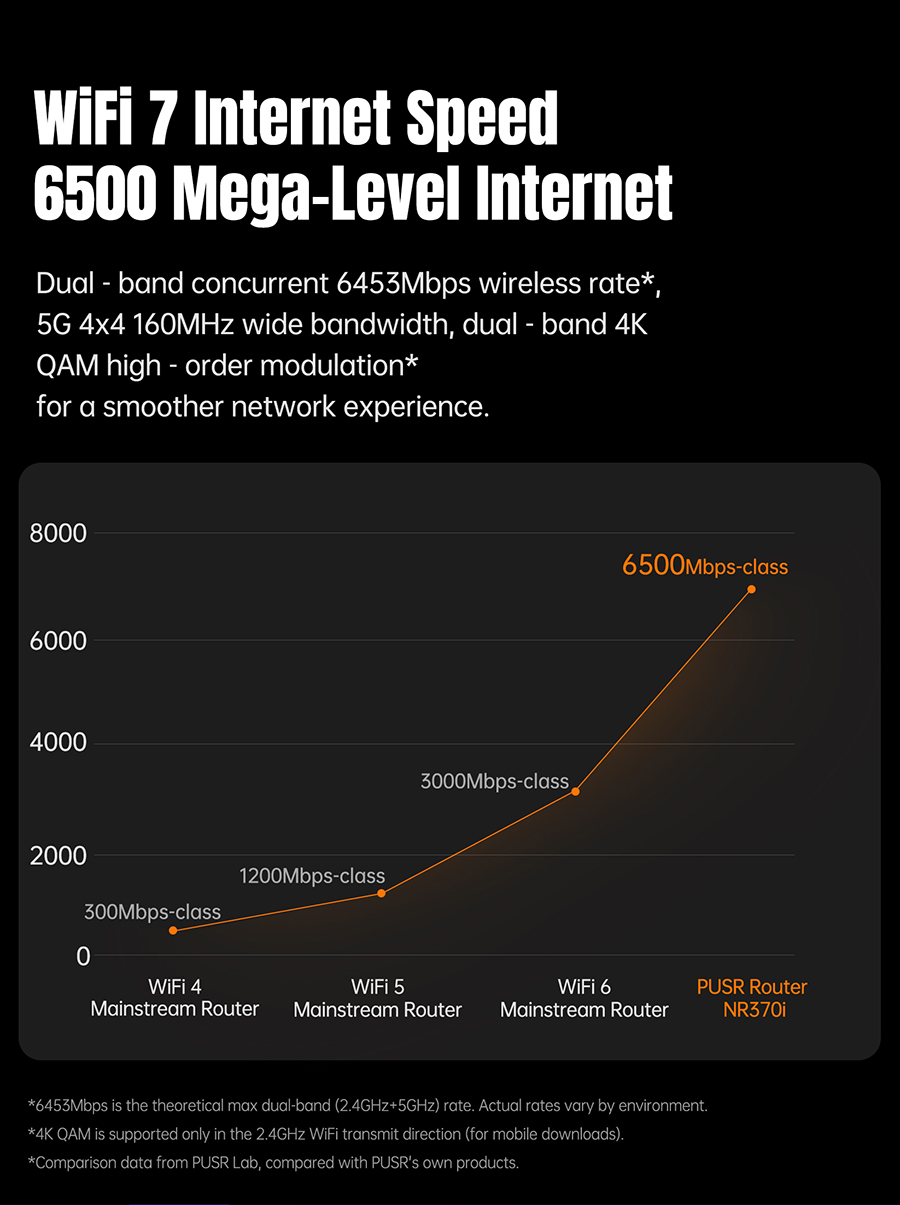

    As a wireless router, NR370i adopts the latest generation WiFi7 technology and is compatible with IEEE 802.11a/b/g/n/ac/ax/be protocol. The dual-band WiFi access rate is up to 6500Mbps typically, suitable for various wireless access scenarios with high density and high capacity.
    5G WiFi7 Router 5G WiFi7 Router 5G WiFi7 Router 5G WiFi7 Router
    Processor 1.5 GHz Qualcomm quad-core, Qualcomm X62 5G NR
    HIGH-SPEED WiFi 7, BE6500, 10G SFP Optical Port
    Easy Networking 4 PoE 2.5G LAN ports,​ DC12~54V

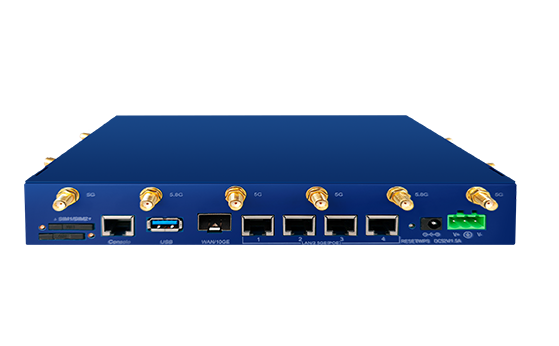

    Rich Interfaces 2 SIM slots​, 1 RJ45 Console,​ 1*USB
    Summary
    Parameter
    Download
    Home Product

    NR370i

    System

    Chipset

    IPQ5322(Quad-core @A53 at 1.5 GHz )+QCA8386+QCN6224(QCN9274 customizable)

    RAM

    1GB(512MB to1GB customizable) DDR4

    FLASH

    256MB(up to 1GB customizable) SPI NAND, eMMCcompatible

    4MB(up to32MB customizable) SPI NOR

    WiFi

    Standard

    IEEE 802.11a/b/g/n/ac/ax/be

    Streams

    MU-MIMO: 2×2+4×4(tri-band2x2+2x2+2x2 customizable)

    Frequency Bands

    2.4GHz-2.483GHz

    5.15-5.25GHz, 5.25GHz-5.35GHz, 5.725GHz-5.850GHz

    (4.9~7.125GHz customizable)

    Rate

    2.4GHz:688Mbps,5GHz:5765Mbps

    Recommended clients

    256(2.4G)+256(5G)

    Modulation

    802.11b: DSSS:DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)

    802.11a/g: FDM:BPSK(6/9Mbps), QPSK(12/18Mbps), 16QAM(24/36Mbps), 64QAM(48/54Mbps)

    802.11n: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM

    MCS: MCS0~MCS15

    802.11ac: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM

    MCS: MCS0~MCS9

    802.11ax: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM

    MCS: MCS0~MCS11

    802.11be: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM, 4096QAM

    MCS: MCS0~MCS13

    Bandwidth

    320/160/80/40/20 MHz

    Tx power

    24dBm

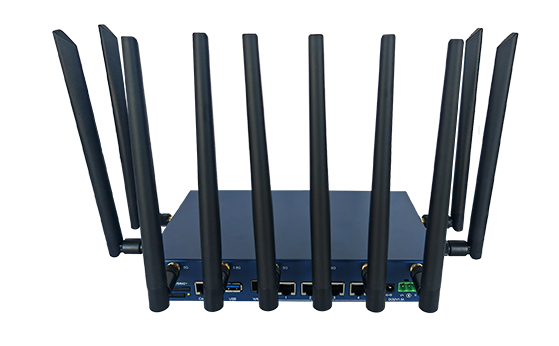

    Antenna

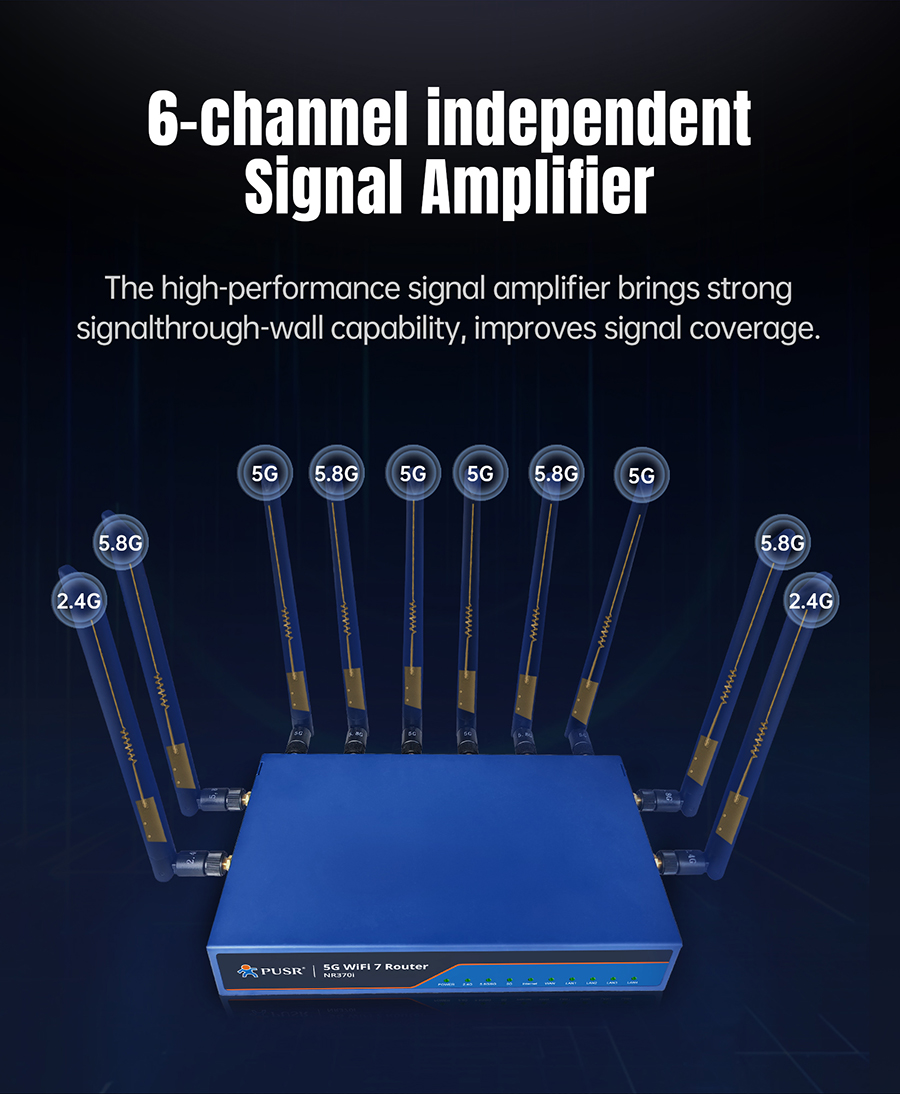

    6×External high gain antennas

    5G NR

    Frequency Bands

    5G SA:  n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79

    5G NSA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79

    LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

    LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48

    LAA: B46

    WCDMA: BB1/B2/B4/B5/B8/B19

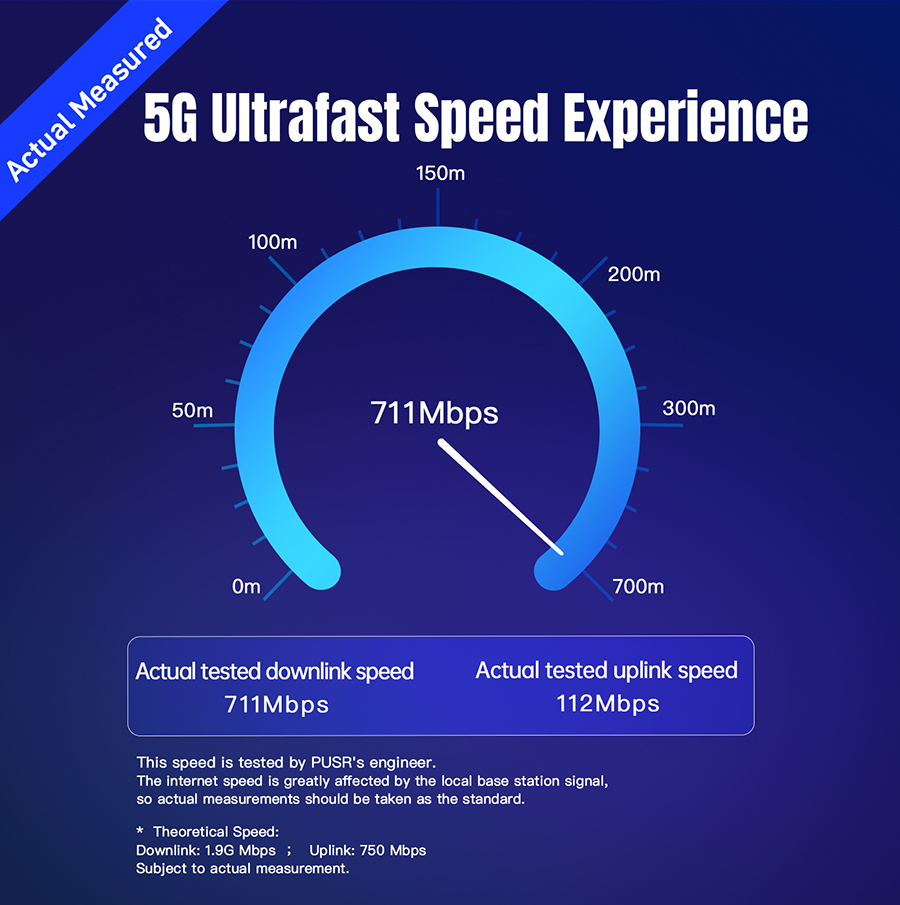

    5G rate

    5G SA:DL 2.4 Gbps; UL 900 Mbps

    5G NSA:DL 3.3 Gbps; UL 550 Mbps

    SIM slot

    2×SIM slot

    Antenna

    4×External high gain antennas

    Wired

    Network interface

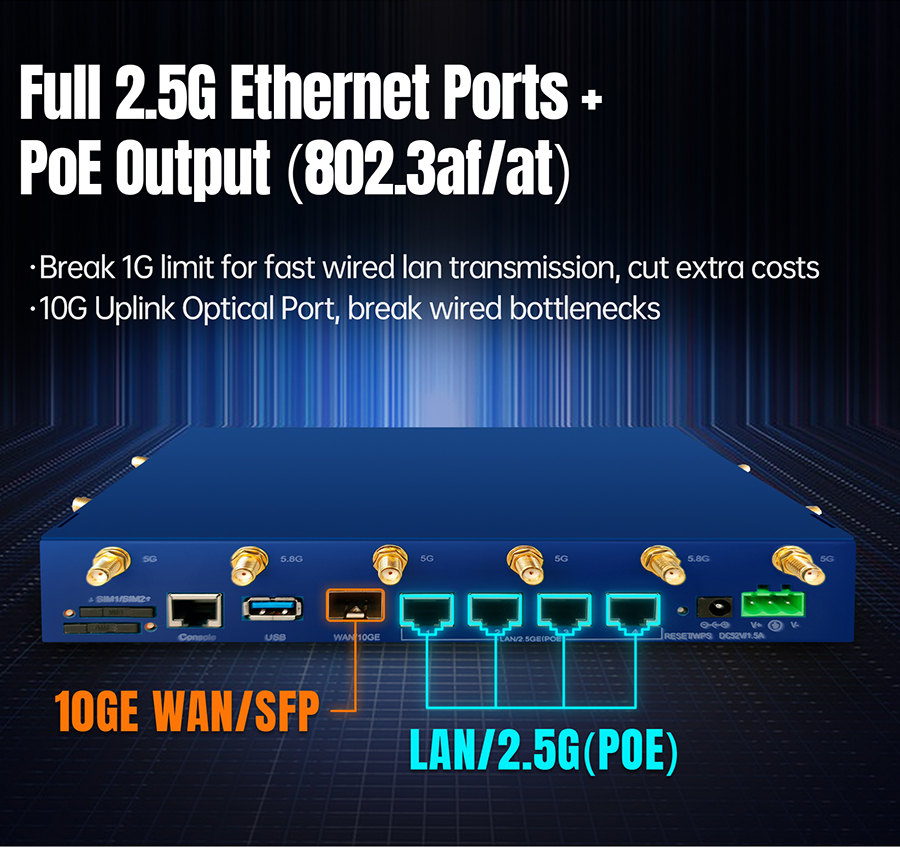

    1×10GSFPWAN, 4×2.5GbpsLAN(PoEout); Note:LAN1 supports switching to a WAN port.

    PoE

    LANports support802.3af/atPoEout

    Powering

    Method

    1. 12~54V DC;

    2.3 Pin Phoenix connector(5.08mm)

    Note: To ensure PoE function 48V input must be guaranteed

    Power consumption

    24W(not includingPoE output)

    Physical

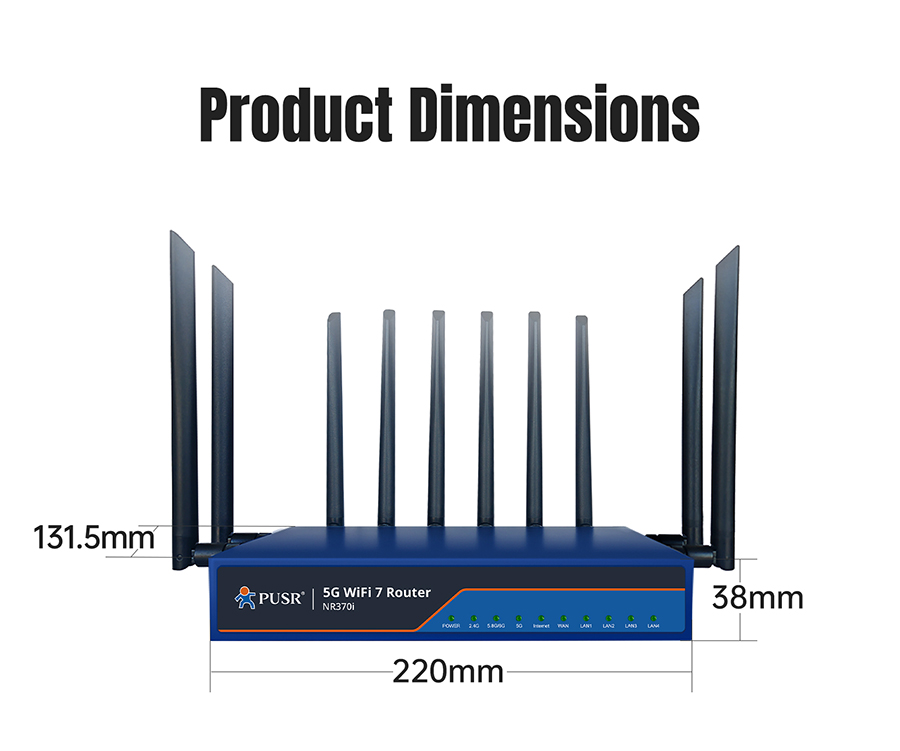

    Dimension

    220*131.5*38mm

    Weight

    1.3kg

    Operating Temperature

    0℃ ~ +40℃

    Storage Temperature

    -40℃~+85℃

    Operating humidity

    5%~90%(non-condensation)

    Mounting

    Desktop

    Other interfaces

    Indicators

    Power,Eth, 5G, WiFi, USB

    Button/Jack

    Reset/WPS in one, RJ45 Console, USB2.0

    Documents
    [Specification] NR370i-spec-V1.0.0 Download
