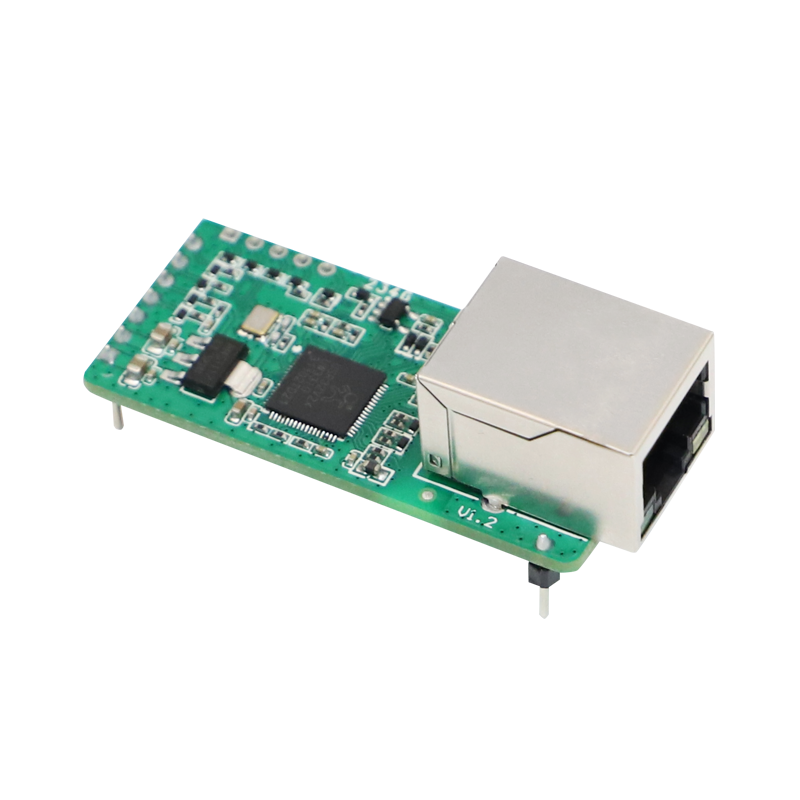

USR-TCP232-T0 | TTL to Ethernet Module Plug-in Design, Small Size, Easy Configuration USR-TCP232-T0 is a module designed for fast data transmission between TTL and Ethernet port. It integrates rich communication protocols internally, allowing users to achieve transparent data transmission by simply configuring parameters. It comes with RJ45 and TTL interface. With its plug-in design, it can be integrated more quickly into users' development boards, saving both time and resources, and significantly enhancing user’s development efficiency. This product has been widely applied in scenarios such as medical equipment and industrial automation and etc.
TTL to Ethernet, Transparent Data Transmission With PUSR uart to Ethernet modules traditional serial devices can be connected to local networks and the Internet. Then users can transform traditional serial device into loT device. It integrates a wide range of network protocols, such as TCP, UDP, HTTP, allowing for communication with various types of servers.
Ordering Guide
TTL Interface, Offering Simplicity and Versatility Use Compared to SPI, TTL interface requires just Tx and Rx lines, have simpler communication protocols and compatible with a wide range of devices and applications, which can significantly save users both development time and cost.
Multiple User Scenarios Multi-user Access
In TCP server mode, it suppports multiple TCP clients acess(up to 16), so it can realize multi-user control of serial devices.
Multi-device Management
The USR-TCP232-T0 module can connect to the central server for centralized management of serial devices.
Multiple User Scenarios Virtual-COM Software
This feature can infinitely extend the serial cable,allowing communication to no longer be limited by distance.
Point-to-Point Communication
Using this method, it is possible to achieve data communication between two serial devices.
Additional Features Heartbeat Packet
Server can detect abnormal disconnection from the client using this feature（DR3X as an TCP client)
Registration Packet
The server can identify different clients by using registration packets.
High Reliable Design
  • Watchdog Protection: Hardware & Software dual watchdog, ensuer the module work reliably
  • Wide Operationg temperature: -40～85℃, industrial grade design, stable operation in harsh environments
  • EMC Protection: Level 2, including ESD, Surge, EFT protection
Easy Configuration, Quick Start USR-TCP232-T0 supports multiple configuration options: AT command, config software, built-in webupage and open configuration protocol. There is always one that suits your needs.
Product Dimention
Applications
