Product overview

USR-IO424T-GR is network IO product which supports 4-way input/output, 2-way analog quantity detection, 1-way temperature detection and Modbus RTU/TCP protocol. Take ‘Remote control’ as core function and have high usability. User can easily and quickly integrate USR-IO424T-GR into own system to realize remote control which based on GPRS network.



Product features

1.4-way Relay output

2.4-way input, default is dry contact

3.2-way analog input, default are voltage detection

4.1-way PT100 temperature input

5.Supporst 8 conditional control command

6.Supports various function code: 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x0F, 0x10

7.Supports socket to connect to remote server and TCP Client

8.Two work modes: Master mode and Slave mode. Master mode supports connecting to multiple Modbus RTU devices by RS485 cascading connection.

9.Adopt Modbus RTU protocol data processing. Support Modbus TCP/RTU protocol adaptation.

10.Supports connecting to USR Cloud.

11.FTP remote upgrade.

12.Supports upgrading by RS485.

13.Hardware watchdog.

14.Support various LED to indicate work status.

15.Support power supply over-current, over-voltage, anti-reverse connection protection.

basic function of 4-way io controller



Remote Control

After powering network IO controller, user can directly realize remote control by USR Cloud. Take lamp control as example:user can realize lamp control by PC or APP on mobile terminal, and user can also directly open/close lamp by local switch. Remote control can realize all weather and all-sided monitoring, save the cost of man power and material resources.

remote control function of 4-way network IO controller USR-IO424T-GR



Modbus protocol adaptation:

Can automatically identify Modbus RTU/TCP protocol in network side and respond data according to received protocol to realize response data as same format as received data.

Modbus protocol adaptation of 4-way io controller



Support Master mode and Slave mode for user to choose:

Default work mode of USR-IO424T is Slave mode and IO424T can be queried and controlled by Master device in Network side and RS485 side simultaneously in Salve mode. IO424T can also be configured into Master mode and Master mode supports connecting to multiple Modbus RTU devices by RS485 cascading connection. Master mode is suited to remote monitoring and control such as temperature and humidity monitoring of agricultural greenhouse.



Network IO series comparison table

4-way network io controller: network io series comparison table



 Interfaces

interfaces of usr-io424T-GR(network io controller)



Functional Diagram

Full wired terminal installation and protection for lightning strike

High current protection for power supply and interface

RS485 anti-surge protection: 2KV

Over-current protection for power supply



Hardware protection:

Full wired terminal installation and protection for lightning strike

High current protection for power supply and interface

RS485 anti-surge protection: 2KV

Over-current protection for power supply

Hardware protection of 4-way network io controller



EFT:

When there is instantaneous high current in the circuit(such as power switch, etc.), it can ensure that the device hardware is not damaged.

Power supply interface ±4KV

Ethernet interface and serial port ±2KV

EFT can ensure 4-way network io controller is not damaged



ESD:

Prevent electrostatic damage equipment(Such as: dust electrostatic, electric arc, etc.)

Air ±15KV

Contact ±8KV

4-way network io controller with ESD function to prevent electrostatic damage equipment



Watchdog:

Well-designed hardware watchdog which can realize 24 hours stable operation.

watchdog can keep 4-way network io controller 24 hours stable operation



Work mode:

Master mode

In master mode, after IO424T receiving data, it will judge destination address firstly. If destination address is local address, IO424T will process data; if destination address isn’t local address, IO424T will forward data. In this mode, user can connect to multiple slave devices by RS485 cascading connection.

master mode of 4-way io controller





Slave mode

In this mode, IO424T can connect to master device or work as single device. In this mode, IO424T will analyse and process received data. If destination address is local address, IO424T will make a corresponding reaction; if destination address isn’t local address, IO424T will discard data.

 slave mode of 4-way io controller



Features:

Conditional control

Conditional control function supports user configuring the conditions to trigger IO changes. It can make using IO424T more flexibly and extend application scenario. User only needs to modify conditional control function register parameters, it will realize corresponding function. Conditional control function can provide convenience for project management.

features of 4-way io controller



Support configuring IO status hold

After restarting IO424T or powering on IO424T again, can choose holding the Relay output status or resetting to disconnect status.



Support upgrading firmware by FTP

Support upgrading firmware by FTP: can remotely upgrade firmware by Modbus commands.

support upgrading firmware by FTP



EWR version supports Router function

EWR version supports multiple functions such as LAN control, Ethernet, WiFi, Web Server, etc.



Support analog acquisition and temperature acquisition

Analog acquisition adopts public reference ground method to connect, that’s to say it can convert to voltage detection; temperature acquisition can acquire temperature status by PT1003 line.

 Support analog acquisition and temperature acquisition



USR-IO424T supports USR Cloud

USR-IO424T supports USR Cloud



USR Cloud function

Industrial agreement: Modbus protocol devices can quickly access to USR Cloud

Historical data: curve and report forms.

Alarm push: E-mail.



Applications:

Combine configuration software solution

Network IO controller can connect to devices that needs to be monitored by input interface, output interface and RS485 cascading connection. Then can choose local connection or USR Cloud remote monitoring, convert network data to serial data by VCOM software and transmit to configuration software to realize remote monitoring and control. Commonly be used in unmanned machine room, integrated management of hotel facilities, self-service supermarket, etc.

application of 4-way io controller, combine configuration software solution



Temperature and humidity monitoring of agricultural greenhouse

User can connect IO424T to remote server to monitor and control greenhouse status such as: temperature and humidity, soil temperature and humidity, etc. This solution can realize starting or stopping by IO424T’s remote control function to realize automated management of smart agriculture.



application of 4-way io network controller: temperature and humidity monitoring of agricultural greenhouse



Smart lamp control

 User can connect to USR Cloud by USR-IO424T to realize remote street lamp monitoring and it is convenient to control in Cloud side and record the devices status. Whole solution can ensure overall rate of lighting of street lamp, help management and bring the benefit of environmental protection.

application of 4-way io network controller:Smart lamp control



Smart hotel management

In smart hotel management project, user can connect USR-IO424T to TV, computer, refrigerator, air conditioner, door control system, etc. Then user can realize remote monitoring by mobile terminal. This solution is usually realized through local WiFi connection and it can also use USR Cloud to realize remote monitoring.

application of 4-way io network controller: Smart hotel management

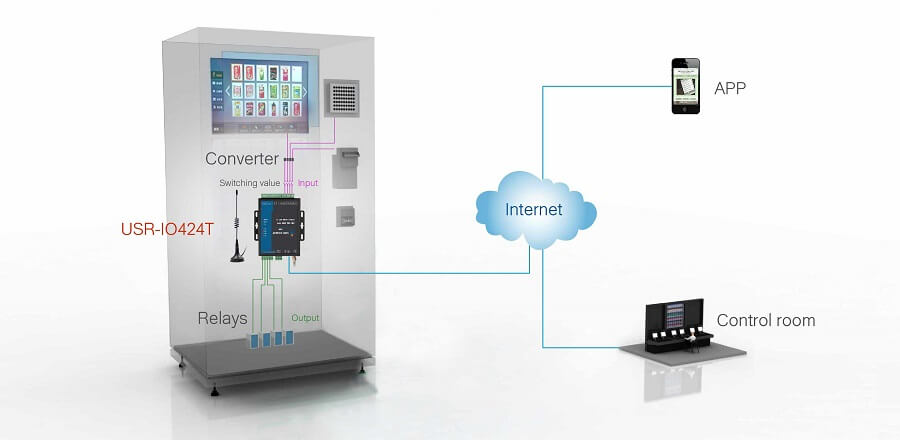

Self-service terminals solution

Based on remote monitoring function of USR-IO424T, user can connect output interface to multiple Relays and connect input interface to switching value, then connect USR-IO424T to Cloud platform to realize monitoring running condition of self-service terminals, adjusting supply chain at any time or handling failure timely.

application of 4-way io network controller: Self-service terminals solution


Distribution box solution

Control AC contactor or breaker by USR-IO424T’s output Relays to realize remote control of powering on/off. USR-IO424T’s RS485 interface can connect to RS485 electricity meter to realize remote charging, remote control, etc.

application of 4-way io network controller: distribution box
