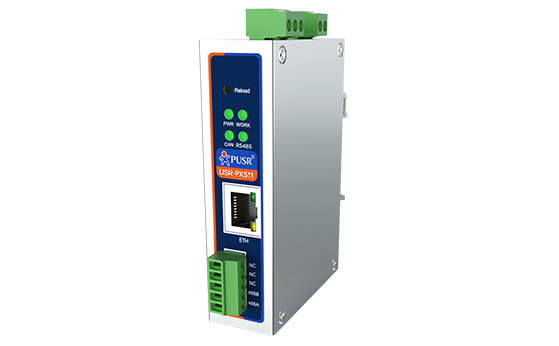

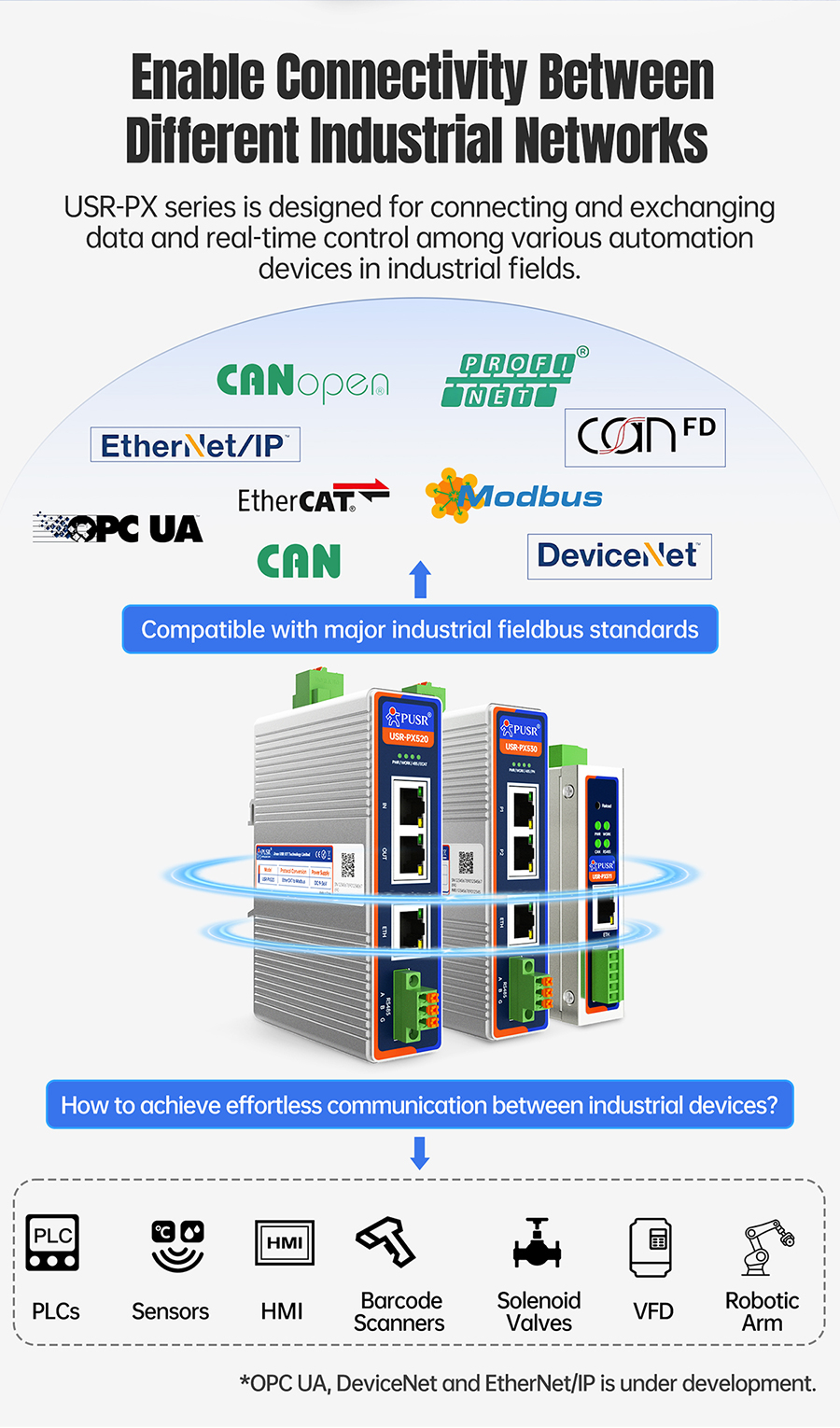

USR-PX511
|
|
Catalog
|
Parameters
|
Value
|
|
Power Supply
|
Power Input
|
9-36V DC, 12V/1A is recommended
|
|
Working Current
|
Idle: 43.97mA/12V (avg), 45.76mA/12V (max);
Full load: 46.26mA/12V (avg), 48.35mA/12V (max)
|
|
Connector
|
5.08×2P pluggable terminal block with anti-reverse and screw lock
|
|
RS485 Interface
|
Connector
|
3.81×3P pluggable terminal block with screw lock
|
|
Pin
|
A (RS485 A), B (RS485 B), G (GND)
|
|
Baud rate
|
600~230.4K bps
|
|
Data bits
|
8
|
|
Stop bit
|
1, 2
|
|
Parity bit
|
None, Odd, Even
|
|
Ethernet Port
|
Ethernet
|
1× RJ45 port (10/100Mbps, auto MDI/MDIX), for parameters configuration
|
|
Default IP
|
192.168.0.7
|
|
Gateway IP
|
192.168.0.1
|
|
CAN
|
Connector
|
5.08×2P pluggable terminal block
|
|
Pin
|
H: CAN_H signal
L: CAN_L signal
GND: CAN ground signal
|
|
Baud rate
|
5kbps ~ 1000kbps, supports custom baud rates
|
|
Terminal register
|
Built-in 2 x 120Ω terminal resistor,
One DIP switch to ON: one 120Ω resistor in parallel
both DIP switches to ON: connects two 120Ω resistors in parallel
|
|
Other Interface
|
Indicators
|
PWR、WORK、485、CAN
|
|
Reload Button
|
Press for 3–15s to restore factory settings
|
|
Type-C
|
Debugging interface for troubleshooting
|
|
Physical Parameters
|
EMC Protection
|
IEC 61000-4-2(ESD): 6kV contact, 8kV air
IEC 61000-4-5(Surge): 2kV common mode, 1kV differential mode for power; 2kV for Ethernet/RS485
IEC 61000-4-4(EFT): 2kV for power, 1kV for Ethernet/RS485
|
|
Isolation
|
Isolation for both serial, Ethernet, CAN, and power
|
|

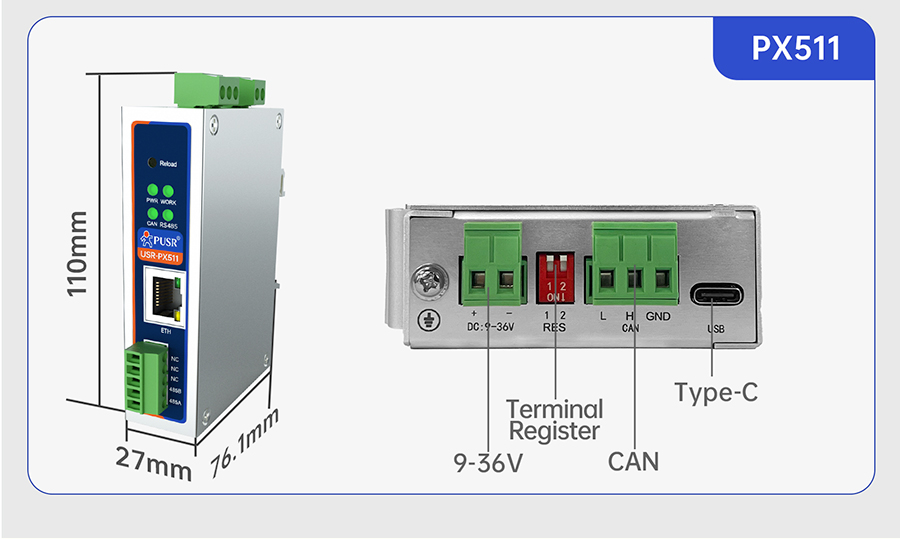

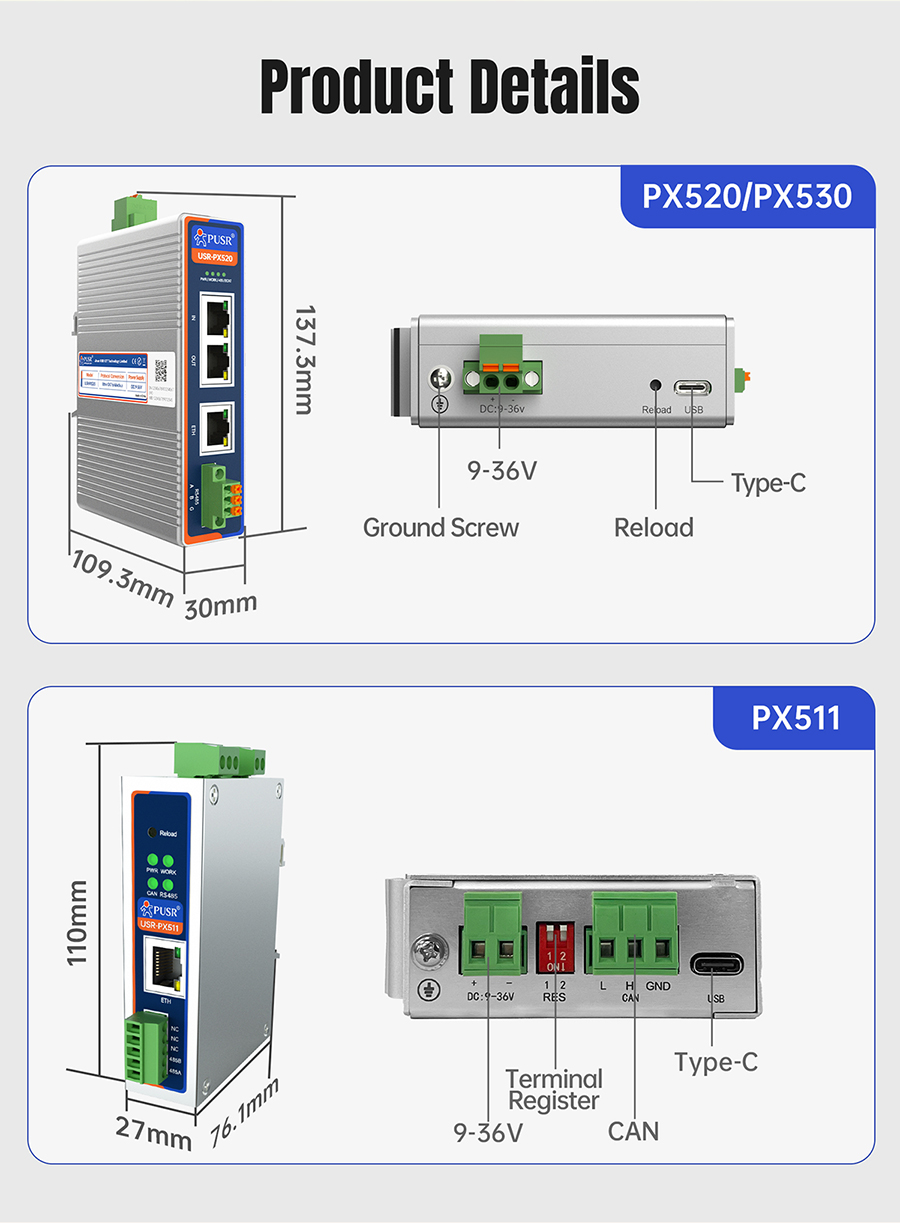

Dimension
|
110×27×76.1mm((with terminals/rail)
|
|
Installation
|
DIN rail mounting, aluminum housing
|
|
Operating Temperature
|
-40°C to +85°C
|
|
Storage Temperature
|
-40°C to +105°C (non-condensing)
|
|
Operating Humidity
|
5%–95% (non-condensing)
|
|
Software
|
Protocol
|
CANopen slave to Modbus RTU/TCP master
|
|
CANopen protocol
|
Supports up to 128 groups of RPDO and TPDO, with each group supporting up to 16 variables at most
|
|
Modbus protocol
|
When works as Modbus RTU master, it supports up to 255 ModbusRTU slave stations,
When works as Modbus TCP master, it acts as a TCP client, and supports only one TCP slave station connection.
|
|
Setup
|

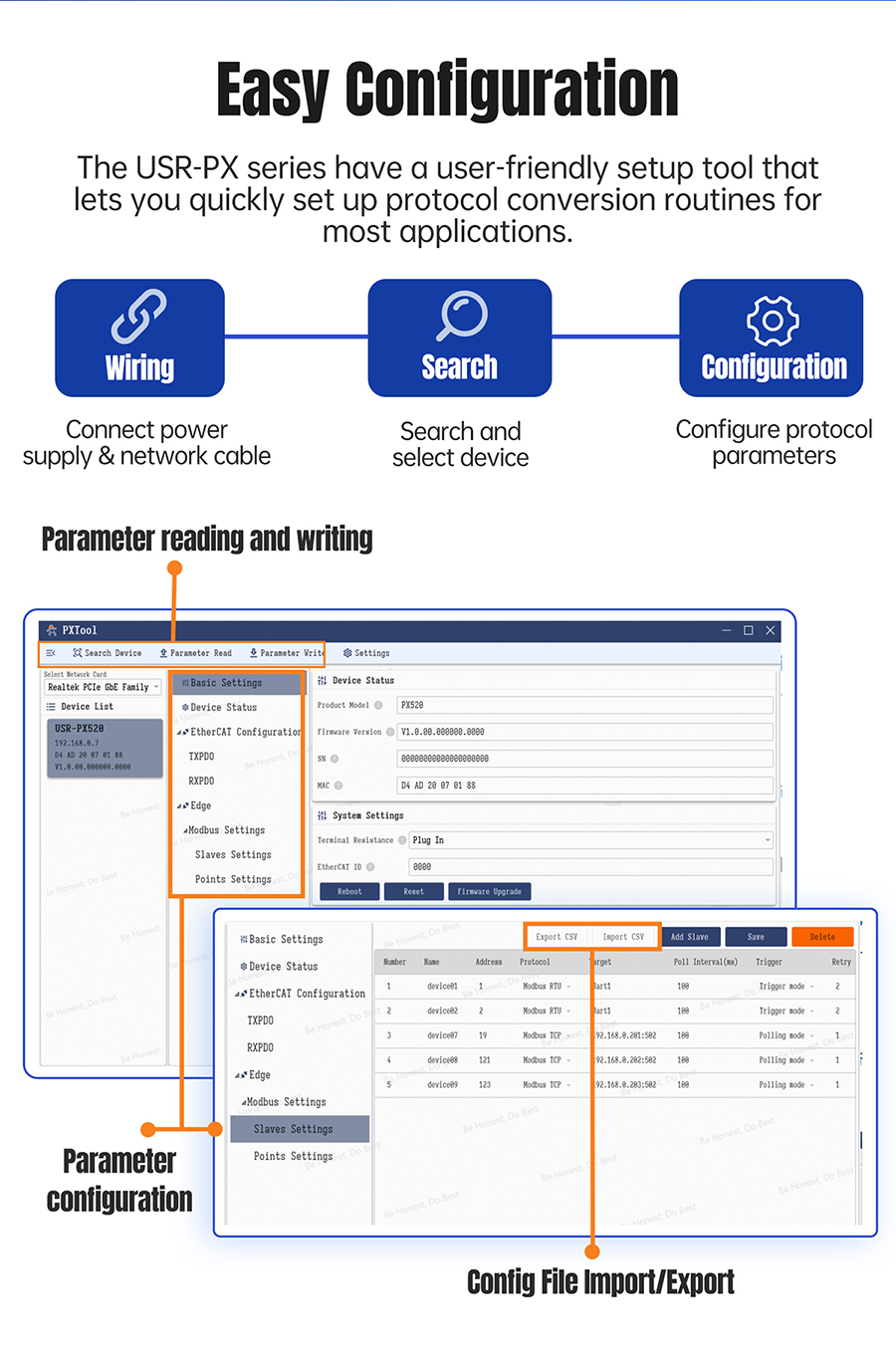

PX Tool
|
