USR-CAN115 | “Lipstick” CAN to Ethernet Converter The USR-DR115 is an ultra-small CAN to Ethernet converter that supports data communication and conversion between Ethernet and CAN interfaces. This device is compliant with CAN 2.0A and CAN 2.0B specification and has wide CAN baud rate 5Kbps~1Mbps. And it has hign EMC protection so it can work in harsh environments and can be used in multiple scenarioes like automotive electronics, EV charging, industrial aotomation and etc.

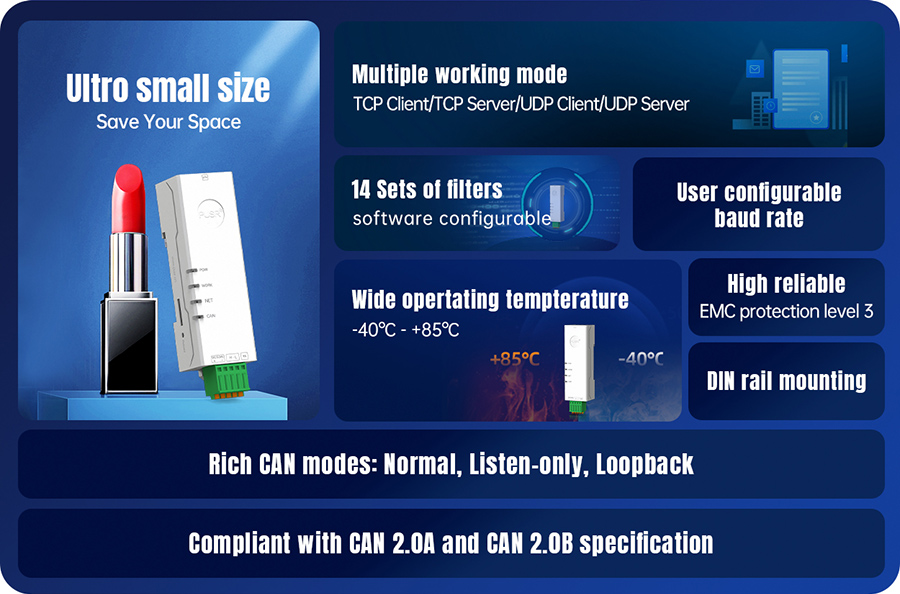

Key Features
  • 1. Ultro small size Save your space
  • 2. Multiple working mode: TCP Client/TCP Server/UDP Client/UDP Server
  • 3. 14 Sets of filters: software configurable
  • 4. User configurable baud rate
  • 5. Wide opertating tempterature: -40℃ - +85℃
  • 6. High reliable: EMC protection level 3
  • 7. DIN rail mounting
  • 8. Compliant with CAN 2.0A and CAN 2.0B specification
  • 9. Rich CAN modes: Normal, Listen-only, Loopback
CAN to Ethernet, Bidirectional Data Communication With this CAN to Ethernet converter, users can achieve data communication and conversion between CAN and Ethernet device. In software, it supports 4 working mode: TCP server, TCP client, UDP server and UDP client.
3 Protocol Conversion Modes
  • 1. Transparent conversion: the data bytes can be sent to Ethernet port.
  • 2. Format conversion: the network data must be the standard 13 bytes CAN frame.
  • 3. Transparent conversion with identifiers conversion: the CAN ID in network data is translated into the identification field of the CAN frame.
3 CAN Working Modes
  • 1. Standard mode: bi-directional data communicaton.
  • 2. Monitoring mode: ethernet device monitor the data from CAN-bus and will not give any responses.
  • 3. Loopback mode: data sent over Ethernet is looped back and received on the same Ethernet interface, facilitating data integrity testing.
Multiple Hardware Protection, Reliable and Stable
  • EMC protection: level 3
  • Wide operating temperature: -40℃~+85℃
  • Dual watchdog: hardware & software watchdog, ensure stable operating
  • Wide power input: DC 5-24V, supports power input anti-reverse
14 Sets of Configurable Filters USR-CAN115 supports filtering data according to standard frame, extended frame and custom. In custom mode, users can set up to 14 sets of filter methods to avoid large amounts of data interference.
Wide Baud Rate
  • Serial baud rate: 600bps ~ 230400bps
  • CAN baud rate: 5Kbps ~ 1Mbps
Ultra-small Size
  • 1. 3 Practical Designs, Easy Your Installation
  • 2. Ultra-small size like a lipstic, can be applied to various scenarios, especially the small box.
  • 3. Support DIN rail mounting and wall mounting.
Easy Connection
  • 1. Push-type, pluggable wire connector, easy wiring, no need for additional tools such as screwdrivers
  • 2. Push wire connector
  • 3. Pluggable wire connector
What’s in the box?
Applications
  • 1. Automotive Electronics
  • 2. Industrial Automation
  • 3. EV Charging
  • 4. Traffic Monitoring
