May 19, 2020 Hardware Introduction of Industrial Router USR-G806

Hardware introduction of industrial router USR-G806

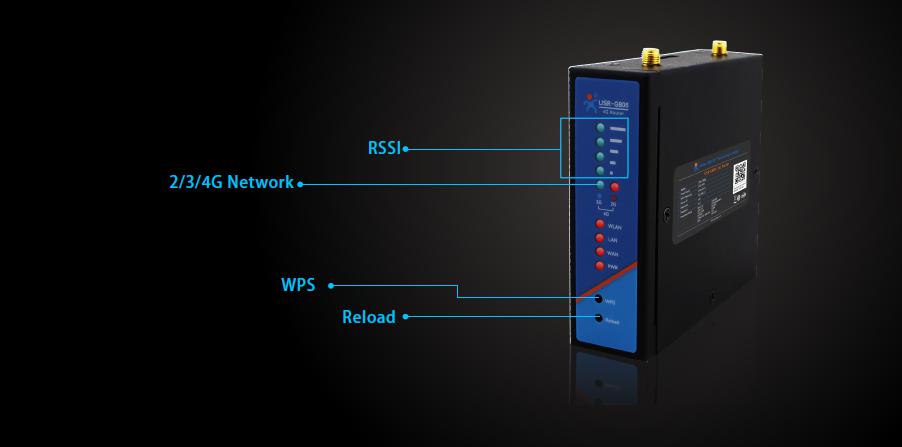

Hardware introduction of industrial router, LED

LED



LED

Function

RSSI

The more green LEDs lighten, the signal is stronger.

2G

2G:On 3G:Off

2G network accessing

2G:Off 3G:On

3G network accessing

3G

2G:On 3G:On

4G network accessing

WLAN

On: Wi-Fi enabled

Off: Wi-Fi disabled

LAN

Blink: LAN port working

Off: LAN port not working

WAN

Blink: WAN/LAN port working

Off: WAN/LAN port not working

PWR

On: Power on

Off: Power off

Button

Function

WPS

Reserved

Reload

Restore default settings

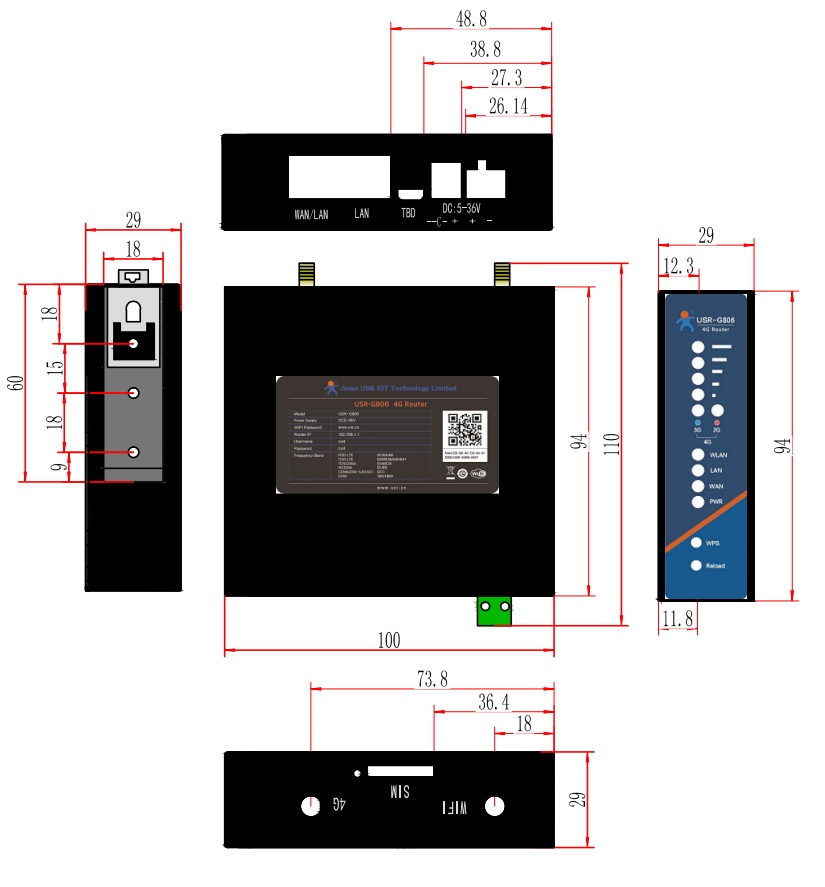

Unit:mm

Hardware introduction of industrial router, Size



size

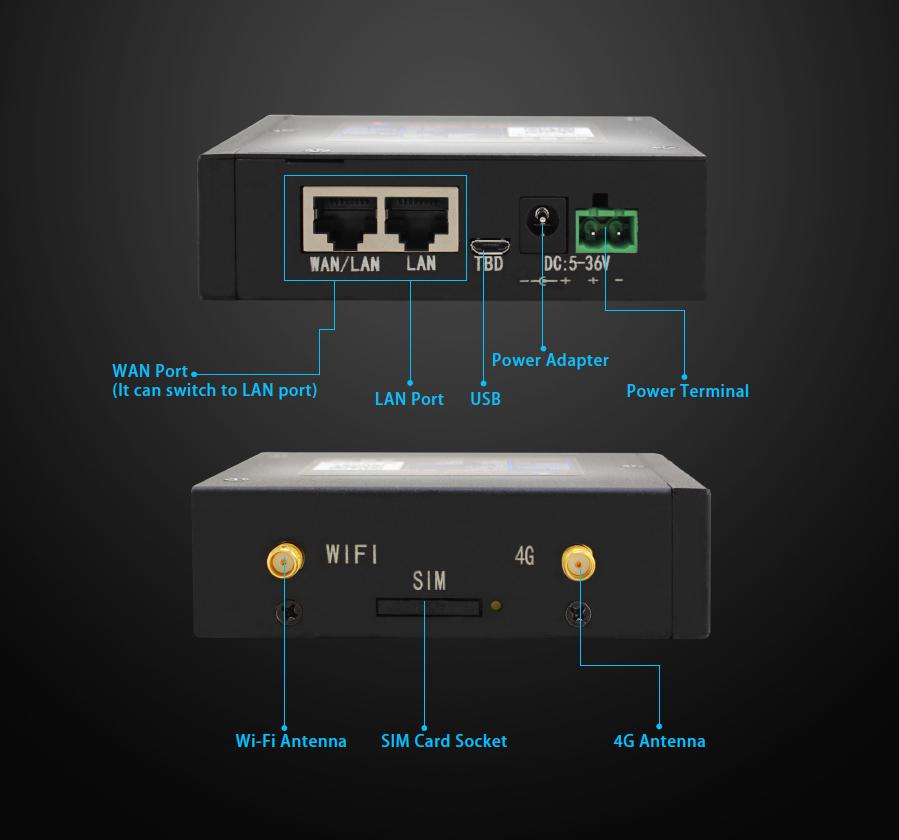

Interface

Hardware introduction of industrial router, interface
