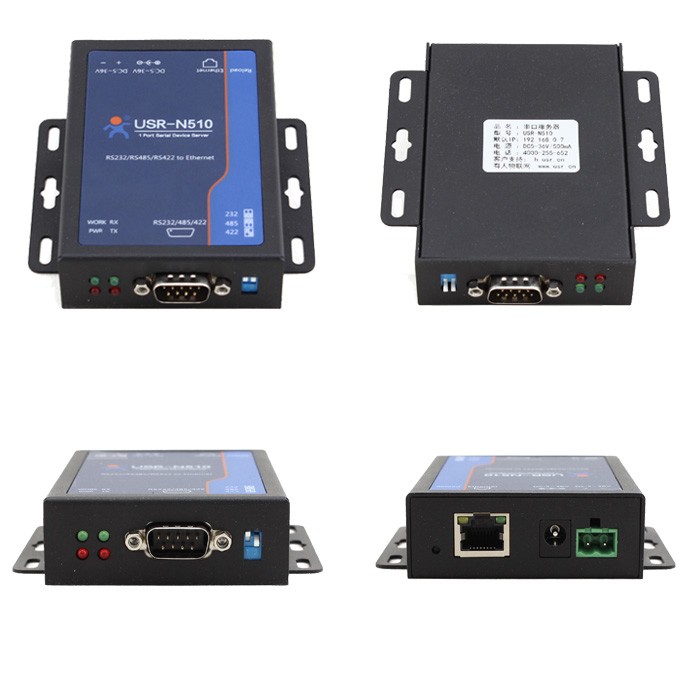

Ethernet to RS232/422/485 Serial Converter USR-N510
1. Hardware Installation

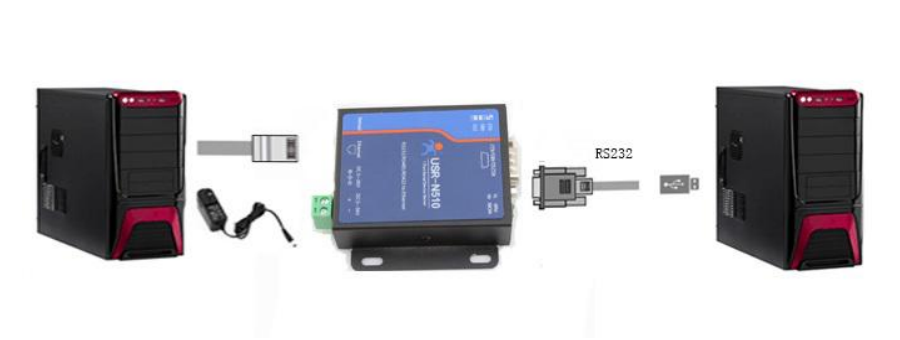

Use a standard Ethernet cable to connect the USR- N510 to an Ethernet router or connect it directly to a PC.
RS-232/422/485 can connect with a PC or other serial port device by serial cables.

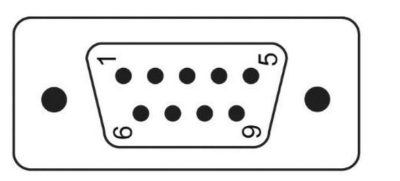

RS-232 DB9 Male Port RS-485/422 Terminal header ( Will provide connector)

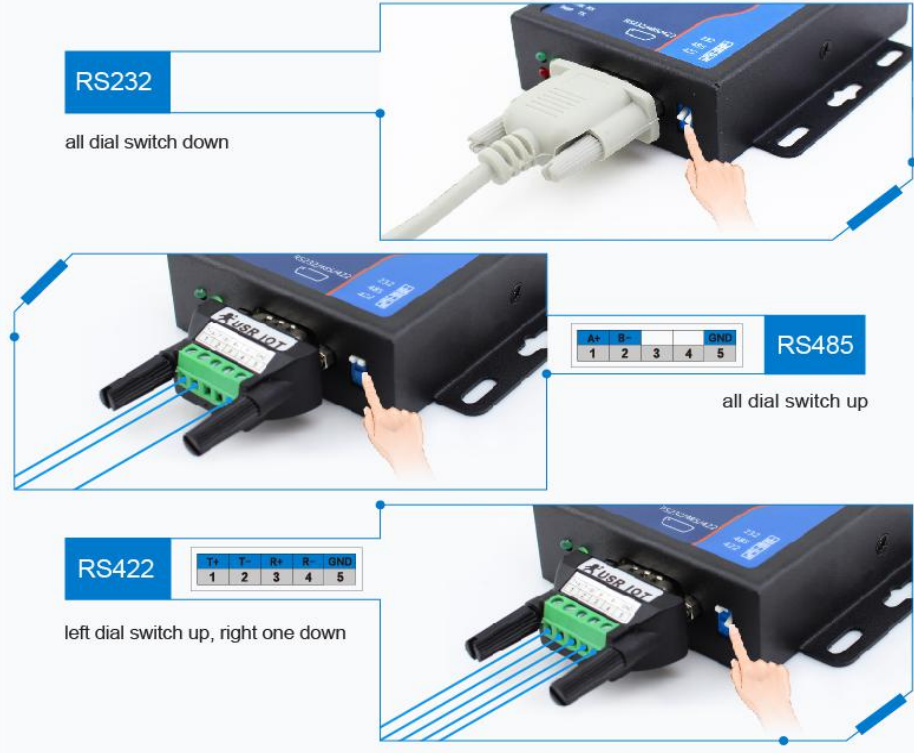

Flexible shift among rs232,485 and 422
3. Software Installation
Download Setup/Test program from website
Install Virtual COM software- VCOM https://www.usriot.com/p/rs232rs485rs422-serial-ethernet- converter/ Note: Be sure you have administrative rights and disable any firewalls/anti-virus software when install software.
Note: Be sure you have administrative rights and disable any firewalls/anti-virus software when install software.
4. Configure USR-N510
Assign a static IP address to your computer in the 192.168.0.2 to 192.168.0.254 range. Mask 255.255.255.0. This is necessary to ensure that your computer can communicate with your USR-N510.
The default IP address of USR-N510 is 192.168.0.7 Open your web browser and enter this IP to connect to USR-N510 for configure.
|Work Mode||TCP Server|
|Parity bit/Data bit/Stop bit||None/8/1|
