The Registration Package Function of Industrial Modem USR-G785-E

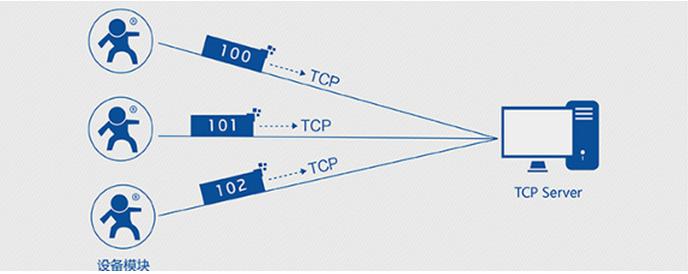

schematic diagram of registration function
Under the network pass through mode, users can send register packets from modules to the server. Registered packages are designed to enable the server to identify the data source device, or as a password to obtain authorization for server functionality. Registered packets can be sent when the module establishes a connection with the server, and can also be spliced into the registration package data at the front end of each packet as a packet. The data of the registration package can be ICCID code, IMEI code, or custom registration data.
AT commands
Command name | Command function | Default parameter |
AT+ REGEN | Query / settings enable registration package | "off" |
AT+ REGTP | Query / settings register package content type | "USER" |
AT+ REGDT | Query / settings custom registration information | "7777772E7573722E636E" |
AT+ REGSND | Query / settings register packet sending mode | "DATA" |

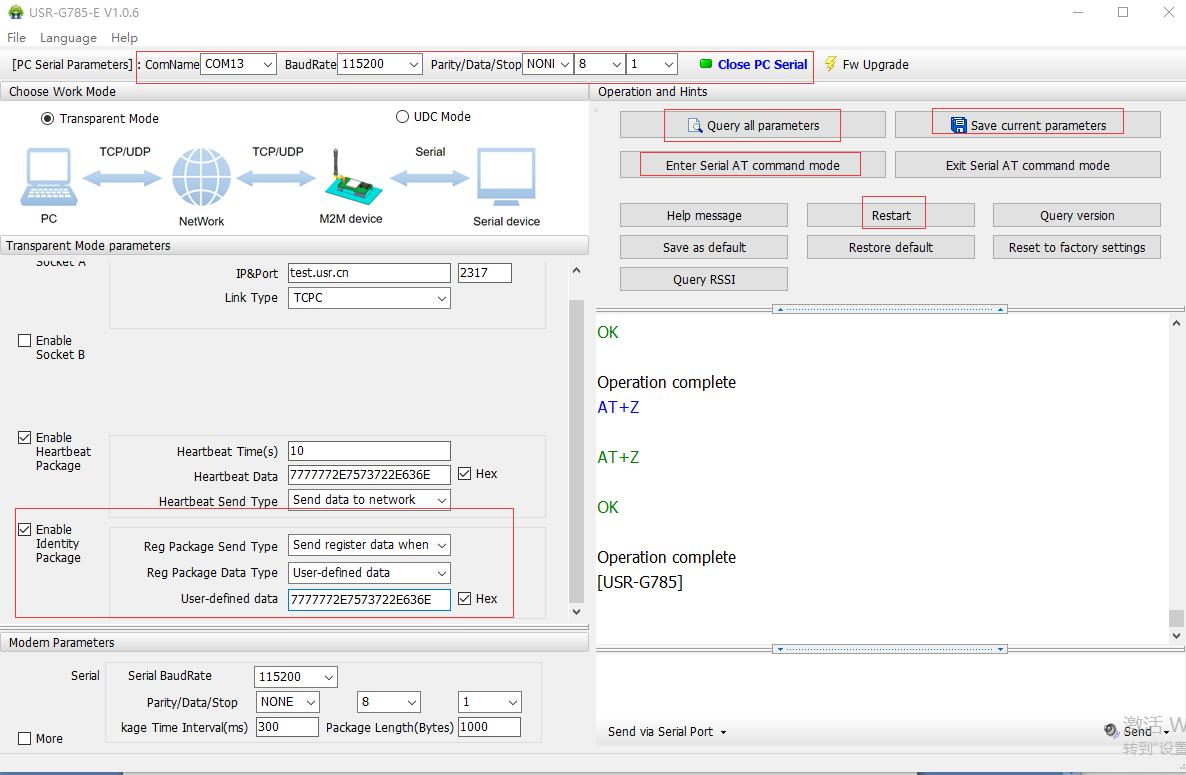

Setting up software schematic diagram:
setting up software schematic diagram
