USR-G806s

USR-G806s

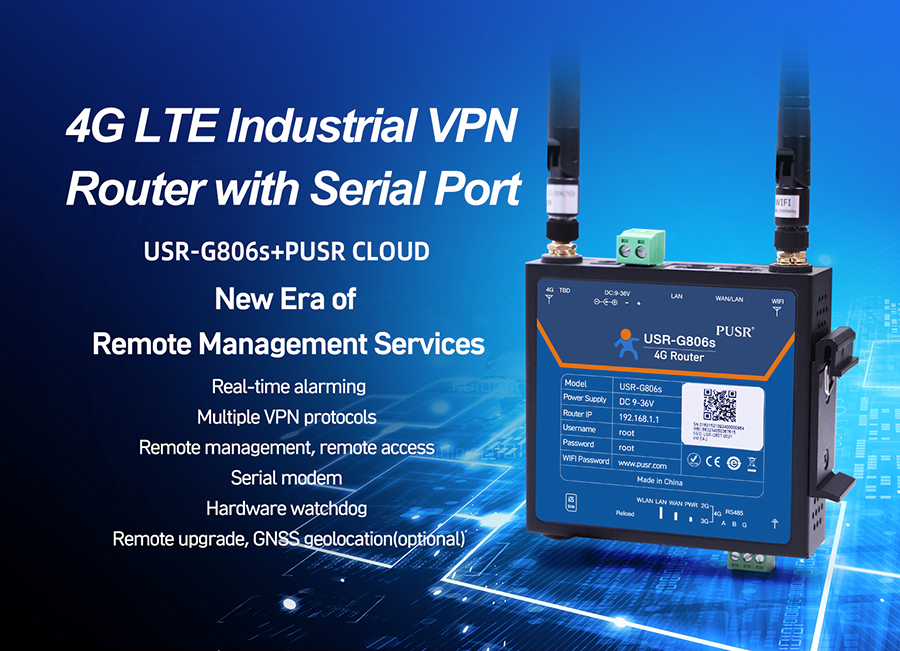

4G industrial LTE VPN router [New]

4G industrial LTE VPN router [New]


USR-G806s is an IoT cellular router that integrates 4G LTE, Wi-Fi, and VPN technologies to provide an easy, reliable, secure Internet connectivity and high-speed data access for equipment networking. With technologies such as 4G wireless wide area network ,Dual Ethernet ports (LAN + WAN),Wi-Fi wireless local area network it provides uninterrupted multiple network access capabilities.

● Supports 2G/3G/4G network all over the world.
● Supports APN/VPDN sim card.
● Dual Ethernet ports, WAN/LAN.
● Support Modbus RTU toTCP.
● Support watchdog.

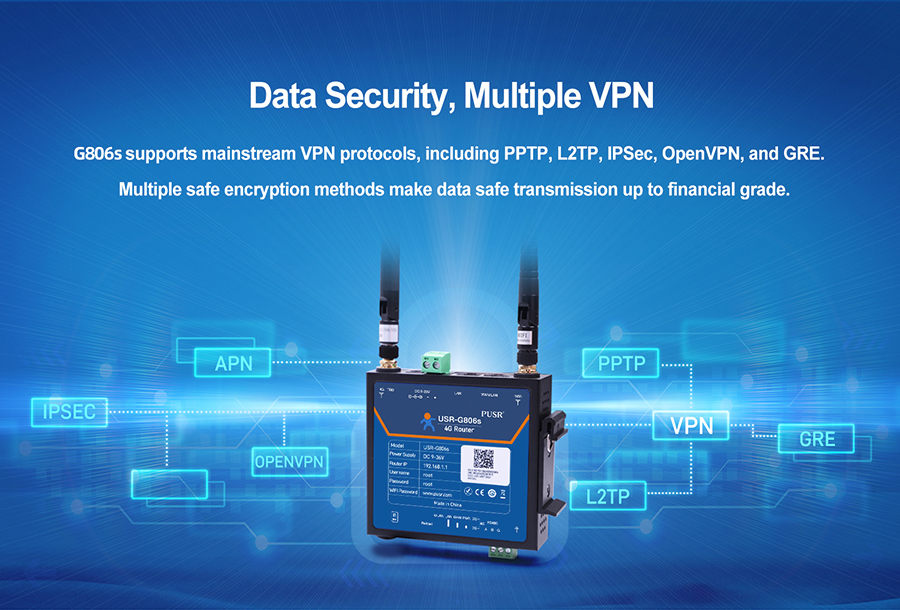

● Supports IPsec VPN, PPTP,L2TP, OPENVPN,GRE etc.
● Supports DDNS,PPPOE,DHCP,Static IP.
● Supports email alarm,SMS alarm,abnormal alarm push in time.
● Wall-mounting and DIN-rail mounting options available,easy to install.

Remote Management, Remote Access
Efficient Batch configuration without on-site

Compact and Rugged Housing Design

Compact size, supports both panel and DIN-rail mounting, suitable
for various industrial IOT applications.

Serial Modem

G806s integrates with routing and serial modem, which can easily achieve the bi-directional
data transparent transmission between RS485 devices and 4G network,
supports connecting to various cloud platforms.It also supports user-defined register &
heartbeat packets to ensure the device online

Industrial Design, Fit into Any Harsh Environment

ESD, Surge, EFT protection, wide input voltage.
Built-in hardware watchdog, 7*24 hours stable operation in harsh environment or
industrial site with strong electromagnetic interference.

More Features

Product Details

Application scenario

Industrial 4G Cellular Router G806s is a combination of 4G LTE router and 4G DTU.
Integrating embedded cellular modem, it provides 3G/4G cellular network,
It also equipped with 2 fast Ethernet ports,1 RS485 interface(RS232 optional) and supports
Wi-Fi access. Features with compact and rugged design it can be used as a reliable failover
connection or wireless communication in harsh environment. It is suitable for large-scale
distributed M2M/IoT applications, such as smart express cabinets, charging piles, CCTV,
bank ATM machines, ticketing machines, traffic management,vending machines, medical device
networking, tower monitoring,construction sites,digital signage, electricity, water conservancv,
environmental protection, etc.

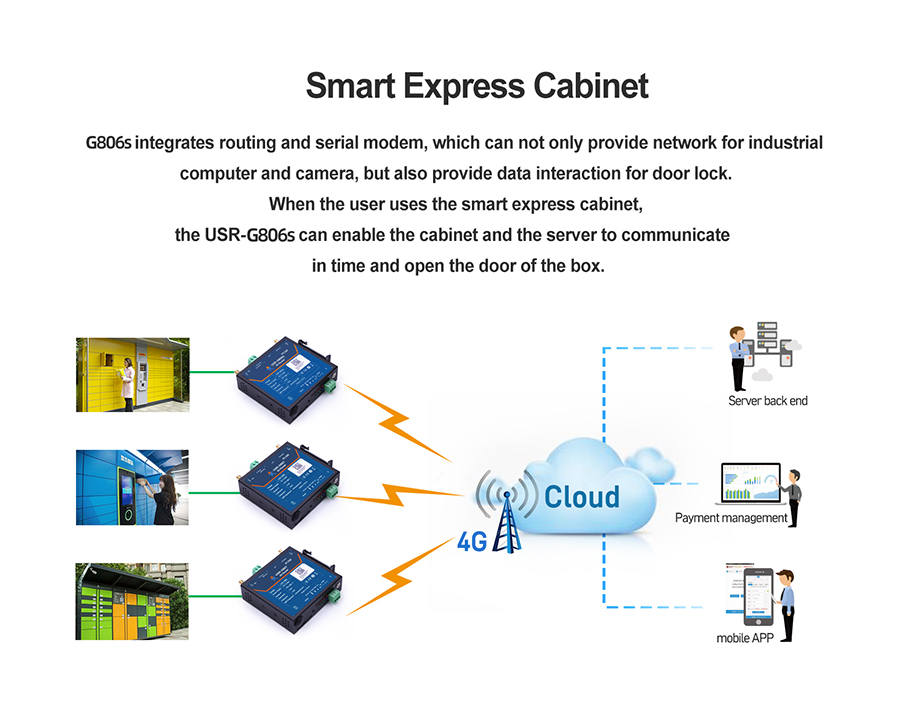

Smart Express Cabinet

G806s integrates routing and serial modem, which can not only provide network for industrial
computer and camera, but also provide data interaction for door lock.
When the user uses the smart express cabinet,
the USR-G806s can enable the cabinet and the server to communicate
in time and open the door of the box.

4G industrial router/4G LTE Router/4G LTE Cellular Routers/4G industrial LTE VPN router USR-G806s
industrial 4G cellular router/4G industrial LTE VPN router USR-G806s
Industrial 4G cellular modem router USR-G806s

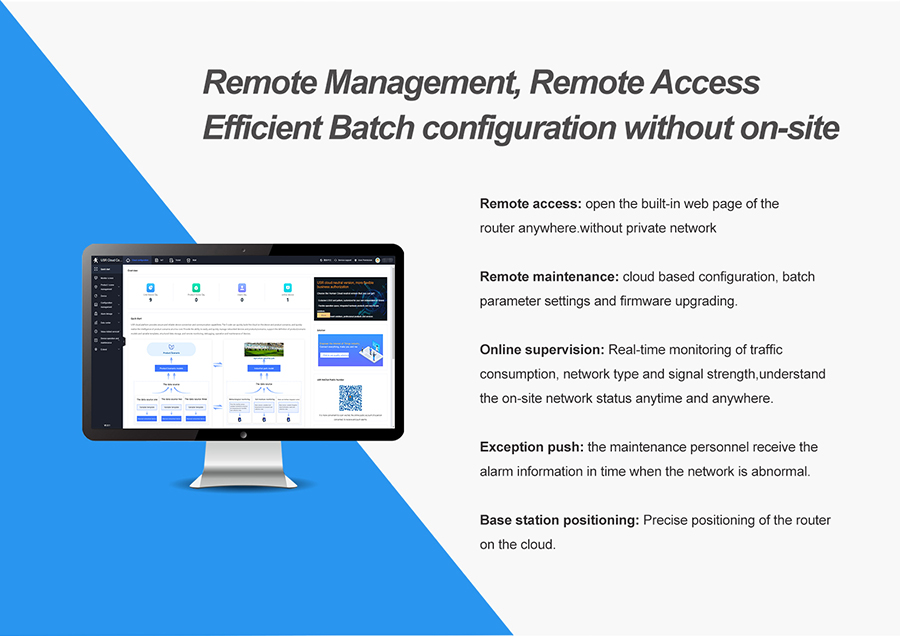

Remote Management, Remote Access
Efficient Batch configuration without on-site

industrial 4G cellular router USR-G806s

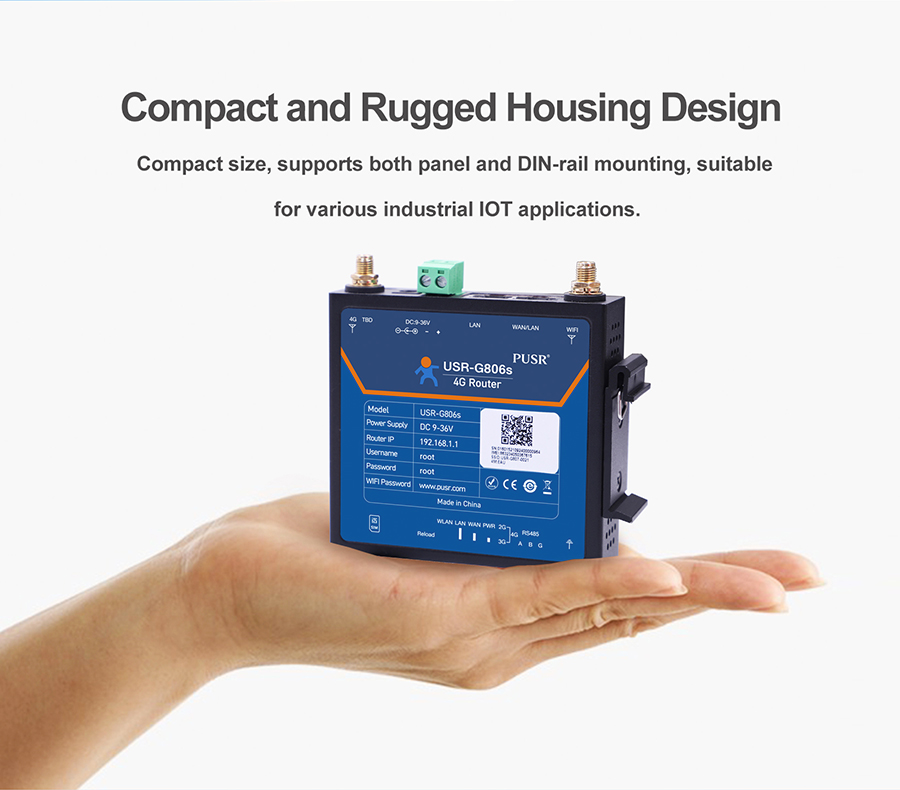

Compact and Rugged Housing Design

Compact size, supports both panel and DIN-rail
mounting, suitable for various industrial IOT applications.

4G LTE industrial VPN router with serial port USR-G806s

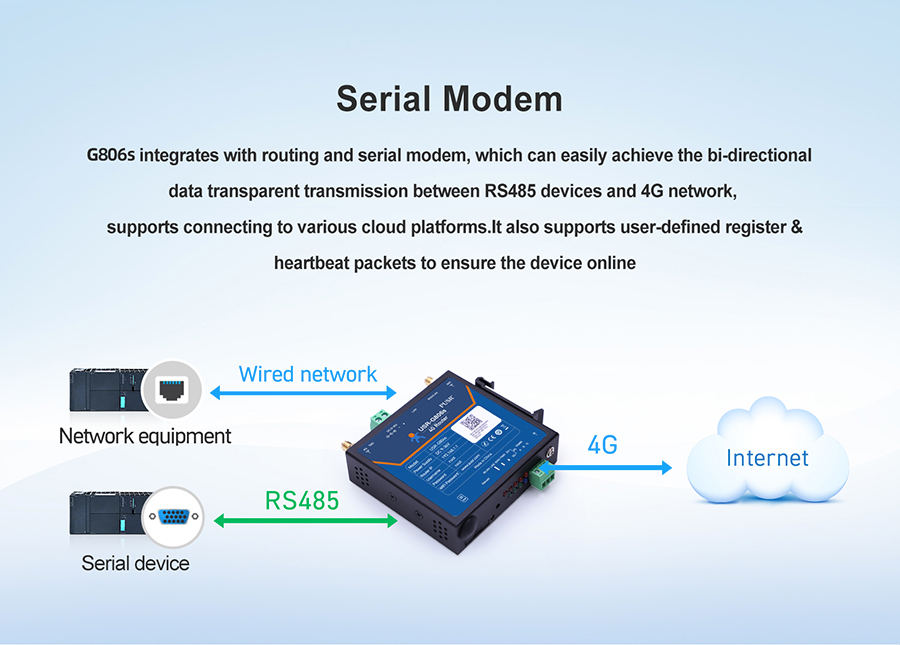

Serial Modem

G806s integrates with routing and serial modem, which can easily achieve the bi-directional
data transparent transmission between RS485 devices and 4G network,
supports connecting to various cloud platforms.It also supports user-defined register &
heartbeat packets to ensure the device online

4G industrial router/4G LTE Router/4G LTE Cellular Routers/4G industrial LTE VPN router USR-G806s

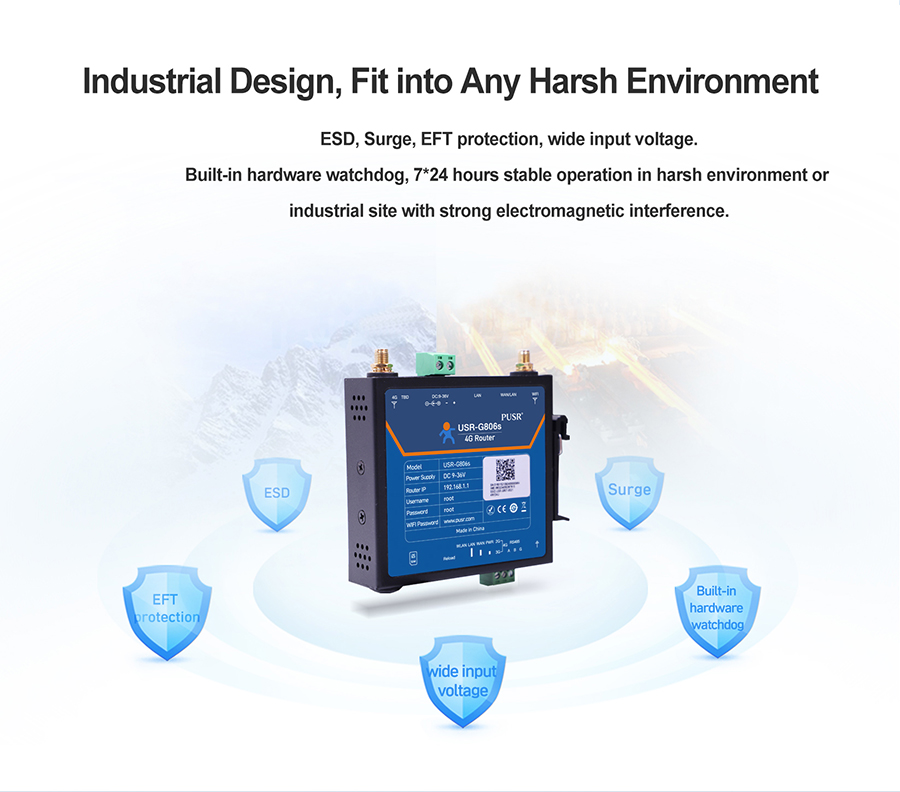

Industrial Design, Fit into Any Harsh Environment

ESD, Surge, EFT protection, wide input voltage.
Built-in hardware watchdog, 7*24 hours stable operation in harsh environment or
industrial site with strong electromagnetic interference.

4G LTE Cellular Routers/4G industrial LTE VPN router USR-G806s
More Features of 4G LTE Cellular Routers/4G industrial LTE VPN router USR-G806s

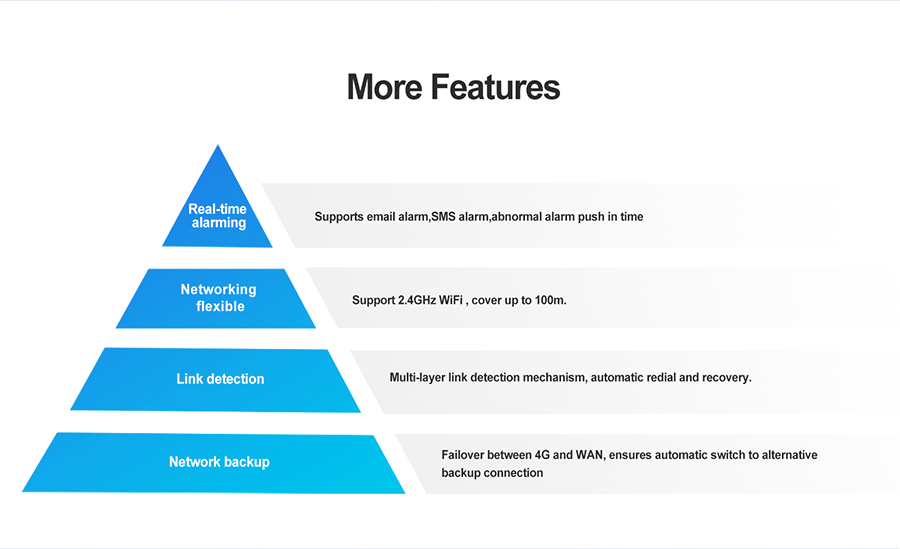

More Features

application of 4G LTE Cellular Routers/4G industrial LTE VPN router USR-G806s

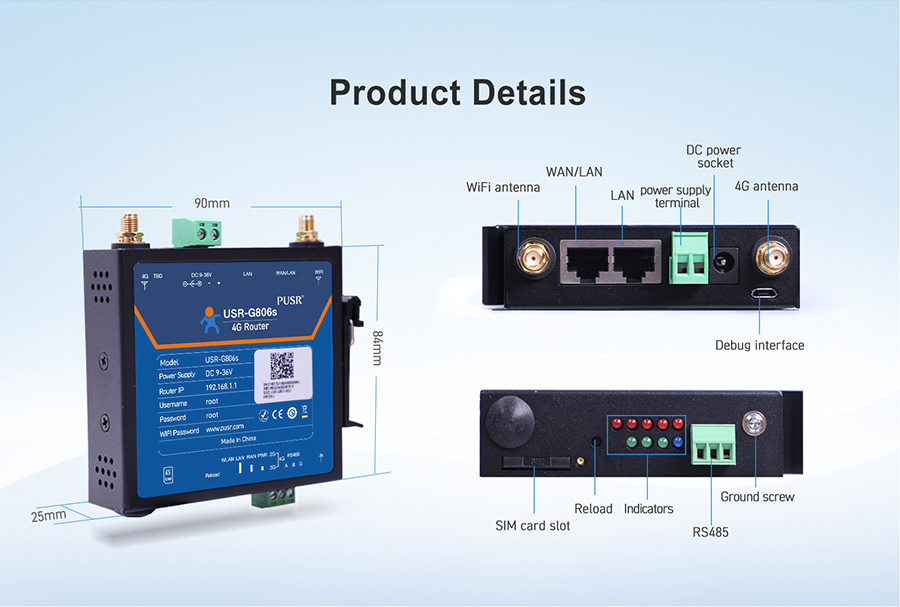

Product Details

application of 4G industrial LTE VPN router USR-G806s

Application scenario

Industrial 4G Cellular Router G806s is a combination of 4G LTE
router and 4G DTU.Integrating embedded cellular modem,
it provides 3G/4G cellular network,It also equipped with 2
fast Ethernet ports,1 RS485 interface(RS232 optional) and
supports Wi-Fi access. Features with compact and rugged design
it can be used as a reliable failover connection or wireless
communication in harsh environment. It is suitable for
large-scale distributed M2M/IoT applications, such as smart
express cabinets, charging piles, CCTV,bank ATM machines,
ticketing machines, traffic management,vending machines,
medical device networking, tower monitoring,construction sites,
digital signage, electricity, water conservancv,environmental protection, etc.

4G industrial LTE VPN router USR-G806s

Smart Express Cabinet

G806s integrates routing and serial modem, which can not
only provide network for industrial computer and camera,
but also provide data interaction for door lock.
When the user uses the smart express cabinet,the
USR-G806s can enable the cabinet and the server to
communicate in time and open the door of the box.

Hardware Specifications
Cellular
Interface
Antenna 1 x SMA-K
Note: North America models: 2 x SMA 4G antenna connectors.
SIM card 1 x (3 V & 1.8 V) Standard 2FF SIM, drawer-type sim card slots
Ethernet 1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX,1.5KV network isolation transformer protection
1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX,1.5KV network isolation transformer protection
Indicators LED PWR: always on after powered on
WLAN: always solid on when WiFi is enabled and working properly
WAN: solid when cable is connected, blinking when data is transmitting and receiving
LAN:solid when cable is connected, blinking when data is transmitting and receiving
2/3/4G mode indicator:
2G led is on after connected to 2G network
3G led is on after connected to 3G network
Both leds is on after connected to 4G network
Signal strength:4 solid bars,strongest signal
WiFi Interface Standards & Frequency IEEE 802.11b/g/n,2.4GHz, AP mode
Data speed IEEE 802.11b/g,maximum 54Mbps.IEEE 802.11n,maximum 150Mbps
Antenna 1 x SMA-K
Transmission distance 80 meters by line of sight.Actual transmission distance depends on environment of the site.
Power Supply Adaptor DC 12V/1A
Connector DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN 5.08mm industrial terminal block,reverse polarity protection
Input voltage DC 9~36V
Working power Average 270mA/12V
Serial Interface RS485/RS232(alternative) 3 PIN 3.81mm industrial terminal block. Note:RS485 default,RS232 please contact sales.
Baud rate(bps) 1200,2400,4800,9600,19200,38400,57600,115200,230400
Data bits 8
Stop bits 1,2
Parity NONE,ODD,EVEN
Physical
Characteristics
Housing Metal shell,IP30
Dimensions 112.0*84.0*25.0 mm(L*W*H)
Installation method Panel mounting, DIN-Rail mounting
EMC Static IEC61000-4-2, level 2
Pulsed Electric Field IEC61000-4-4, level 2
Surge IEC61000-4-5, level 2
Operating temperature -20℃~+70℃
Storage temperature -40℃~+125℃
Operating humidity 5 5%~95%RH(non-condensing)
Others Reload Pinhole reset button
TBD Debug interface (TTL Level)
Embedded Watchdog Device runs self-detection, auto recovers from malfunctions
Certificate CE,CCC
Software Specifications
Network
Connection
WAN protocol PPP, PPPoE, DHCP client
LAN protocol ARP, DHCP server, NAT
4G network access Auto APN/VPDN, private network
Access authentication: CHAP/PAP
WLAN security Open system,WPA/WPA2 PSK
TKIP/AES encryption
IP routing Static routing
Network diagnosis Ping,route trace,DNS
Serial modem Work mode NET,HTTPD
Sockets 4 sockets,4 centers ,TCPS(SOCKA)/TCPC/UDPS/UDPC
Modbus RTU toTCP Support
Device
management
Configuration Web
Remote management Telnet, SSH, AT command,SNMP
PUSR platform Remote monitoring,remote upgrade,alarming,base station location,remote access to web pages of the router
Security Failover backup Failover between 4G and WAN, ensures automatic switch to alternative backup connection
Firewall DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
VPN Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1), OPENVPN protocols
Service DDNS Remote access the device through domain name
Alarm Email,SMS
Others NTP client
Timing task
Region Part of APAC,please confirm the frequencies
Frequency TDD-LTE B38/39/40/41
FDD-LTE B1/B3/B5/B8
WCDMA B1/B8
TD-SCDMA B34/B39
EVDO/CDMA1X CDMA1X/ 1xEV-DO rel.0/ 1xEV-DO rev. A:800 MHz
GSM/CPRS/EDGE 900/1800MHz
