Ethernet to serial converter
Ethernet to serial converter : Basic function

Basic Function of Ethernet to Serial Converters

Ethernet to serial converter USR-TCP232-306 supports RS232/RS485/RS422 port ( Can’t be used at one time)

RS232/485/422 Optional

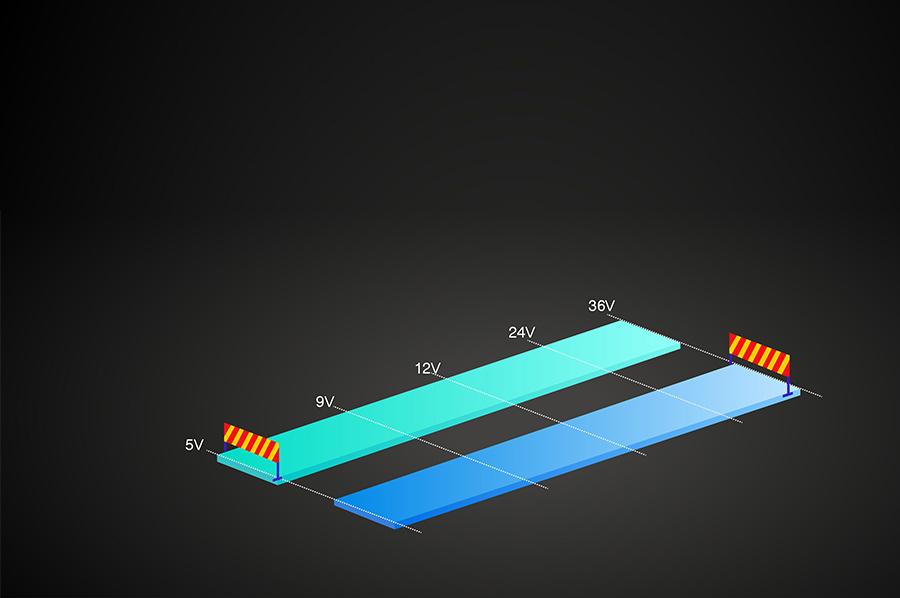

Ethernet to serial converter USR-TCP232-306: Wide Voltage 5-36V

Wide Voltage 5-36V

Suitable for all kinds of voltage requirements for the industrial control machine

Ethernet to serial converter USR-TCP232-306

Function Diagram

Work mode: TCP Server mode of Ethernet to serial converter USR-TCP232-306

Work mode

TCP Server

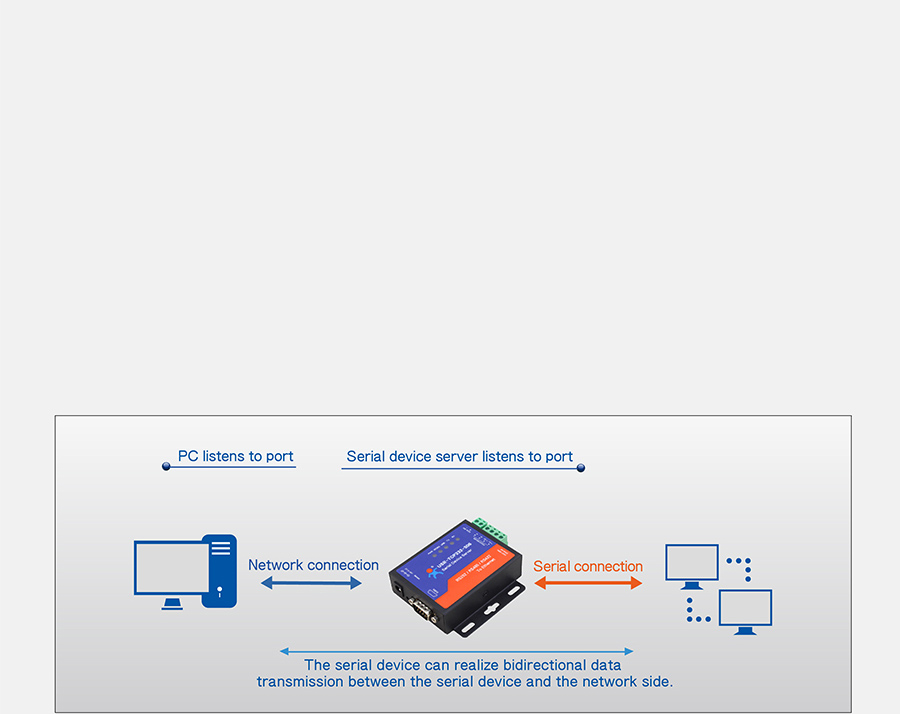

Ethernet to serial converters USR-TCP232-306 monitor the set port and wait for a TCP client connection.
Data from the serial device will transmit to all successfully-connected TCP Clients via USR-TCP232-306.

Work mode: TCP Client mode of of Ethernet to serial converter USR-TCP232-306

TCP client mode

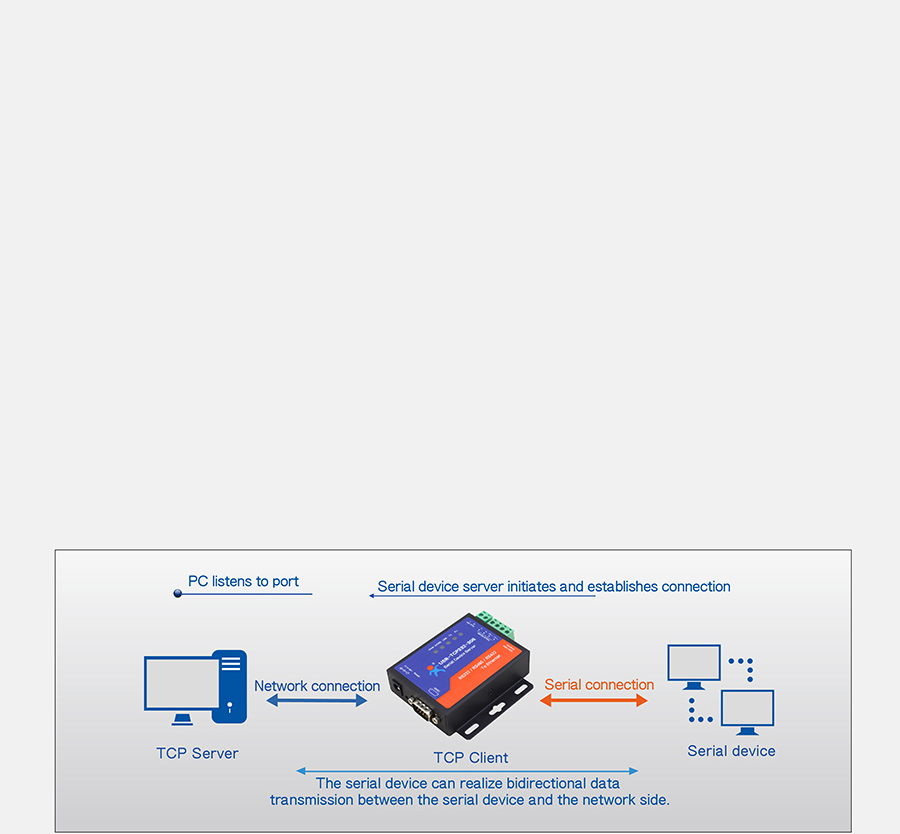

Ethernet to serial converters USR-TCP232-306 will initiate TCP connection to the destination IP address that
configured by the user and USR-TCP232-306 will continuously try to reconnect if establishing TCP connection
unsuccessfully. If the USR-TCP232-306 establishes TCP connection to TCP Server successfully, it can
realize bidirectional data transparent transmission between TCP Server and the serial device.

Work mode: UDP Client of of Ethernet to serial converter USR-TCP232-306

UDP mode

Ethernet to serial converters USR-TCP232-306 will transmit serial data from serial device to target network device
by UDP connection. USR-TCP232-306 will listen to port and transmit all received data to serial device.

Work mode: httpsD Client mode of Ethernet to serial converter USR-TCP232-306

httpsD Client

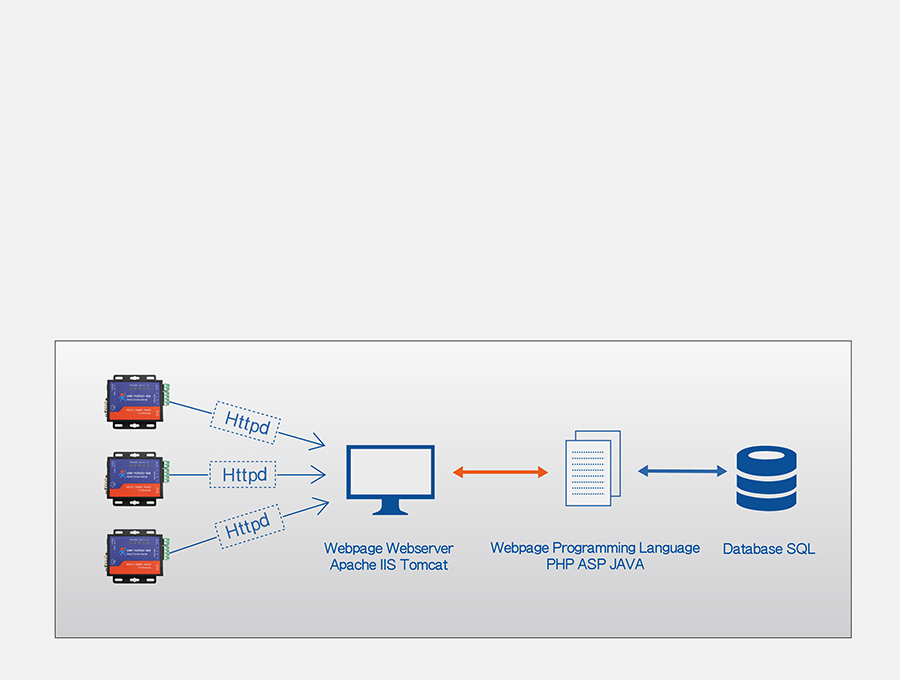

Ethernet to serial converters USR-TCP232-306 supports https Client mode which can transmit serial data to
the https server in https format(GET/POST).

Ethernet to serial converter USR-TCP232-306 supports Virtual Com Software

Virtual Com Software

Ethernet to serial converter USR-TCP232-306: Synchronous Baud Rate

Synchronous Baud Rate

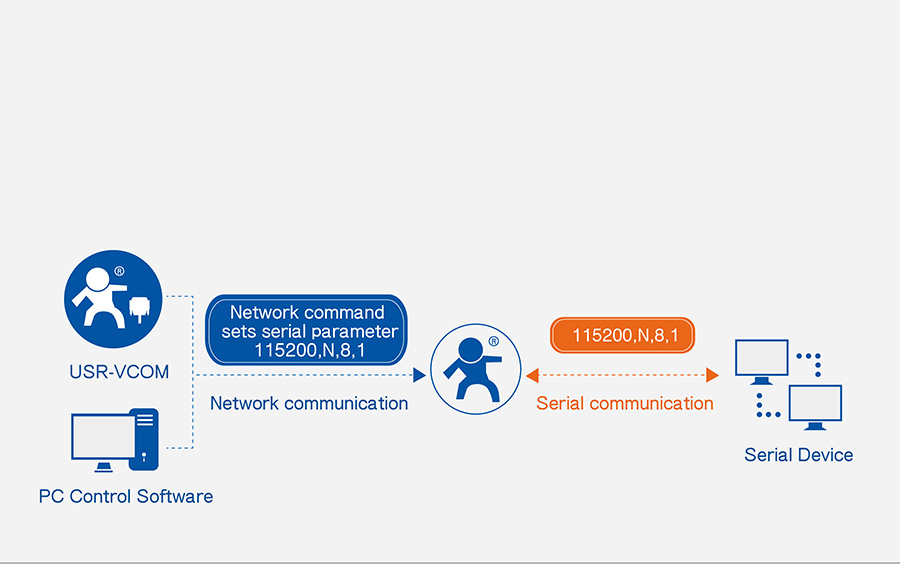

Dynamically change baud rate, data bit, check bit and stop bit of USR-TCP232-306 via network command.

Ethernet to serial converter USR-TCP232-306: Synchronous Baud Rate

Serial & Network Heartbeat Packet

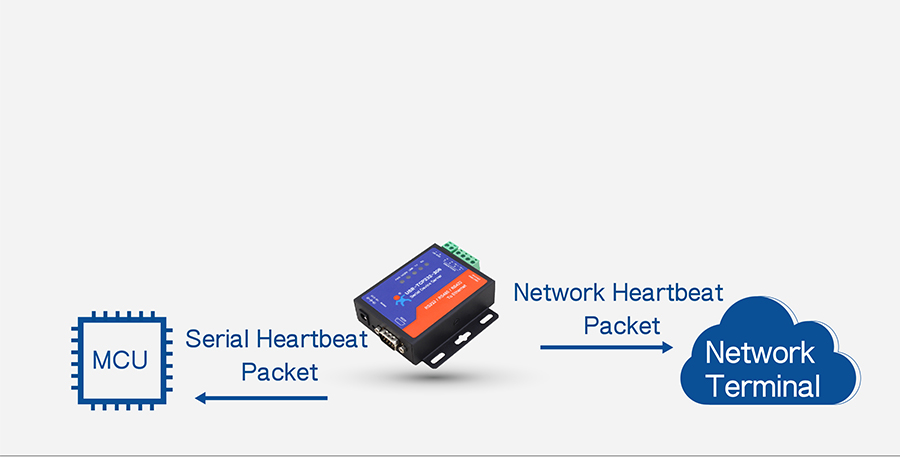

USR-TCP232-306 maintains the normal connection with the server by sending heartbeat packet regularly.

Hardware Dimensionssupport PUSR Cloud

Application Field of Ethernet to serial converter USR-TCP232-306: Unattended Weighing

Application

[ Unattended Weighing ]

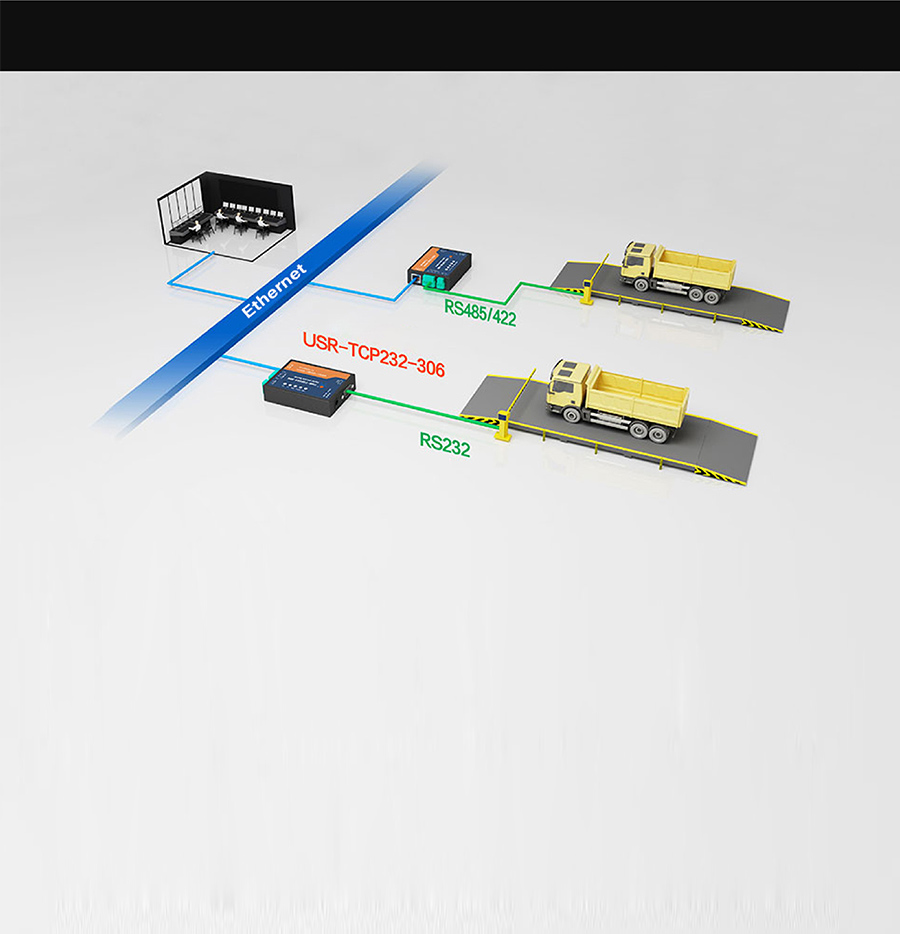

Connect Ethernet to serial converters USR-TCP232-306 to barrier gate and they can realize remote control of
barrier gate by Ethernet in control center.

Application Field of Ethernet to serial converter USR-TCP232-306: Access control system
Application Field of Ethernet to serial converter USR-TCP232-306: Traffic Lights Management System

[ Traffic Lights Management System ]

Connect Ethernet to serial converter USR-TCP232-306 and it can realize traffic data acquisition and processing
by Ethernet in control center. It can also provide accurate quantitative basis for traffic dispatch management
and urban transport planning Can implement the optimum control for transportation phenomena such as traffic jam,
traffic accident, traffic capacity from a regional or global perspective.

Application Field of Ethernet to serial converter USR-TCP232-306: Electric power
