USR-TCP232-410S

USR-TCP232-410S

Modbus to Ethernet Converters

Modbus to Ethernet Converters

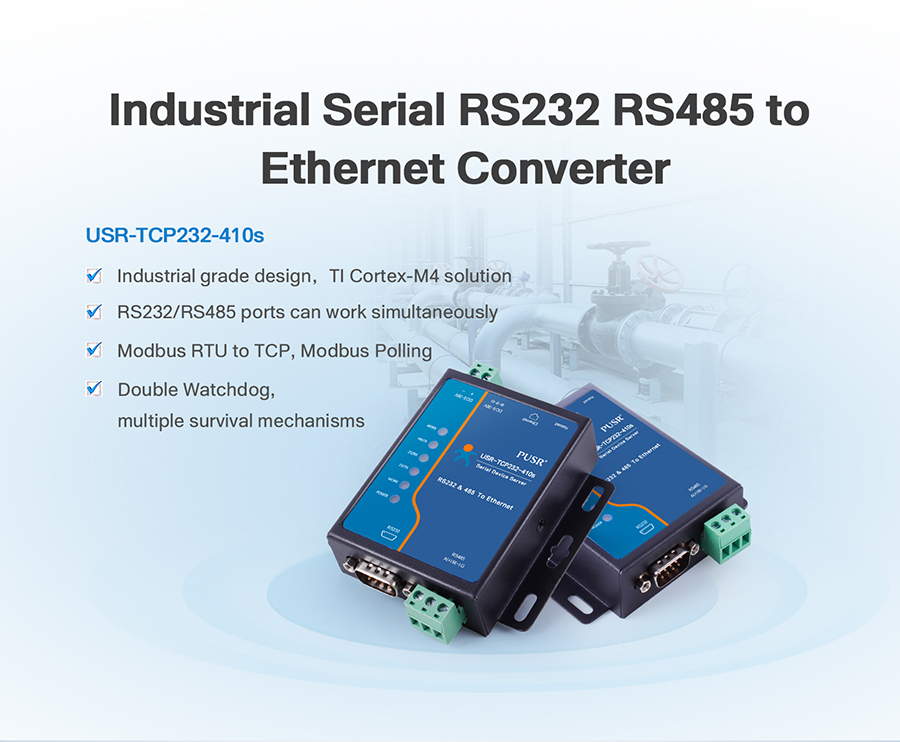

Features of entry-level Modbus to Ethernet converters USR-TCP232-410S.

● 1 RS232 and 1 RS485 Modbus to Ethernet converters
● 1 RS232 and 1 RS485 Modbus Serial to Ethernet Converters
● Power supply accepts wide voltage input range DC 5-36V
● Support TCP server/client, UDP server/client,https client, Virtual COM
● Support Modbus RTU to Modbus TCP
● Support flow control CTS/RTS, XON/XOFF
● Support 1 RS-232,1 RS-485 serial port to 1 10/100Base-T(X) self-adaptive Ethernet interface

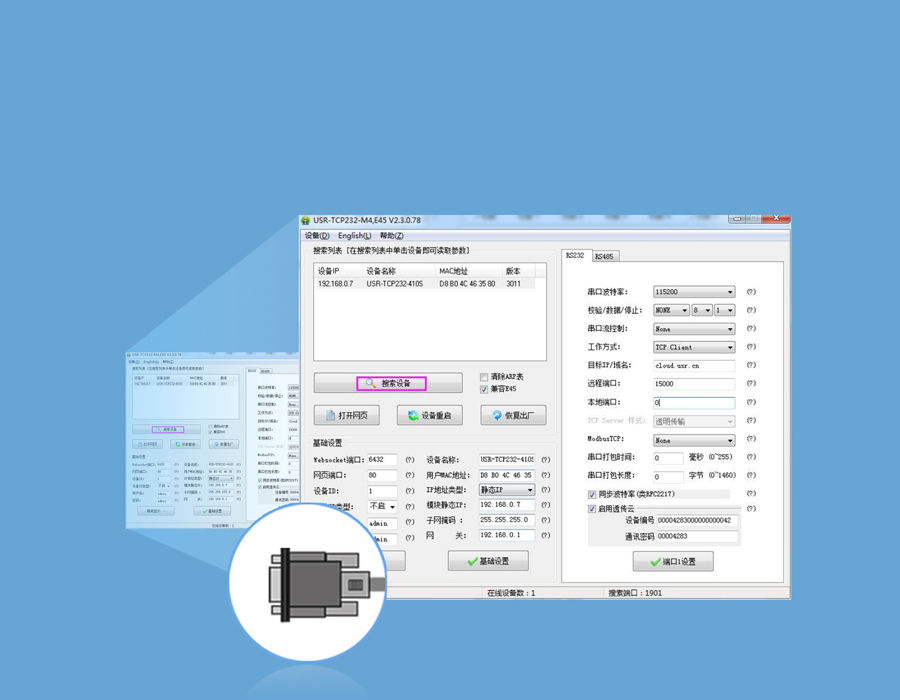

● Configuration via Web Server page, AT commands, and Windows Utility
industrial Modbus to Ethernet Converters

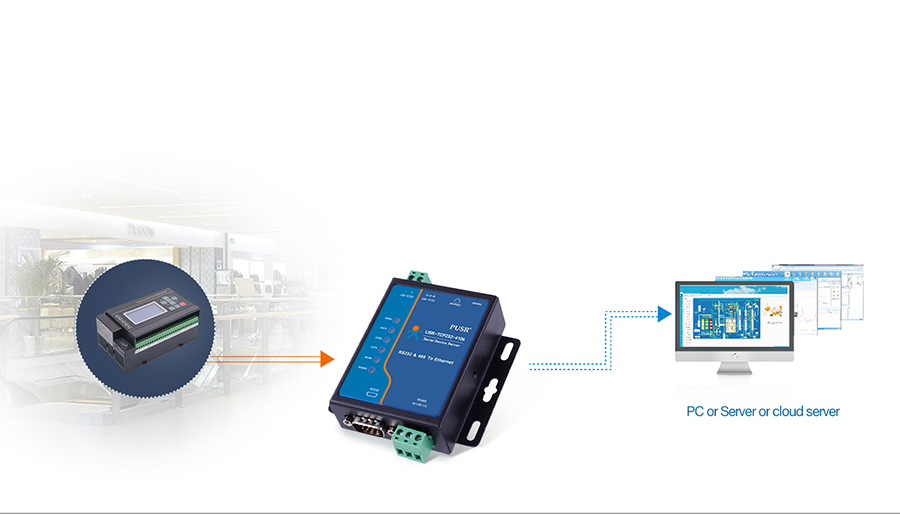

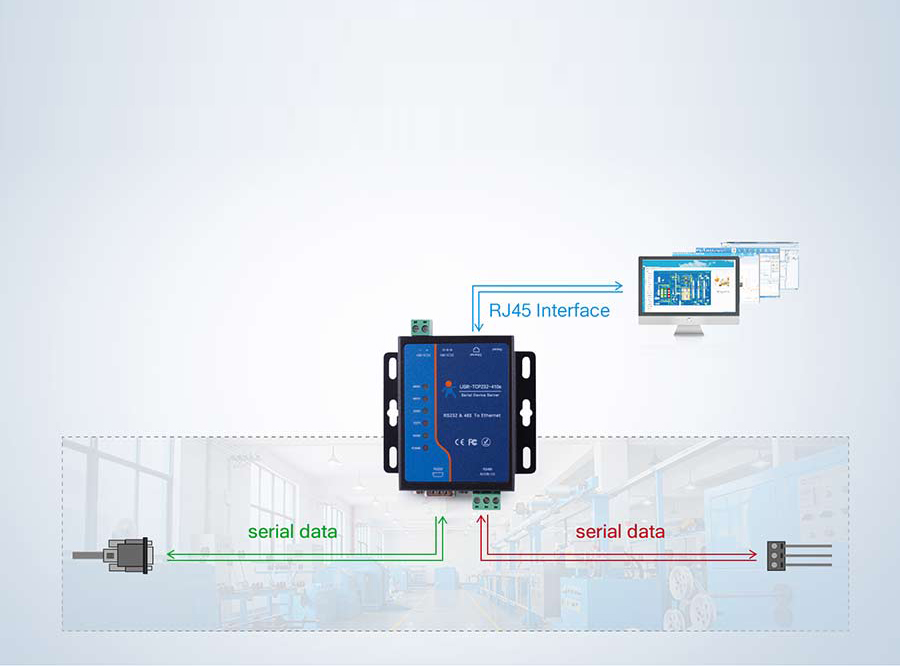

410s can realize bi-directional transparent transmission between RS232/RS485 and Ethernet

Basic Function

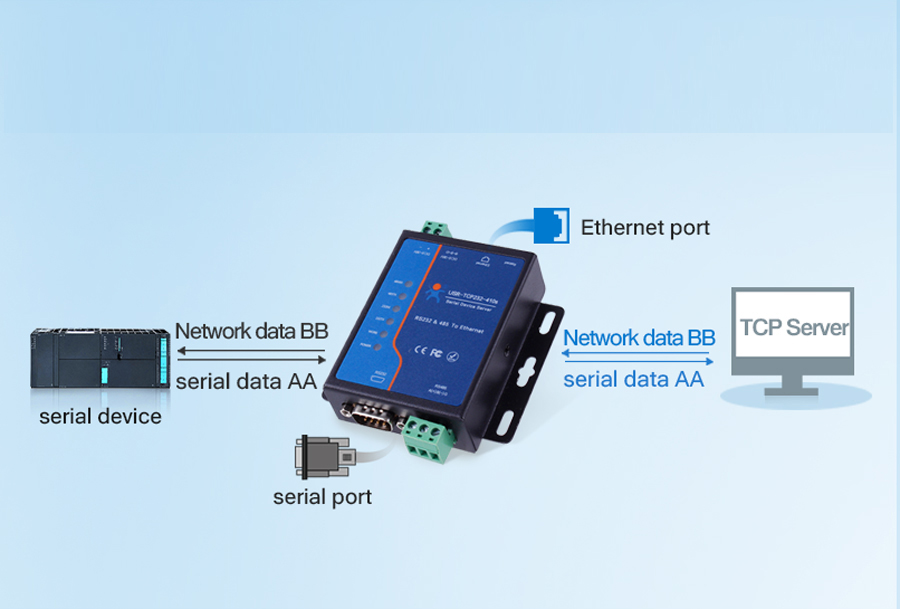

Modbus to Ethernet Converters USR-TCP232-410S can realize bi-directional transparent transmission
between RS232/RS485 and Ethernet RS232/RS485 ports can work at same time, not affect each other.

Industrial Solution of serial to ethernet converter USR-TCP232-410S

Industrial Solution

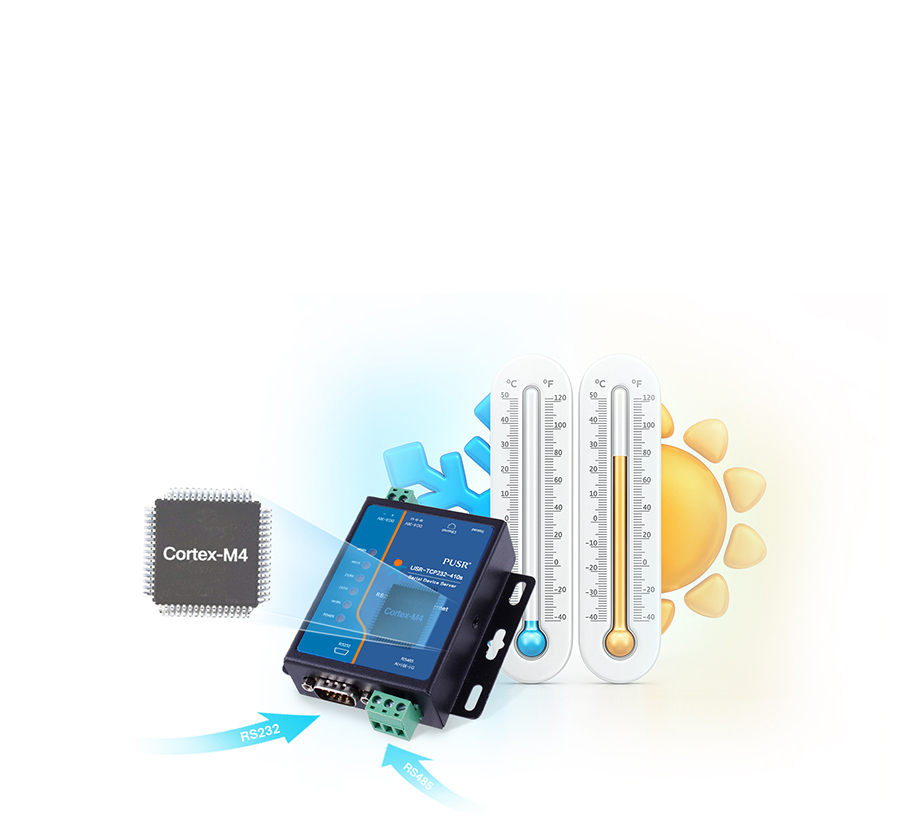

Based on TI Cortex M4 Solution, signal processing more efficient and reliable.
Equipped with optimized TCP/IP protocol stack, stable and reliable, Modbus to Ethernet converters USR-TCP232-410S
can realize bi-directional transparent transmission efficiency.
Work Temp: -40 ~85C, Supports hardware watchdog to keep it work stable.



serial to ethernet converter USR-TCP232-410S  supports 5 work modes: TCP Server, TCP Client, UDP Client, UDP Server and httpsD Client.



serial to ethernet converter USR-TCP232-410S:Registration Packet + Bi-directional Heartbeat Packet + Keep Alive

Registration Packet + Bi-directional Heartbeat Packet
+ Keep Alive

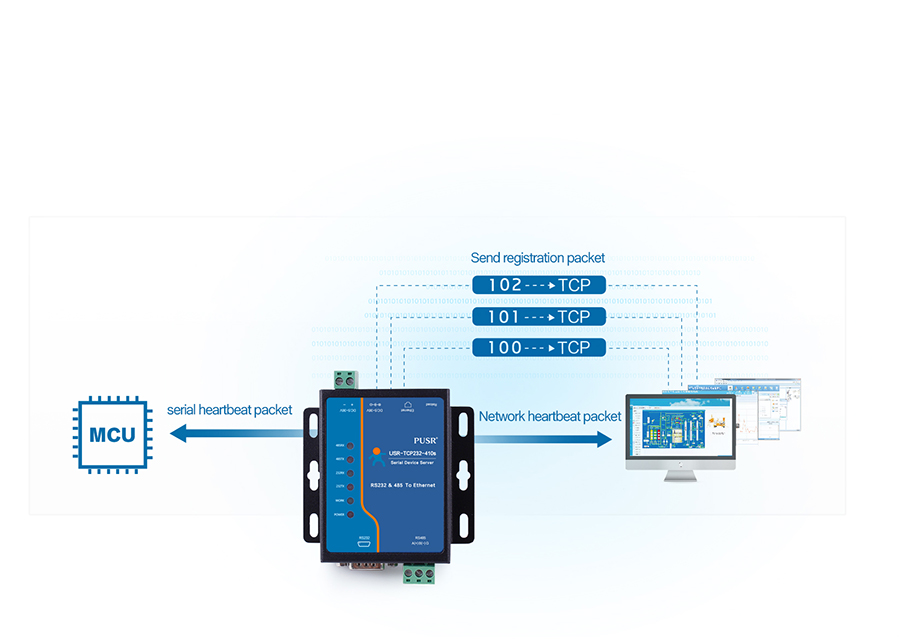

When usr-tcp232-410S works as a TCP Client, it will automatically send pre-registered packets for TCP Server
to identify this TCP. Network+Serial port heartbeat packet+Keep Alive,
maintain heartbeat connection with device terminals and servers actively, ensure the stability of the system.

Multiple Working Modes

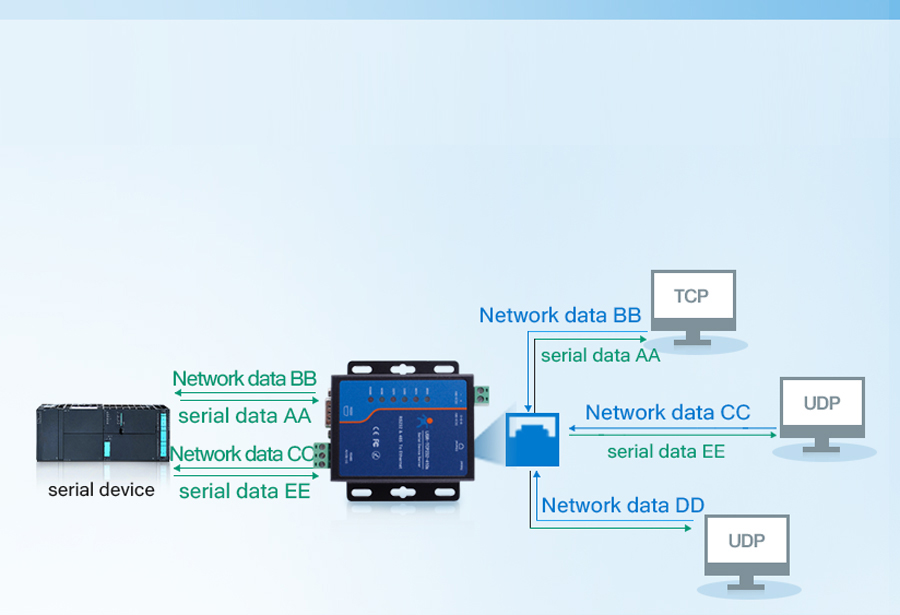

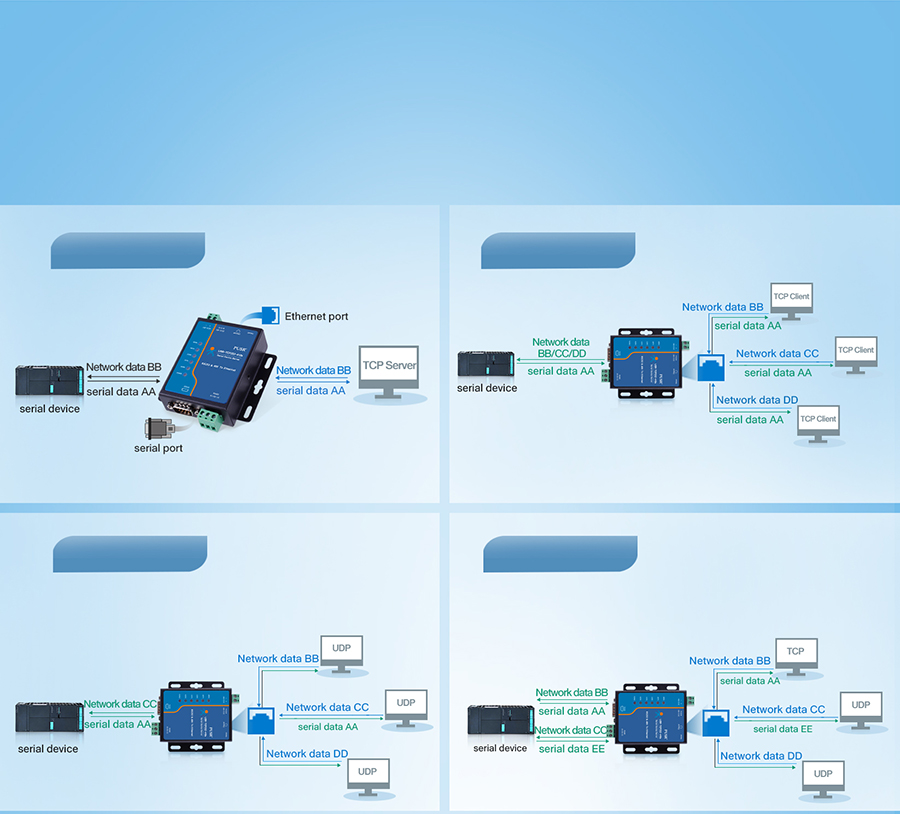

Modbus to Ethernet converters USR-TCP232-410S support 5 work modes: TCP Server, TCP Client, UDP Client, UDP Server and httpsD Client. Configure simply and it can realize data transmission.

TCP Client

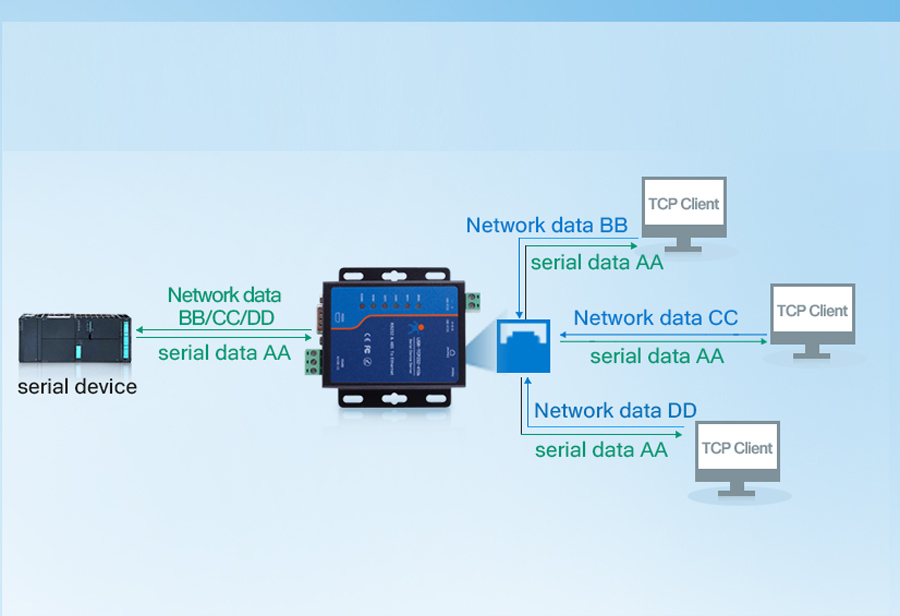

TCP Server

UDP Client

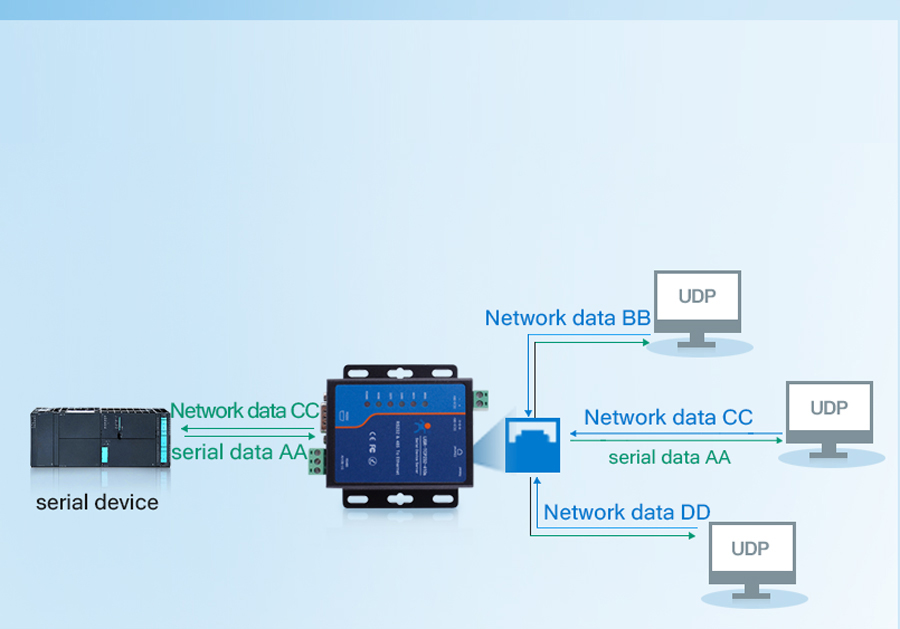

UDP Client is a connectionless transport protocol.
In this mode, 410S can only communicate.
with the target port of the target IP

UDP Server

In UDP Server mode, the data received by serial port
is automatically sent to the network
target of the last communication.

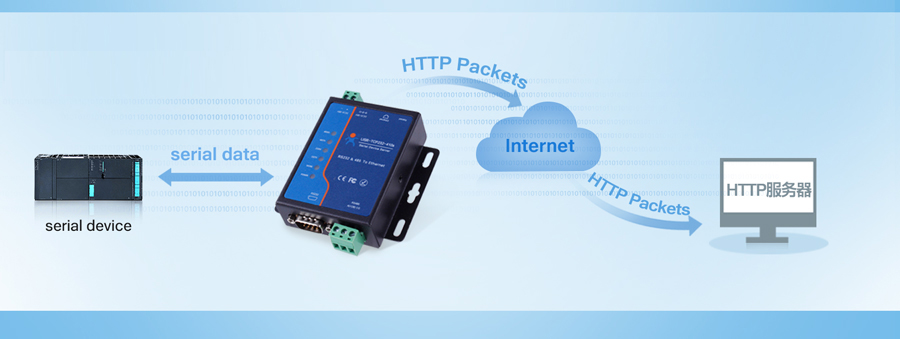

httpsd Client

Characteristic Function Collection serial to ethernet converter USR-TCP232-410S:

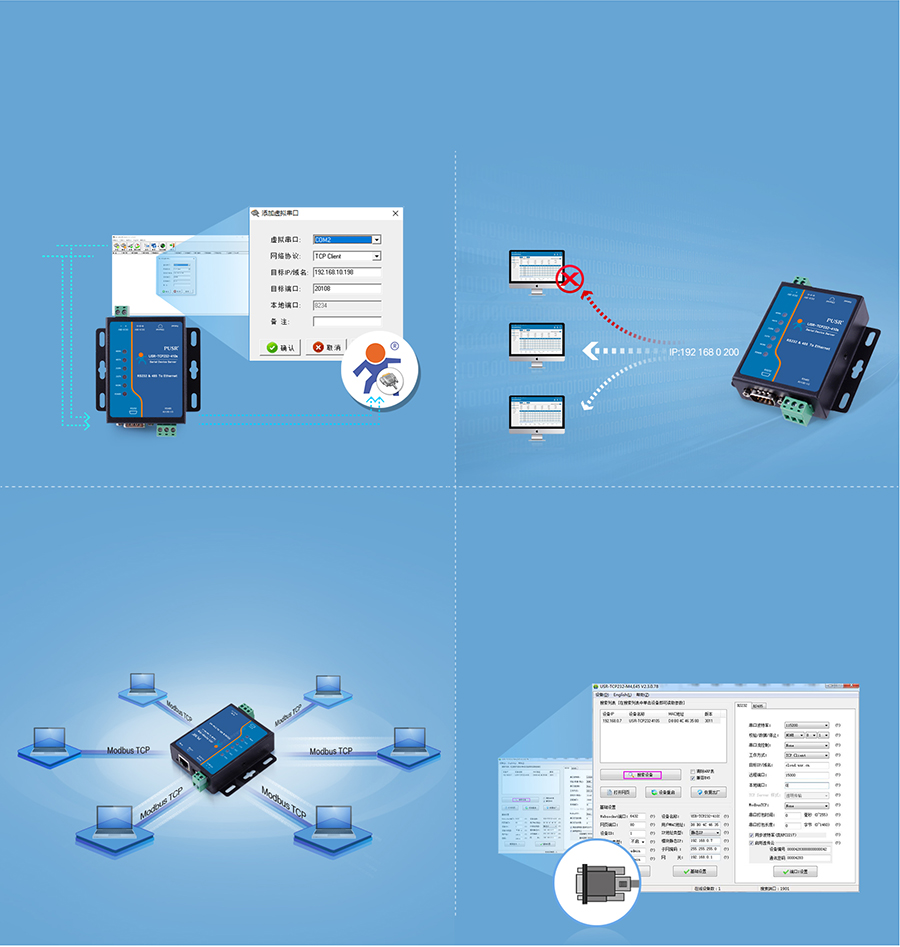

Characteristic Function Collection

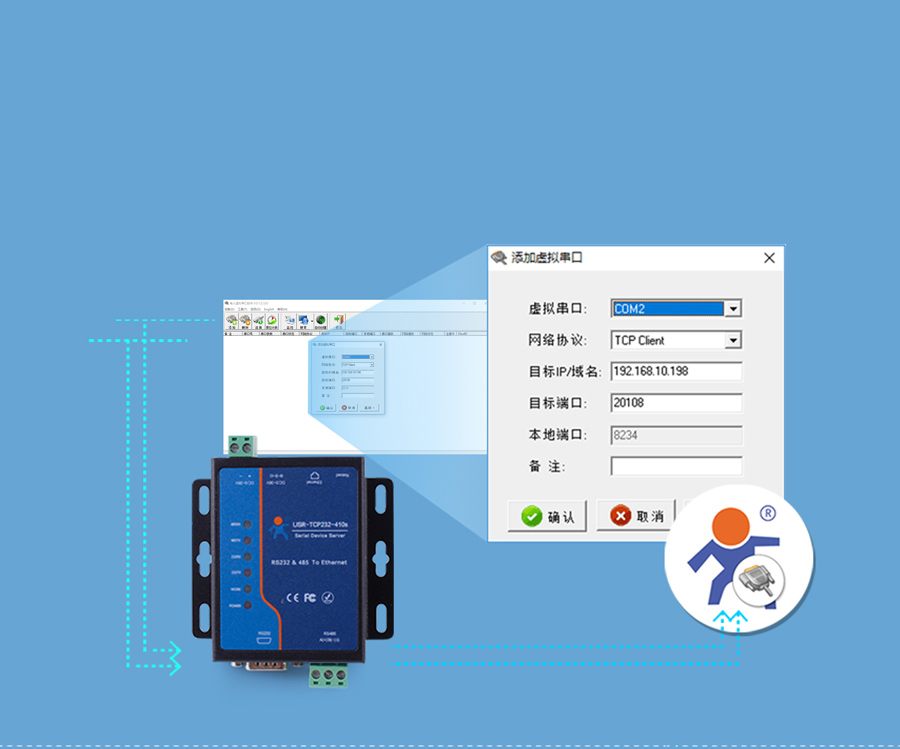

Virtual COM

Solve the problem that PC software cannot
communicate with network and equipment as a serial port.

Identification of broken network, automatically wired

Solve the identification of dead links easily, automatic
reconnection, prevent data loss due to power outages,
disconnection.

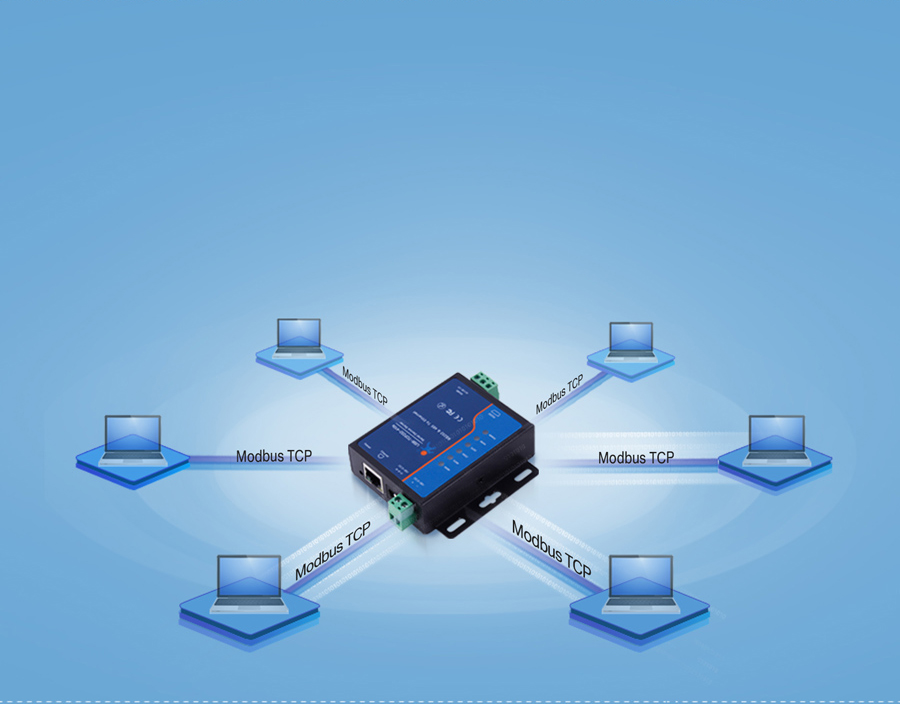

Modbus gateway

Polling mechanism can solve the problem of
sticky congestion effectively, which is caused
by data concurrency.

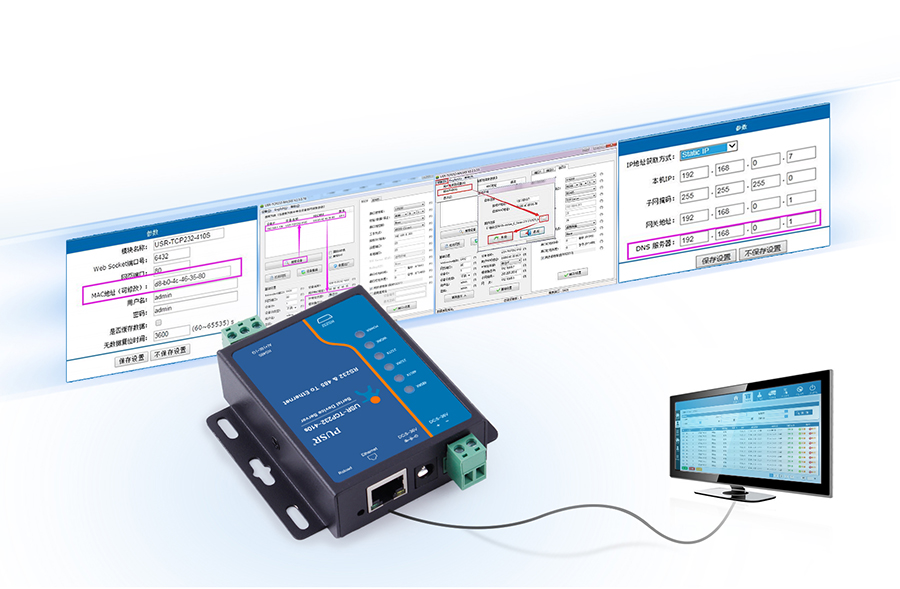

Customize built-in webpage for users Web to Serial

Design built-in webpages according to project requirements
and realize webpage control, web page data acquisition
and other functions.

more functions of serial to ethernet converter USR-TCP232-410S

More Function

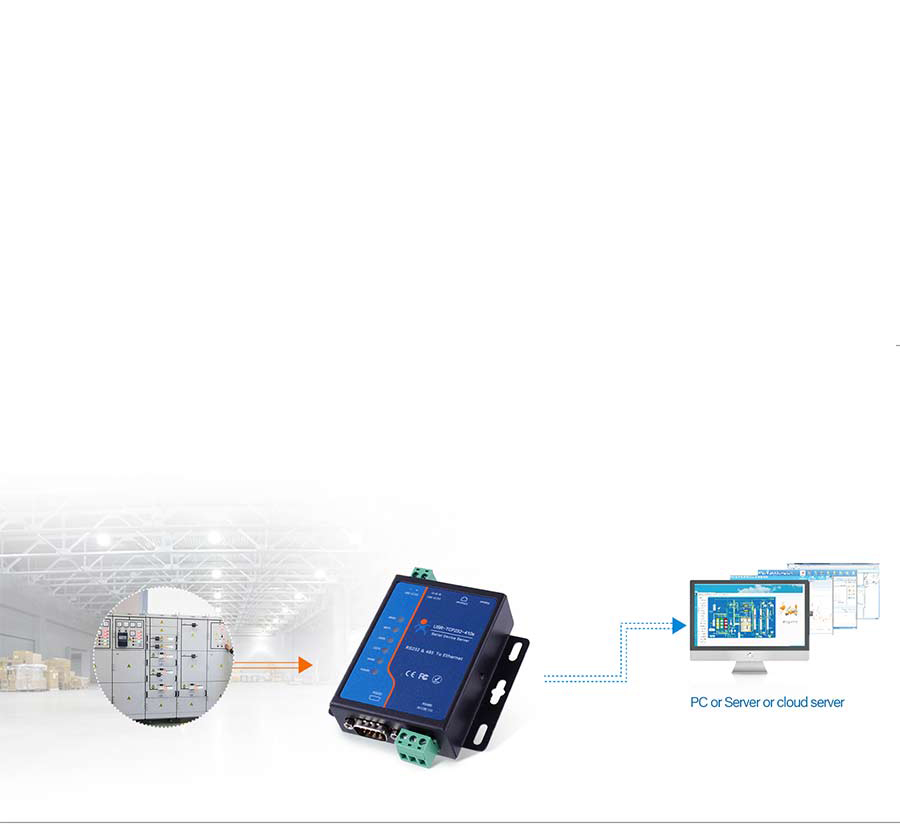

application for serial to ethernet converter USR-TCP232-410S: Electrical Fire Network Monitoring

Electrical Fire Network Monitoring

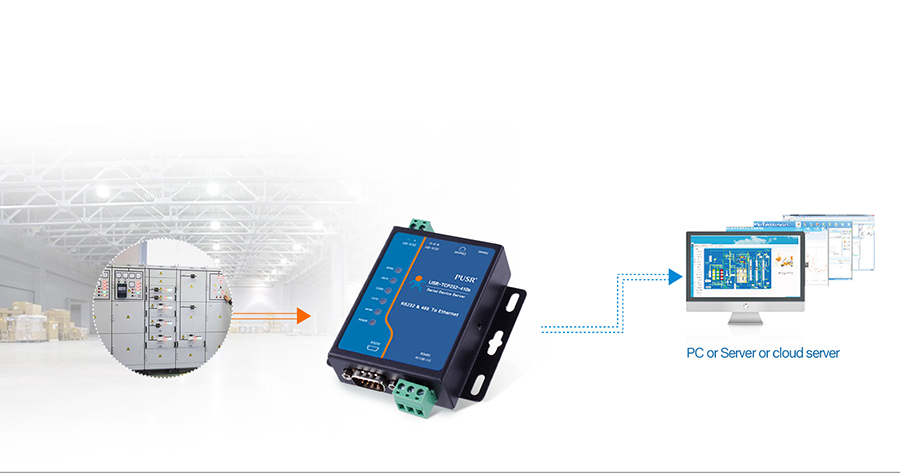

USR-TCP232-410S communicates with the RS232/485 serial port of the electric fire alarm, and transmits the alarm
information to the cloud platform quickly to remind the staff to eliminate the fire.

application for serial to ethernet converter USR-TCP232-410S:Smart Lighting Facilities in Factories and Mines Online Monitoring

Smart Lighting Facilities in Factories and Mines Monitoring

The traditional lighting facilities in factories and mines are mostly controlling by people,
and cannot realization linkage between manufacture and monitoring, and lead to energy wasting.
USR-TCP232-410S communicates with serial lighting equipment via network,
it is convenient for lighting control and can initiative report the mistakes of the equipment.

application for serial to ethernet converter USR-TCP232-410S:Smart Lighting Facilities in Factories and Mines Online Monitoring

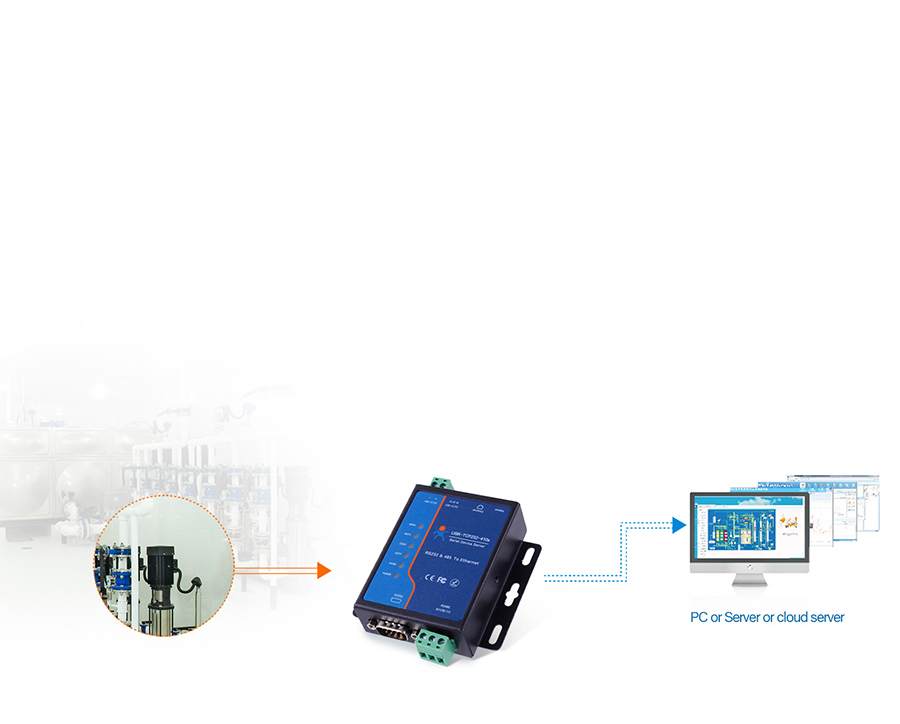

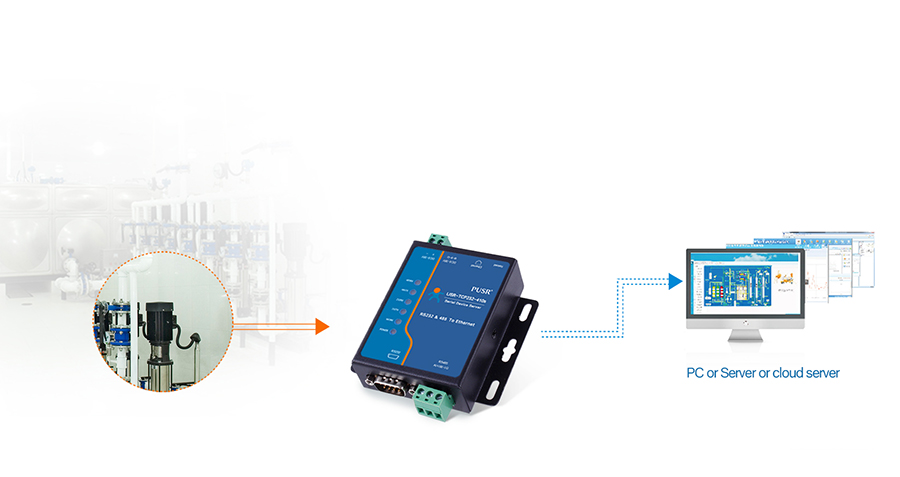

Water Supply System Monitoring

Recently the hoc communication of water supply system in waterworks is still based on serial,
and it is only suitable for single-machine operation and limited transmission distance, system maintenance is difficult.
USR-TCP232-410s supports serial port to network, monitor the work of the equipment via TCP Server mode at any time.

Modbus to Ethernet Converters

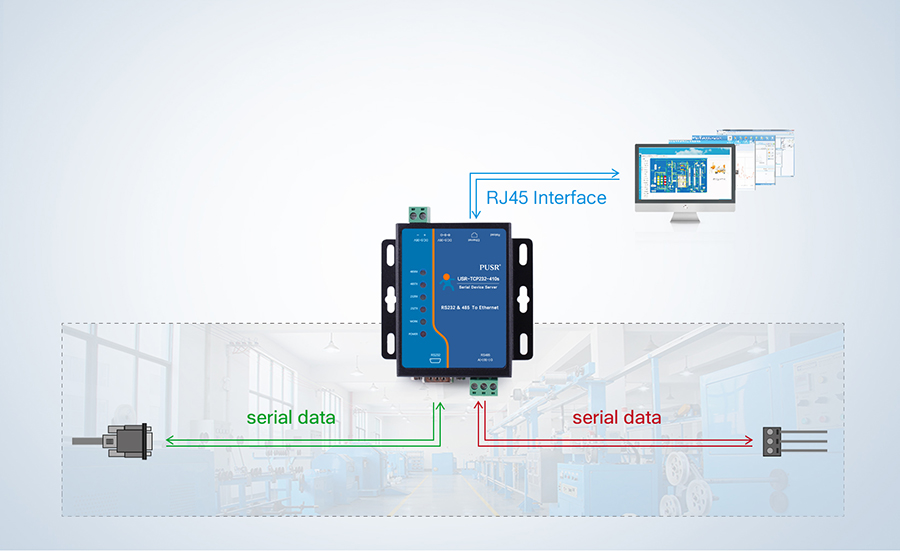

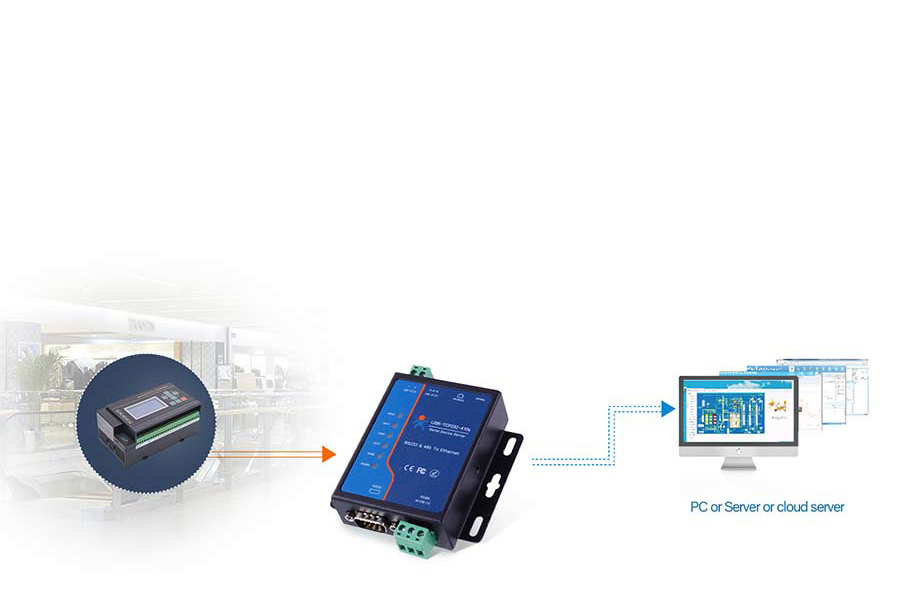

Modbus to Ethernet converters 410s can realize bi-directional transparent transmission between RS232/RS485 and Ethernet

Basic Function

410s can realize bi-directional transparent transmission
between RS232/RS485 and Ethernet. RS232/RS485
ports can work at same time, not affect each other.

Modbus to Ethernet Converters USR-TCP232-410S

Industrial Solution

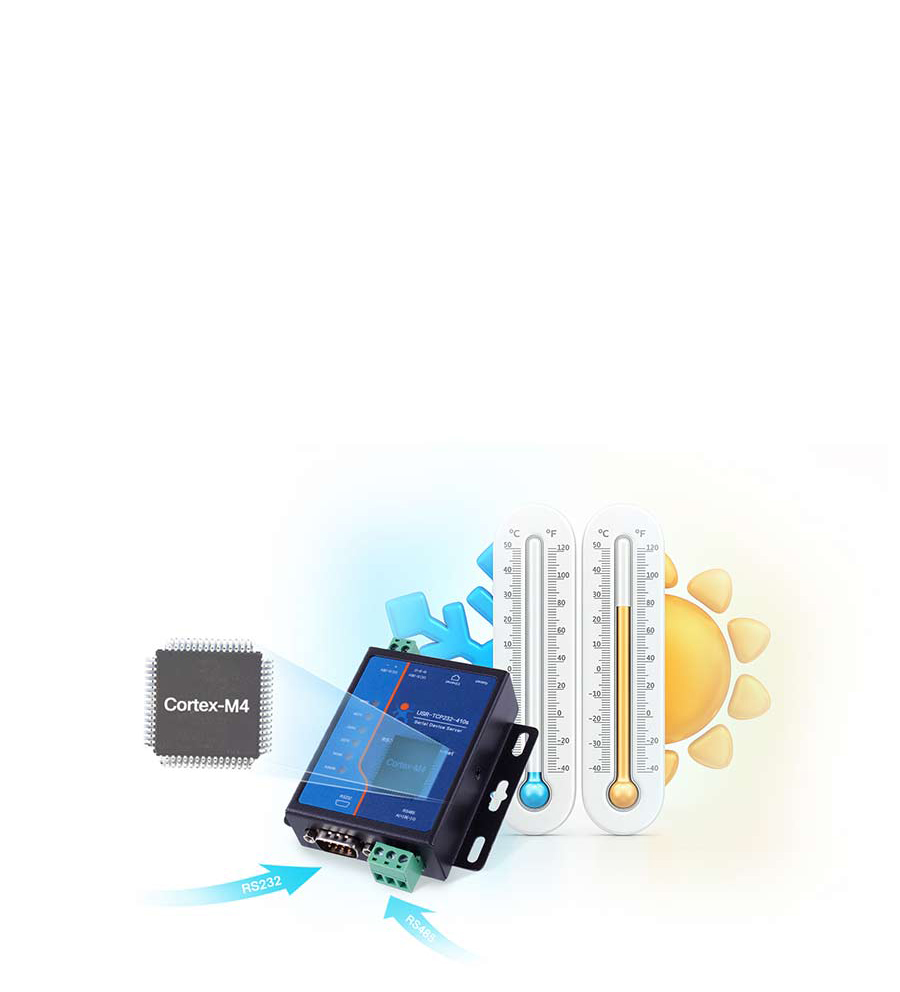

Based on TI Cortex M4 Solution, signal processing
more efficient and reliable. Equipped with
optimized TCP/IP protocol stack, stable and
reliable, Modbus to Ethernet converters realize
bi-directional transparent transmission.
Work Temp: -40 ~85C, Supports hardware watchdog
to keep it work stable.

Modbus to Ethernet Converters USR-TCP232-410S:Registration Packet + Bi-directional Heartbeat Packet + Keep Alive

Registration Packet
+ Bi-directional Heartbeat Packet
+ Keep Alive

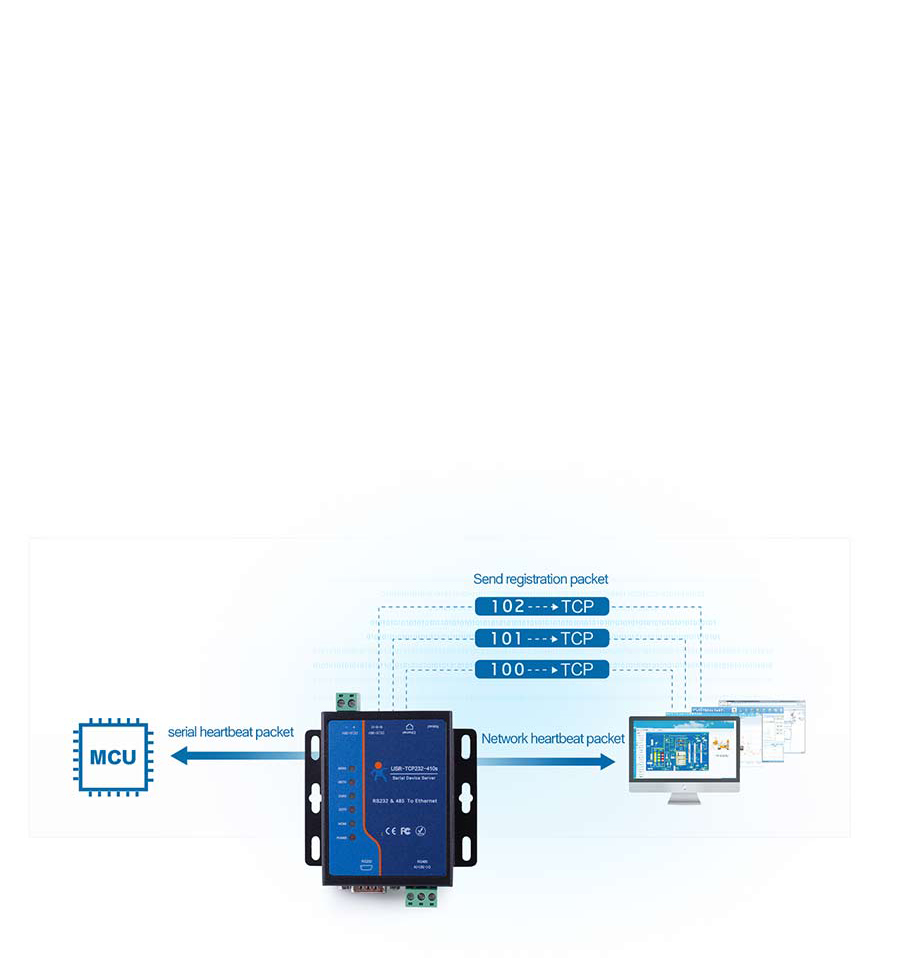

When 410s works as a TCP Client,it will automatically
send pre-registered packets for TCP Server to
identify this TCP. Network+Serial port heartbeat
packet+Keep Alive, maintain heartbeat connection with
device terminals and servers actively, ensure the
stability of the system.

Modbus to Ethernet Converters USR-TCP232-410S  supports 5 work modes: TCP Server, TCP Client, UDP Client, UDP Server and httpsD Client.

Multiple Working Modes

USR-TCP232-410s supports 5 work modes:
TCP Server, TCP Client, UDP Client,
UDP Server and httpsD Client.
Configure simply and it can realize
data transmission.

Working mode of USR-TCP232-410s:TCP Client

TCP Client

Working mode of Modbus to Ethernet Converters USR-TCP232-410s:TCP Server

TCP Server

Working mode of Modbus to Ethernet Converters USR-TCP232-410s:UDP Client

UDP Client

UDP Client is a connectionless transport protocol.
In this mode, 410S can only communicate.
with the target port of the target IP

Working mode of Modbus to Ethernet Converters USR-TCP232-410s:UDP Server

UDP Server

In UDP Server mode, the data received by
serial port is automatically sent to the
network target of the last communication.

Working mode of Modbus to Ethernet Converters USR-TCP232-410s:httpsD client

httpsd Client

Characteristic Function Collection Modbus to Ethernet Converters USR-TCP232-410S:

Characteristic Function Collection

Virtual COM

Solve the problem that PC software cannot
communicate with network and equipment
as a serial port.

Identification of broken network,
automatically wired

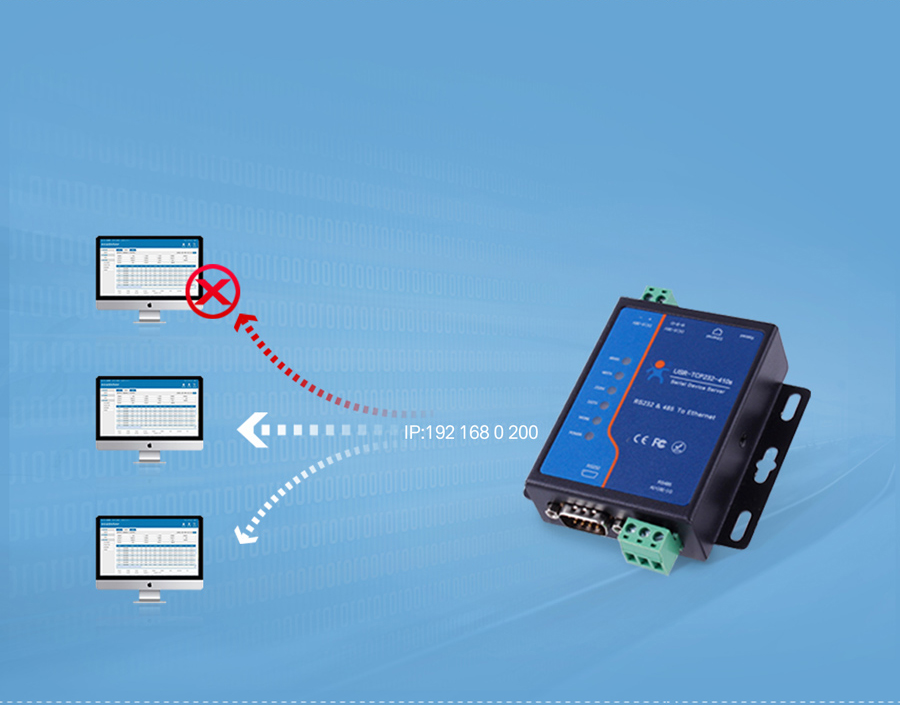

Solve the identification of dead links easily,
automatic reconnection, prevent
data loss due to power outages,
disconnection.

Modbus gateway

Polling mechanism can solve the problem
of sticky congestion effectively,
which is caused by data concurrency.

Customize built-in webpage for users
Web to Serial

Design built-in webpages according to
project requirement

more functions of serial to ethernet converter USR-TCP232-410S

More Function

application for serial to ethernet converter USR-TCP232-410S: Electrical Fire Network Monitoring

Electrical Fire Network Monitoring

410S communicates with the RS232/485 serial port of the electric fire alarm, and transmits the alarm
information to the cloud platform quickly to remind the staff to eliminate the fire.

application for serial to ethernet converter USR-TCP232-410S:Smart Lighting Facilities in Factories and Mines Online Monitoring

Smart Lighting Facilities in Factories and Mines Monitoring

The traditional lighting facilities in factories and mines
are mostly controlling by people, and cannot
realization linkage between manufacture and
monitoring, 410s communicates with serial lighting
equipment via network, it is convenient for
lighting control and can initiative report
the mistakes of the equipment.

application for Modbus to Ethernet converters USR-TCP232-410S:Smart Lighting Facilities in Factories and Mines Online Monitoring

Water Supply System Monitoring

Recently the hoc communication of water
supply system in waterworks is still based on
serial, and it is only suitable for single-machine
operation and limited transmission distance,
system maintenance is difficult. 410s supports
serial port to network, monitor the work of
the equipment via TCP Server mode at any time.

System Information
Processor Cortex-M4
Basic Frequency 120MHz
Flash 512K byte
Ethernet
Port Number 1
Interface Standard RJ45
Rate 10/100 Mbps MDI/MDIX, auto switch between cross and direct connection
Protection 2KV electromagnetism isolation, shell insulation blocking
Network Protocol IP, TCP, UDP, DHCP, DNS, https, ARP, ICMP, Web socket, httpsd client
Receive Buffer Max 16k bytes buffer
Serial
Port Number 2 (1*RS-232, 1*RS-485, can work at the same time)
Interface Standard RS-232: DB9 pin type, RS-485: 3 wire (A+, B-, G)
Data Bits 5, 6, 7, 8
Stop Bit 1, 2
Check Bit None, Even, Odd, Space, Mark
Baud Rate RS-232: 600 bps ~ 230K bps, RS-485: 600 bps ~ 1M bps
Flow Control RTS/CTS
Buffer Send and receive 2k bytes respectively
Protection RS-485: anti-static 2KV, lightning protection
RS-485 Pull-up and Pull-Down Resistor 2.2 KΩ
Software
Virtual Serial(USR-VCOM) Windows 2000 or higher (32 bit/64 bit)
Configuration Built-in webpage, computer set-up software, serial command
Basic Parameter
Size 80 x 62 x 24 mm
Operating Temp. -40 ~ 85°C
Storage Temp. -45 ~ 105°C, 5 ~ 95% RH
Input Voltage DC 5 ~ 36V
Working Current
86.5mA(aver)@ 5V
44.3mA(aver)@ 12V
Power <1W
More
Certificate CE,FCC,ROHS
Warranty 2 years
Accessory 5V1A high-quality power supply, serial line, cable
