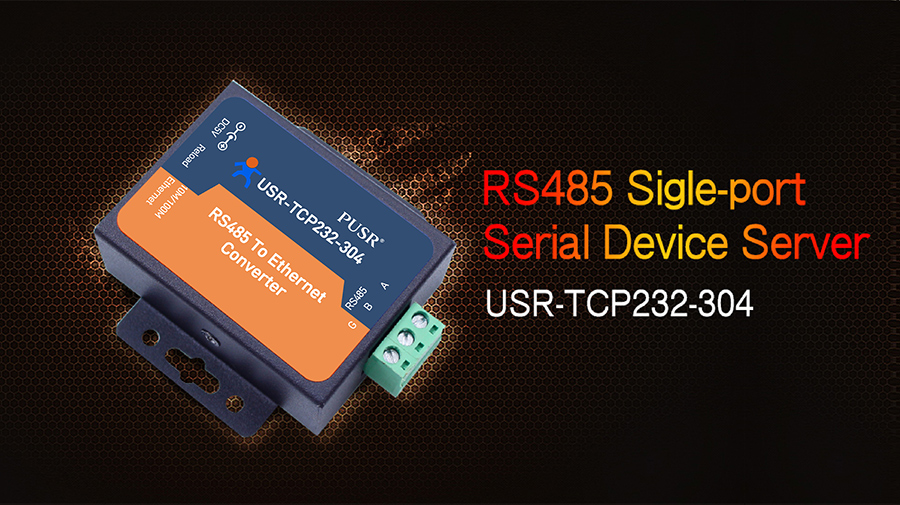

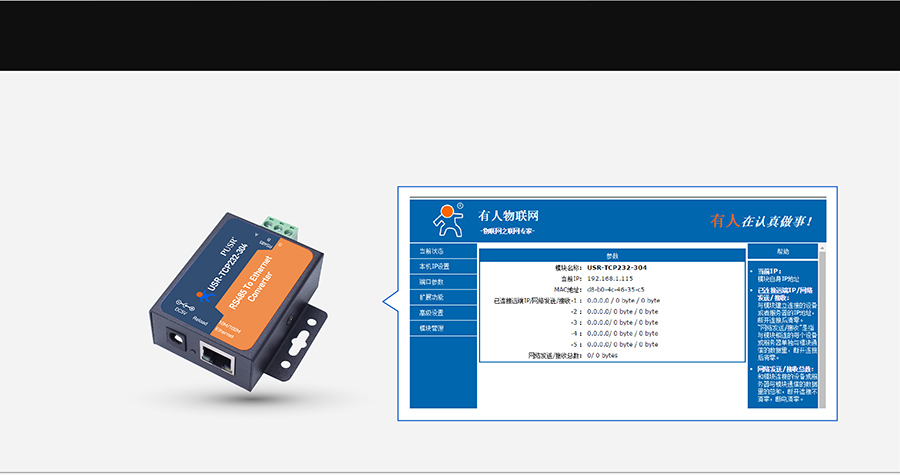

USR-TCP232-304

USR-TCP232-304

1-port RS485 to Ethernet Converters

1-port RS485 to Ethernet Converters


1-port RS485 to Ethernet converters USR-TCP232-304 can transmit data transparently between TCP/IP and RS485. RS485 to Ethernet converters USR-TCP232-304 are widespread required in industrial automation. Simple configuration and easy to use.

● Single RS485 to Ethernet converters
● Compact, light weight
● RS485 port, cost-effective
● DC 4.75-7V
● Client connection: 1 to 16 in TCP Server Mode
● Support TCP server/client, UDP server/client, virtual COM
RS485 to Ethernet converters

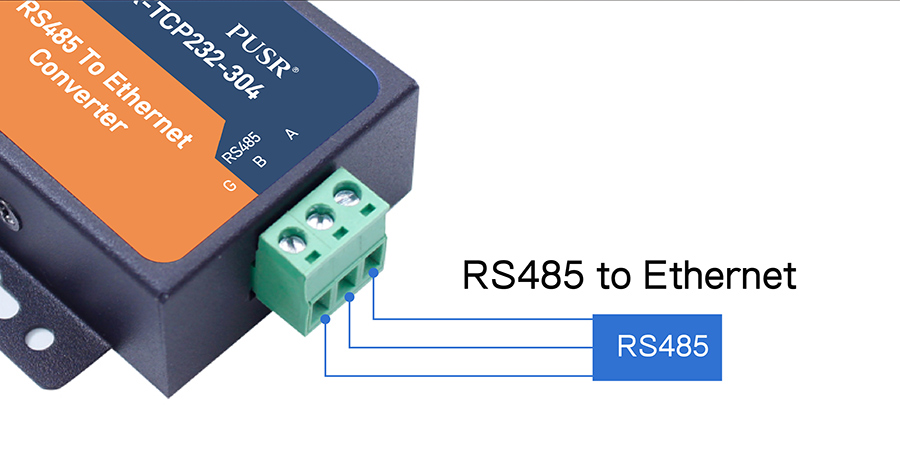

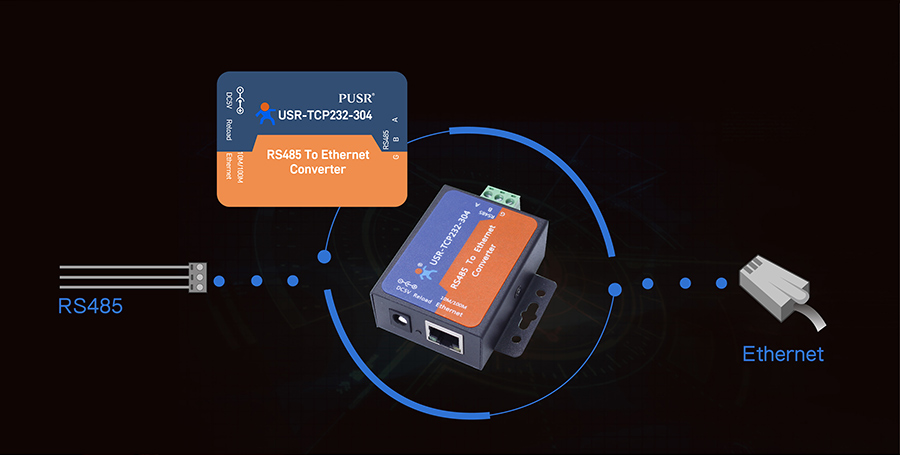

basic function of RS485 to Ethernet converters: wired network

Basic Function

basic function of RS485 to Ethernet converters: which can transmit data transparently between TCP/IP and RS485

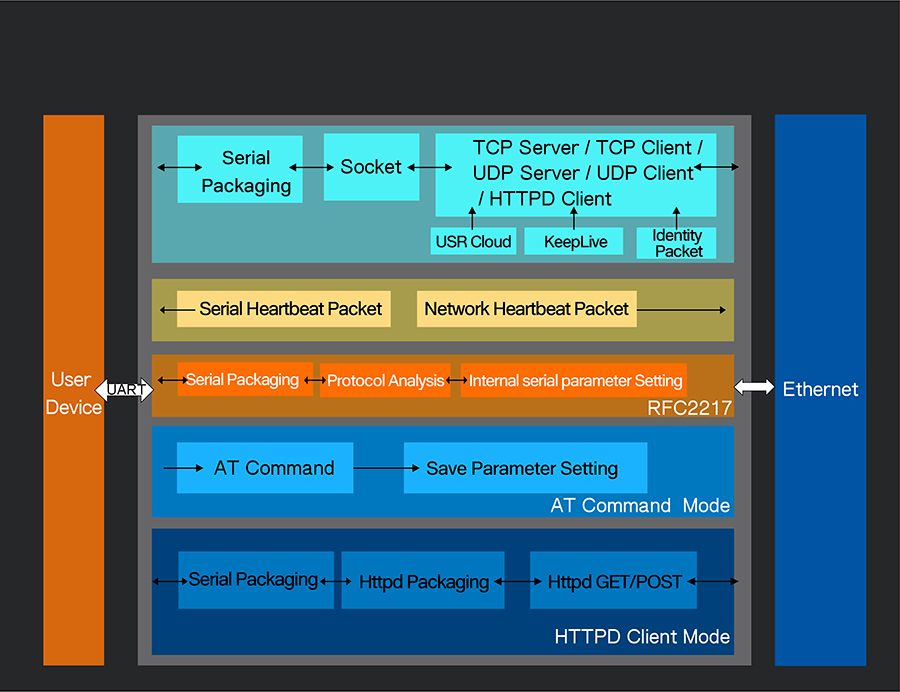

function of RS485 serial device server: Function Diagram

Function Diagram

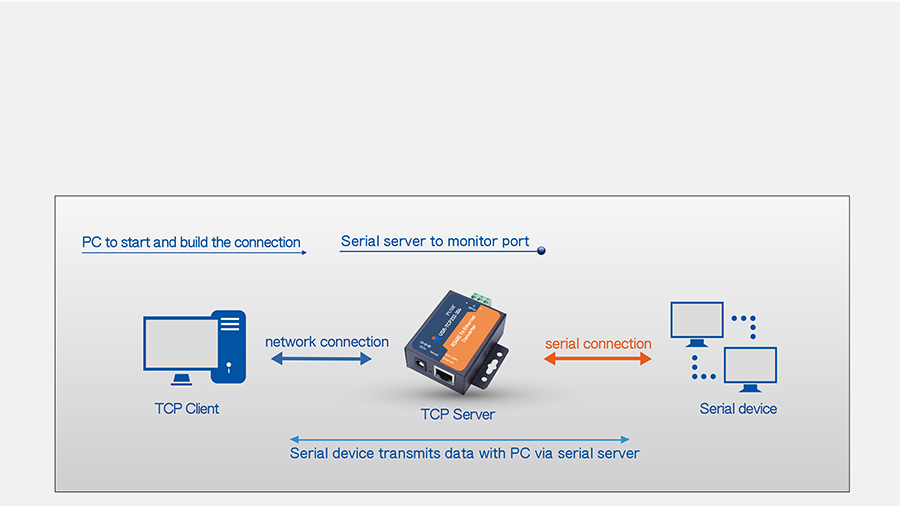

work mode of rs485 to ethernet converters: tcp server mode

Work mode

TCP Server

RS485 to Ethernet converters USR-TCP232-304 monitor the set port and wait for a TCP client connection.
Data from the serial device will transmit to all successfully-connected TCP clients via USR-TCP232-304.

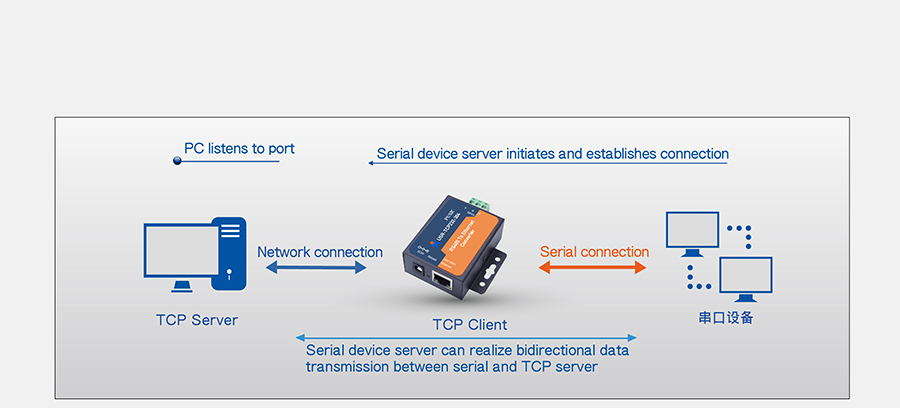

work mode of rs485 to ethernet converters: tcp client mode

TCP client mode

RS485 to Ethernet converters USR-TCP232-304 initiate TCP connection to the destination IP address that
configured by the user and USR-TCP232-304 continuously try to reconnect if establishing TCP connection
unsuccessfully. If USR-TCP232-304 establishes TCP connection to TCP Server successfully, it can realize
bidirectional data transparent transmission between TCP Server and the serial device.

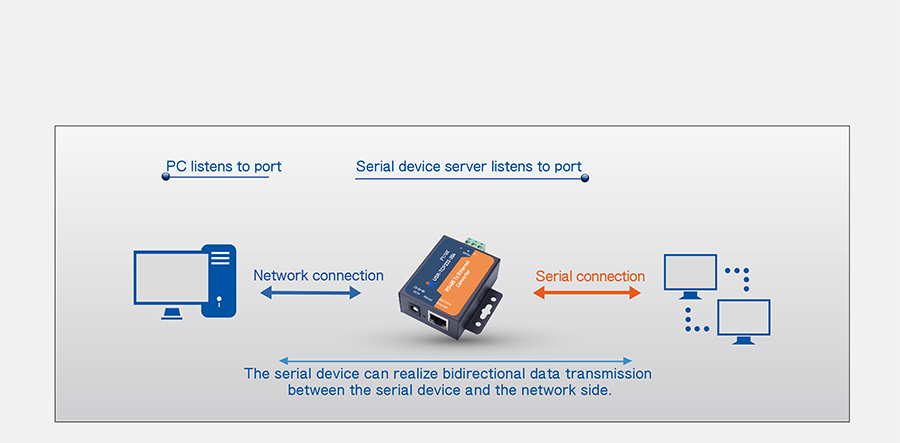

work mode of rs485 to ethernet converters: UDP mode

UDP mode

RS485 to Ethernet converters USR-TCP232-304 will transmit serial data from serial
device to target network device by UDP connection. USR-TCP232-304 will listen to port
and transmit all received data to serial device.

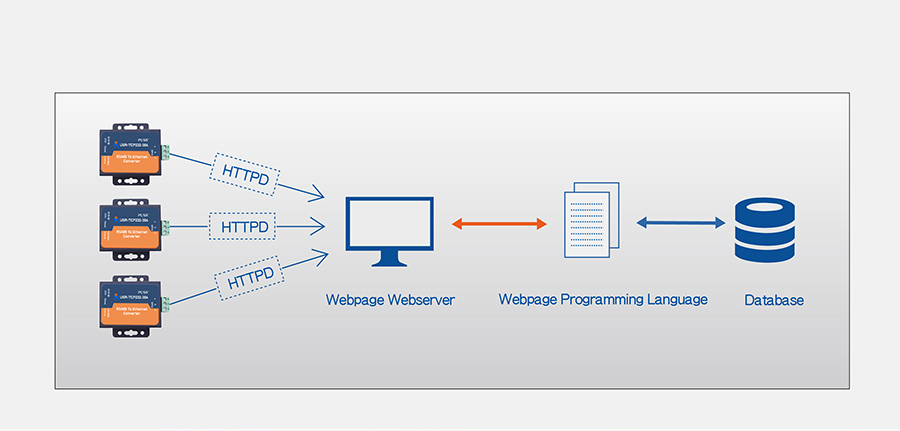

work mode of rs485 to ethernet converters: httpsD Client

httpsD Client

RS485 to Ethernet converters USR-TCP232-304 support https Client mode which can transmit serial data
to the https server in https format(GET/POST).

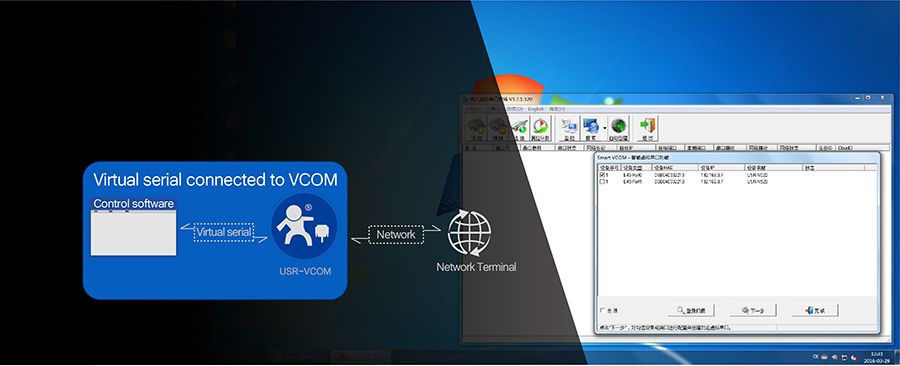

function of rs485 to ethernet converters:Virtual Com Software

Virtual Com Software

Powerful Virtual Serial Software USR-VCOM

Powerful Virtual Serial Software USR-VCOM

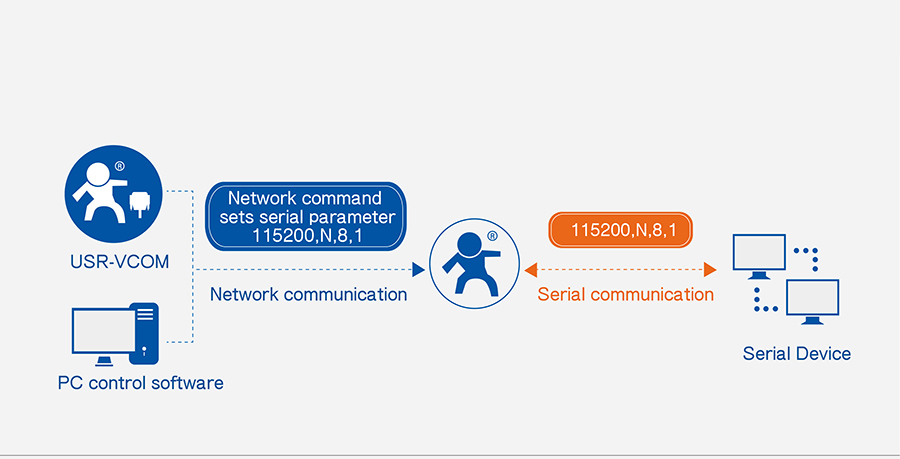

Synchronous Baud Rate

Synchronous Baud Rate

Dynamically change baud rate, data bit, check bit and stop bit of USR-TCP232-304 via network command.

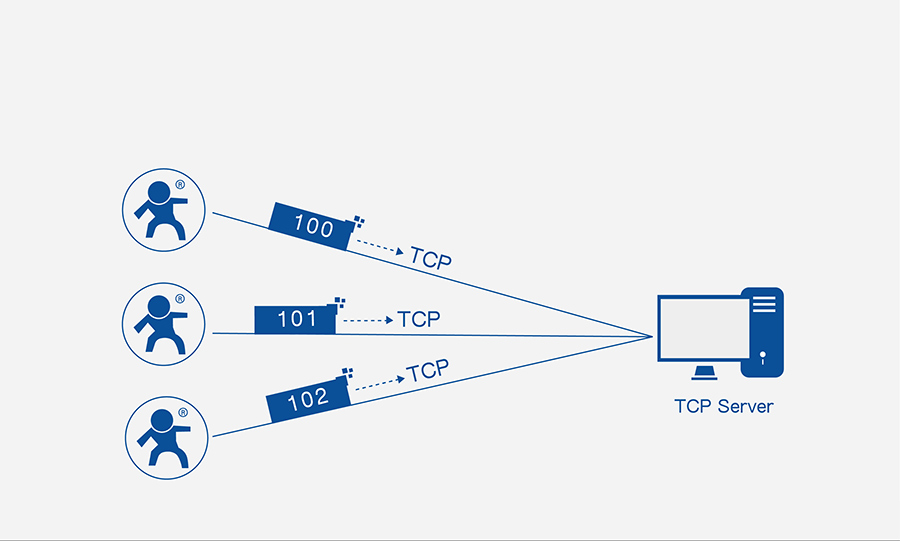

Identity packet function of ethernet to rs485 converters

Identity packet function

When RS485 to Ethernet converter USR-TCP232-304 works as TCP Client, it can send identity packet to
TCP server which can be identification. Identity packet can be IMEI code,
ICCID code and user editable identity packet.

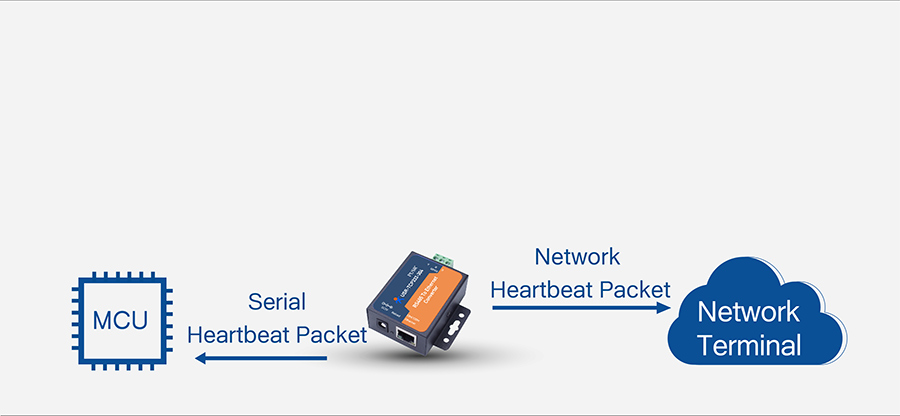

Serial & Network Heartbeat Packet

Serial & Network Heartbeat Packet

RS485 to Ethernet converters USR-TCP232-304 maintain the normal connection with the server by sending
heartbeat packet regularly.

ethernet to rs485 converters supports USR Cloud

USR Cloud

IoT cloud platform that is developed by our company independently. RS485 to Ethernet converters
USR-TCP232-304 support USR Cloud.

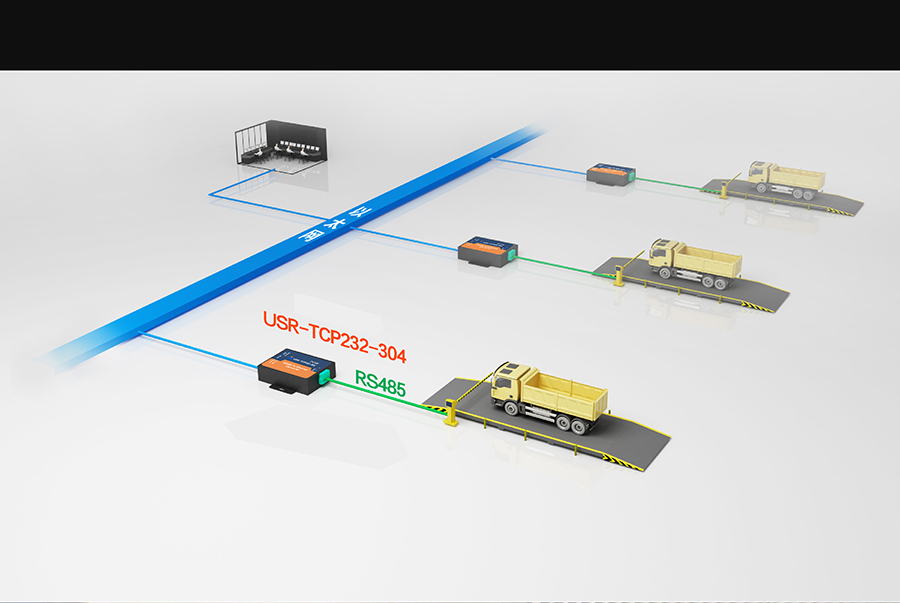

application of ethernet to rs485 converters: Unattended Weighing

Application

[ Unattended Weighing ]

Connect USR-TCP232-304 to barrier gate and it can realize remote control of
barrier gate by Ethernet in control center.

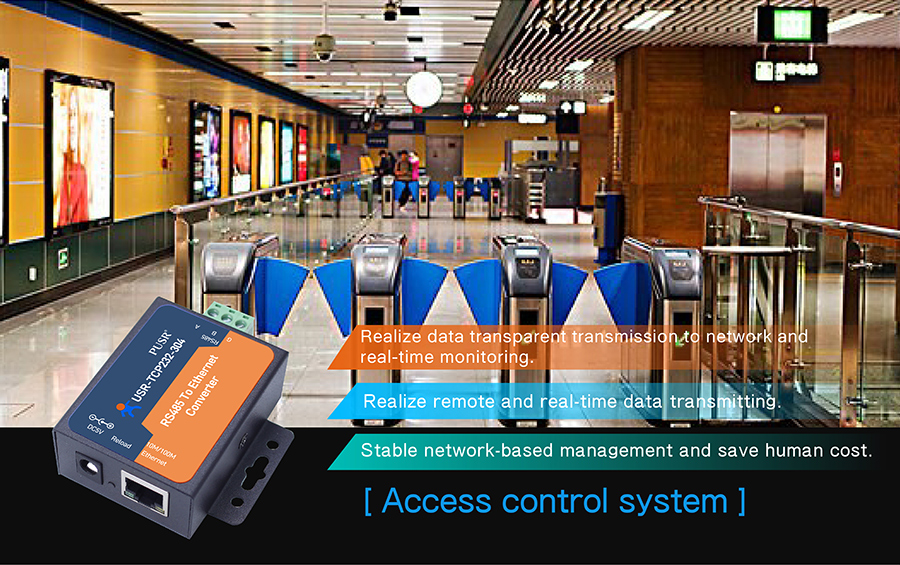

application of ethernet to rs485 converters: access control system

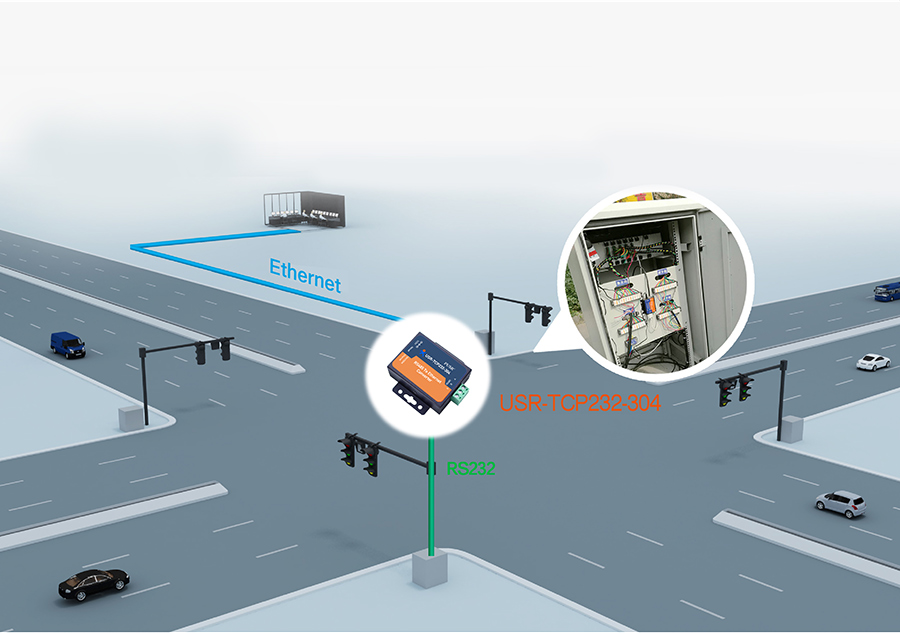

application of rs485 to tcp ip converters: Traffic lights management system

[ Traffic Lights Management System ]

Connect RS485 to Ethernet converter USR-TCP232-304 and it can realize traffic data acquisition and
processing by Ethernet in control center. It can also provide accurate quantitative basis for
traffic dispatch management and urban transport planning Can implement the optimum control for
transportation phenomena such as traffic jam, traffic accident, traffic capacity from a regional
or global perspective.

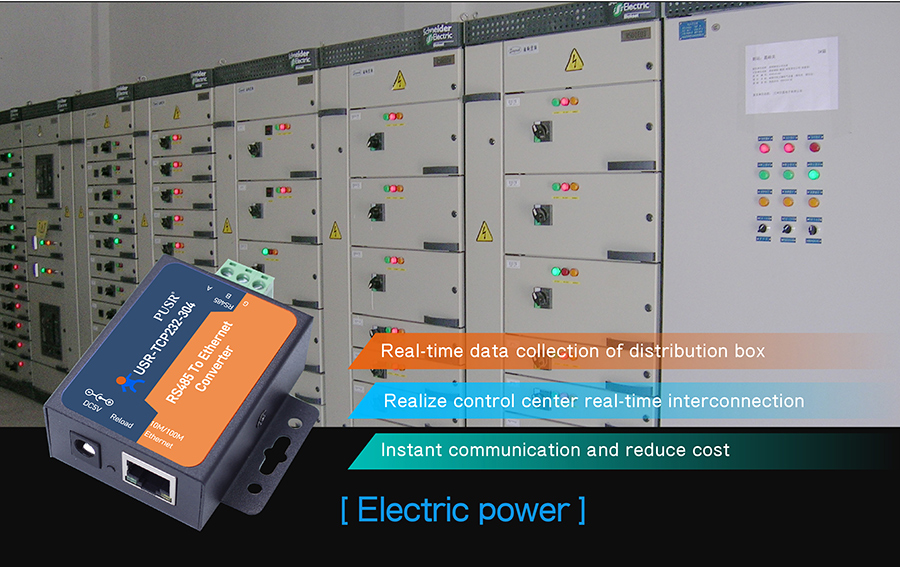

application of rs485 to tcp ip converters: Electric power
RS485 to Ethernet converters
basic function of RS485 to Ethernet converters, wired network

Basic Function

basic function of RS485 to Ethernet converters, wired network
function of RS485 to Ethernet converters: Function Diagram

Function Diagram

work mode of RS485 to Ethernet converters,tcp server mode

Work mode

work mode of RS485 to Ethernet converters,tcp server mode

TCP Server

RS485 to Ethernet converters monitor the set port and waits for a TCP client connection.
Data from the devices will transmit to all successfully-connected via RS485 to Ethernet converters.

work mode of RS485 to Ethernet converters,tcp client mode

TCP client mode

RS485 to Ethernet converters will initiate TCP connection to the destination IP address that configured by the user
and RS485 to Ethernet converters will continuously try to reconnect if establishing TCP connection unsuccessfully.
If the RS485 to Ethernet converters establishe TCP connection to TCP Server successfully, they can realize
bidirectional data transparent transmission between TCP Server and the serial device.

work mode of RS485 to Ethernet converters,UDP mode

UDP mode

RS485 to Ethernet converters will transmit serial data from serial device to target network device by UDP connection.
RS485 to Ethernet converters will listen to port and transmit all received data to serial device.

work mode of RS485 to Ethernet converters,httpsD Client

httpsD Client

Supports https Client mode which can transmit serial data to the https server in https format(GET/POST).

function of RS485 to Ethernet converters:Virtual Com Software

Virtual Com Software

Powerful Virtual Serial Software USR-VCOM

Powerful Virtual Serial Software USR-VCOM

Synchronous Baud Rate

Synchronous Baud Rate

Dynamically change baud rate, data bit, check bit and stop bit of serial device server via network command.

Identity packet function

Identity packet function

When 304 works as TCP Client, it can send identity packet to TCP server which can be identification.
Identity packet can be IMEI code, ICCID code and user editable identity packet.

Serial & Network Heartbeat Packet

Serial & Network Heartbeat Packet

RS485 to Ethernet converters maintain the normal connection with the server by sending heartbeat packet regularly.

Serial Heartbeat Packet

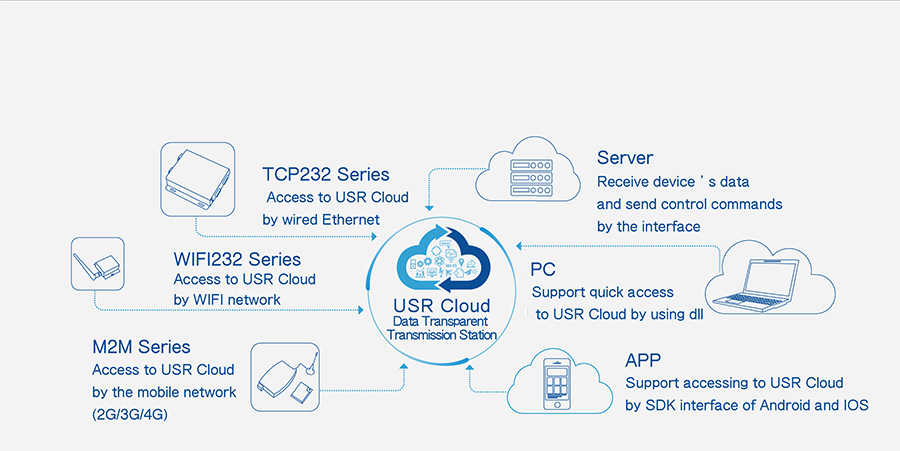

USR Cloud

USR Cloud is consist of Cloud configuration management
platform and Cloud monitoring management platform,
which is a proven IoT SaaS platform. USR Cloud
communicates through the mainstream IoT access
protocol - MQTT protocol. USR Cloud provides
hardware+software supporting service to help users
realize the IoT project quickly.

Click 'https://mp.usriot.com' to find out
the full details of the USR Cloud.

application of RS485 serial device server: Unattended Weighing

Application

[ Unattended Weighing ]

Connect RS485 to Ethernet converters USR-TCP232-304 to barrier gate and they can realize remote control of
barrier gate by Ethernet in control center.

application of RS485 to Ethernet converters: access control system
application of RS485 to Ethernet converters: Traffic lights management system

[ Traffic Lights Management System ]

Connect RS485 to Ethernet converters USR-TCP232-304, and they can realize traffic data acquisition and processing by Ethernet
in control center. RS485 to Ethernet converters can also provide accurate quantitative basis for traffic dispatch management and urban transport planning.
Can implement the optimum control for transportation phenomena such as traffic jam, traffic accident, traffic capacity
from a regional or global perspective.

application of RS485 to Ethernet converters: Electric power

System Information
Processor TI Cortex-M0
Ethernet
Port Number 1
Interface Standard RJ45
Rate 10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection
Protection 2KV electromagnetism isolation, shell insulation blocking
Network Protocol IP, TCP, UDP, DHCP, DNS, https, ARP, ICMP
Buffer Send: 6K bytes, receive: 4K bytes
Serial Port
Port Number 1
Interface Standard RS-485: 3 wire (A+, B-, GND)
Data Bits 5, 6, 7, 8
Stop Bit 1, 2
Check Bit None, Even, Odd, Space, Mark
Baud Rate 600 bps ~ 230.4 Kbps
Flow Control Null
Buffer Receive: 800 bytes
Software
Virtual Serial(USR-VCOM) Windows 2000 or higher (32 bit/64 bit)
Configuration Computer set-up software, serial command, built-in webpage
Basic Parameter
Size 71 x 60 x 25 mm
Operating Temp. -25 ~ 75°C
Storage Temp. -40 ~ 105°C, 5 ~ 95% RH
Input Voltage DC 4.75 ~ 7V
Working Current 150mA @ 5V
Power <1W
More
Warranty 2 years
Accessory 5V1A power supply
Certificate CE/FCC/Rohs
