Features of rs232 to ethernet converter: small size, installed easily.
Basic Function of rs232 to ethernet converter USR-TCP232-302

Basic Function of 1 Port RS232 to Ethernet Converters

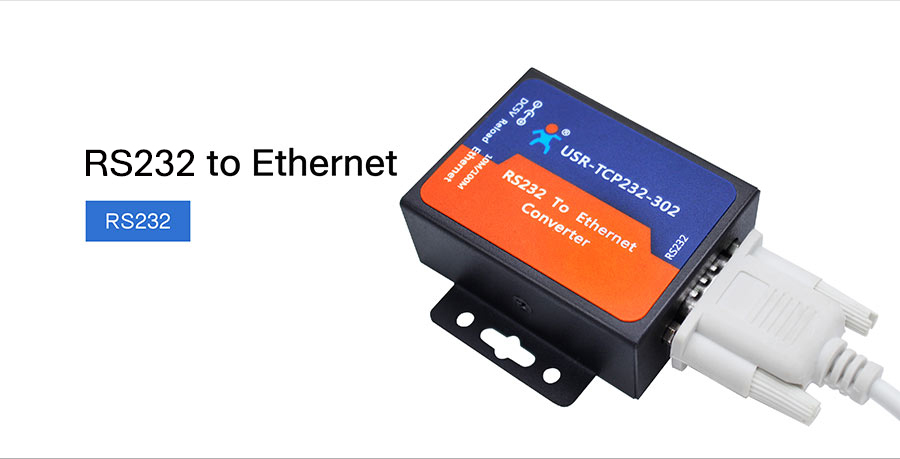

rs232 to ethernet converter USR-TCP232-302: RS232 to Ethernet
rs232 to ethernet converter USR-TCP232-302

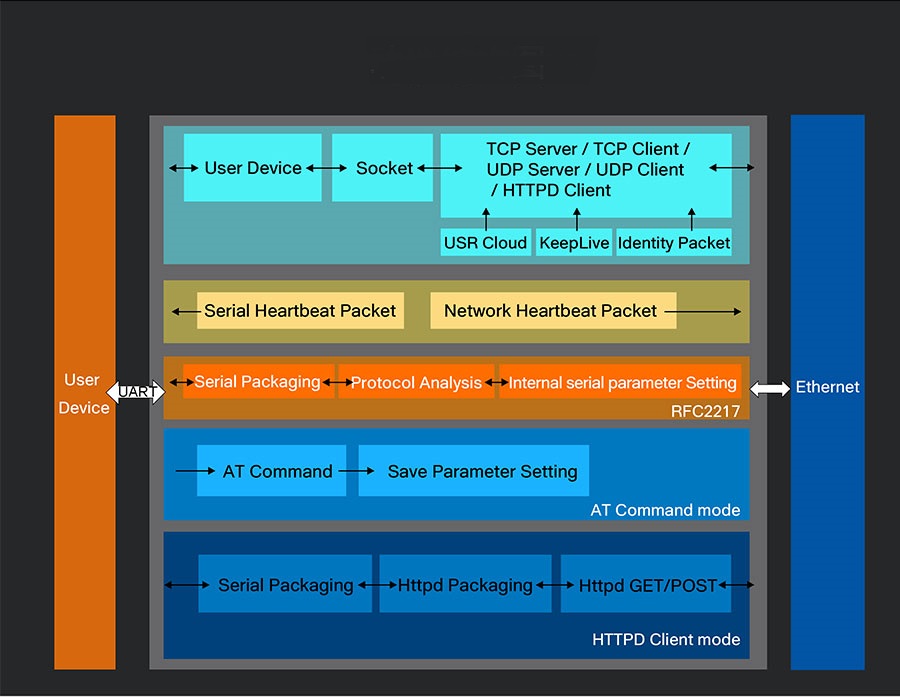

Function Diagram

Work mode: TCP Server mode of rs232 to ethernet converter USR-TCP232-302

Work mode

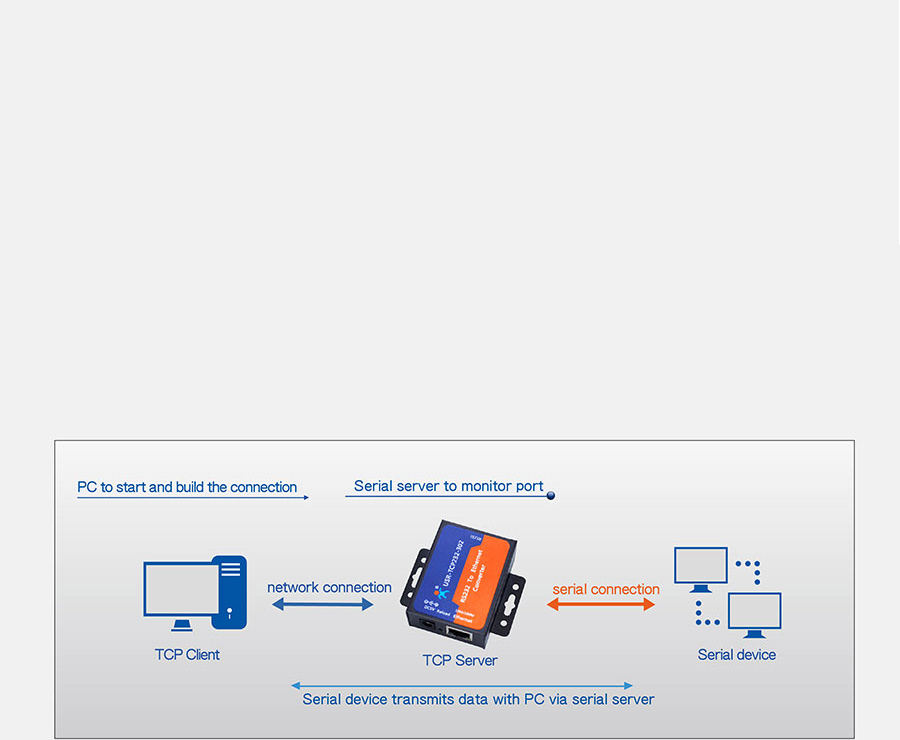

TCP Server

RS232 to Ethernet converters USR-TCP232-302 monitor the set port and waits for a TCP client connection.
Data from the serial device will transmit to all successfully-connected TCP clients.

Work mode: TCP Client mode of of rs232 to ethernet converter USR-TCP232-302

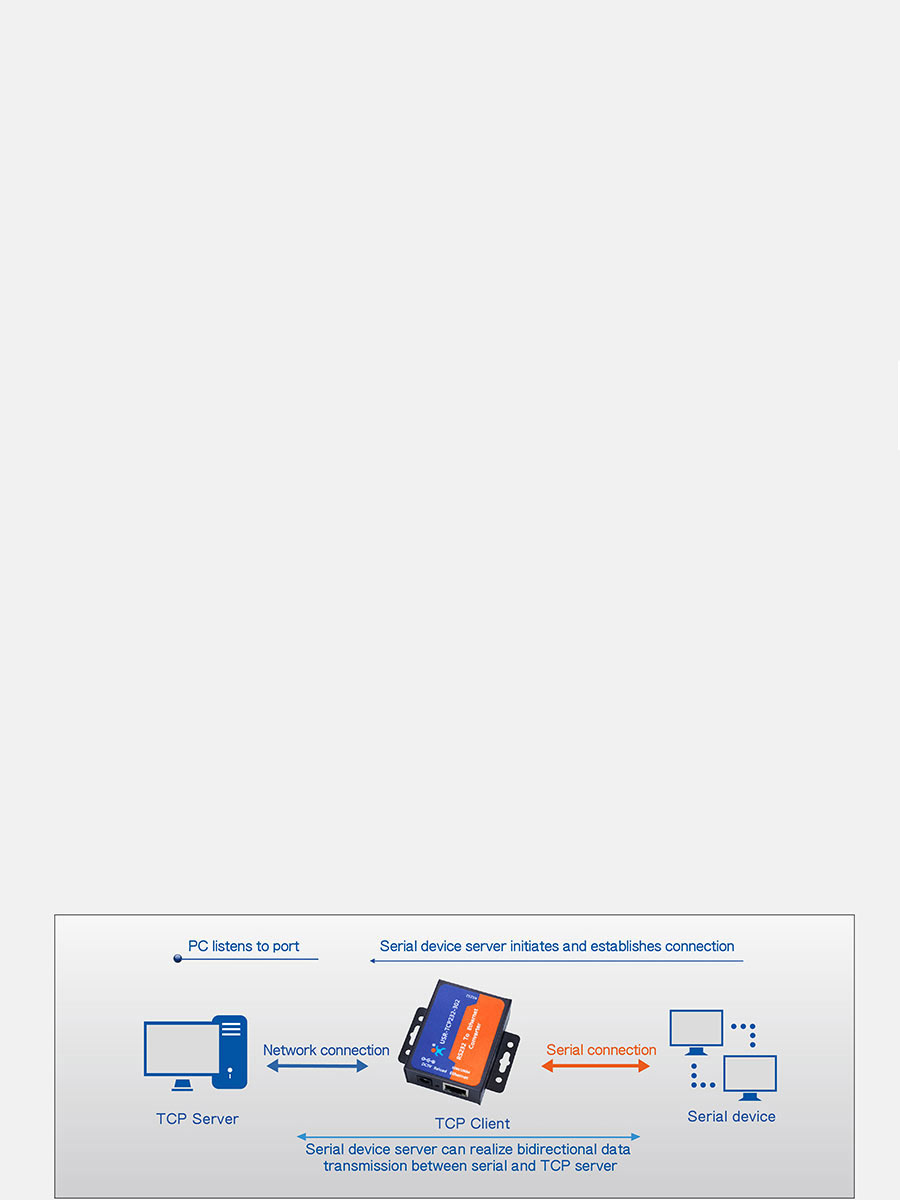

TCP client mode

RS232 to Ethernet converters USR-TCP232-302 will initiate TCP connection to the destination IP address that
configured by the user and USR-TCP232-302 will continuously try to reconnect if establishing TCP connection
unsuccessfully. If the USR-TCP232-302 establishes TCP connection to TCP Server successfully, it can realize
bidirectional data transparent transmission between TCP Server and the serial device.

Work mode: UDP Client of of rs232 to ethernet converter USR-TCP232-302

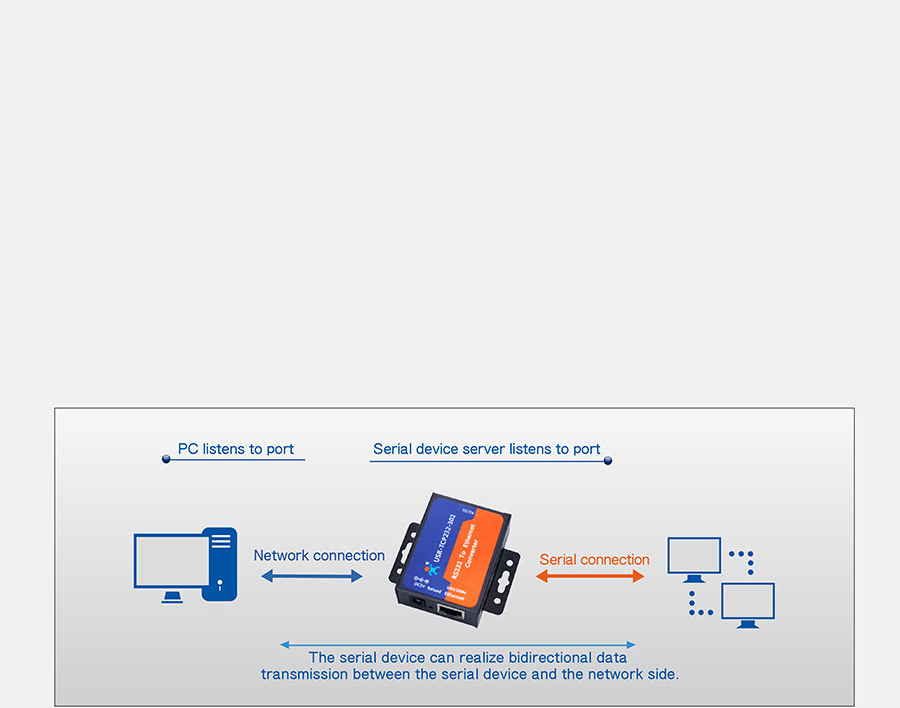

UDP mode

RS232 to Ethernet converters USR-TCP232-302 will transmit serial data from serial device to target network device
by UDP connection. USR-TCP232-302 will listen to port and transmit all received data to serial device.

Work mode: HTTPD Client mode of of rs232 to ethernet converter USR-TCP232-306

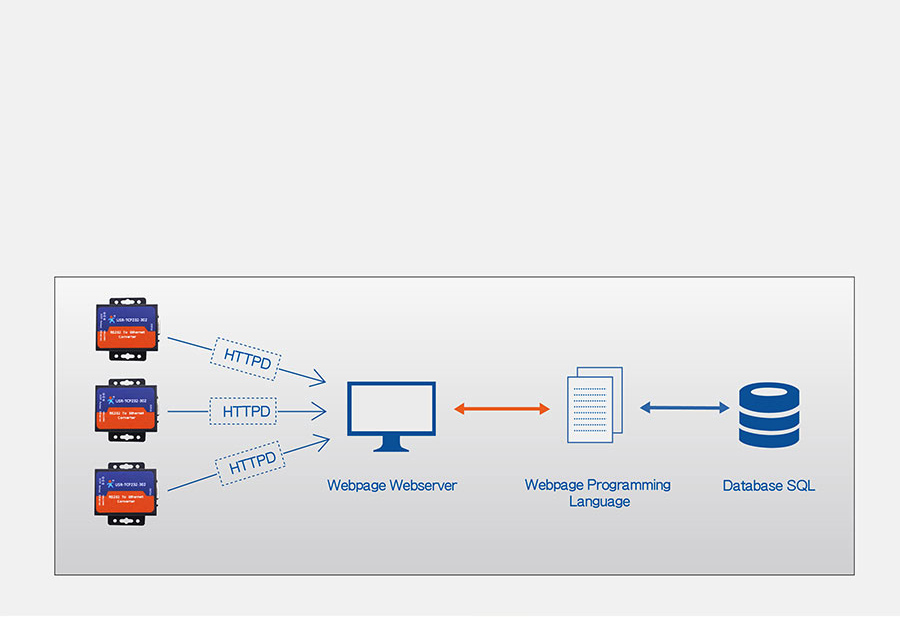

HTTPD Client

RS232 to Ethernet converters USR-TCP232-302 supports HTTPD Client mode which can transmit serial data
to the https server in https format(GET/POST).

rs232 to ethernet converter USR-TCP232-306 supports Virtual Com Software

Virtual Com Software

ethernet to rs232 converter USR-TCP232-302: Synchronous Baud Rate

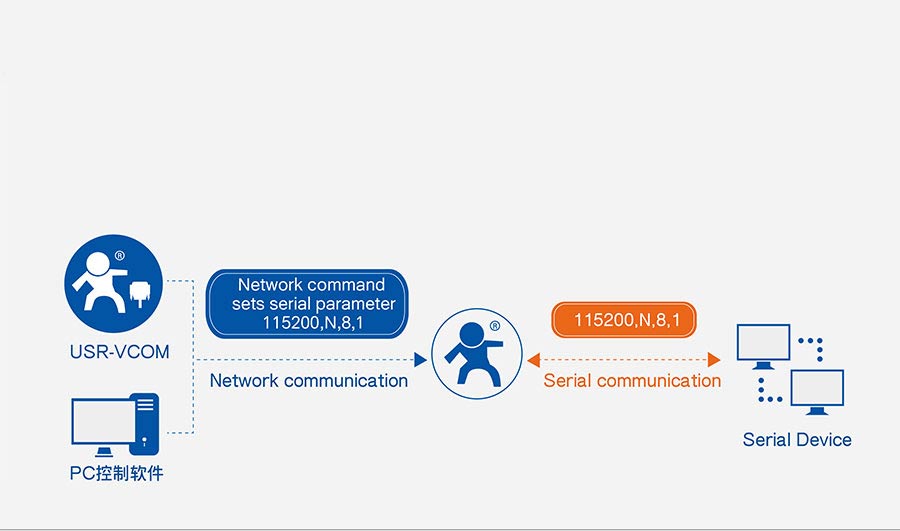

Synchronous Baud Rate

Dynamically change baud rate, data bit, check bit and stop bit of serial device server via network command.

ethernet to rs232 converter USR-TCP232-302: Identity packet function

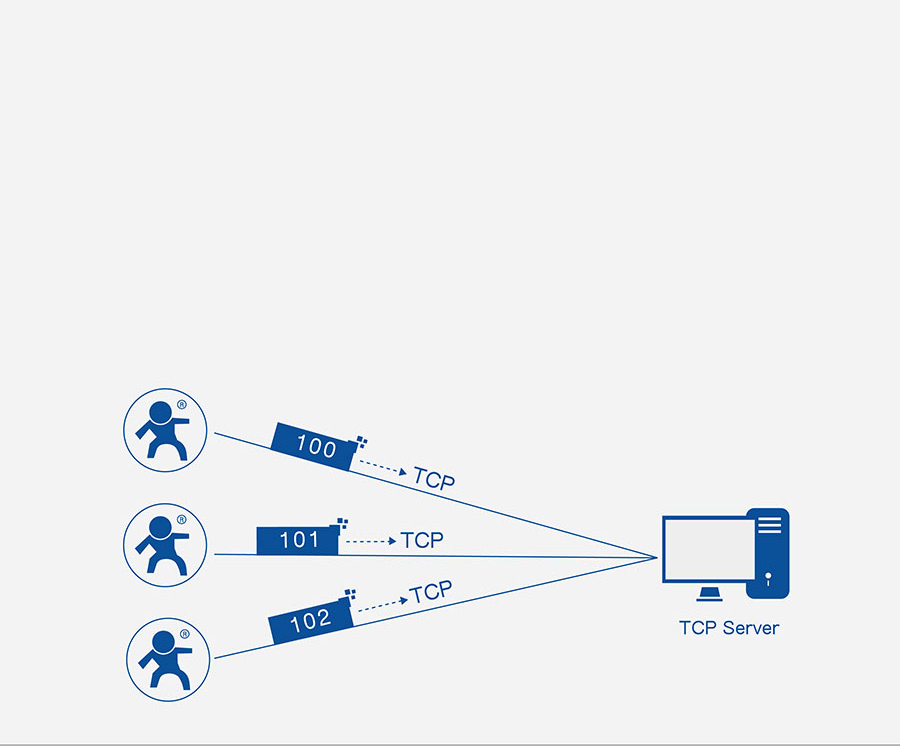

Identity packet function

When RS232 to Ethernet converter USR-TCP232-302 works as TCP Client, it can send identity packet to TCP server
which can be identification. Identity packet can be IMEI code, ICCID code and user editable identity packet.

ethernet to rs232 converter USR-TCP232-302: Synchronous Baud Rate

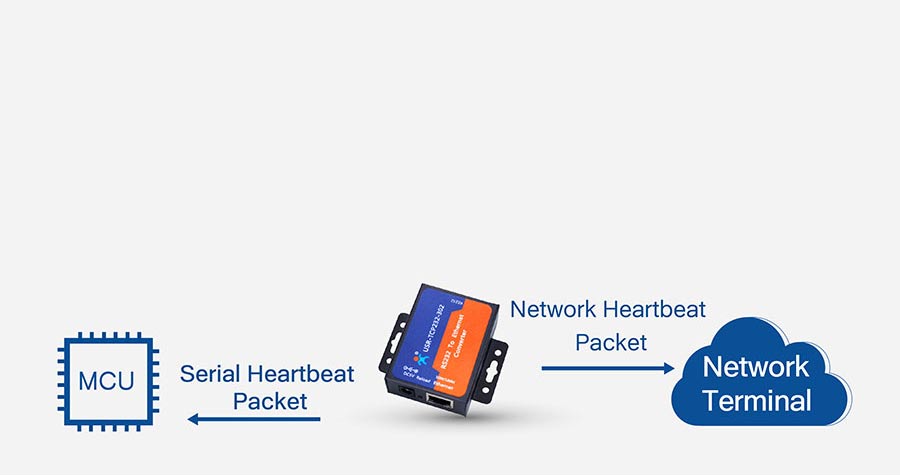

Serial & Network Heartbeat Packet

RS232 to Ethernet converters USR-TCP232-302 maintain the normal connection with the server by
sending heartbeat packet regularly.

Application field of ethernet to rs232 converter : Unattended Weighing

Application

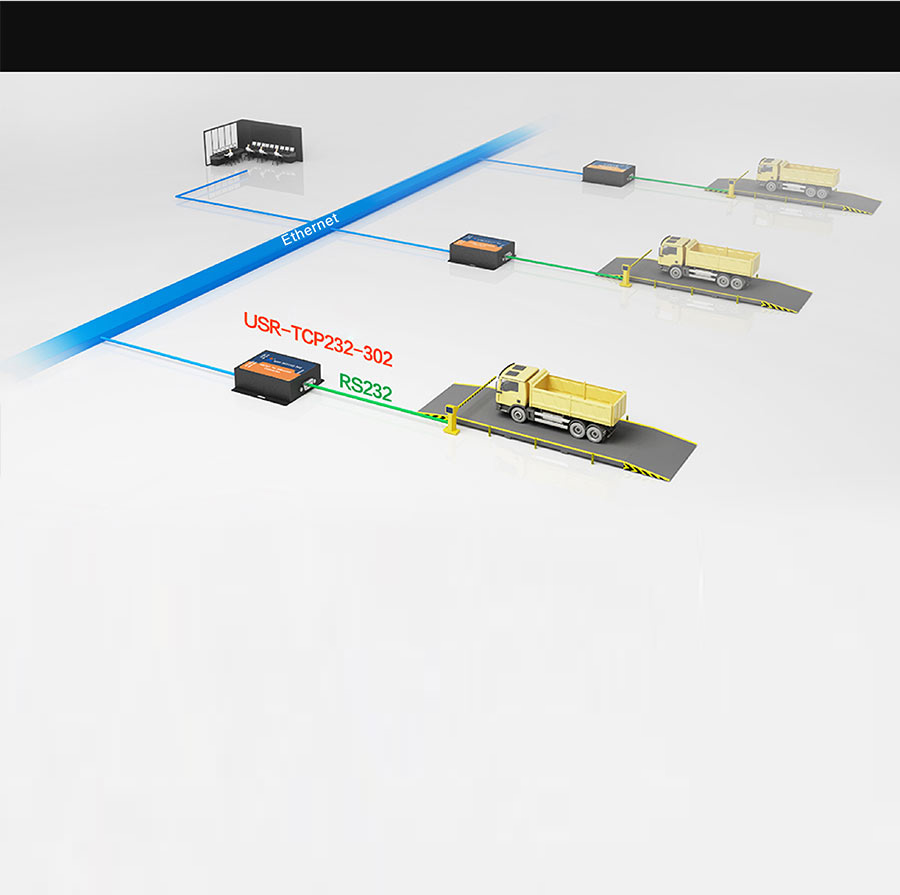

[ Unattended Weighing ]

Connect RS232 to Ethernet converters USR-TCP232-302 to barrier gate and they can realize
remote control of barrier gate by Ethernet in control center.

Application field of ethernet to rs232 converter : access control system

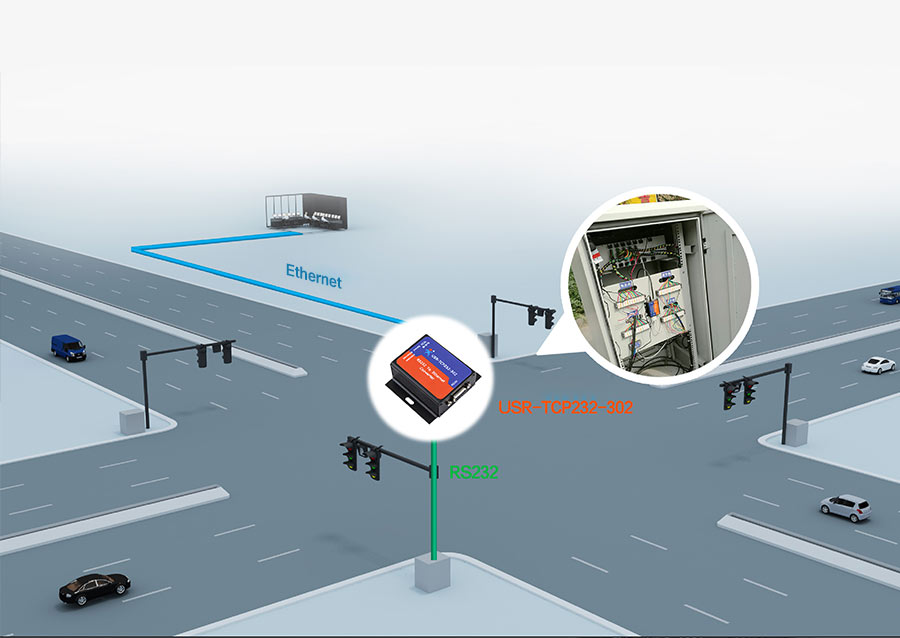

Application field of ethernet to rs232 converter: Traffic Lights Management System

[ Traffic Lights Management System ]

Connect RS232 to Ethernet converter USR-TCP232-302 and it can realize traffic data acquisition and processing
by Ethernet in control center. It can also provide accurate quantitative basis for traffic dispatch
management and urban transport planning Can implement the optimum control for transportation phenomena
such as traffic jam, traffic accident, traffic capacity from a regional or global perspective.

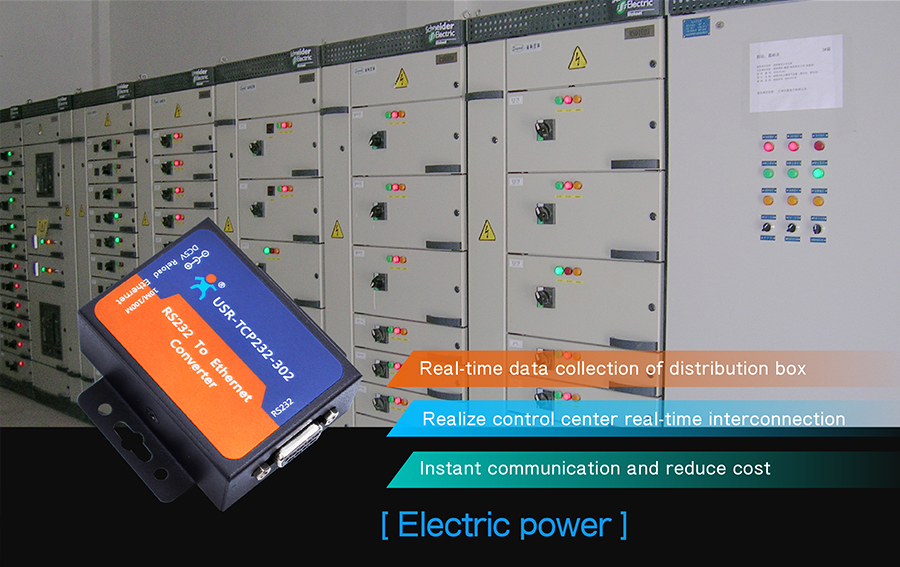

Application field of ethernet to rs232 converter: electric power
Application Field of RS232 to Ethernet converters: electric power
Basic Function of serial to ethernet converterUSR-TCP232-302

Basic Function

serial to ethernet converter USR-TCP232-302: RS232 to Ethernet
Serial RS232 RS485 RS422 Ethernet converter USR-TCP232-302

Function Diagram

Work mode: TCP Server mode of RS232 to Ethernet converters USR-TCP232-302

Work mode

TCP Server

RS232 to Ethernet converters monitor the set port and waits for a TCP client connection.
Data from the serial device will transmit to all successfully-connected via serial device server.

Work mode: TCP Client mode of of RS232 to Ethernet converters USR-TCP232-302

TCP client mode

RS232 to Ethernet converters will initiate TCP connection to the
destination IP address that configured by the user.
RS232 to Ethernet converters will continuously try to
reconnect if establishing TCP connection unsuccessfully.
If RS232 to Ethernet converters establishe TCP connection
to TCP Server successfully, they can realize
bidirectional data transparent transmission between
TCP Server and the serial device.

Work mode: UDP Client of RS232 to Ethernet converters USR-TCP232-302

UDP mode

RS232 to Ethernet converters will transmit serial data from serial device to target network device by UDP connection.
RS232 to Ethernet converters listen to port and transmit all received data to serial device.

Work mode: HTTPD Client mode of of RS232 to Ethernet converters USR-TCP232-306

HTTPD Client

Supports HTTPD Client mode which can transmit serial data to the https server in https format(GET/POST).

RS232 to Ethernet converters USR-TCP232-306: Virtual Com Software

Virtual Com Software

RS232 to Ethernet converters USR-TCP232-306: Synchronous Baud Rate

Synchronous Baud Rate

Dynamically change baud rate, data bit, check bit and stop bit of serial device server via network command.

RS232 to Ethernet converters USR-TCP232-302: Identity packet function

Identity packet function

When 302 works as TCP Client, it can send identity packet to TCP server which can be identification.
Identity packet can be IMEI code, ICCID code and user editable identity packet.

RS232 to Ethernet converters USR-TCP232-302: Synchronous Baud Rate

Serial & Network Heartbeat Packet

RS232 to Ethernet converters maintain the normal connection with the server by sending heartbeat packet regularly.

Application Field of RS232 to Ethernet converters: Unattended Weighing

Application

[ Unattended Weighing ]

Connect RS232 to Ethernet converters USR-TCP232-302 to barrier gate, they can realize remote control of
barrier gate by Ethernet in control center.

Application Field of RS232 to Ethernet converters: access control system
Application Field of RS232 to Ethernet converters: Traffic Lights Management System

[ Traffic Lights Management System ]

Connect sRS232 to Ethernet converters USR-TCP232-302 and they can realize traffic data acquisition and processing by Ethernet in control center.
RS232 to Ethernet converters also provide accurate quantitative basis for traffic dispatch management and urban transport planning
Can implement the optimum control for transportation phenomena such as traffic jam, traffic accident, traffic capacity from a regional or global perspective.

Application Field of RS232 to Ethernet converters: electric power
